PRO3150KO > Dart SBC with spread rails

PRO3150KO - $591.80

Dart SBC with spread rails
8" deep

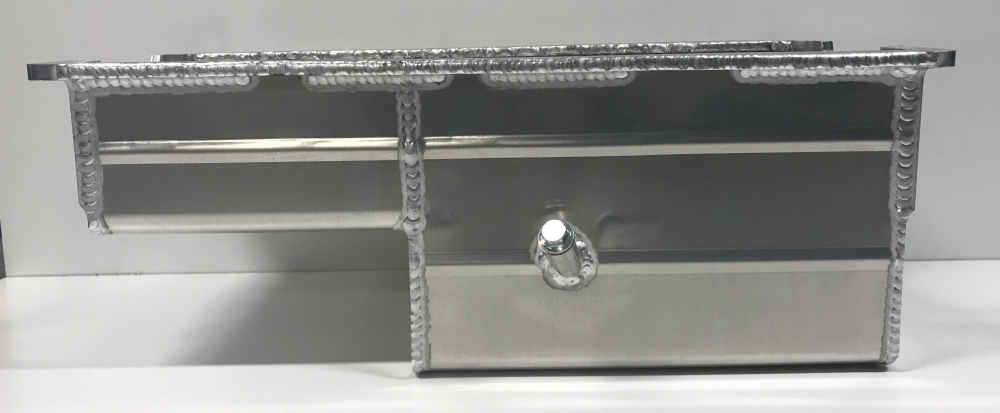

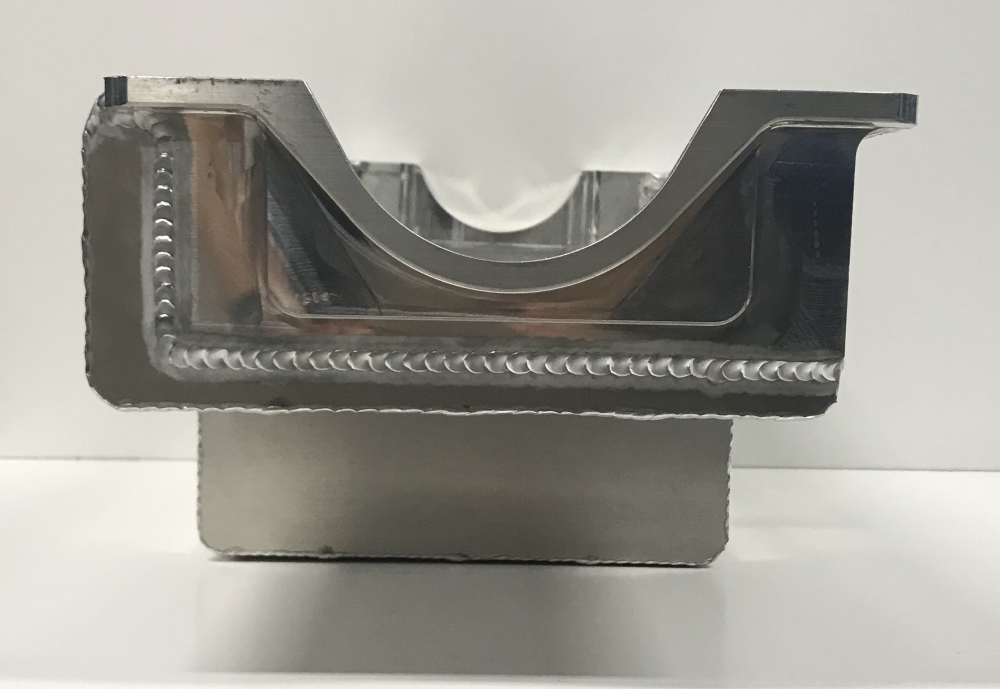

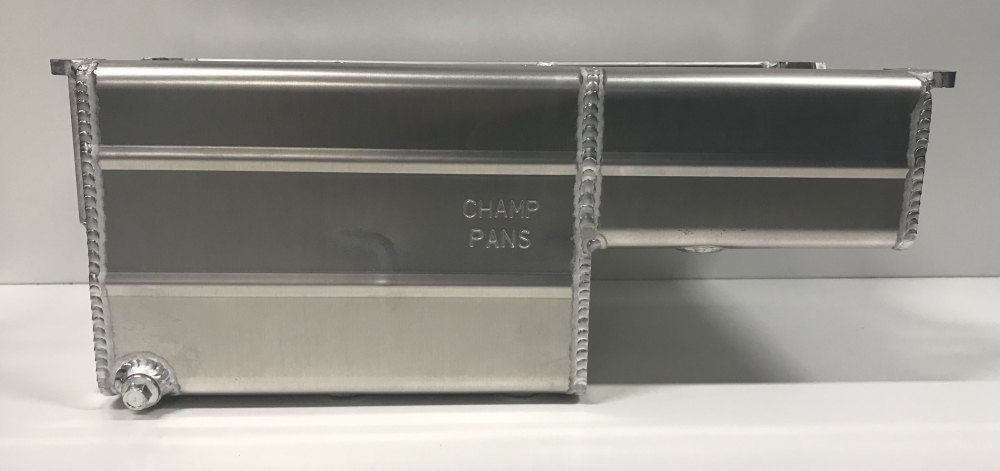

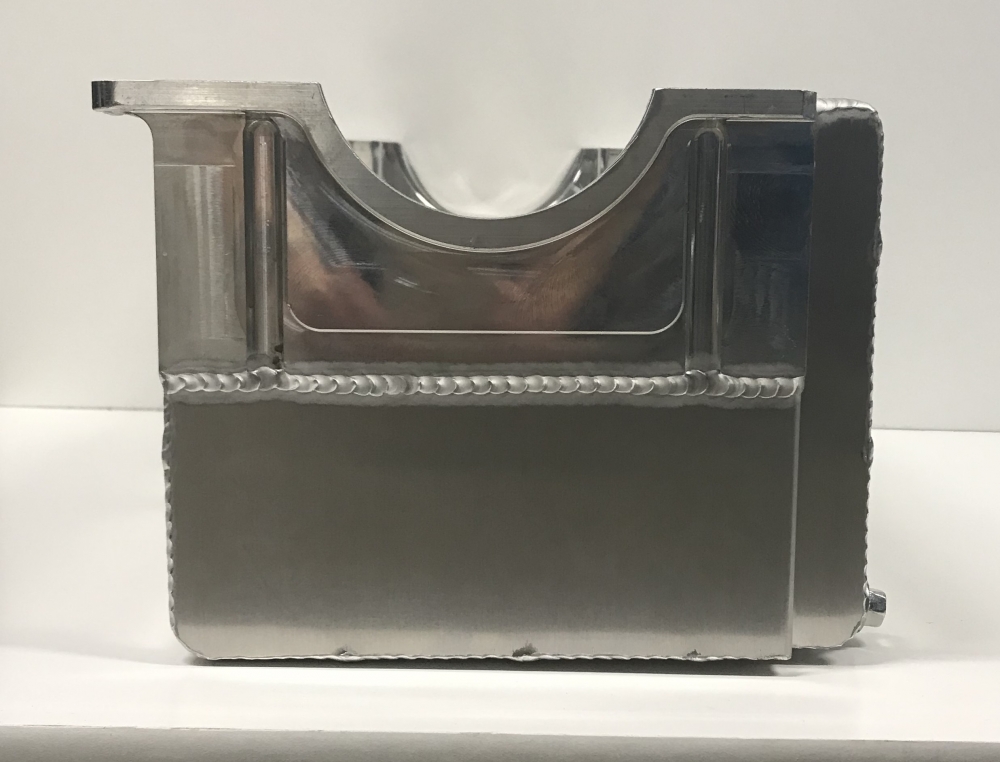

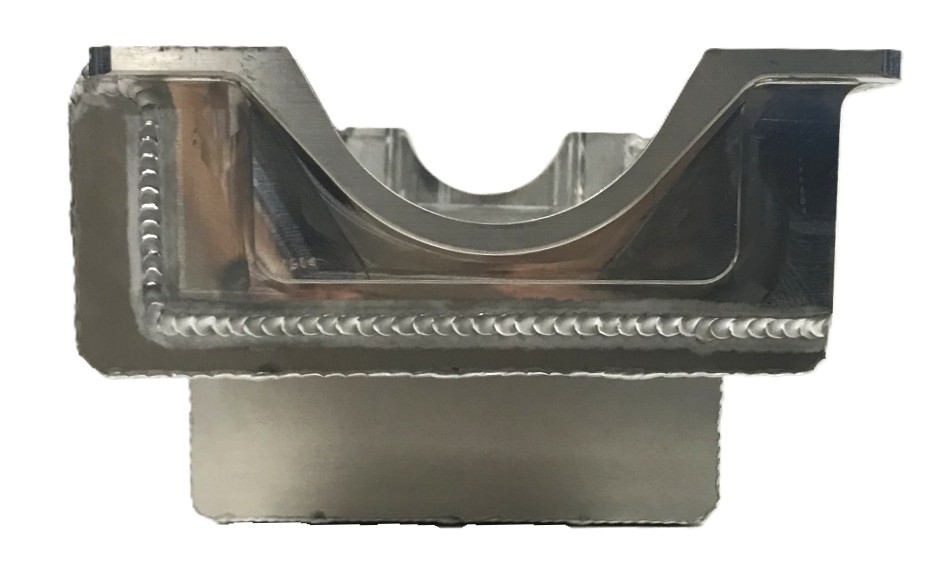

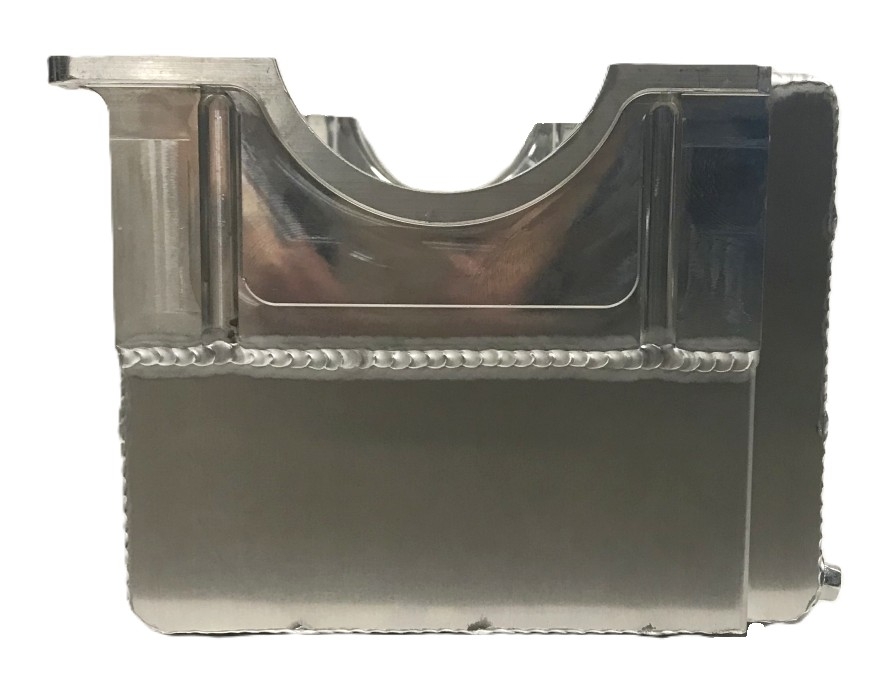

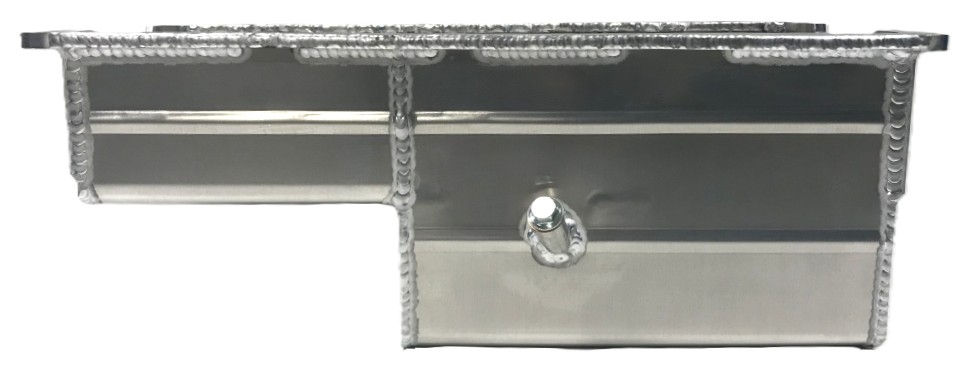

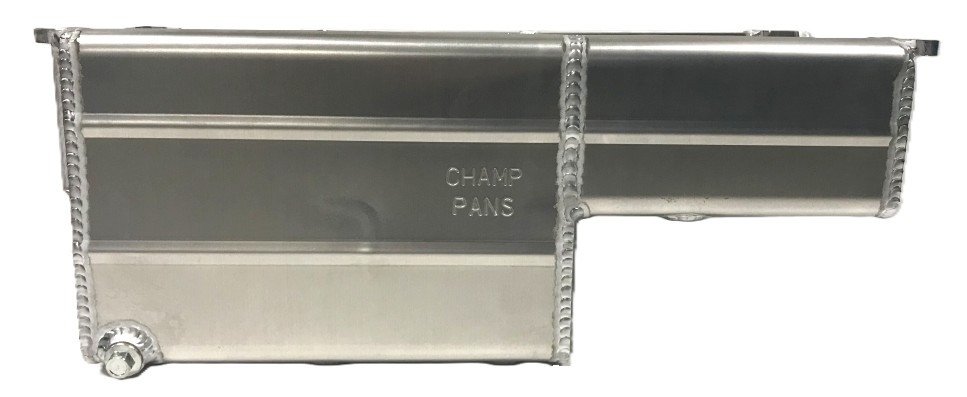

Description:This aluminum wet sump oil pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:

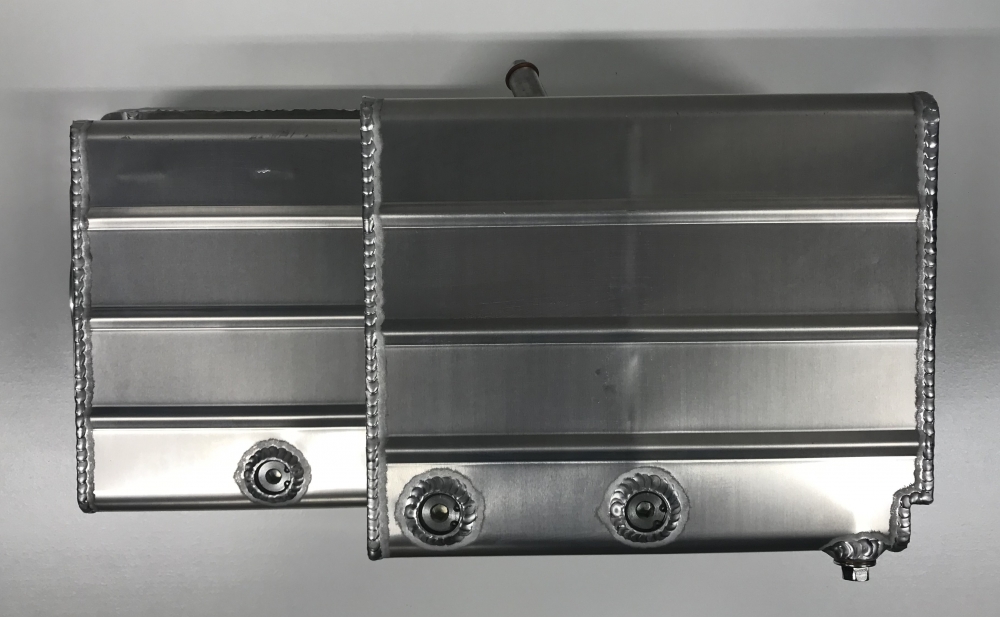

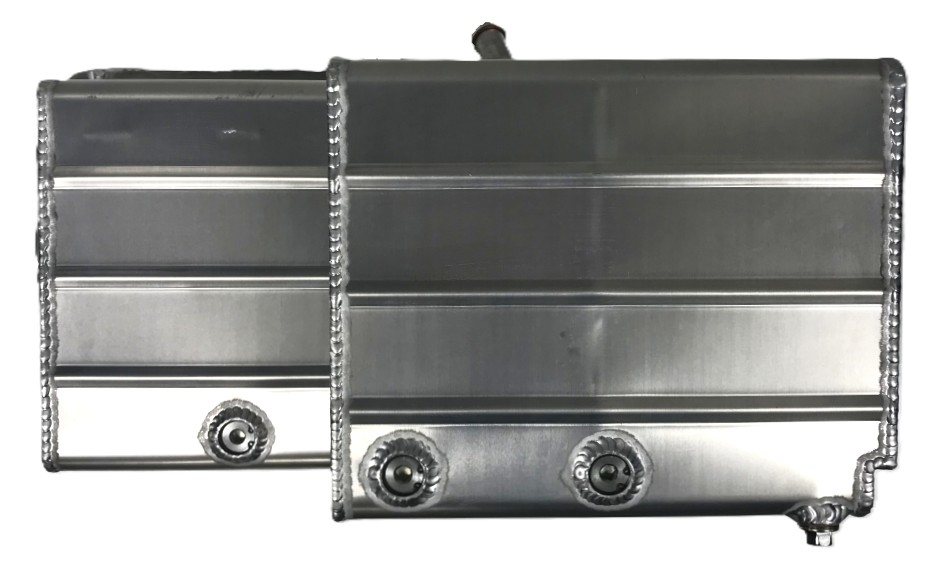

- a kick out on the right side
- one 6” trapdoor

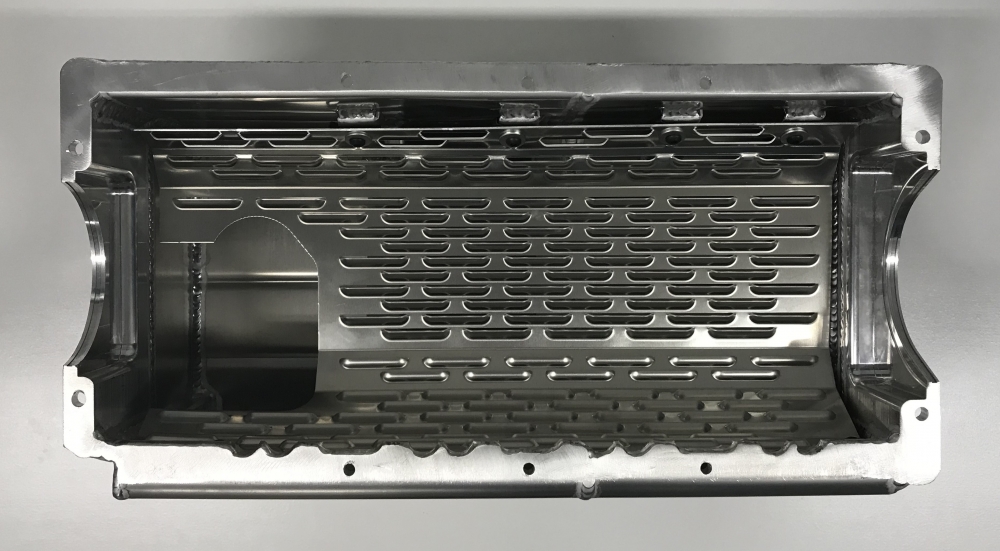

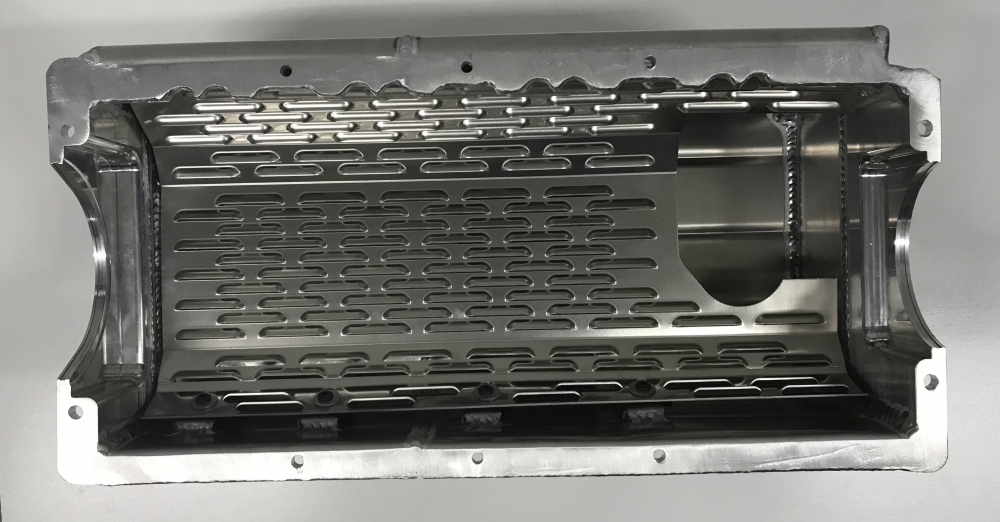

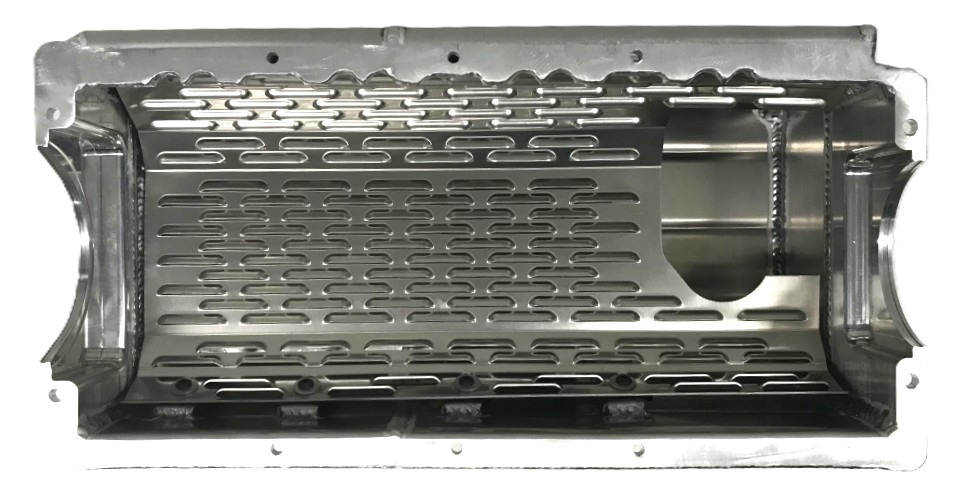

- a louvered windage tray
- a provision for a dipstick assembly

No pan gasket required.

Oil capacity: 9 quarts with filter

Use: Circle track, marine, road race, street or strip

Dipstick: Use JR131

Starter: Mini-starter

Dimensions: 12 1/4” L x 10 1/4" W x 8" H

Weight: 10 1/2 lbs
