PRO3100KO > Dart SBC with spread rails

PRO3100KO - $708.75

Dart SBC with spread rails
7 1/4" deep

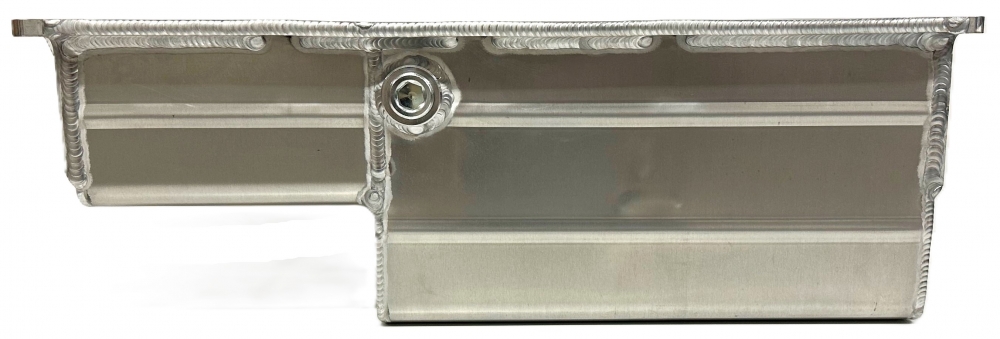

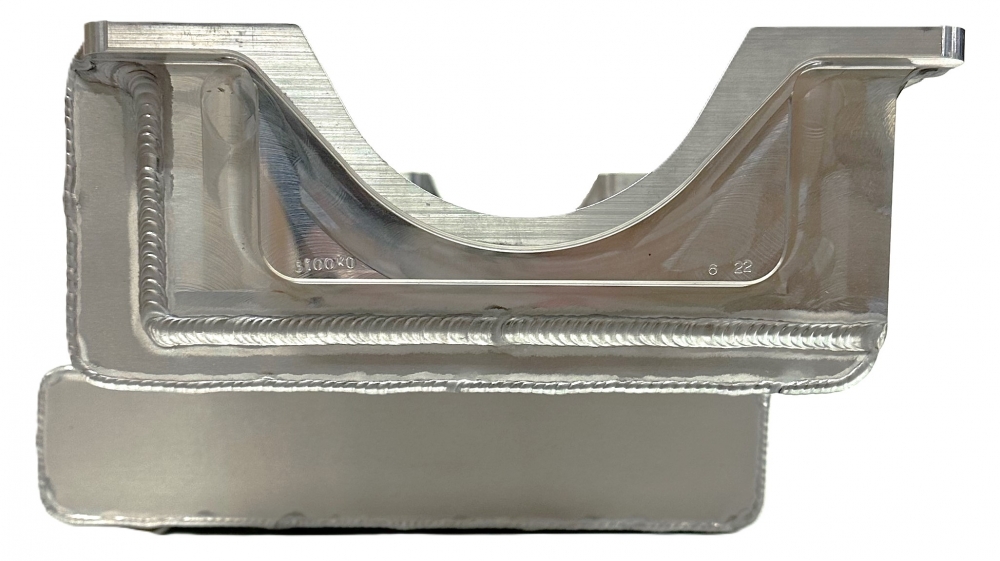

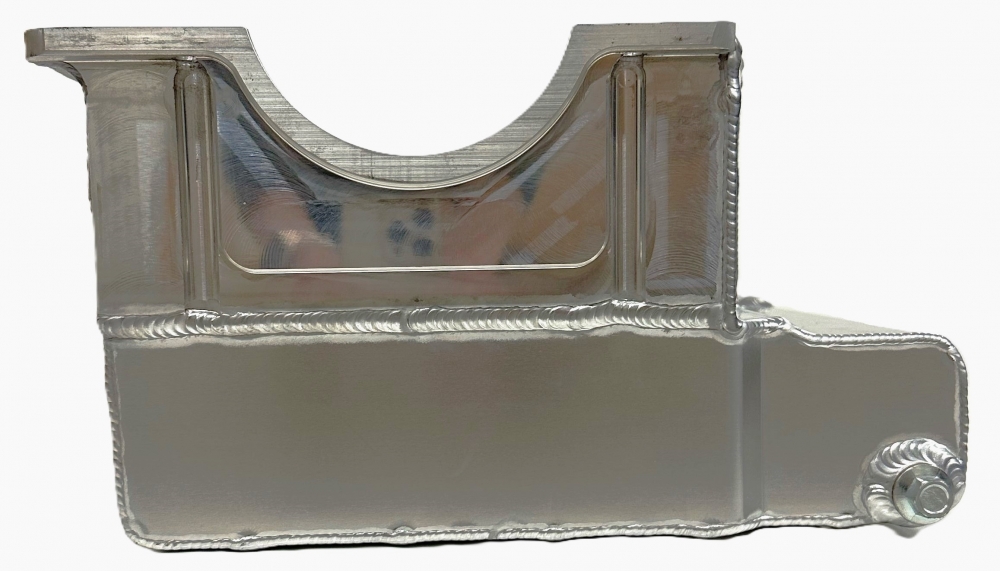

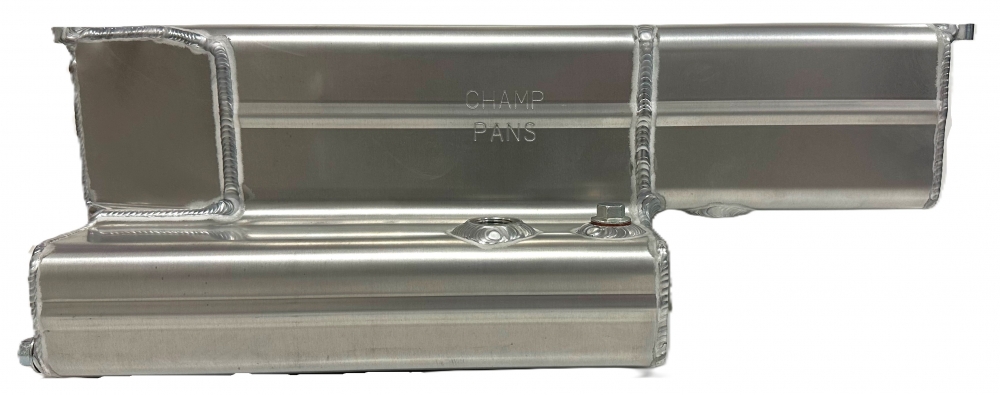

Description:This aluminum wet sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:
- a kick out on the right side
- access plugs for the right side pan rail

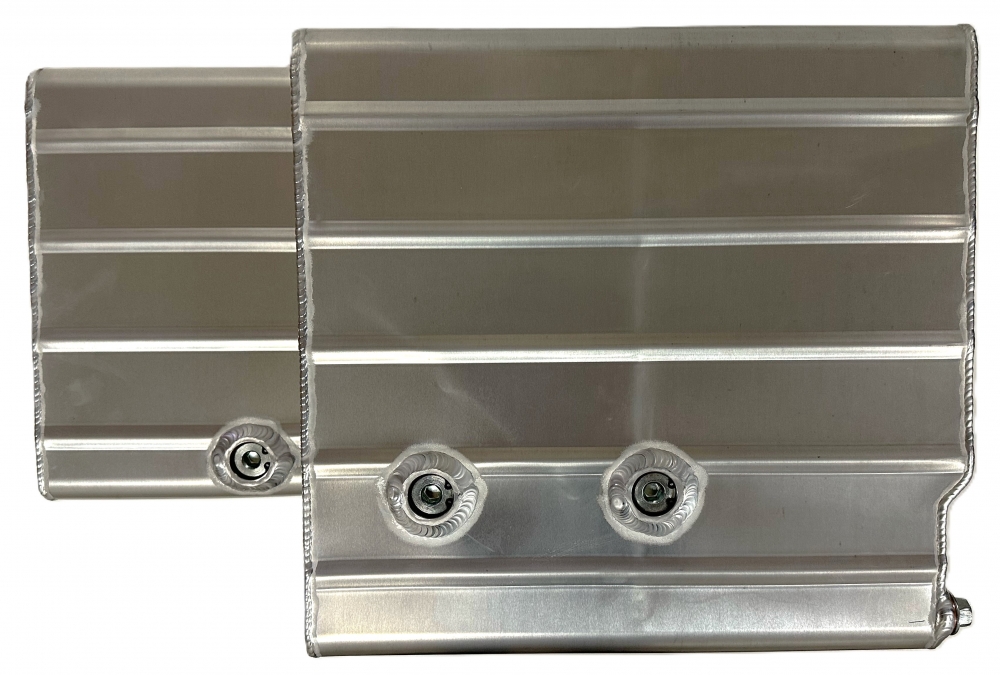

- four trapdoors

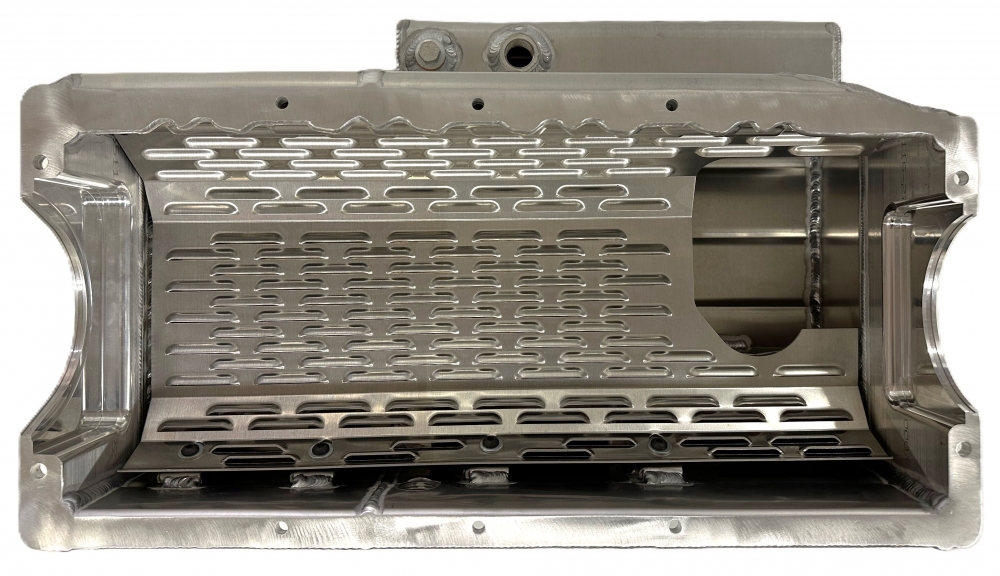

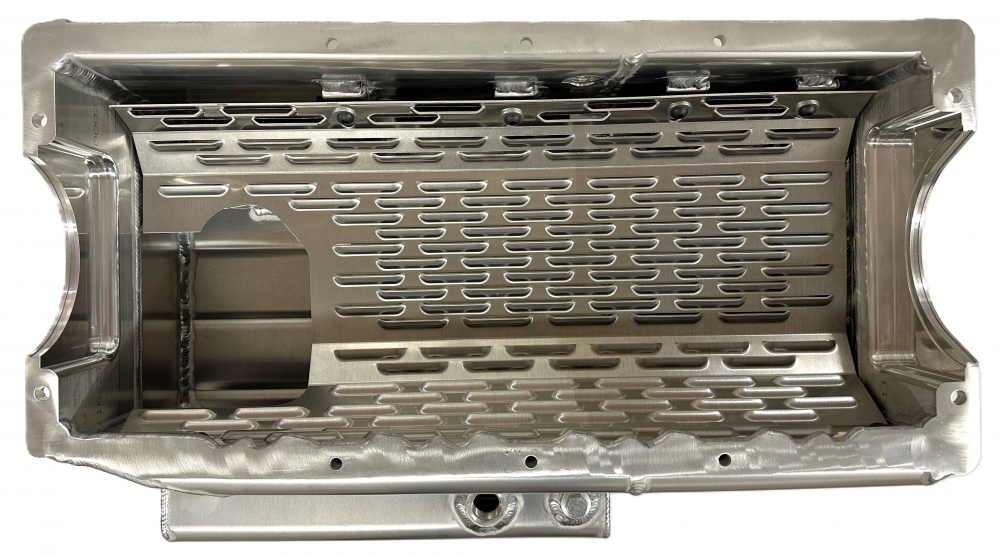

- a louvered windage tray
- an oil check level plug

No pan gasket required.

Oil capacity: 9 quarts with filter

Use: Circle track

Starter: Mini-starter

Dimensions: 13 1/4” L x 12 3/4" W x 7 1/4" H

Weight: 11 lbs

Contact Us About This Product

Related Products

Name Application Info Price
100BB M-77HV/-99HV/10770 3/4” x 7” deep pickup $39.00
1008SB M-55HV/10550/10550C/10550ST 5/8" x 7" deep pickup $39.00
1703SB 10552/10552C/100552ST/10555/10555C/10555ST 3/4" x 7" deep pickup $48.75
1704SB M155HV/10551/10551ST 3/4" x 7" deep pickup $48.75
LT-9 PRO3100KO/3102KO Louvered windage tray $47.00
1027SB M-55/10550/10550C/10550ST 5/8" x 7" deep pickup $48.00
