PRO2425 > Big Block Chevrolet Gen VI

PRO2425 - $747.18

Big Block Chevrolet Gen VI
8" deep

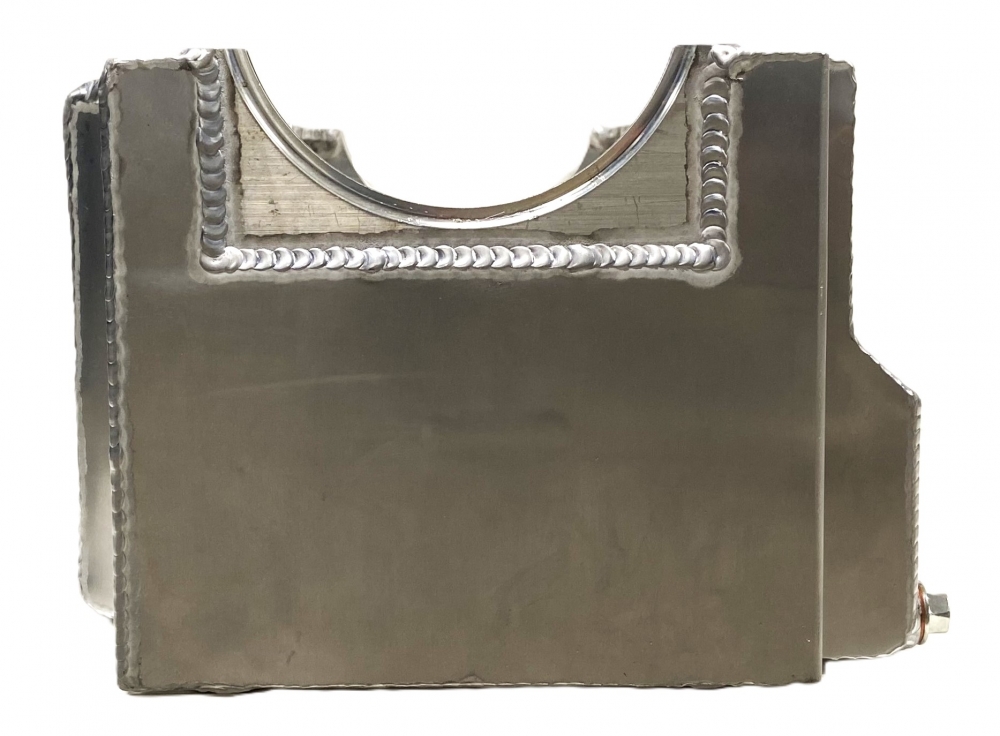

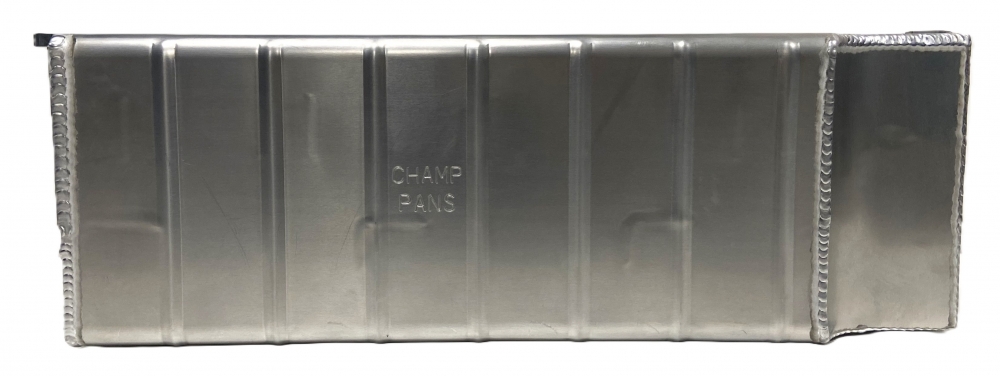

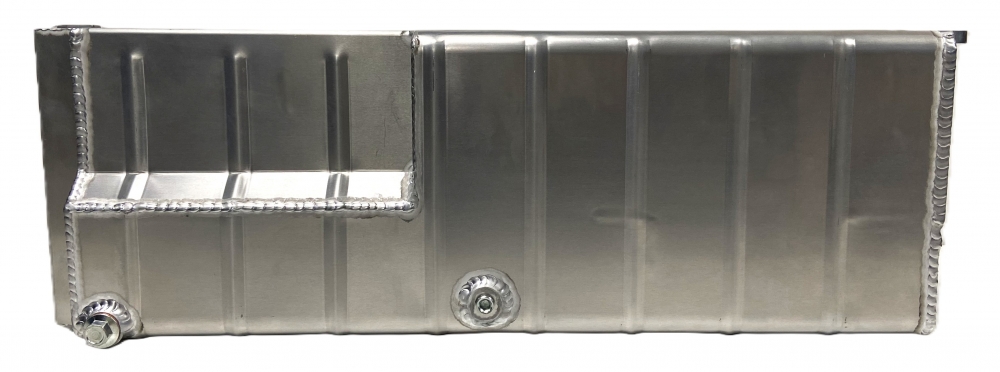

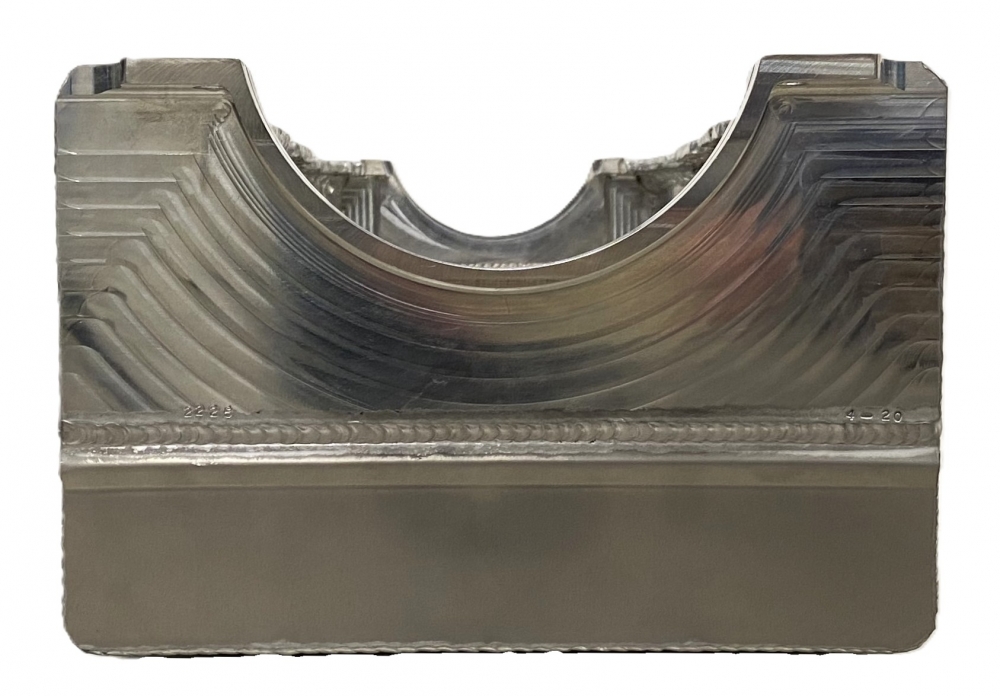

Description:This aluminum wet sump oil pan is for the Big Block Chevrolet Gen VI. This oil pan features:
- a double kick out
- .100" aluminum

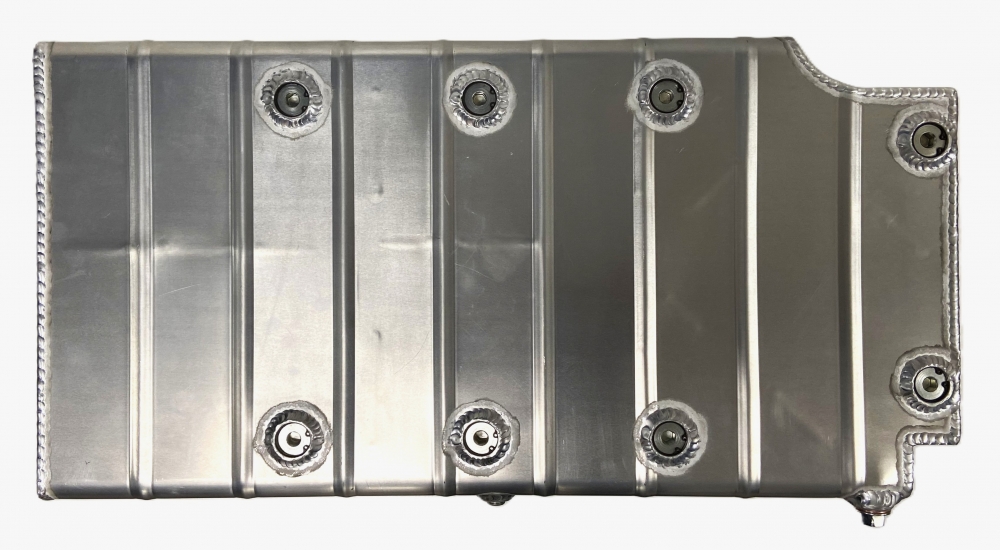

- access plugs in the bottom for the pan rails
- seven trapdoors
- relocated bolt holes at the main caps (three on each side)

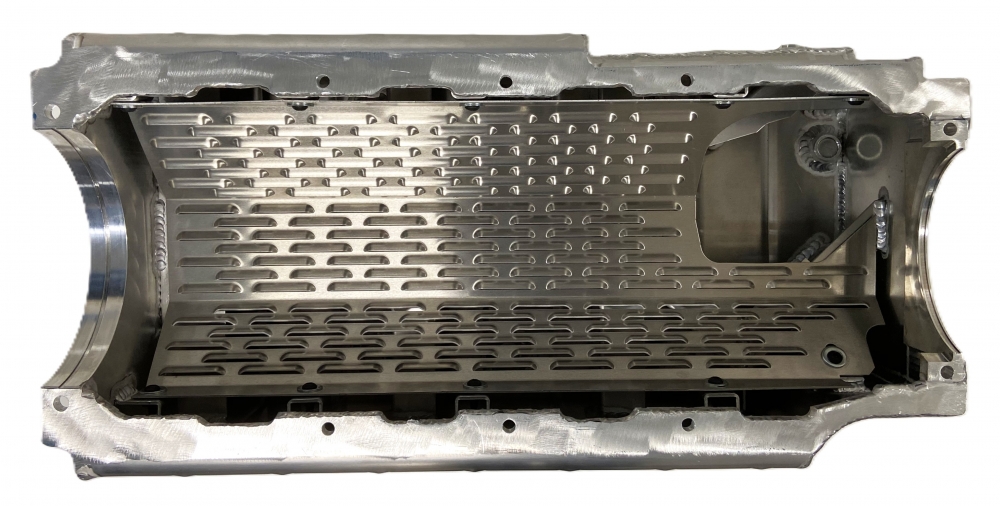

- a removable louvered windage tray
- a provision for a dipstick

No pan gasket required.

It will clear a 4 3/4" stroke.

A hole relocation template is provided.

Oil capacity: 12 quarts with filter

Use: Marine, street or strip

Dipstick: Use JR133

Dimensions: 8" deep
