PRO2408 > Big Block Chevrolet Gen VI

PRO2408 - $732.25

Style:
Big Block Chevrolet Gen VI
Dimensions:
8" deep

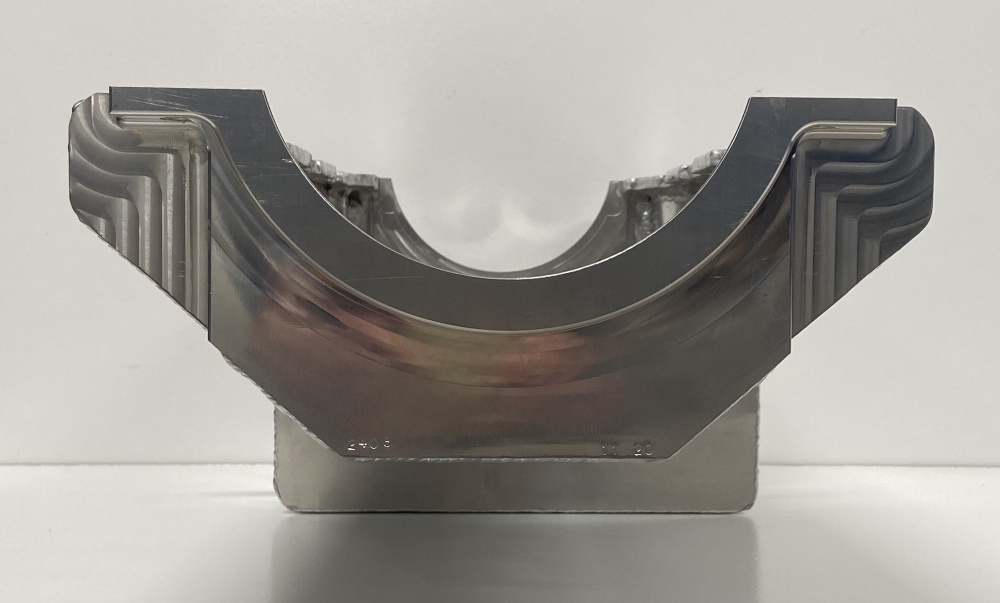

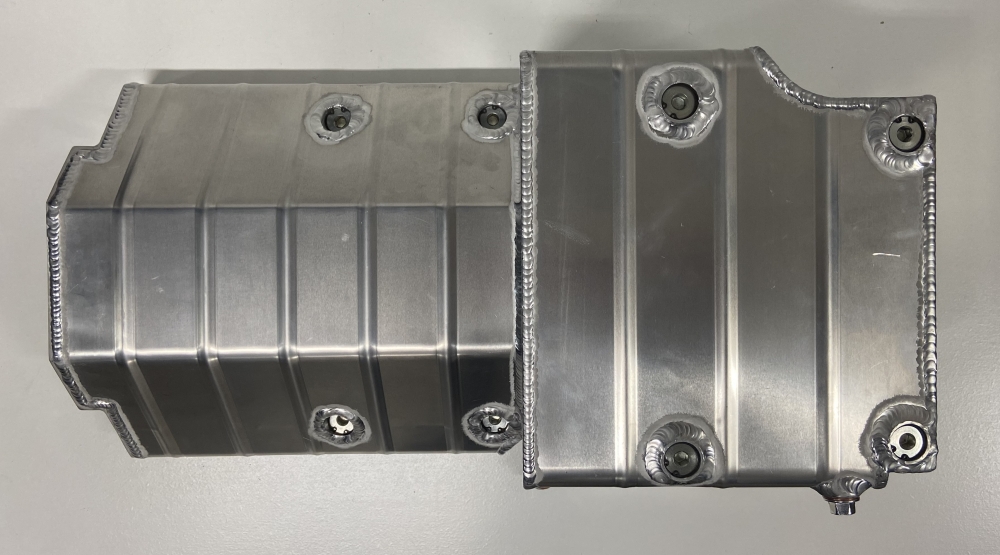

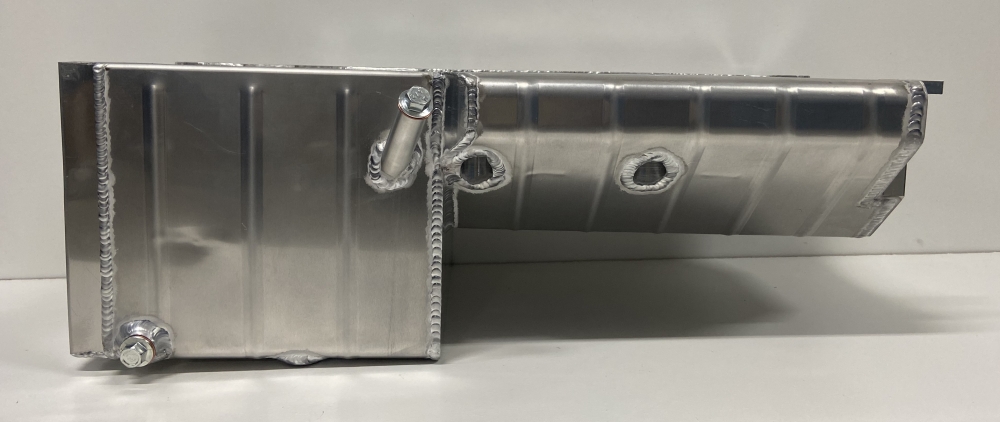

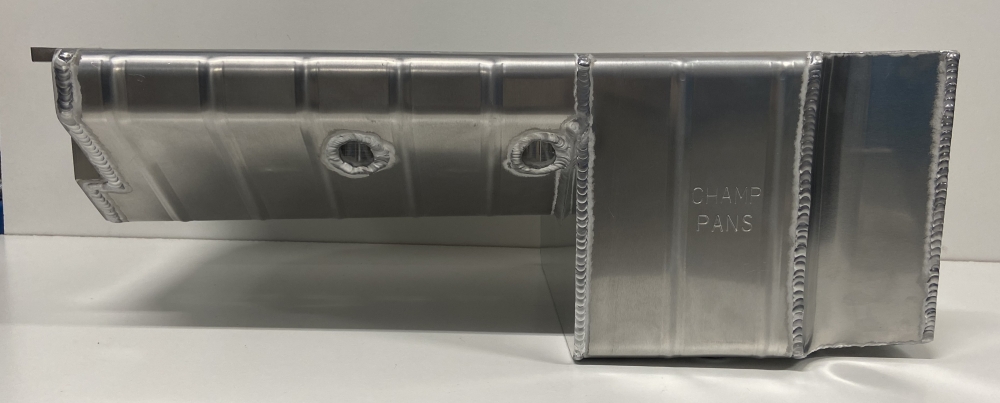

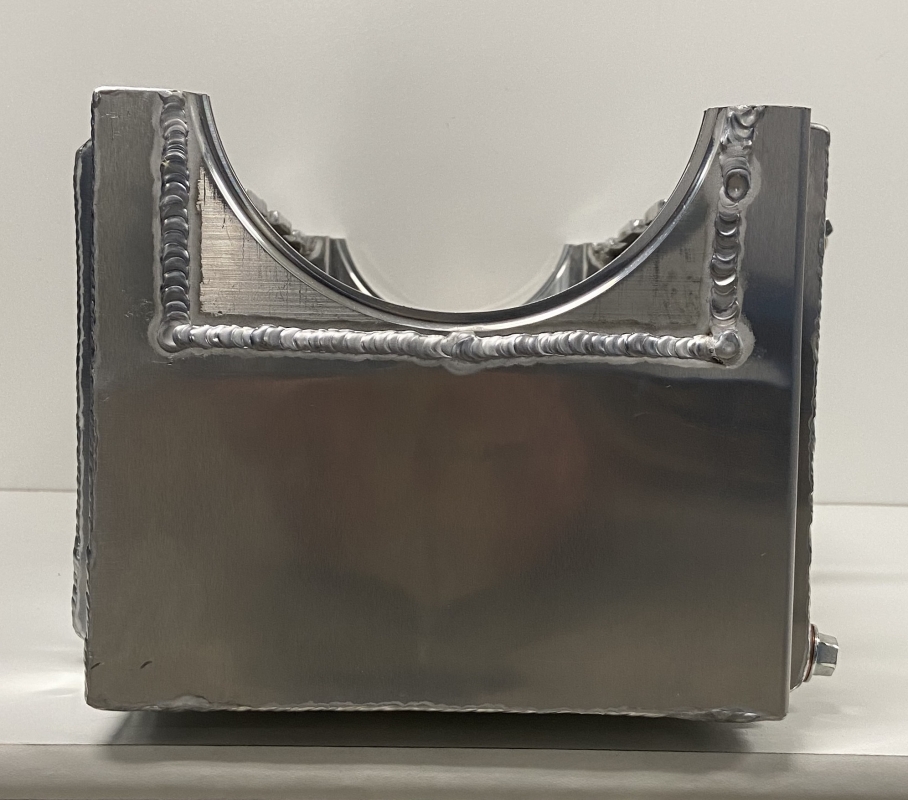

Description:This aluminum wet sump oil pan is for the Big Block Chevrolet Gen VI engines. This oil pan features:
- a double kick out for maximum oil collection from rotating assemblies

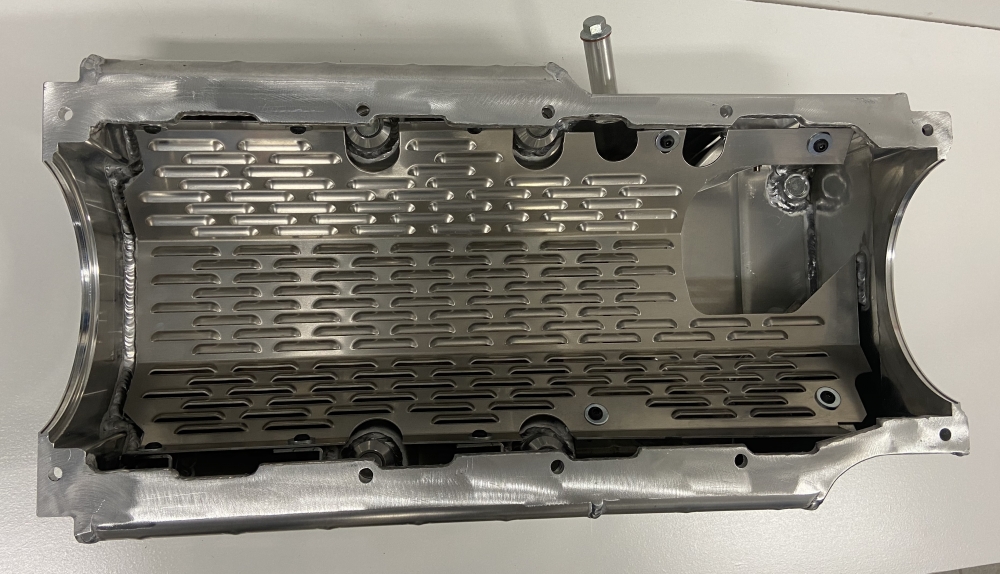

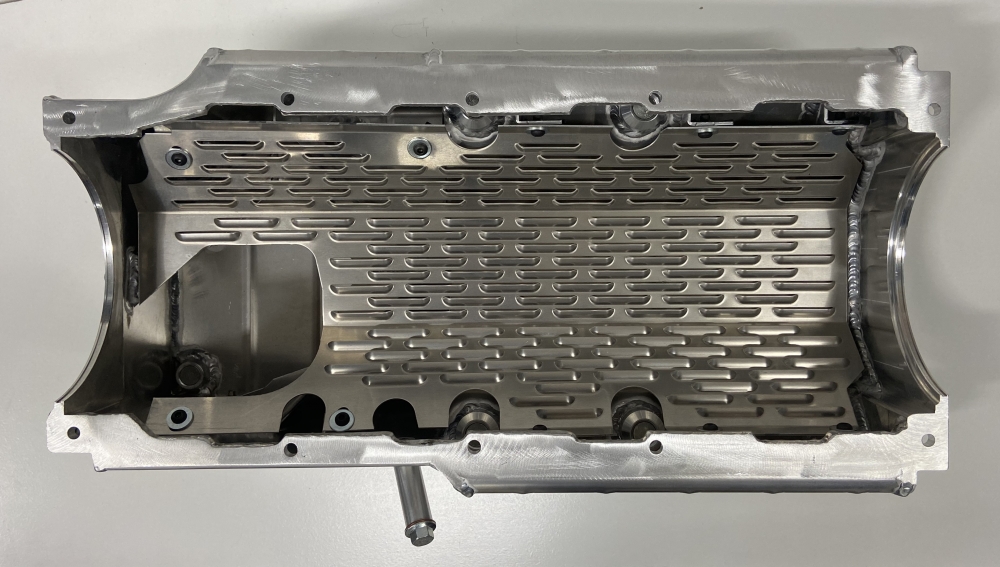

- a full length louvered windage tray
- three trapdoors for oil control
- relocated pan rail bolts for maximum clearance for rods and larger strokes
- removable plugs with o-ring and clips for convenient access to pan mounting bolts
- a provision for a dipstick

No pan gasket required.

It will fit most header combinations and stock cross members.

It will clear a 4 3/4" stroke.

Oil capacity: 7 quarts with filter

Use: Street or strip

Series: Pro

Dipstick: Use JR130

Starter: Offset mini-starter 168 tooth

Dimensions: 10” L x 11 1/8" W x 8" H
