PRO2225 > Big Block Chevrolet Mark IV

PRO2225 - $747.18

Style:
Big Block Chevrolet Mark IV
Dimensions:
8" deep

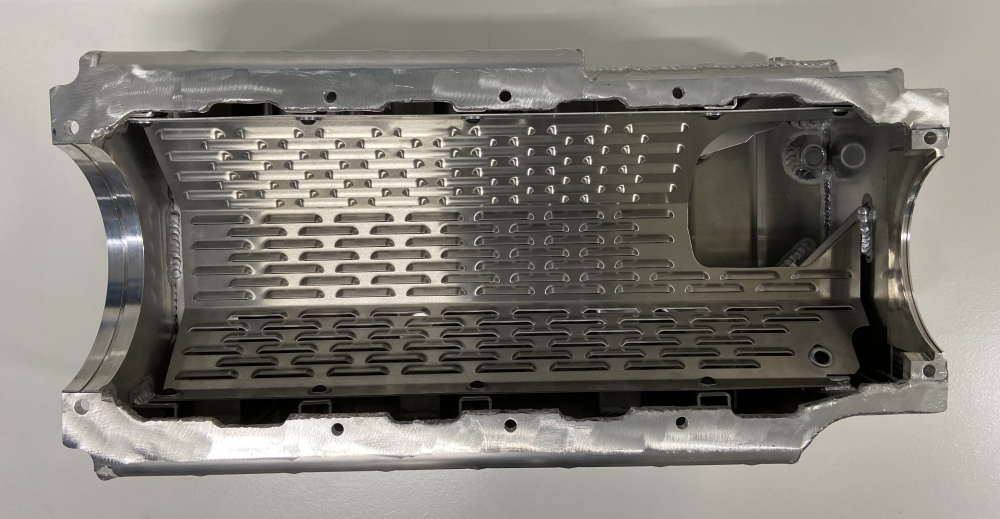

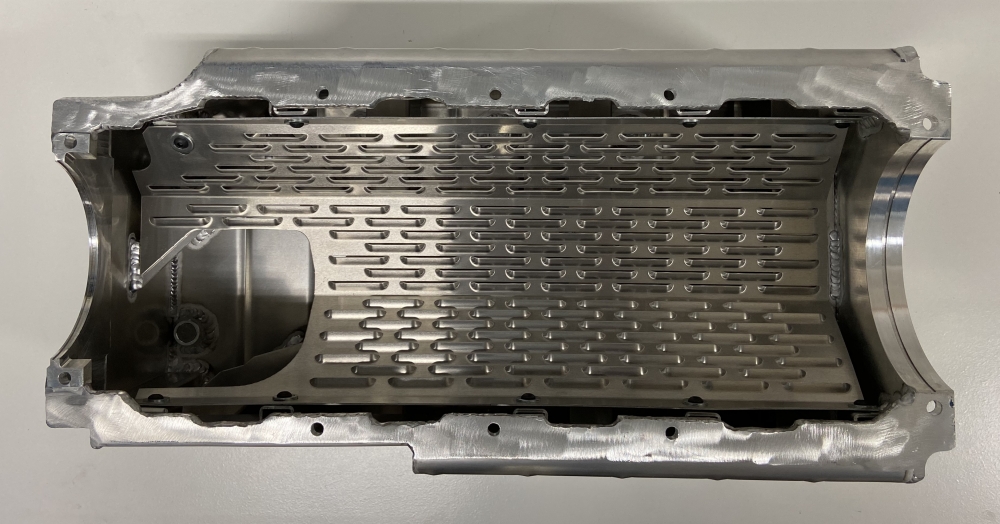

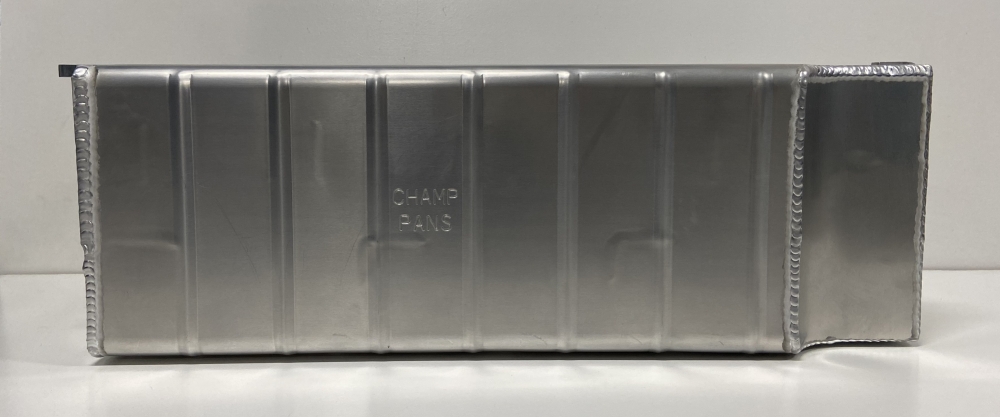

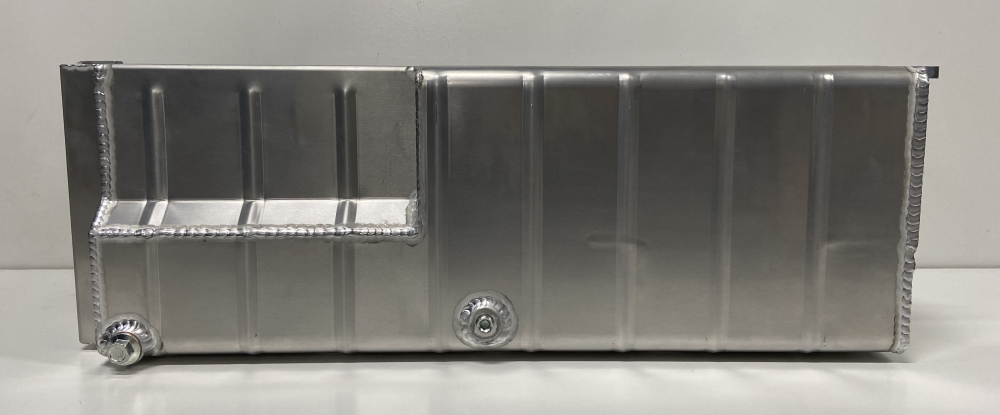

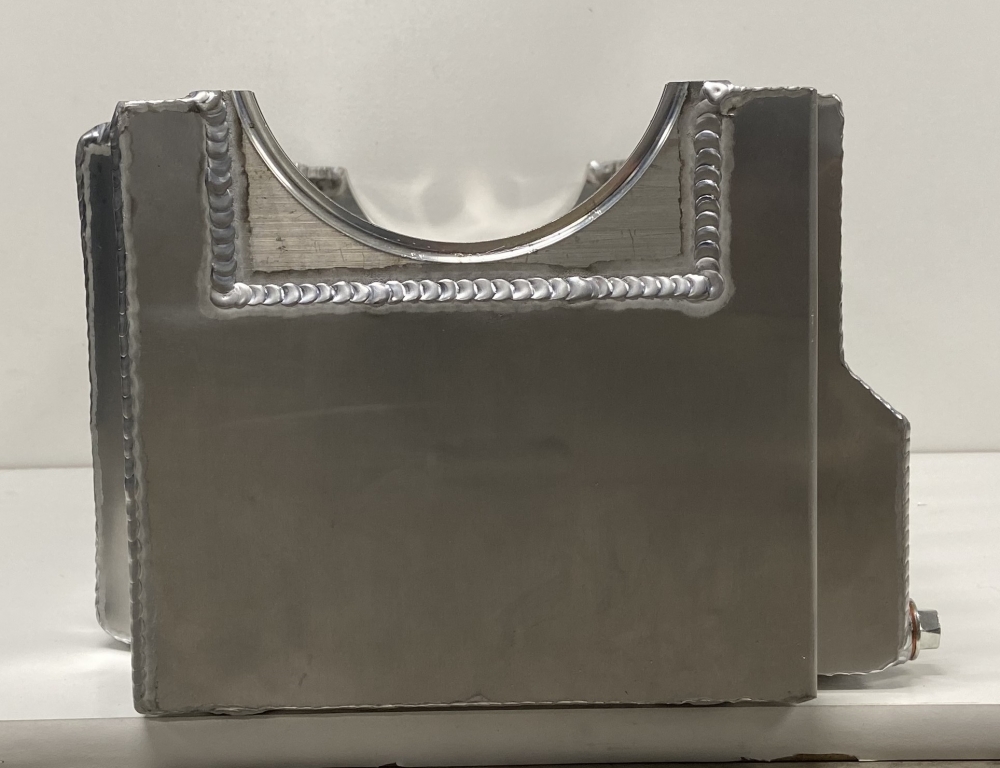

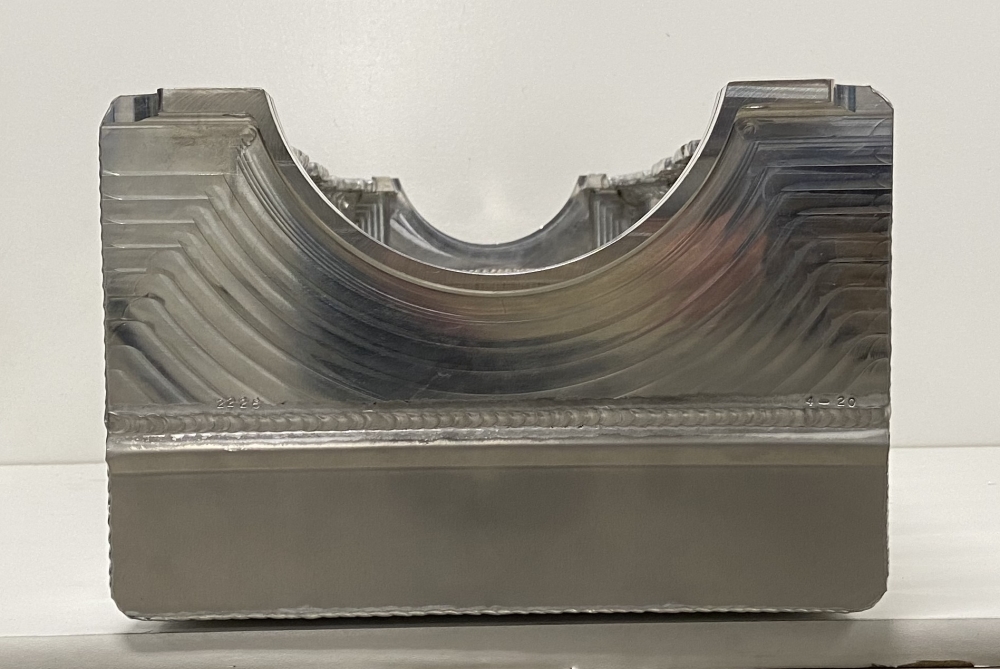

Description:This aluminum wet sump oil pan is for the Big Block Chevrolet Mark IV engines. This oil pan features:
- a double kick out
- .100" aluminum

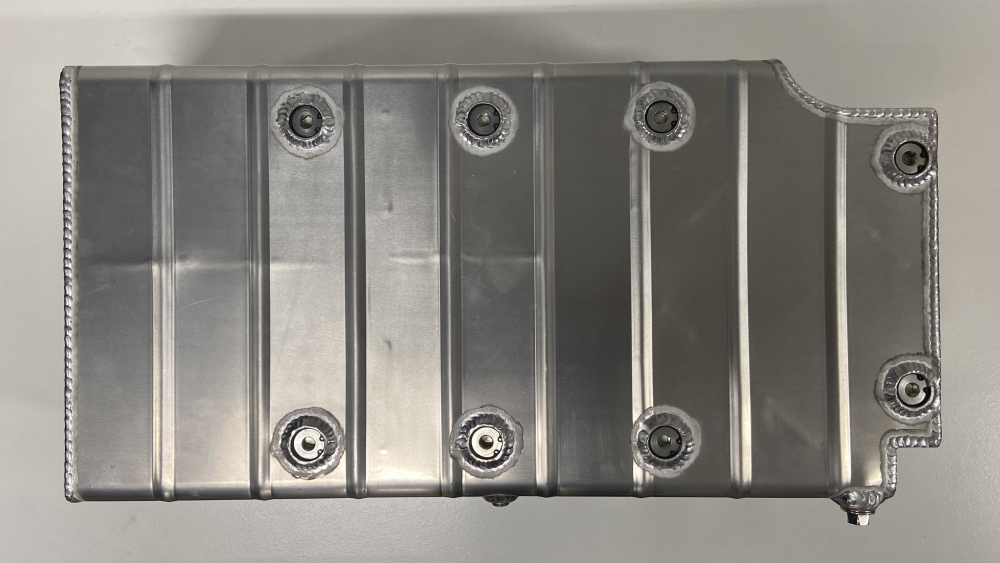

- access plugs in the bottom for the pan rails
- seven trapdoors
- relocated bolt holes at the main caps (three on each side)
- a removable louvered windage tray
- a provision for a dipstick

No pan gasket required.

It will clear a 4 3/4" stroke.

A hole relocation template is provided.

Oil capacity: 12 quarts with filter

Use: Marine, street or strip

Dipstick: Use JR133

Dimensions: 8" deep

Contact Us About This Product

Related Products

Name Application Info Price
208BB M-77HV and 10770 3/4” x 8” deep pickup $42.90
JR133 Big Block Chevrolet 90d dipstick assembly $28.65
