PRO2208 > Big Block Chevrolet Mark IV

PRO2208 - $805.48

Big Block Chevrolet Mark IV
8" deep

Description:This aluminum wet sump oil pan is for the Big Block Chevrolet Mark IV engines. This oil pan features:
- a double kick out for maximum oil collection from rotating assemblies

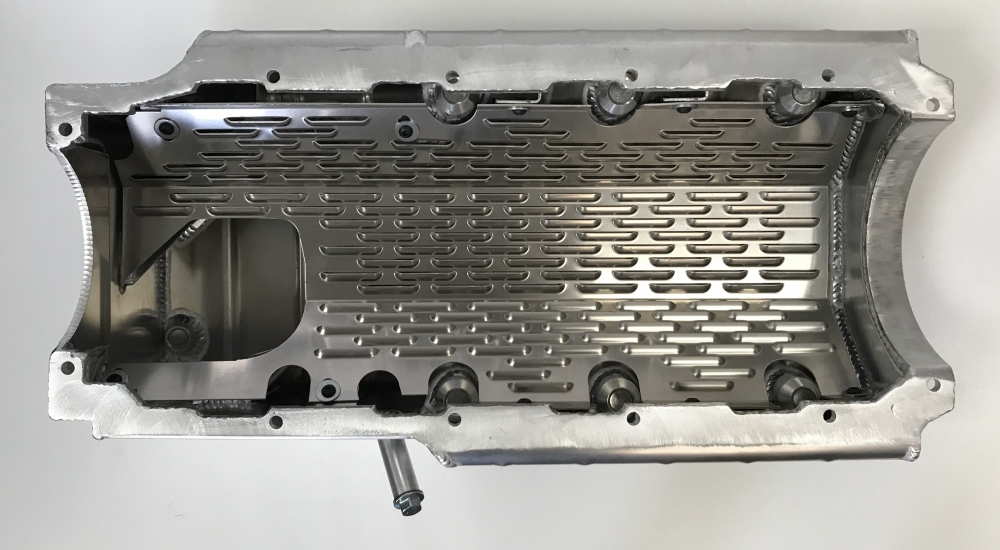

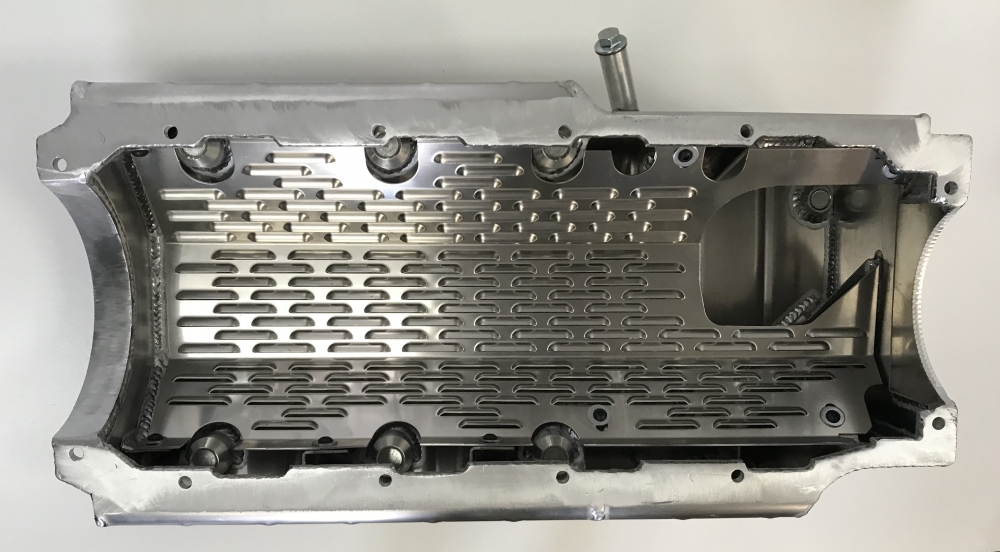

- a full length louvered windage tray
- three trapdoors for oil control
- relocated pan rail bolts for maximum clearance for rods and larger strokes
- removable plugs with o-ring and clips for convenient access to pan mounting bolts
- a provision for a dipstick

No pan gasket required.

It will fit most header combinations and stock cross members.

It will clear a 4 3/4" stroke.

Oil capacity: 7 quarts with filter

Use: Street or strip

Series: Pro

Dipstick: Use JR130

Starter: Offset mini-starter 168 tooth

Dimensions: 10” L x 11 1/8" W x 8" H

Contact Us About This Product

Related Products

Name Application Info Price
208BB M-77HV and 10770 3/4” x 8” deep pickup $42.90
JR130 Big Block Chevrolet Dipstick assembly $28.65
