PRO181R3A > Dart SBC with spread rails
PRO181R3A - $753.78
- Style:
- Dart SBC with spread rails
- Dimensions:
- 6" deep

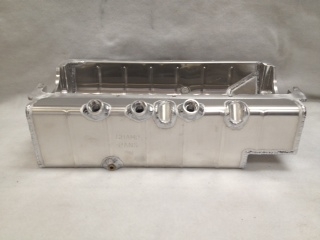

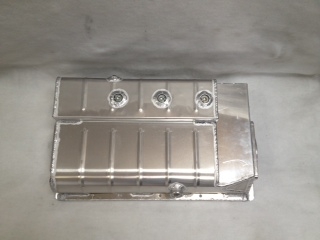

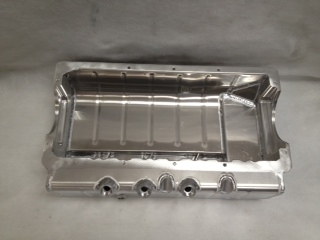

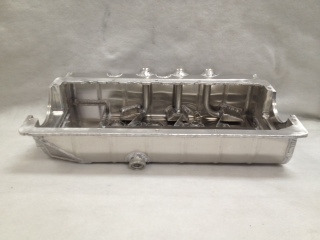

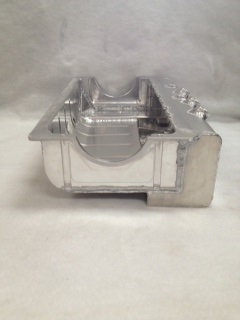

Description:This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- made out of .100” aluminum
- access holes for mounting the right side pan bolts
- three -12 o-ring ports that exit the top right back half of the pan
- one inspection hole
- one drain plug
No pan gasket required.
It will clear a mechanical fuel pump.
Use: Asphalt circle track
Starter: Reverse mounted
Dimensions: 6” deep on right side; 4 1/2” deep on left side
