PRO173F2 - $714.73

Style:

Small Block Chevrolet 1986-2003

Dimensions:

6" deep

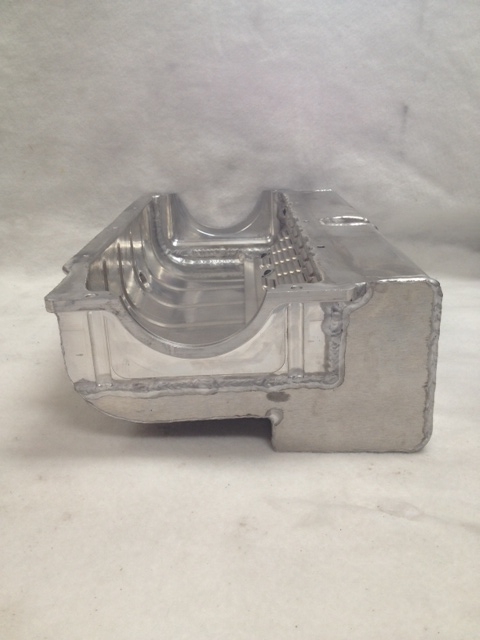

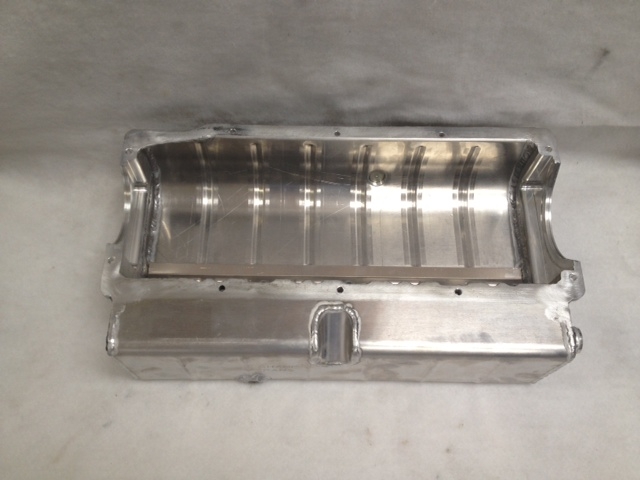

Description:This aluminum dry sump oil pan is for the Small Block Chevrolet years 1986-2003 with a one piece rear main seal engines. This oil pan features:

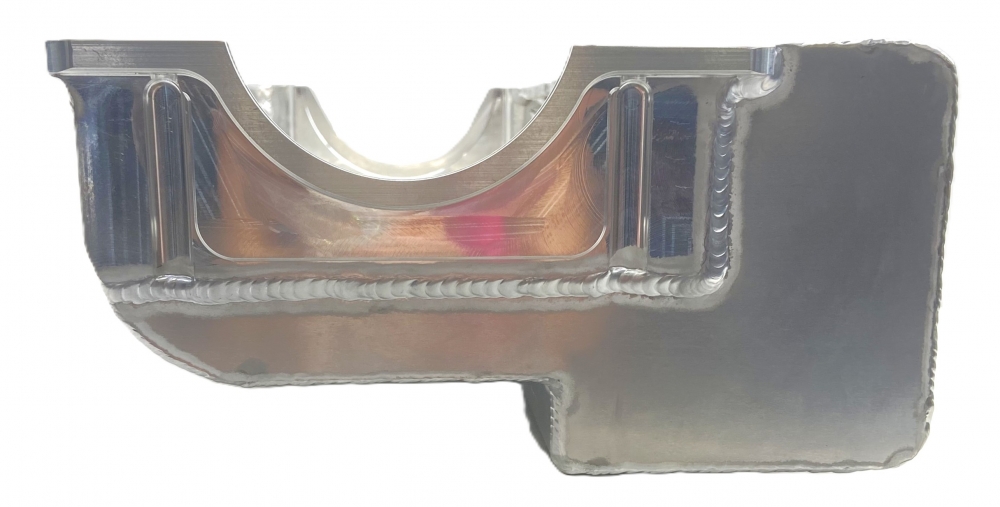

- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum

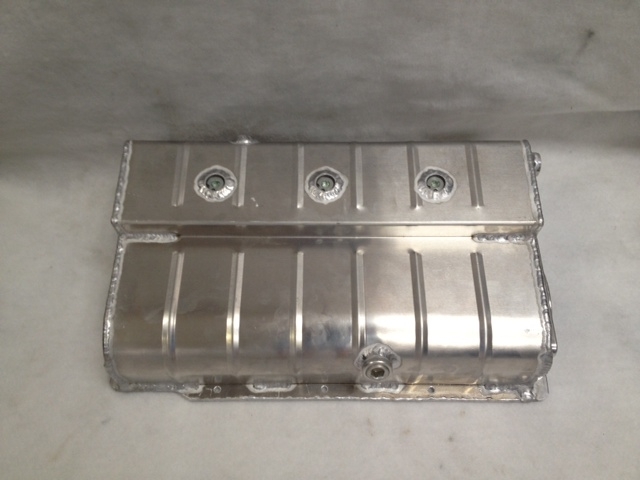

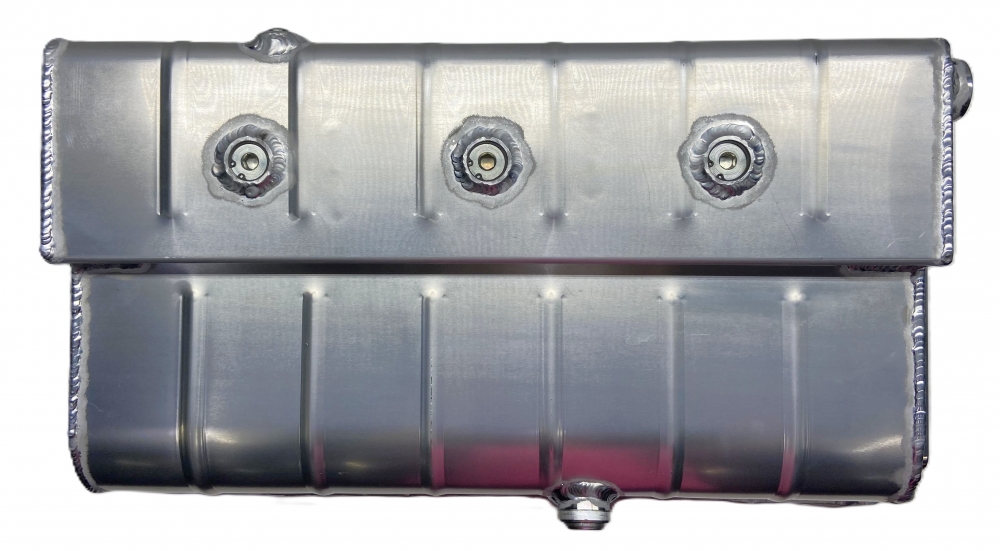

- access holes for mounting

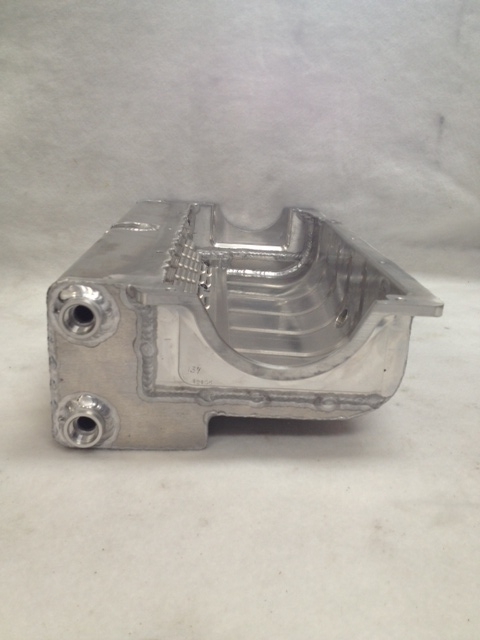

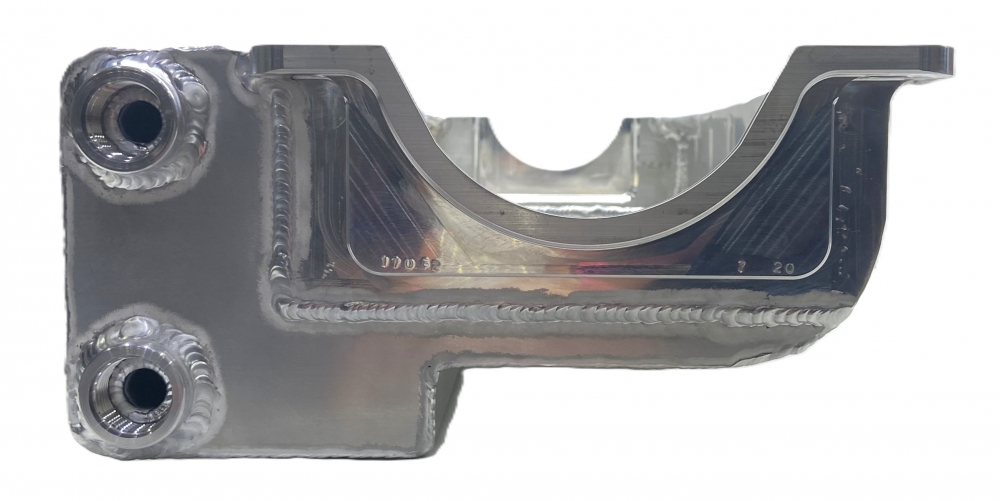

- two -10 o-ring ports that exit forward

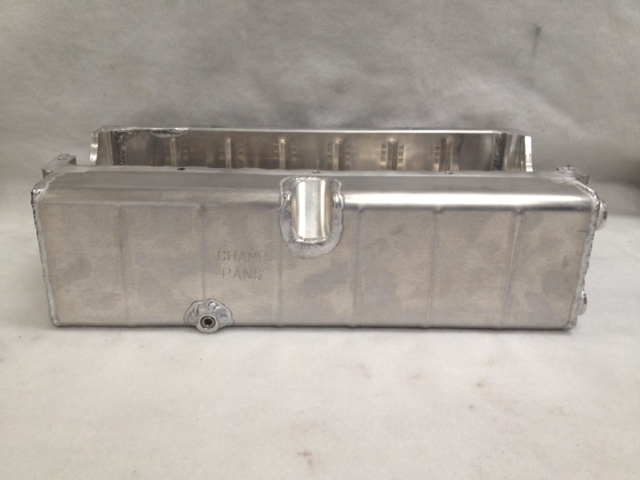

- an inspection hole

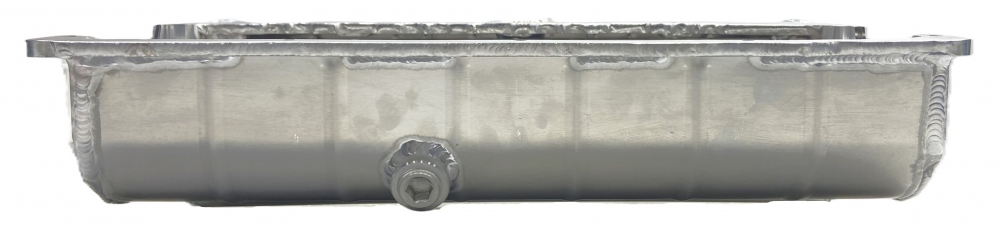

- a drain plug

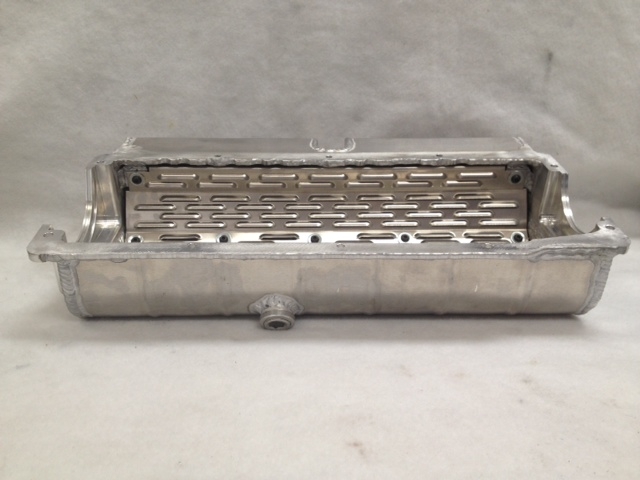

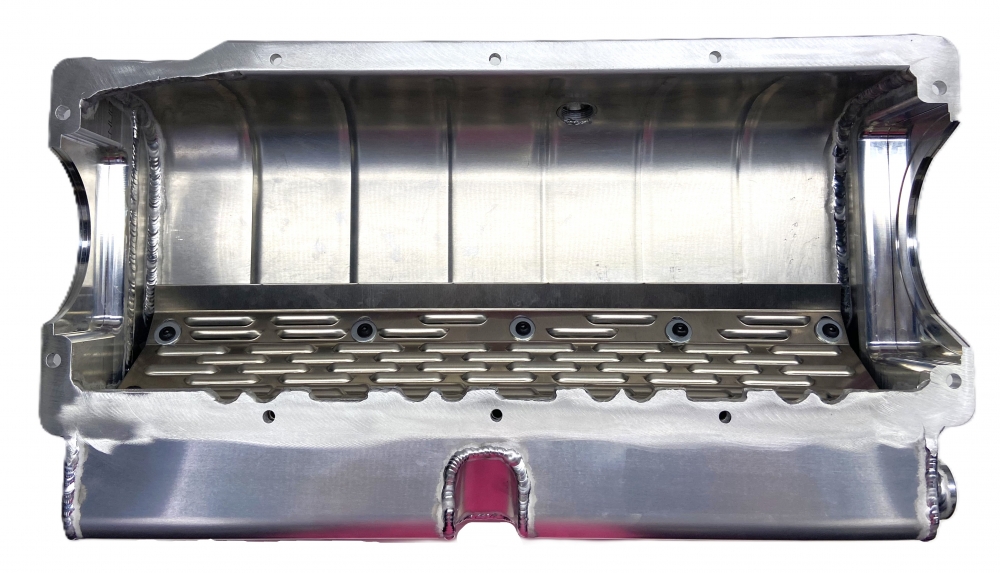

- a louvered windage tray

It will clear a mechanical fuel pump.

Starter: Reverse mounted

Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.

Dimensions: 6" deep on right side; 4 1/2" deep on left side
