Products

PRO171L3OR > Small Block Chevrolet 1957-1985

PRO171L3OR - $759.25

Style:
Small Block Chevrolet 1957-1985
Dimensions:
5 3/4" deep

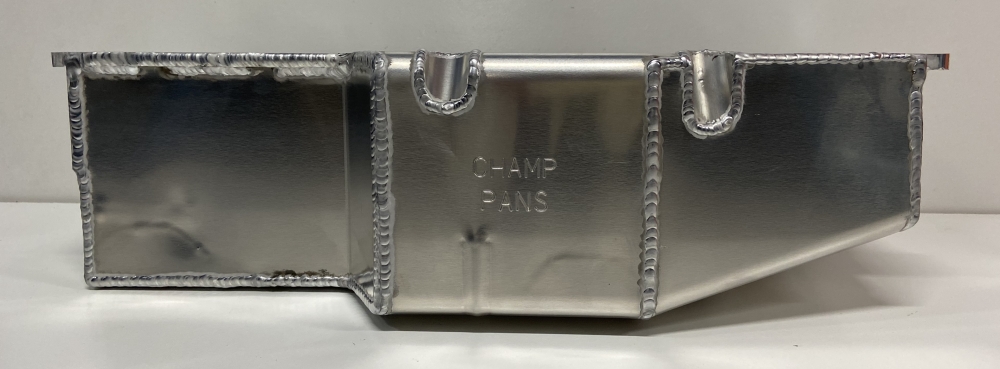

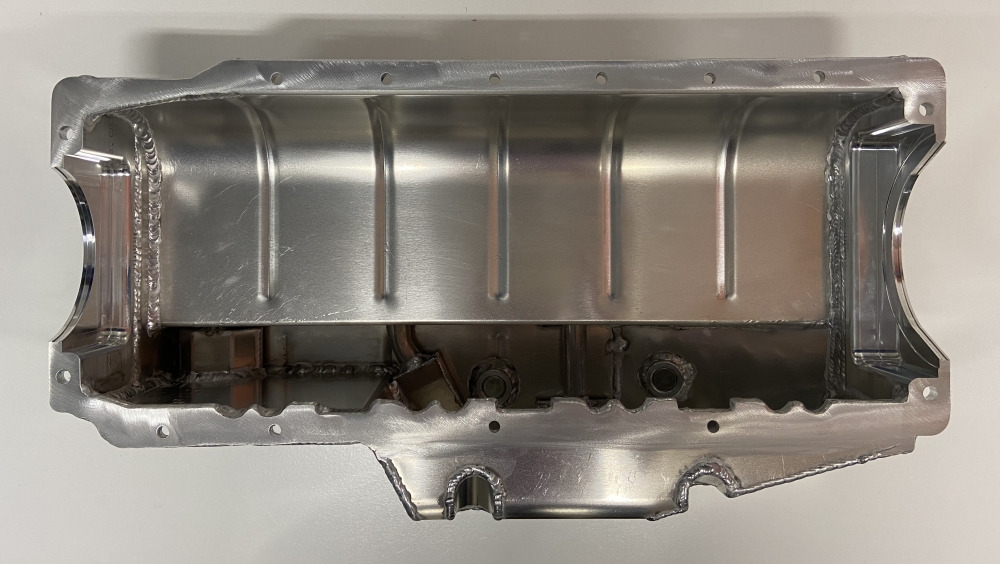

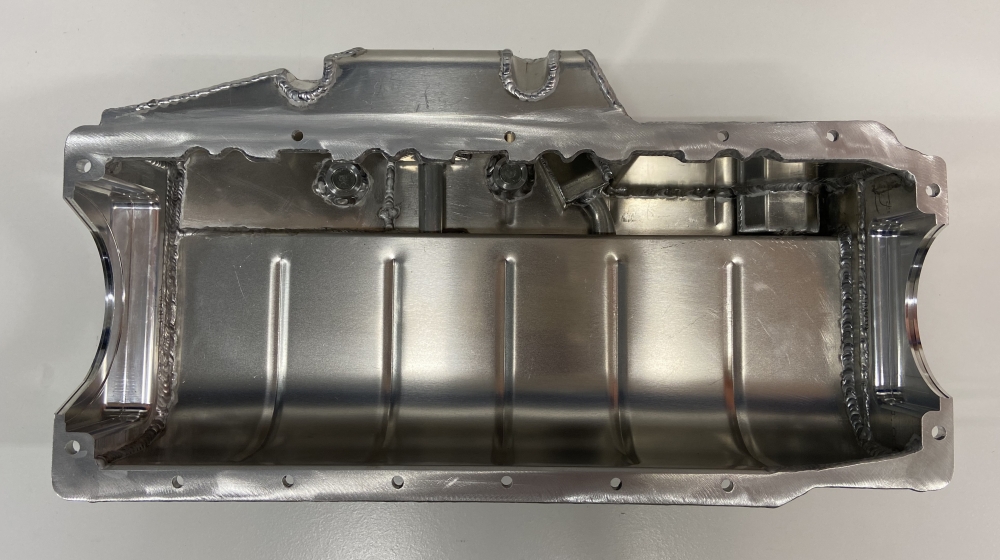

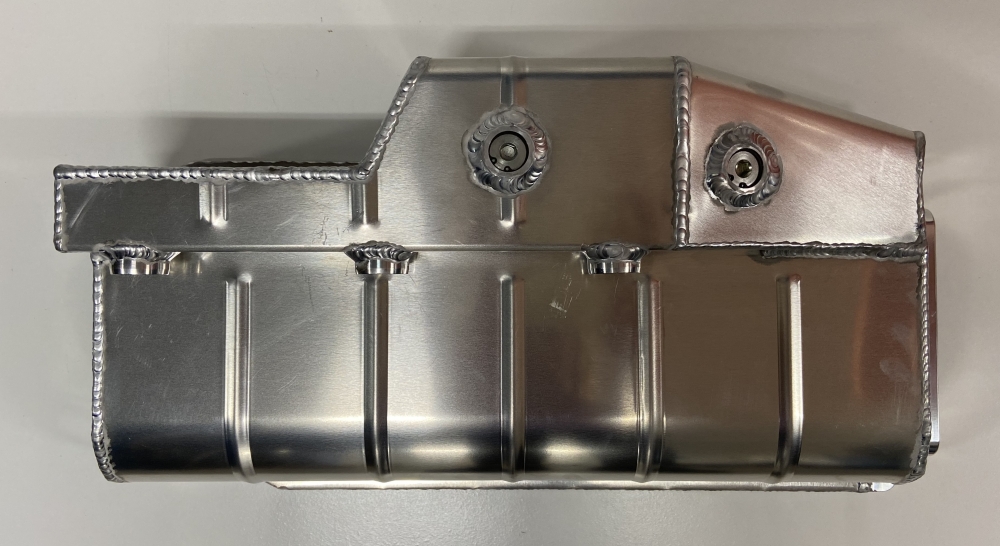

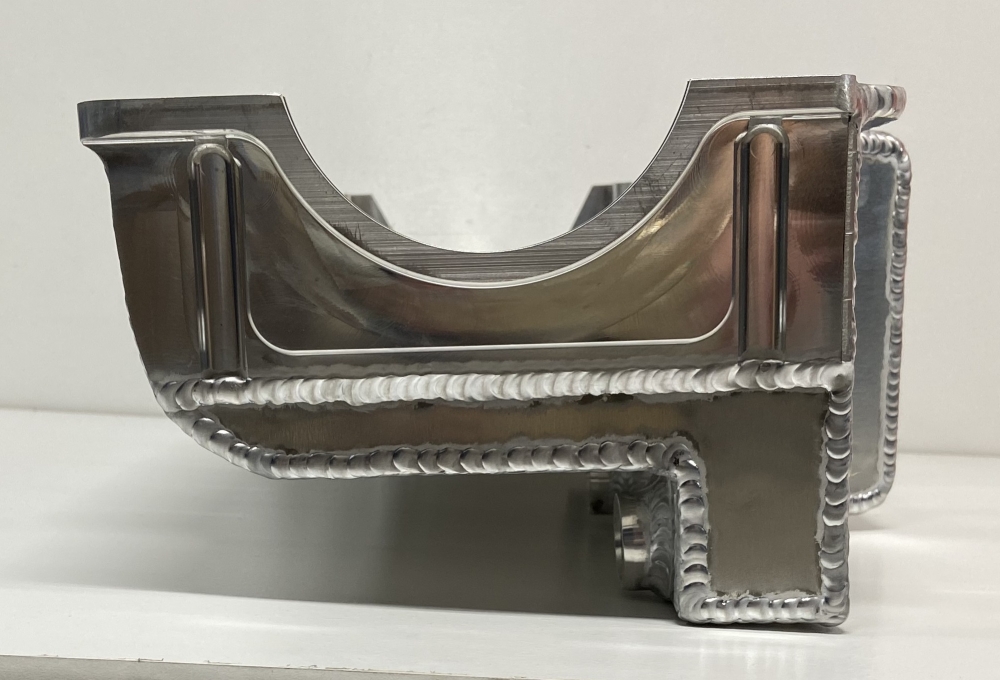

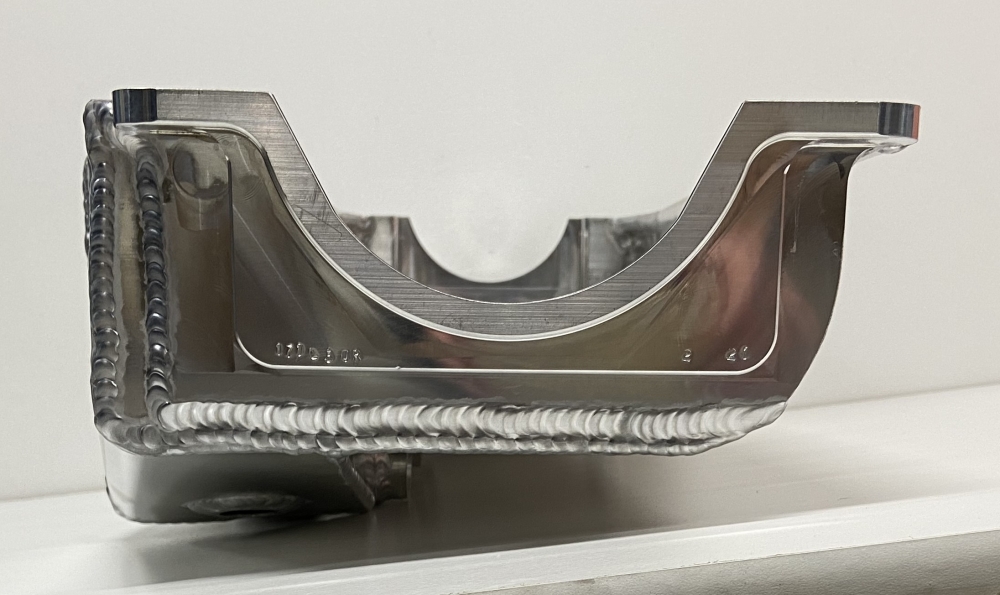

Description:This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting
- three -10 o-ring ports that exit the bottom left side of the pan
- an inspection hole
- a drain plug

No pan gasket required.

It is notched for a front mini-starter.

Use: Off-road trucks

Starter: Mini-starter

Dimensions: 5 3/4" deep on right side; 4 1/4" deep on left side
