PRO1140KO > Small Block Chevrolet 1957-1985

PRO1140KO - $700.43

Small Block Chevrolet 1957-1985
7" deep

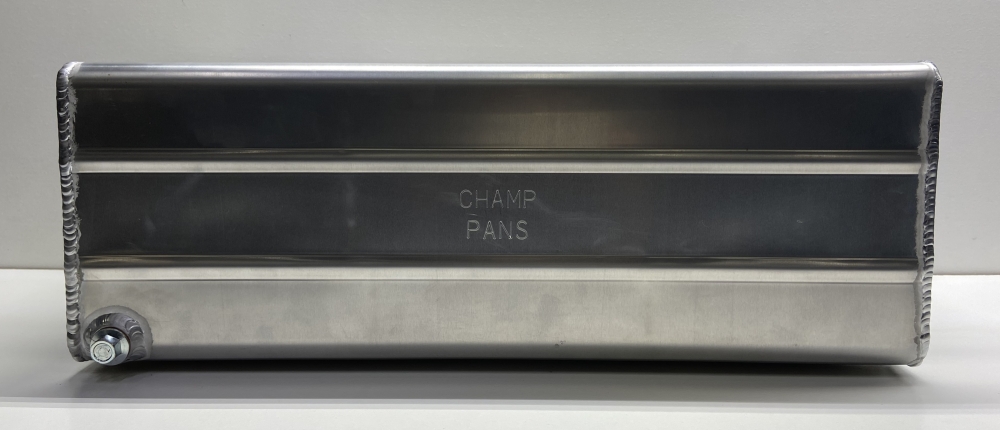

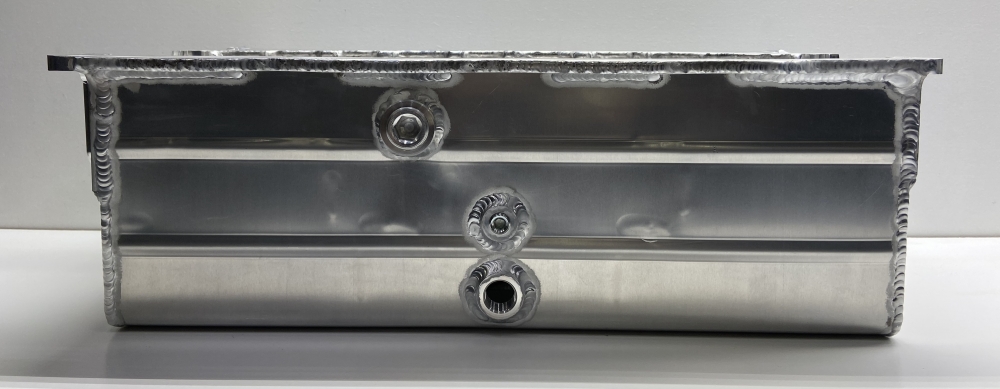

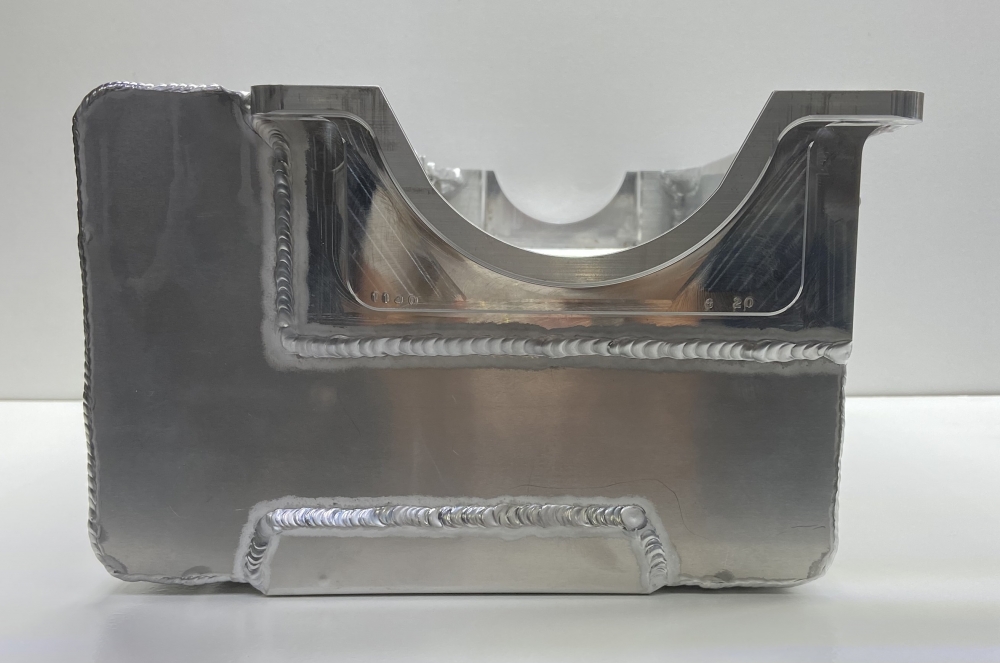

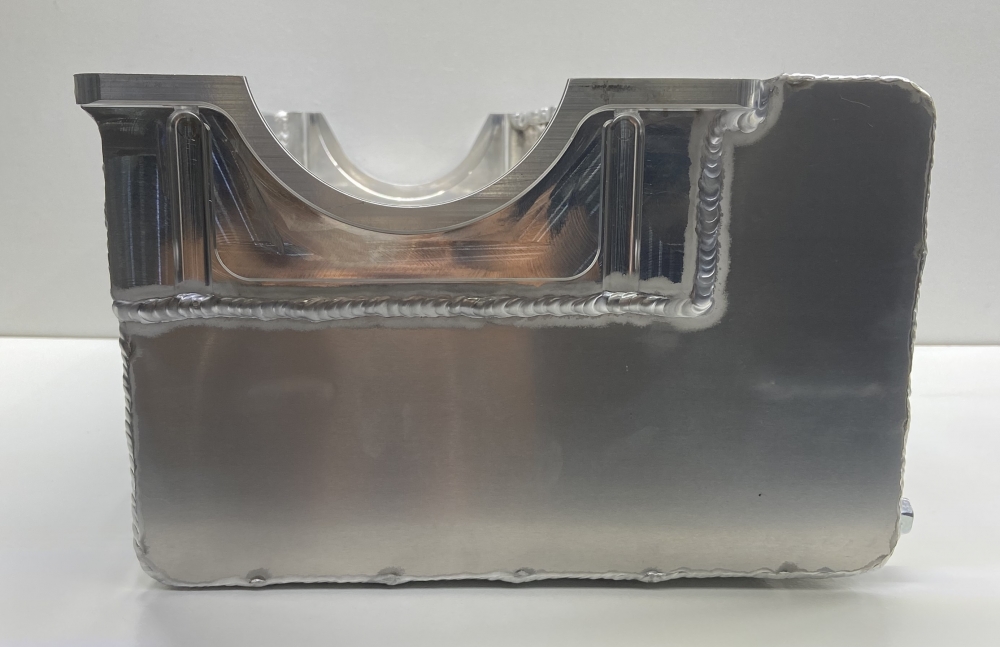

Description:This aluminum wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a right side kick out that starts at the pan rail and runs the full length of the pan

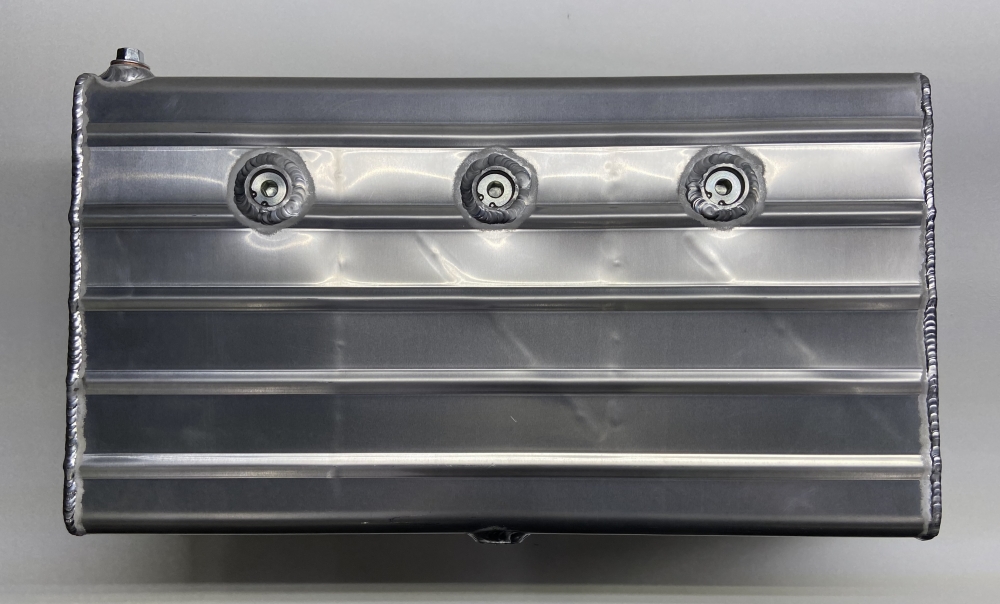

- three access holes for the right side pan rail
- six trapdoors

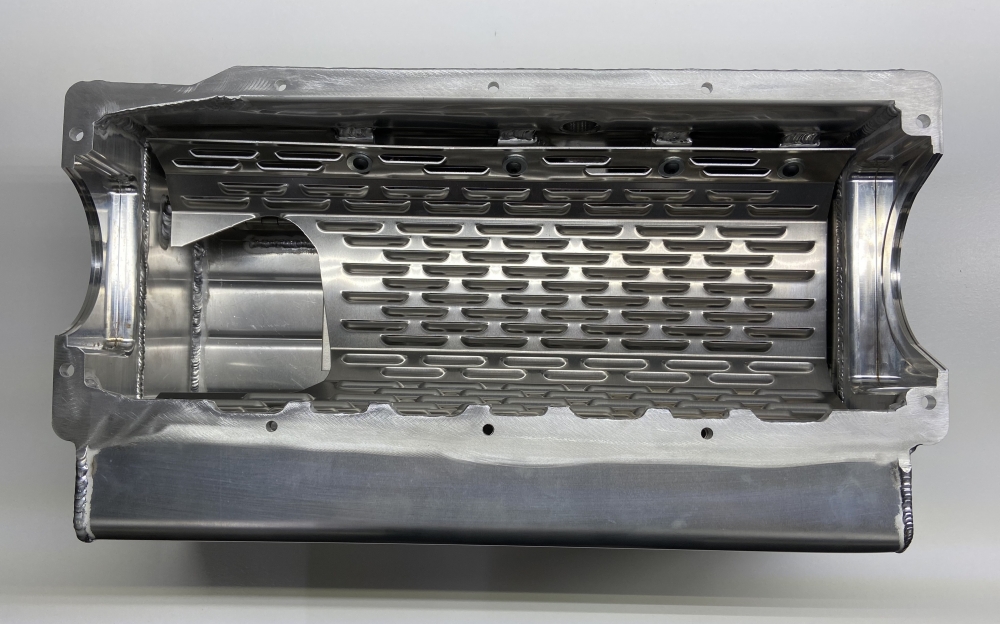

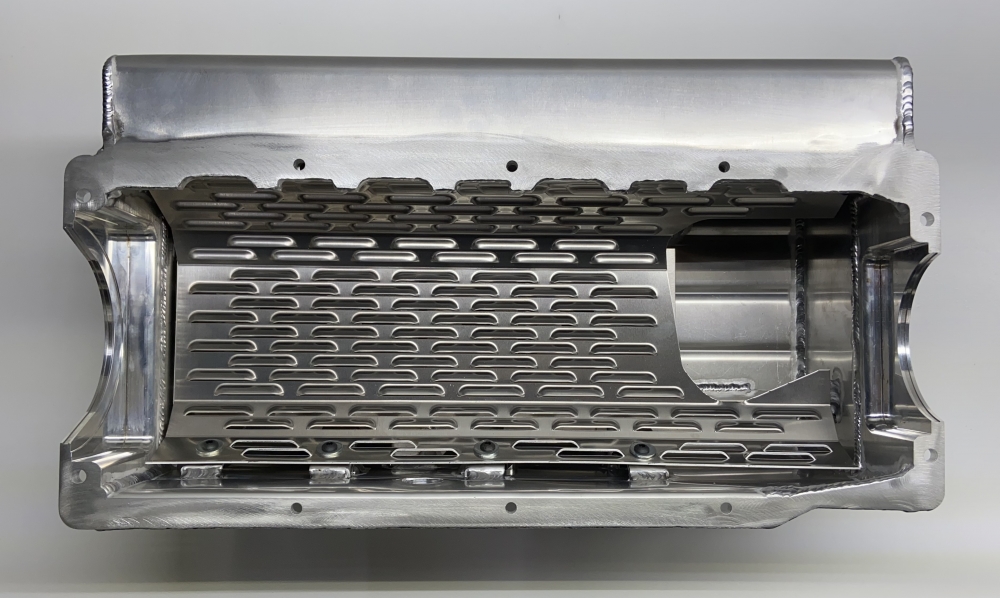

- a louvered windage tray
- an inspection hole
- an oil temp fitting
- an oil check level plug

No pan gasket required.

This oil pan will not work with side flow oil pumps.

Oil capacity: 11 quarts with filter

Use: Circle track

Starter: Reverse mounted

Dimensions: 20” L x 11" W x 7" H

Weight: 13 1/2 lbs

Contact Us About This Product

Related Products

Name Application Info Price
1008SB M-55HV/10550/10550C/10550ST 5/8" x 7" deep pickup $42.90
1703SB 10552/10552C/100552ST/10555/10555C/10555ST 3/4" x 7" deep pickup $53.63
1704SB M155HV/10551/10551ST 3/4" x 7" deep pickup $53.63
LT-7 PRO1100KO/1102KO/1140KO Louvered windage tray $51.70
OPTION-9 Any aluminum oil pan External pickup installed $78.10
1026SB M155/10554/10554ST 3/4" x 7" deep pickup $52.80
1027SB M-55/10550/10550C/10550ST 5/8" x 7" deep pickup $52.80
