LS1000 > Small Block Chevrolet LS1

LS1000 - $343.80

Small Block Chevrolet LS1
5 1/2" deep

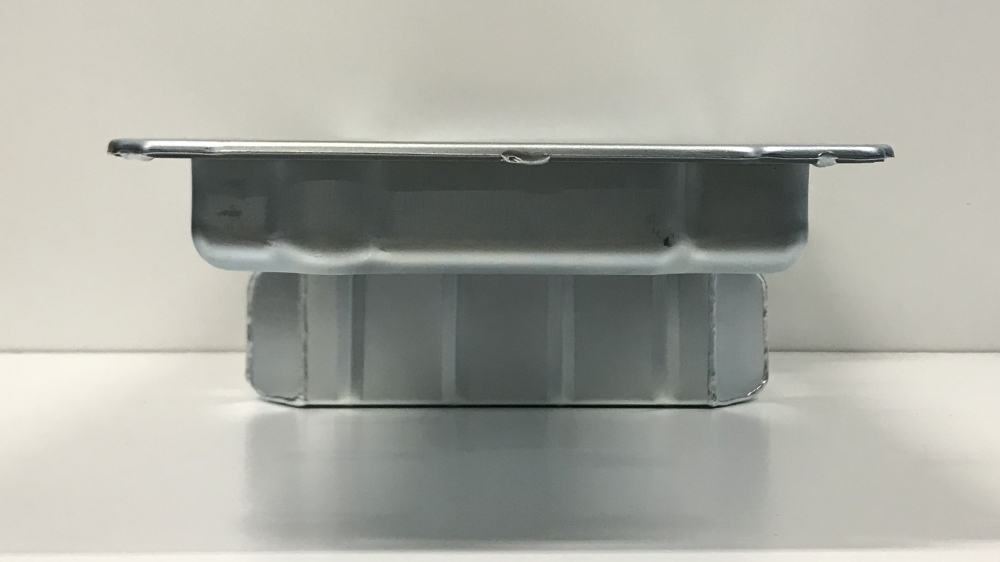

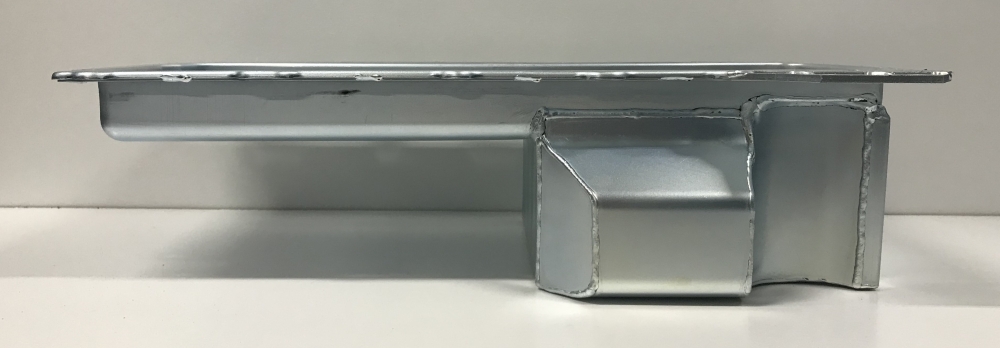

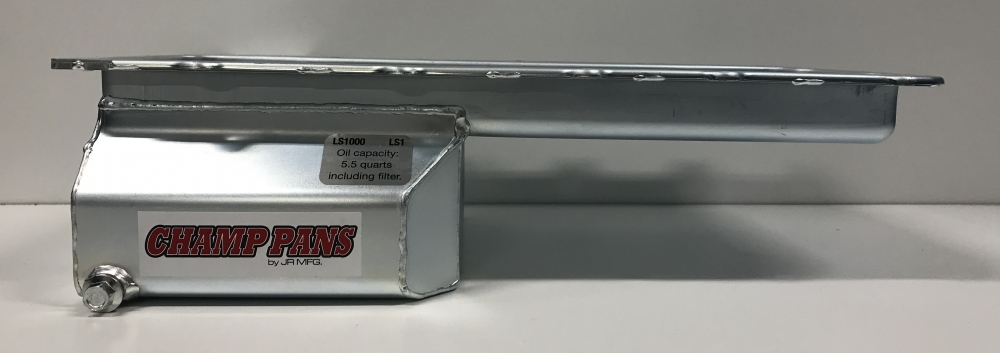

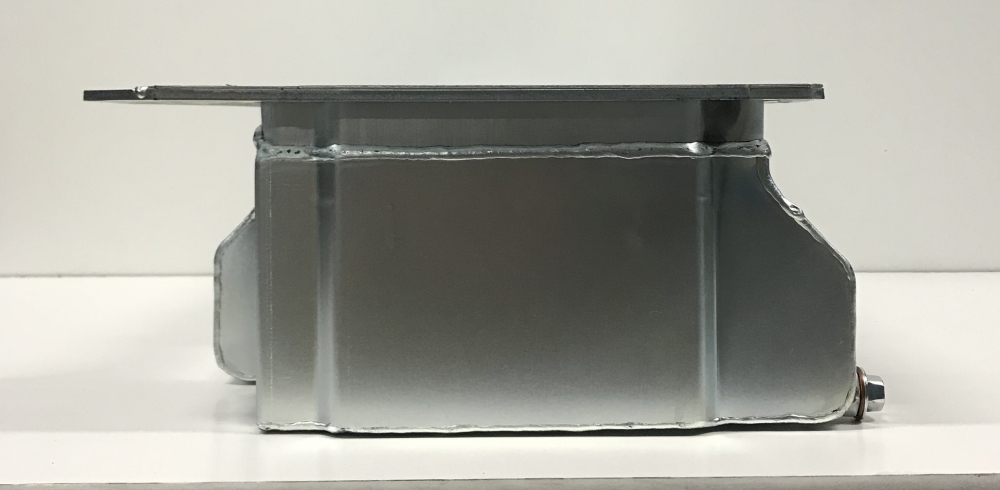

Description:This steel wet sump oil pan is for the Small Block Chevrolet LS1 engines. This oil pan features:
- four trapdoors

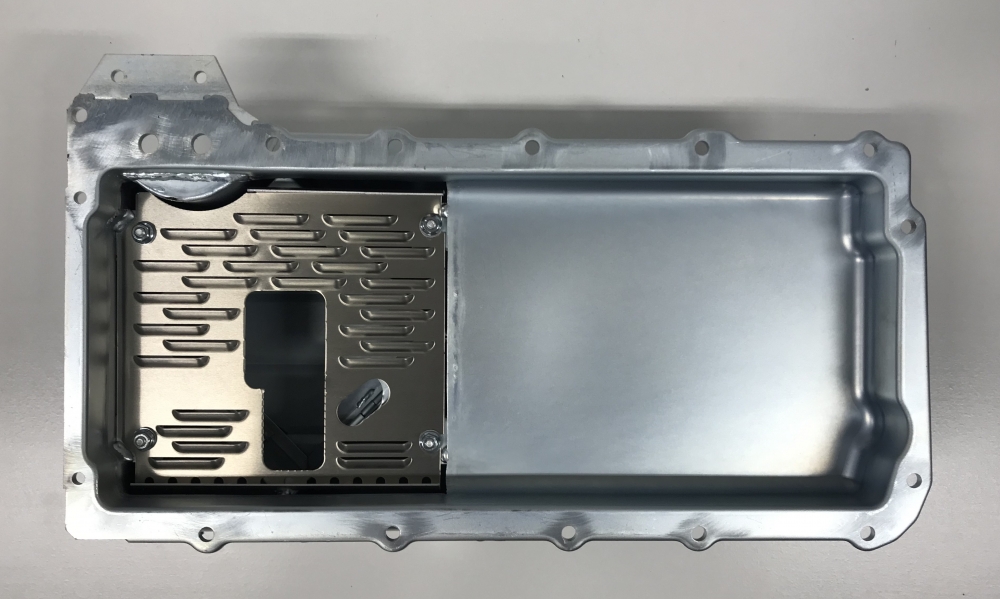

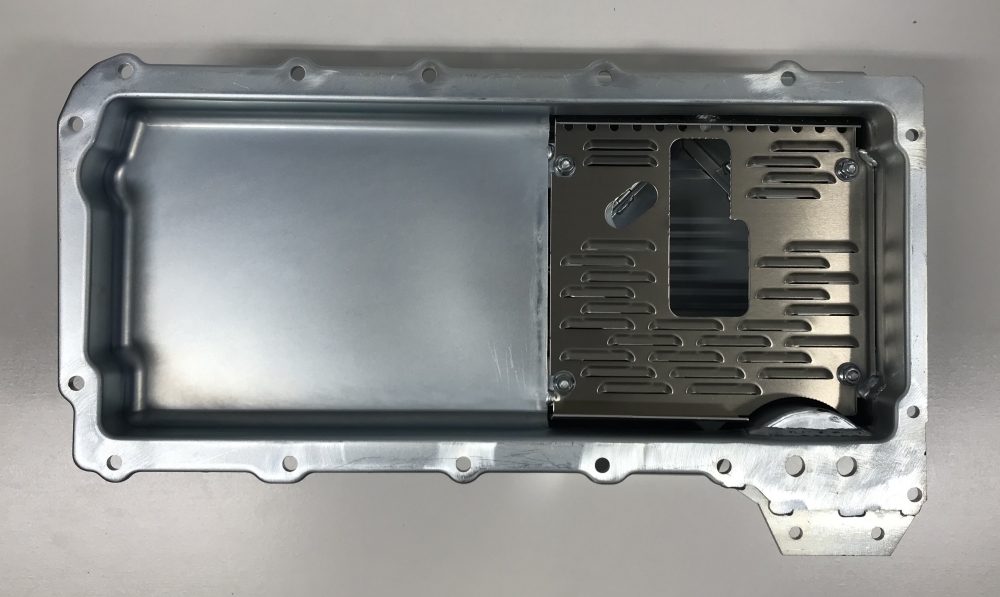

- a removable louvered windage tray
- a pan rail girdle
- a billet aluminum oil filter adapter in the stock GM location (sold separately)
- a clear zinc finish

This oil pan is ideal for LS1 engine swaps in earlier GM chassis' with stock cross members or a rear steer linkage such as Chevrolet Camaros, Chevelles and Novas.

You can use the factory tray with this oil pan.

Oil capacity: 5 1/2 quarts with filter

Use: Street or strip

Dipstick: 98-02 F-body Camaro

Starter: Stock

Dimensions: 9 1/4” L x 11 1/4" W 5 1/2" H

Contact Us About This Product

Related Products

Name Application Info Price
750LS1 10295 and 10355 7/8" x 5 1/2" deep pickup $80.85
LS1001-2 Small Block Chevrolet LS1 Crossover plate $19.38
LS1001-3 Small Block Chevrolet LS1 Remote block $80.84
LS1001 Small Block Chevrolet LS1 Oil filter adapter $113.72
LS1001-1 Small Block Chevrolet LS1 Cross drilled and tapped oil filter adapter $124.30
LS-1 LS1000, LS3000 Louvered sump tray $27.78
