CP40 > Small Block Chevrolet 1957-1979

CP40 - $165.30

Style:
Small Block Chevrolet 1957-1979
Dimensions:
7 1/2" deep

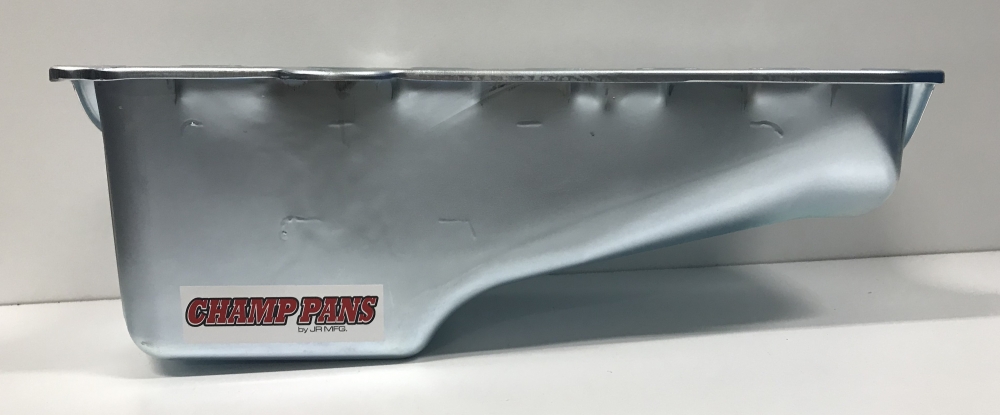

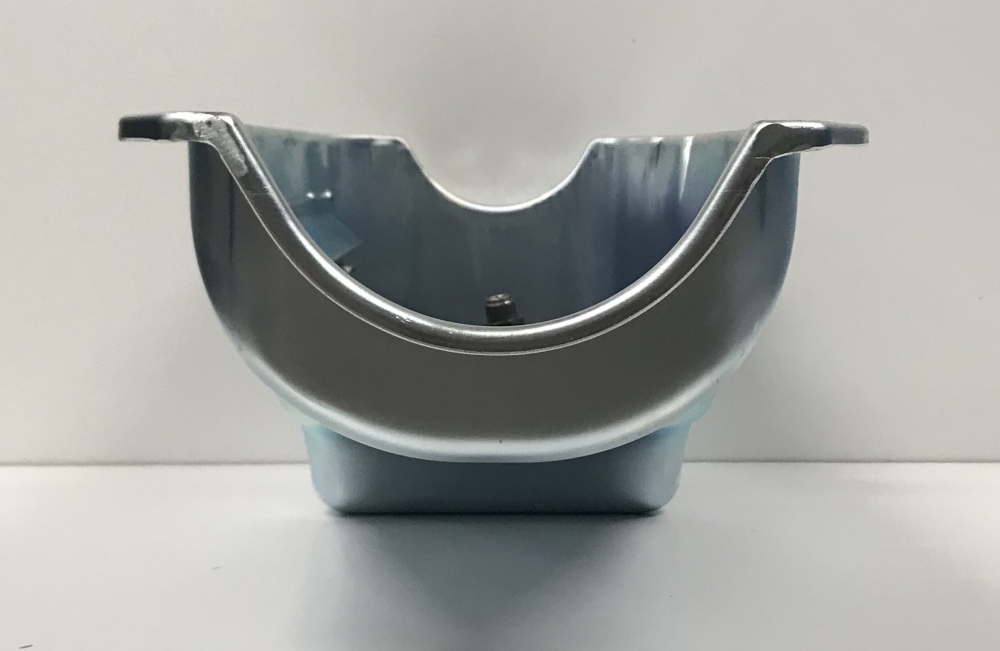

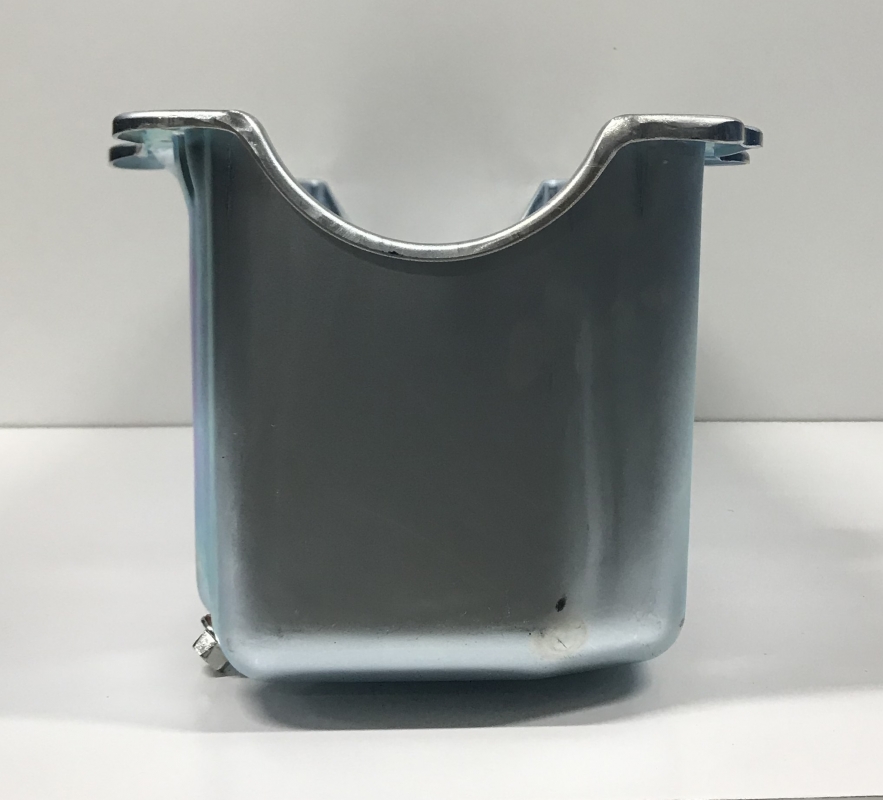

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1979 with the left side dipstick engines. This oil pan features:
- a stock appearance
- one 6” trapdoor
- one crank scraper

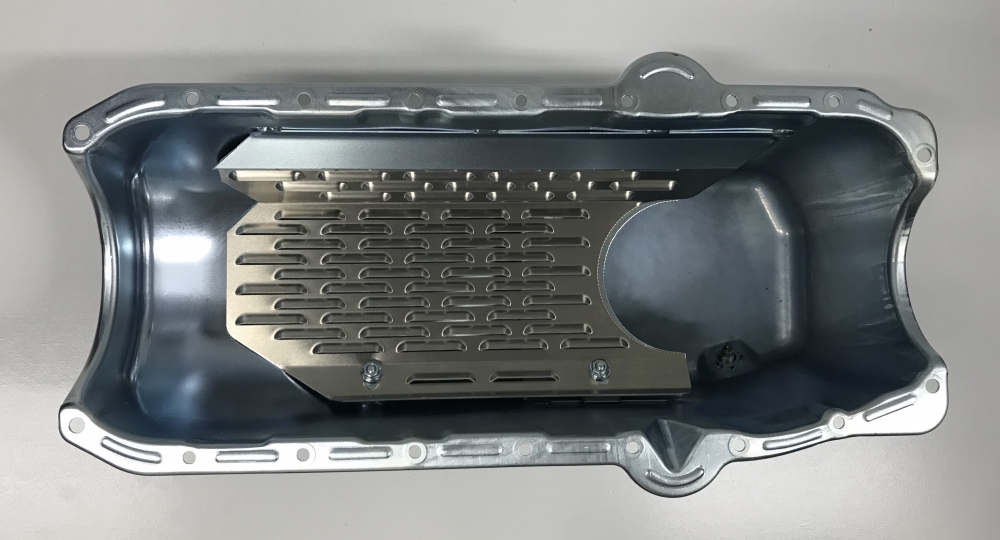

- a removable horsepower saving louvered windage tray
- a clear zinc finish

This oil pan is NHRA approved.

The 50SB pickup is for the M55 or 10553ST pumps (only this oil pan).

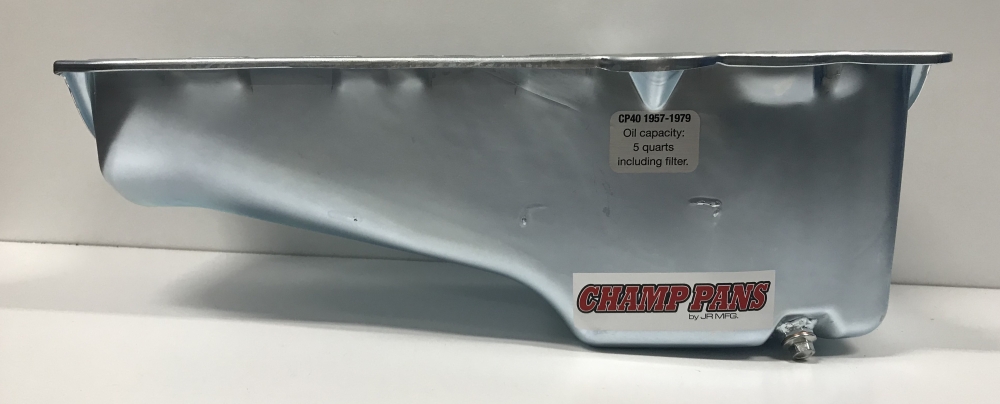

Oil capacity: 5 quarts with filter

Use: Road race, street or strip

Dipstick: Factory

Dimensions: 7 1/2" deep

Contact Us About This Product

Related Products

Name Application Info Price
40SB M-55HV, 10550, 10550C and 10550ST 5/8” x 7 1/2” deep pickup $39.33
50SB M-55HV, 10550, 10550C and 10550ST / M-55 and 10553ST 5/8” x 7 3/4” deep pickup $39.33
51SB M155HV, 10551 and 10551ST / M155, 10554 and 10554ST 3/4” x 7 3/4” deep pickup $42.90
WS40 CP40 series Louvered windage tray $24.75
