CP219LT > Big Block Chevrolet Gen V & VI

CP219LT - $398.10

Big Block Chevrolet Gen V & VI
7 1/2" deep

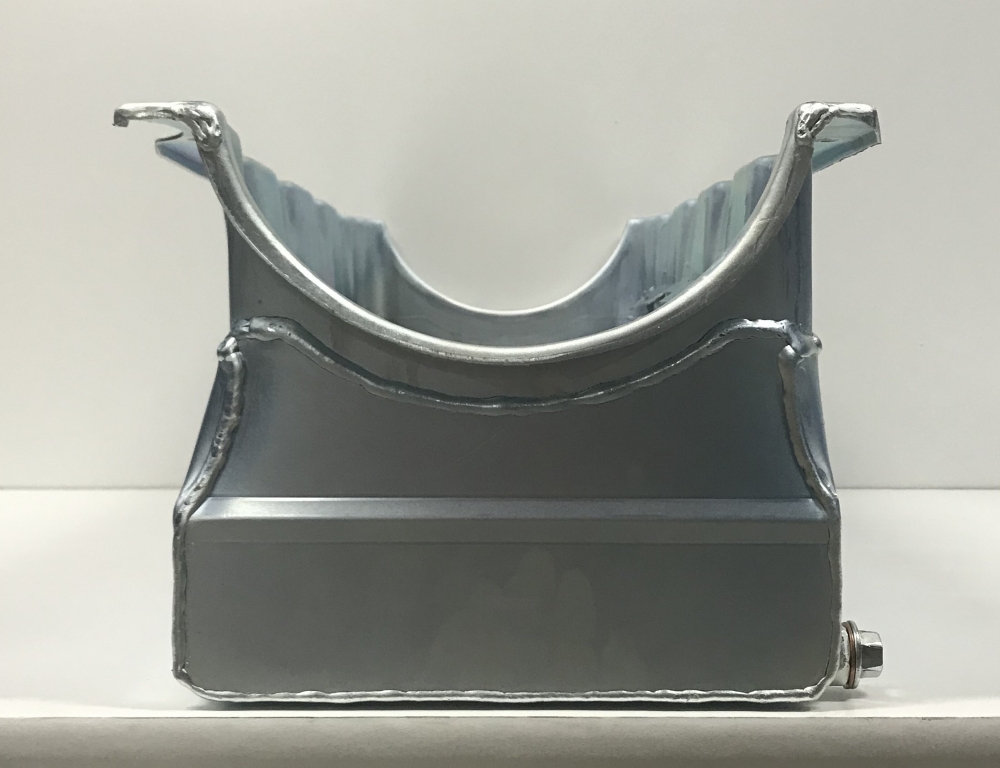

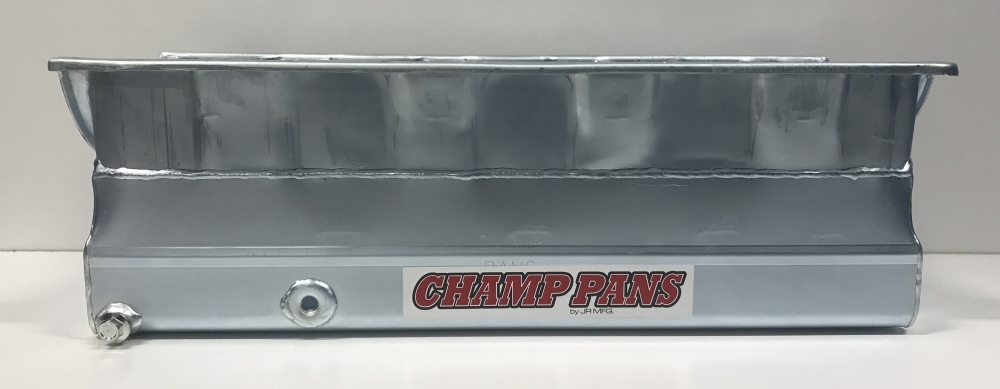

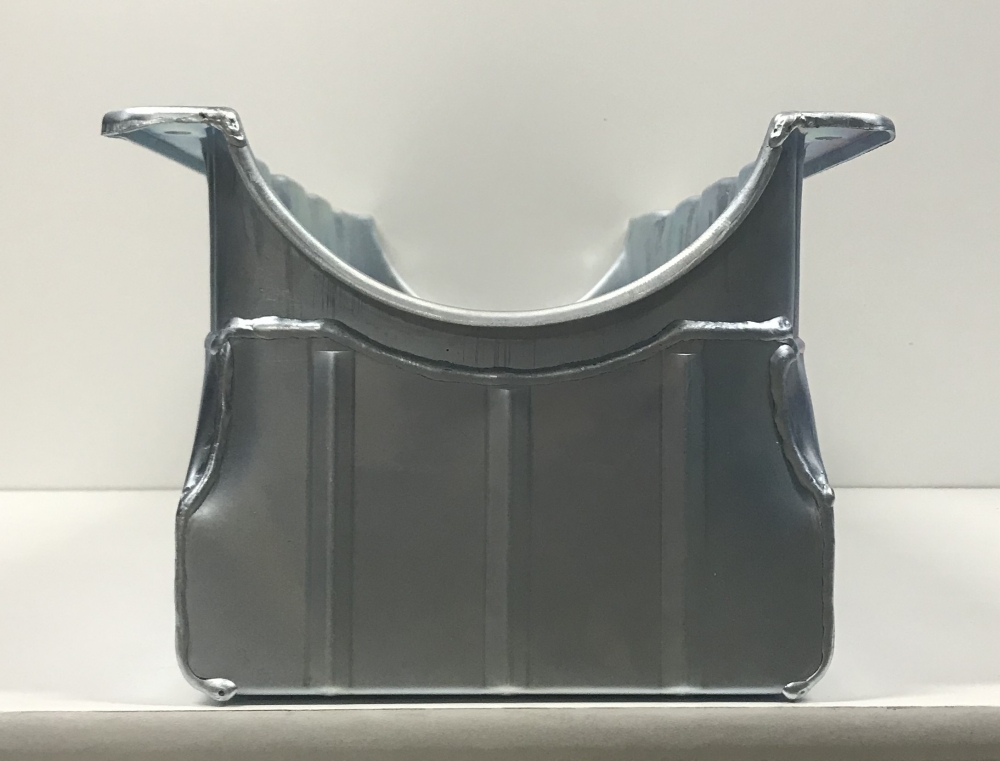

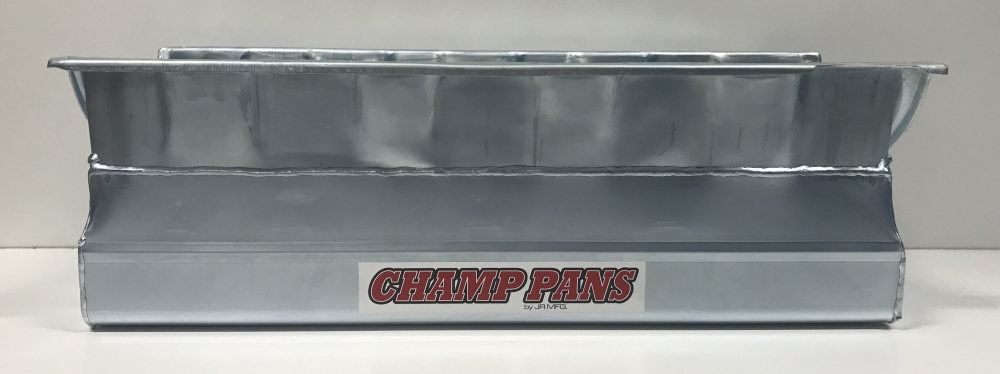

Description:This steel wet sump oil pan is for the Big Block Chevrolet Gen V and Gen VI engines. This oil pan features:
- a full length sump
- 14 gauge steel to take the abuse of drag racing or marine use
- six trapdoors
- one crank scraper
- a front and back splash plate to keep the oil from climbing up the back of the oil pan

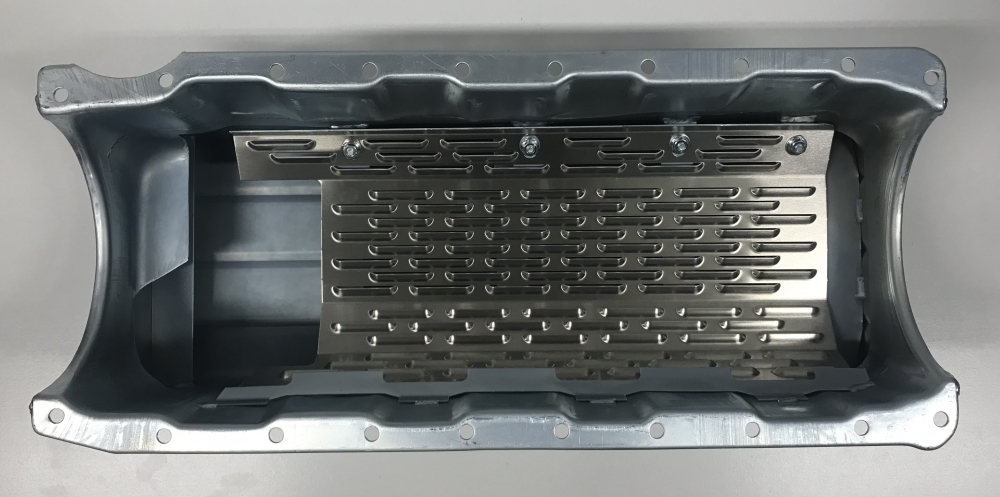

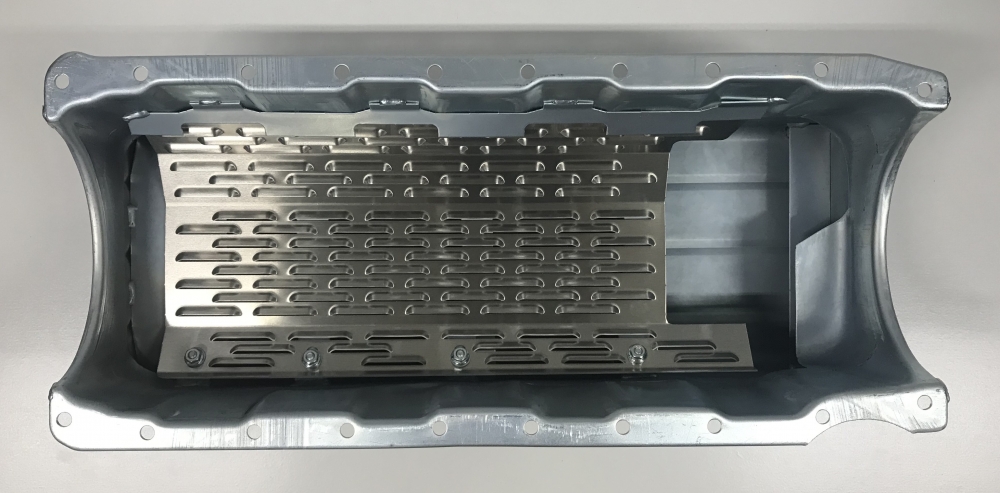

- a removable horsepower saving louvered windage tray
- a clear zinc finish

Oil capacity: 10 quarts with filter

Dipstick: Use JR133 (dipstick hole in the center right side of oil pan is 1/4" NPT thread)

Use: Agriculture, marine, street or strip

Dimensions: 23" L x 8 1/2" W x 7 1/2" H

Contact Us About This Product

Related Products

Name Application Info Price
JR133 Big Block Chevrolet 90d dipstick assembly $28.65
219BB M-77HV and 10770 3/4” x 7 1/2” deep pickup $42.90
