CP215LT > Big Block Chevrolet Mark IV

CP215LT - $398.10

Style:
Big Block Chevrolet Mark IV
Dimensions:
7 3/4" deep

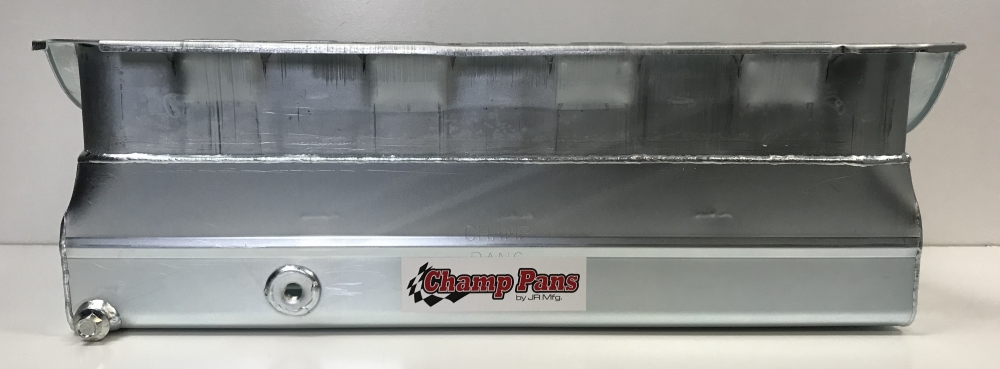

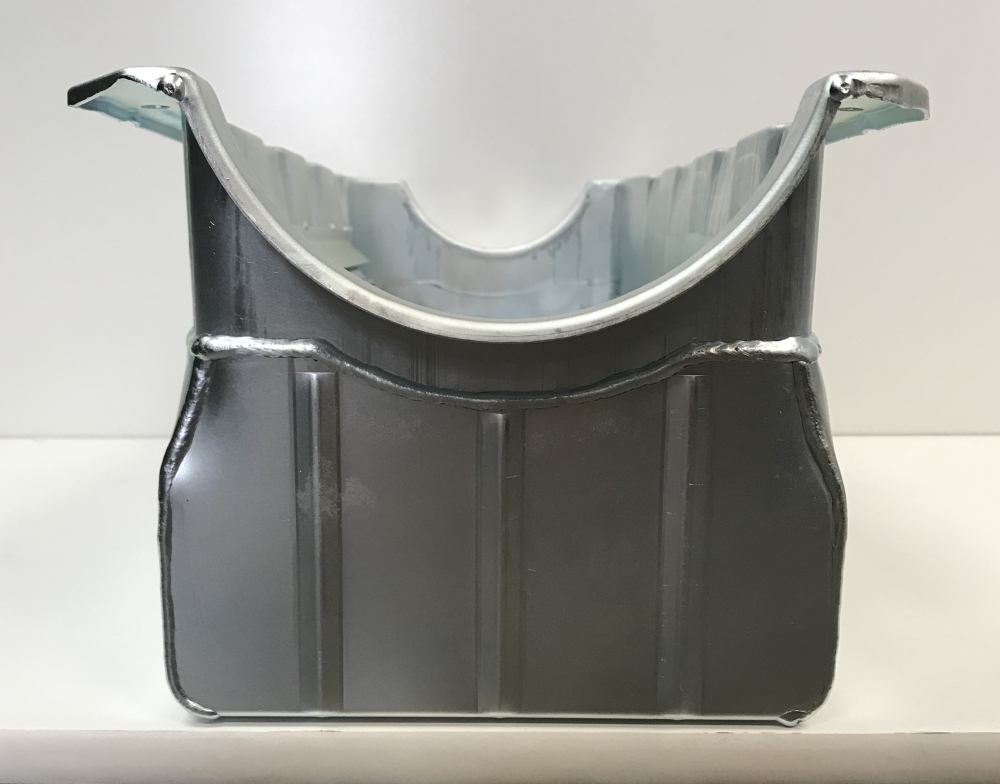

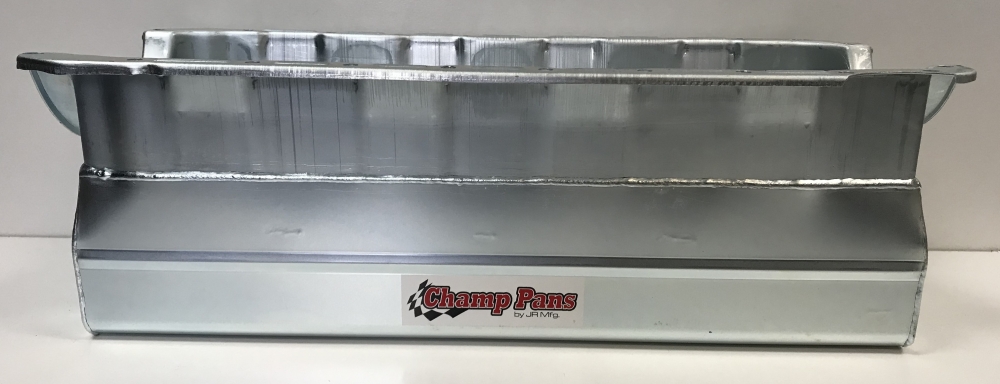

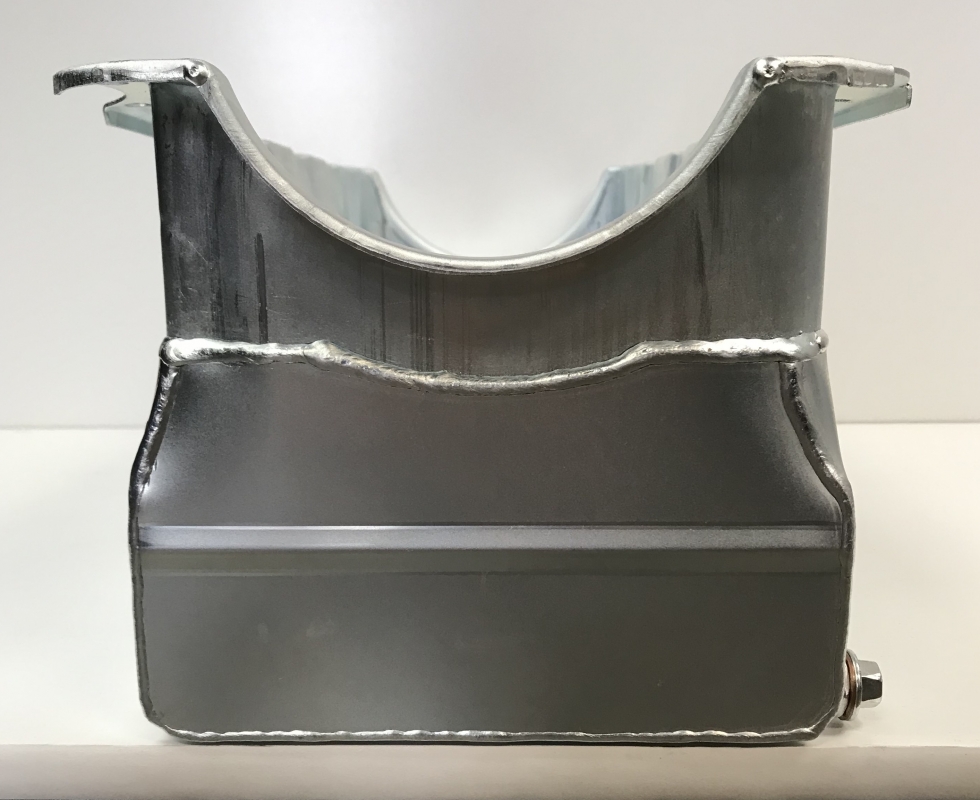

Description:This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a full length sump
- 14 gauge steel to take the abuse of drag racing or marine use
- six 3" trapdoors
- one crank scraper
- a front and back splash plate to keep the oil from climbing up the back of the oil pan

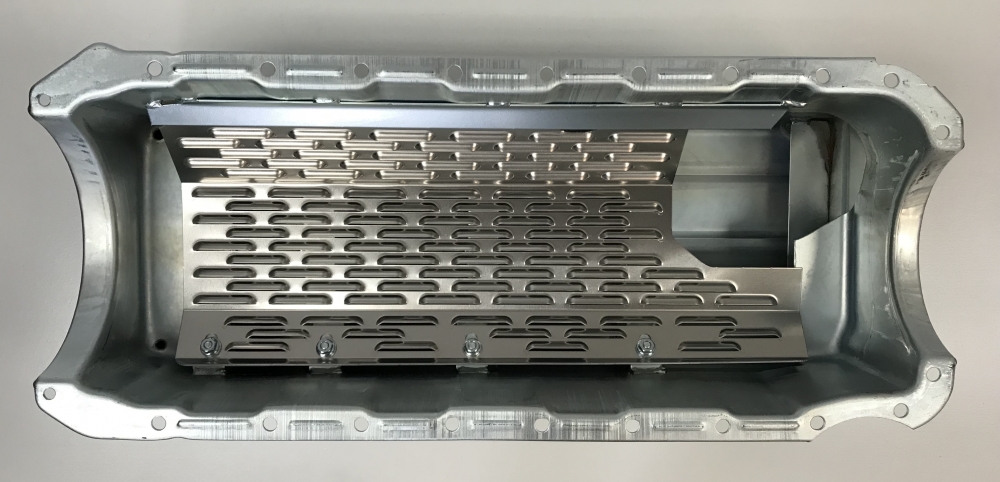

- a removable horsepower saving louvered windage tray
- a clear zinc finish

Oil capacity: 11 quarts with filter

Dipstick: Use JR133 (dipstick hole in the center right side of oil pan is 1/4" NPT thread)

Use: Agriculture, marine, street or strip

Dimensions: 23" L x 8 1/2" W x 7 3/4" H

Contact Us About This Product

Related Products

Name Application Info Price
JR133 Big Block Chevrolet 90d dipstick assembly $28.65
215BB M-77HV and 10770 3/4” x 7 3/4” deep pickup $42.90
