CP109KORB > Small Block Chevrolet 1986-2003

CP109KORB - $470.00

Style:
Small Block Chevrolet 1986-2003
Dimensions:
6 1/2" deep

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:
- 16 gauge steel
- a kick out on the right side that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- five trapdoors

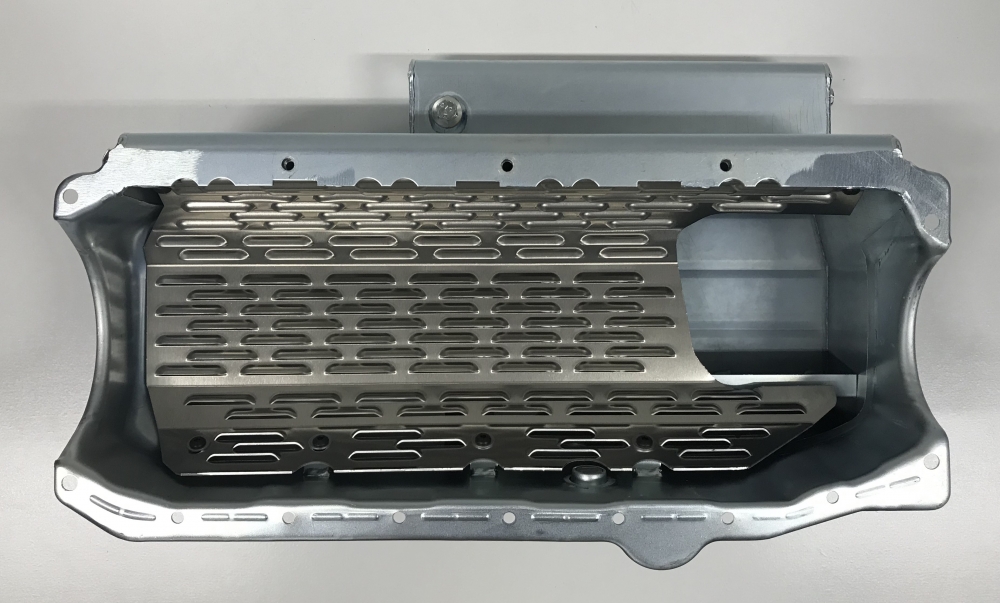

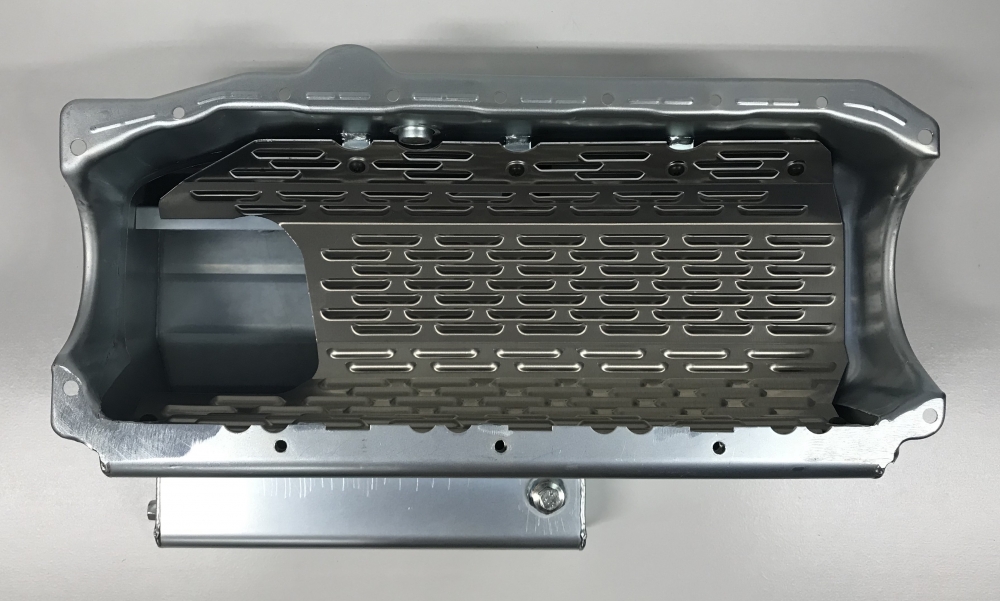

- a louvered windage tray
- a 3/4" sight hole
- an oil check level plug
- a clear zinc finish

The 1703SB is for the M155 or M10554 pumps in this oil pan.

Oil capacity: 8 quarts with filter

Use: Circle track

Series: Pro

Dipstick: Use JR131

Starter: Mini-starter

Dimensions: 13” L x 11 1/4" W x 6 1/2" H

Dimensions: 6 1/2” deep x 11 1/4” wide x 13” long

Contact Us About This Product

Related Products

Name Application Info Price
506SB 10550C 3/4” x 6 1/2” deep pickup and pump combination $251.75
1106SB M-55HV/10550/10550C/10550ST 5/8" x 6 1/2" deep pickup $48.00
1703SB 10552/10552C/100552ST/10555/10555C/10555ST 3/4" x 7" deep pickup $48.75
JR131 Small Block Chevrolet/Ford/Mopar Dipstick assembly $16.00
1107SB M-55/10553/10553ST 5/8" x 6 1/2" deep pickup $48.00
