CP109KO > Small Block Chevrolet 1957-1985

CP109KO - $564.00

Small Block Chevrolet 1957-1985
6 1/2" deep

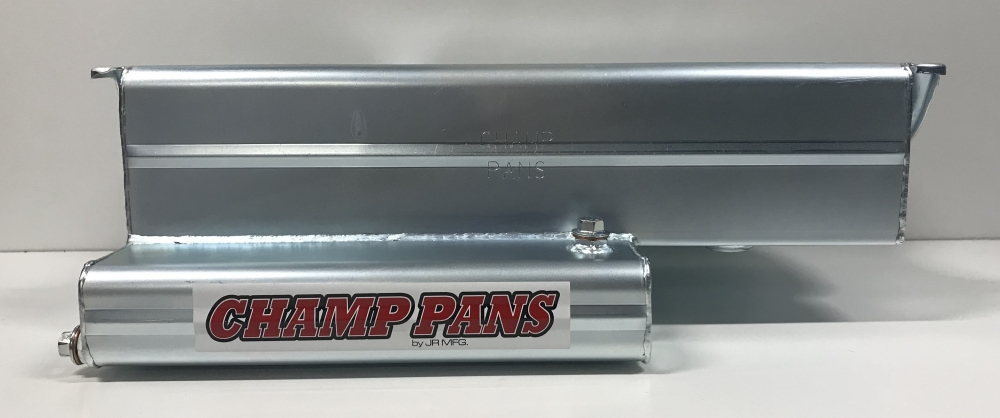

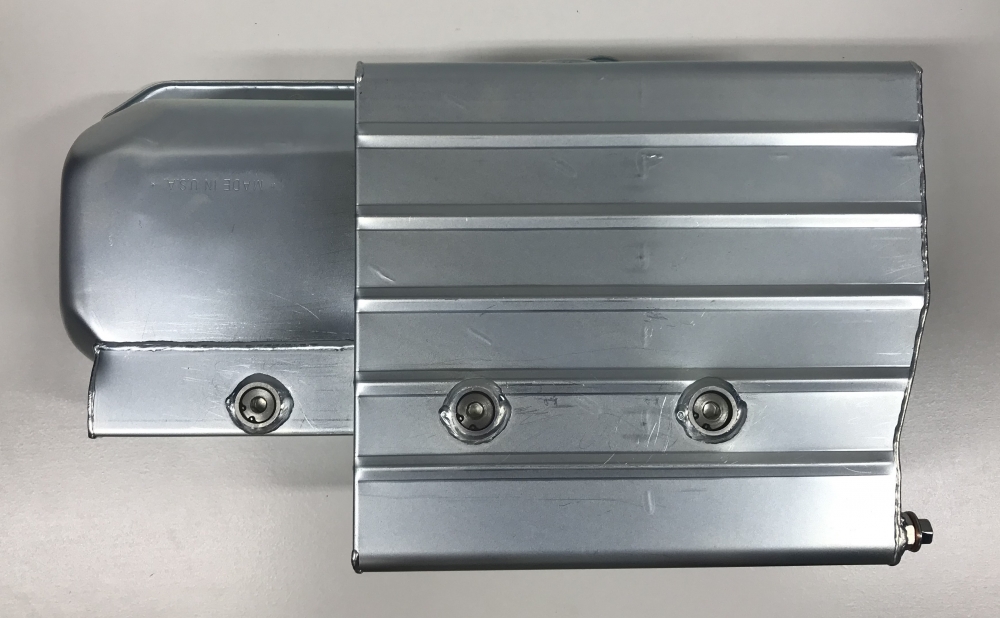

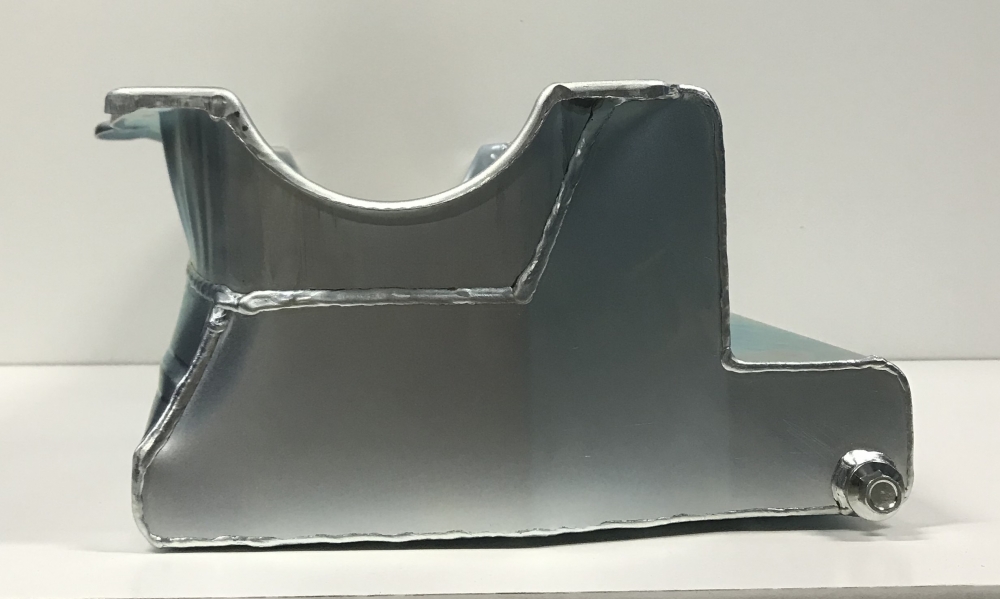

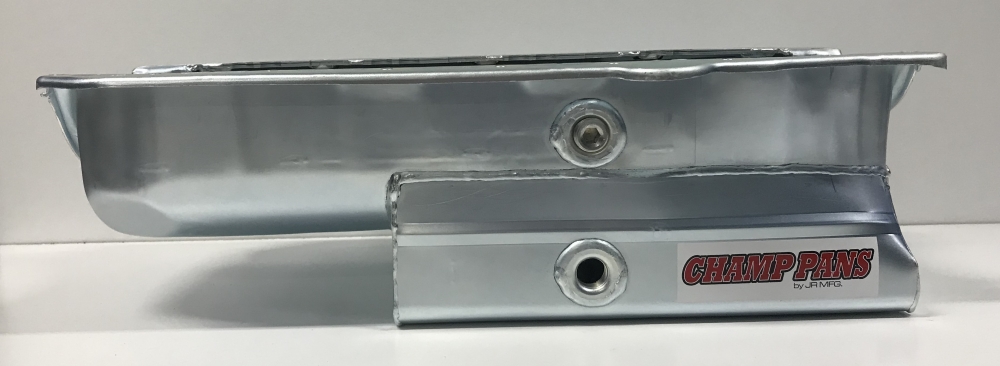

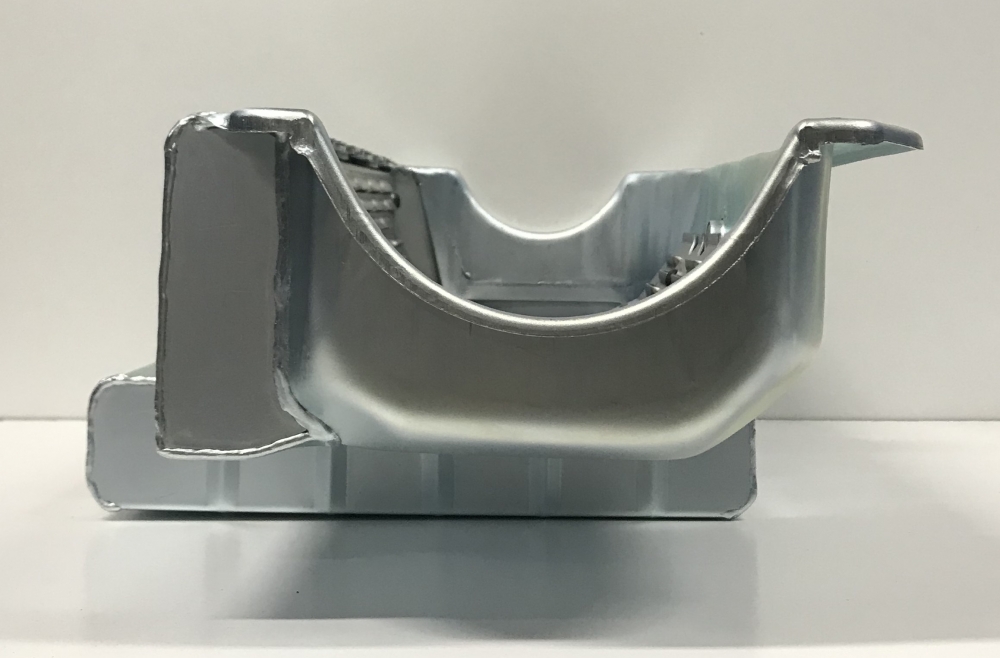

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- 16 gauge steel
- a kick out on the right side that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- five trapdoors

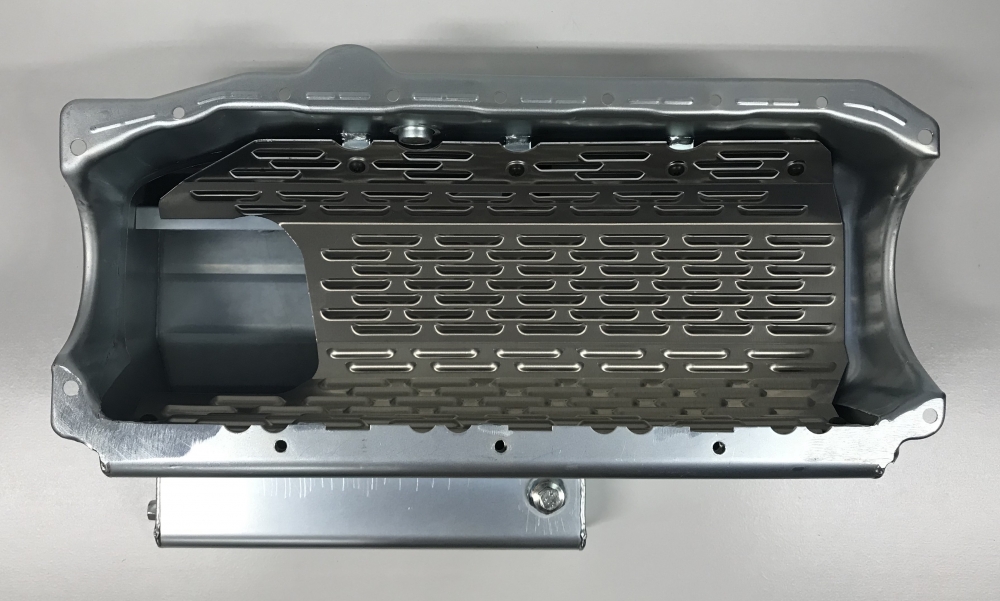

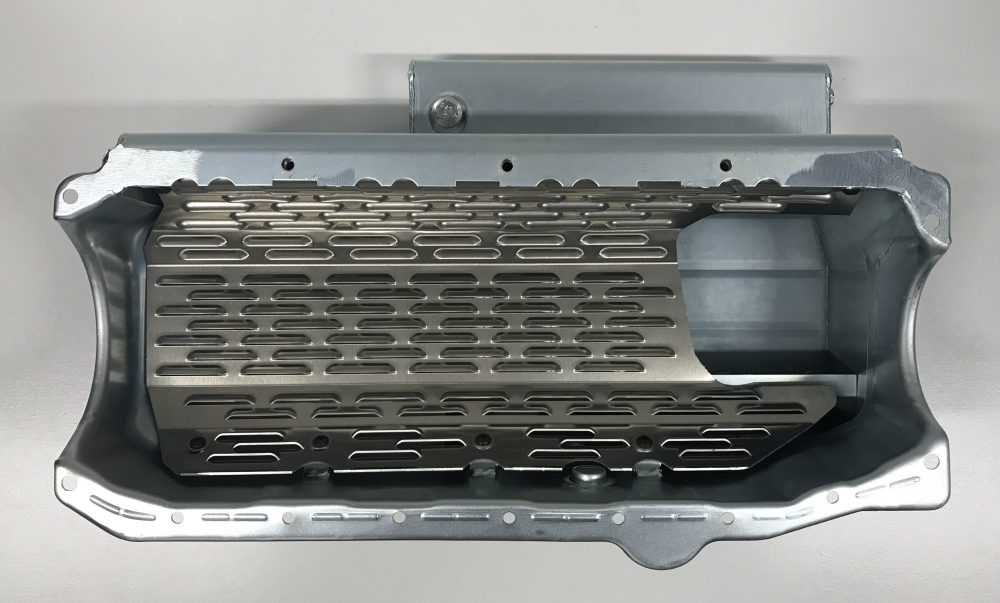

- a louvered windage tray
- a 3/4" sight hole
- an oil check level plug
- a clear zinc finish

The 1703SB is for the M155 or M10554 pumps in this oil pan.

Oil capacity: 8 quarts with filter

Use: Circle track

Series: Pro

Dipstick: Use JR131

Starter: Mini-starter

Dimensions: 13” L x 11 1/4" W x 6 1/2" H

Contact Us About This Product

Related Products

Name Application Info Price
506SB 10550C 3/4” x 6 1/2” deep pickup and pump combination $276.93
1106SB M-55HV, 10550, 10550C and 10550ST 5/8" x 6 1/2" deep pickup $52.80
1703SB 10552, 10552C, 10552ST, 10555, 10555C and 10555ST 3/4" x 7" deep pickup $53.63
LT-10 CP81KO, CP101KO, CP102KO, CP103KO, CP109KO Louvered windage tray $51.70
JR131 Small Block Chevrolet, Chrysler or Ford Dipstick assembly $28.65
1107SB M-55, 10553 and 10553ST 5/8" x 6 1/2" deep pickup $52.80
