CP106KO > Small Block Chevrolet 1957-1985

CP106KO - $518.10

Style:
Small Block Chevrolet 1957-1985
Dimensions:
6 1/2" deep

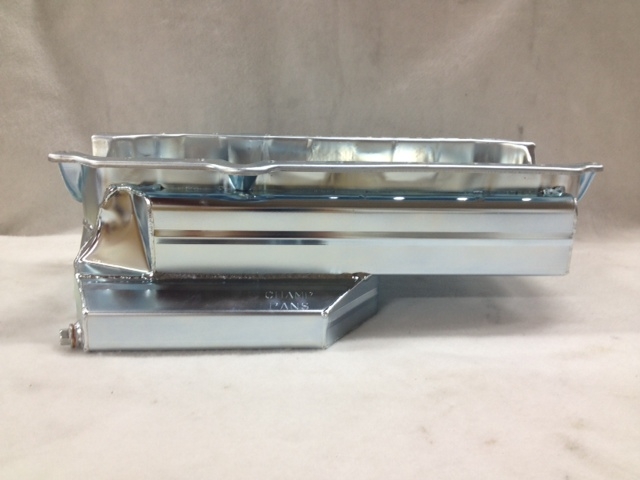

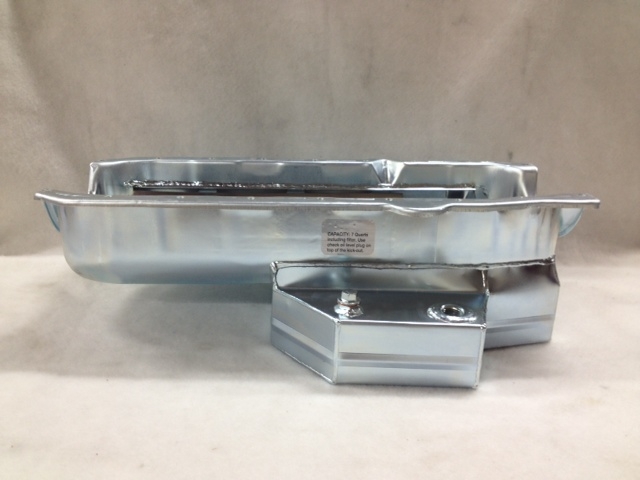

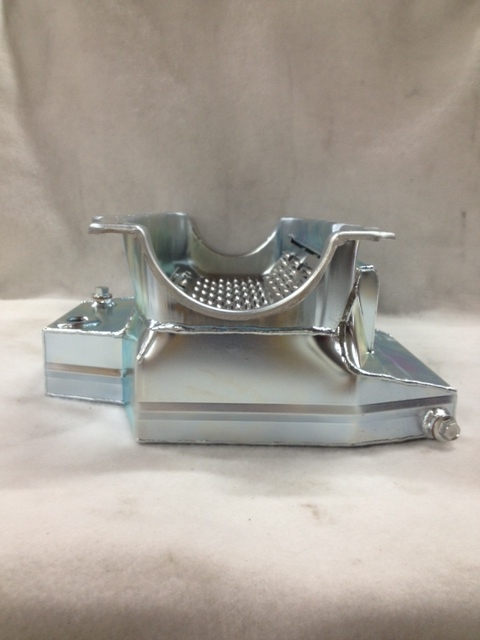

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out that runs the length of the pan
- the sump at 6 1/2” deep which allows for better ground clearance for asphalt race cars
- six trapdoors
- an oil temp fitting
- an oil check level plug

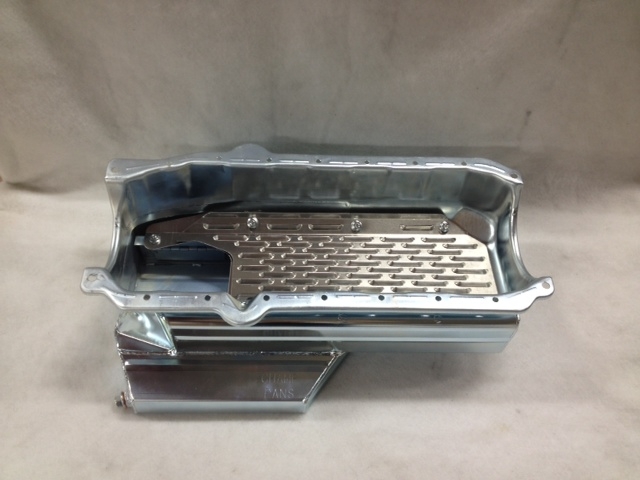

- a removable horsepower saving louvered windage tray
- a clear zinc finish

This oil pan is designed around the Chevrolet Camaro front stub with the engine set back.

We recommend using an accusump because of the lower oil capacity, unless you are using a remote cooler and oil filter adapter.

Oil capacity of 7 qts. with filter

Use: Asphalt circle track

Dipstick: Use JR131

Starter: Mini-starter

Dimensions: 12” L x 14" W x 6 1/2" H

Contact Us About This Product

Related Products

Name Application Info Price
106SB M-55HV, 10550, 10550C and 10550ST 5/8” x 6 1/2” deep pickup $42.90
110SB M-55, 10553 and 10553ST 5/8” x 6 1/2” deep pickup $42.90
1011SB M155, 10554 and 10554ST 3/4" x 6 1/2" deep pickup $53.63
LTKO CP80KO, CP100KO, CP106KO Louvered windage tray $51.70
JR131 Small Block Chevrolet, Chrysler or Ford Dipstick assembly $28.65
