CP102KORB > Small Block Chevrolet 1986-2003

CP102KORB - $571.20

Style:
Small Block Chevrolet 1986-2003
Dimensions:
7" deep

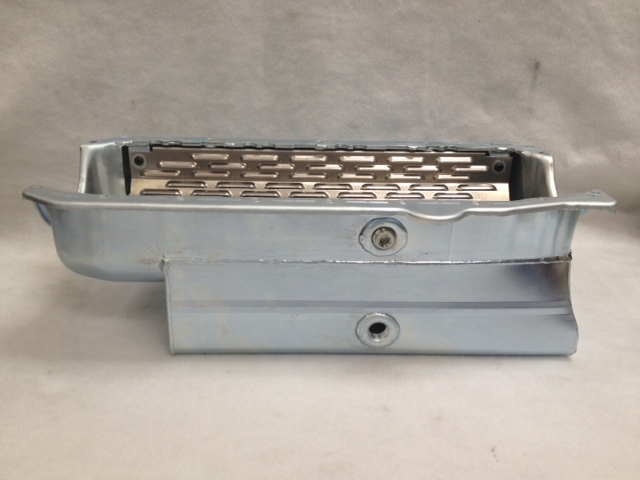

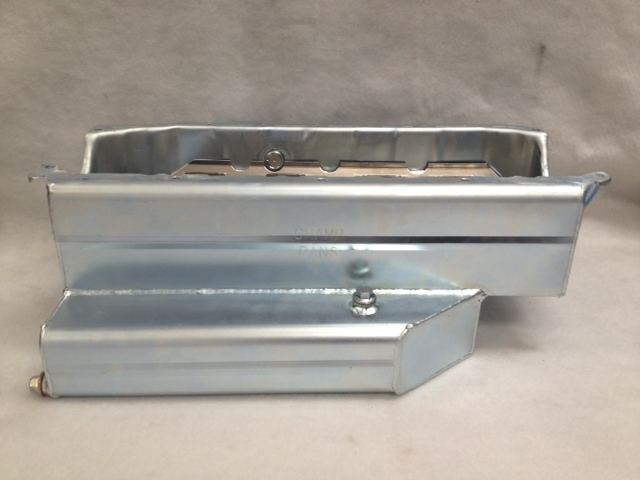

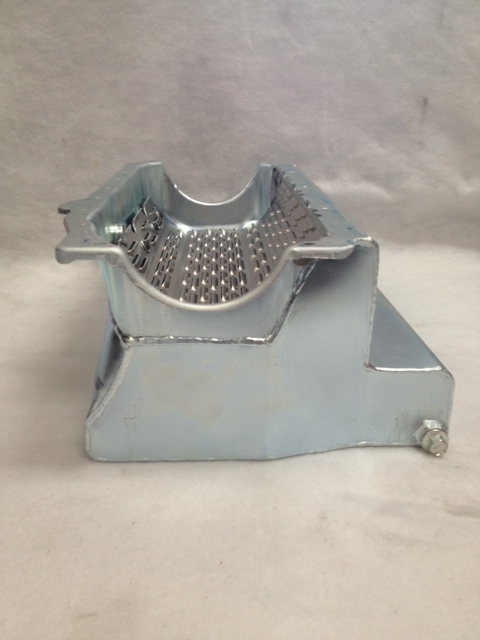

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:
- a kick out that goes all the way to the block

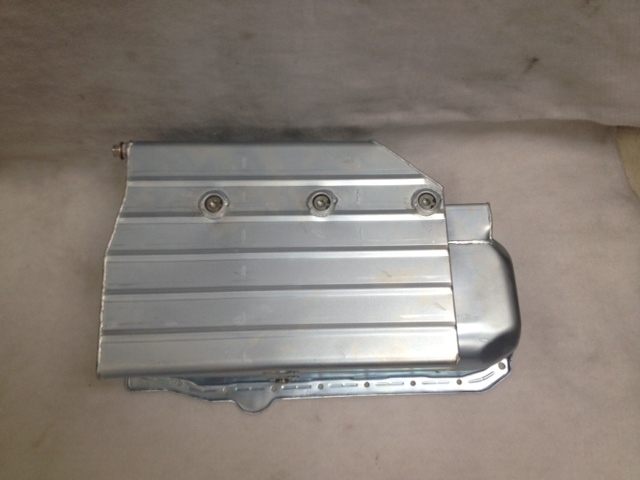

- three access plugs on the right side for mounting
- six trapdoors
- two runners
- a sump tray
- an oil temp sender port
- a 3/4” sight hole

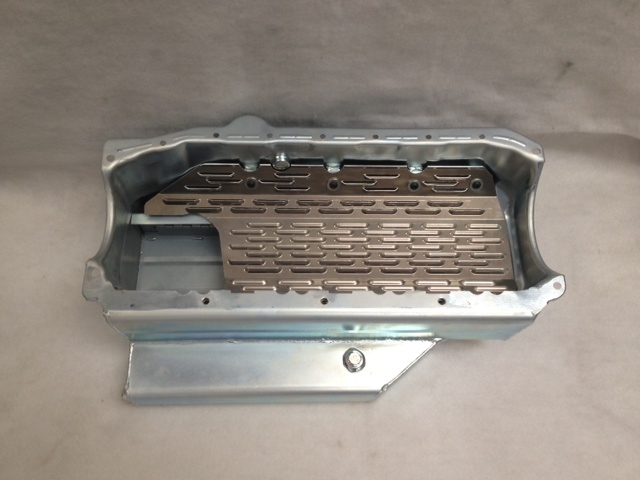

- a removable louvered windage tray that covers 160 degrees of the crank rotation
- a clear zinc finish

This oil pan was designed for race cars that do not have a cross member in the way.

Oil capacity: 10 quarts with filter

Use: Circle track

Series: Pro

Dipstick: Use JR131

Starter: Mini-starter for a 168 flywheel

Dimensions: 16 1/2” L x 11 1/4" W x 7" H

Contact Us About This Product

Related Products

Name Application Info Price
100BB M-77HV, M-99HV and 10770 3/4” x 7” deep pickup $42.90
508SB 10550 3/4” x 7” deep pickup and pump combination $243.38
1008SB M-55HV, 10550, 10550C and 10550ST 5/8" x 7" deep pickup $42.90
1703SB 10552, 10552C, 10552ST, 10555, 10555C and 10555ST 3/4" x 7" deep pickup $53.63
1704SB M155HV, 10551 and 10551ST 3/4" x 7" deep pickup $53.63
LT-10 CP81KO, CP101KO, CP102KO, CP103KO, CP109KO Louvered windage tray $51.70
JR131 Small Block Chevrolet, Chrysler or Ford Dipstick assembly $28.65
1026SB M155, 10554 and 10554ST 3/4" x 7" deep pickup $52.80
1027SB M-55, 10550, 10550C and 10550ST 5/8" x 7" deep pickup $52.80
507ST-SB 10550ST 3/4" x 7" deep pickup and pump combination $318.45
ST-2 CP102KO series Sump tray $19.80
