CP102KO > Small Block Chevrolet 1957-1985

CP102KO - $476.00

Small Block Chevrolet 1957-1985
7" deep

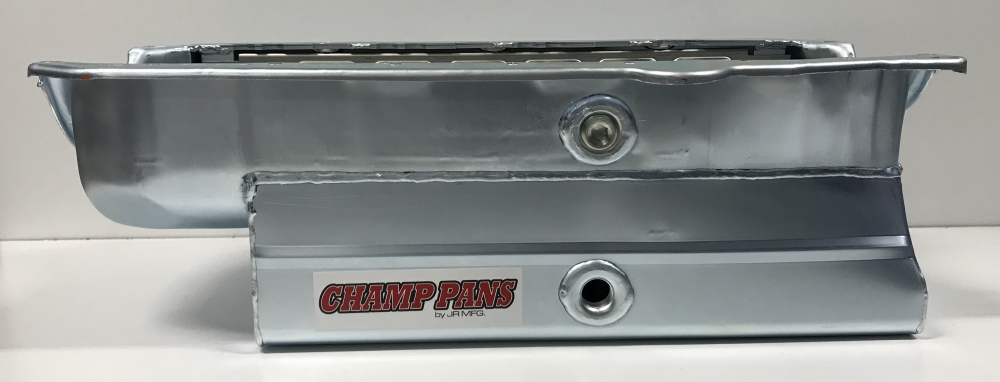

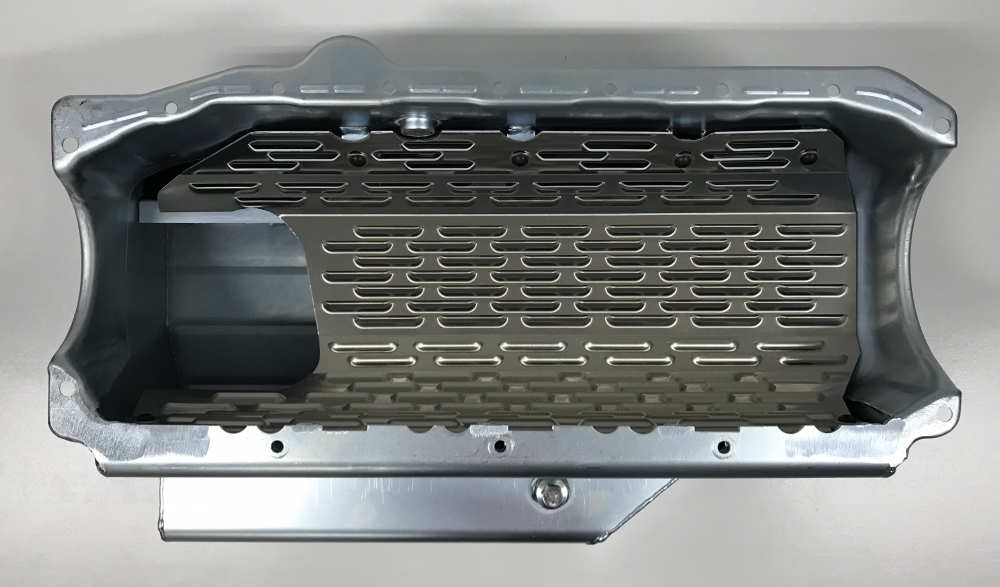

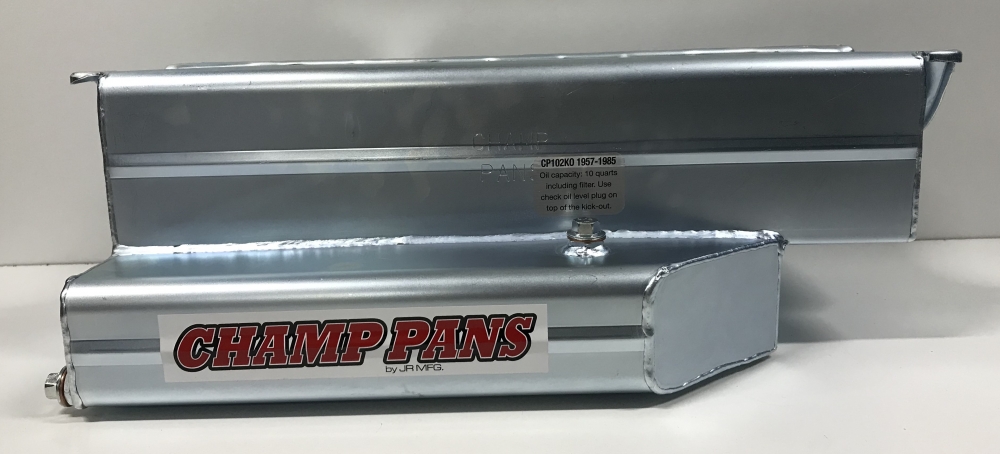

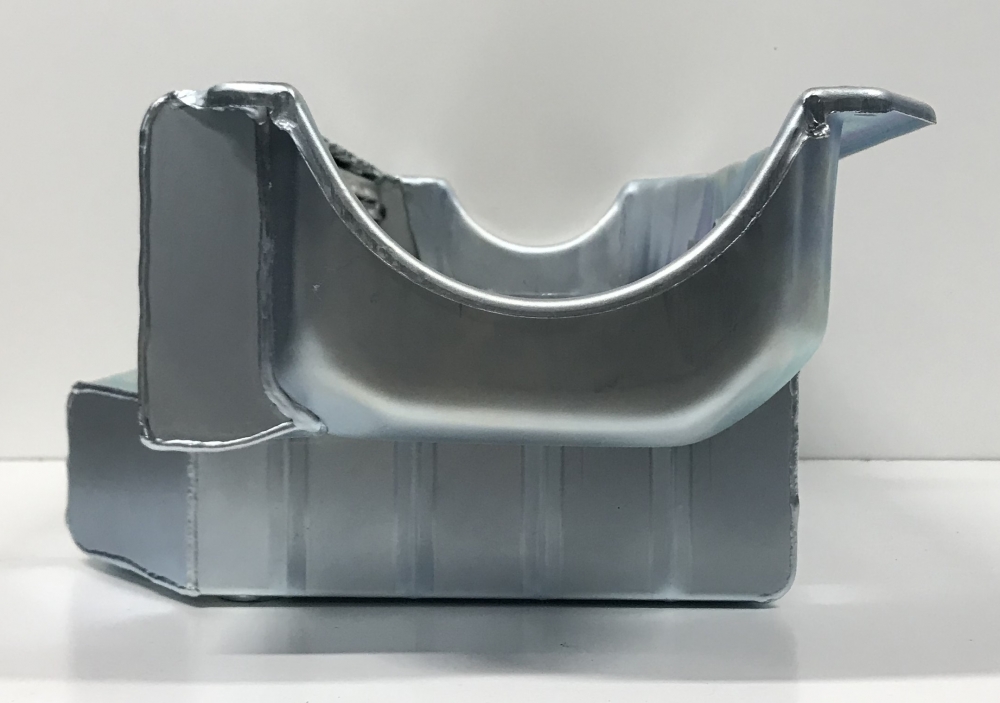

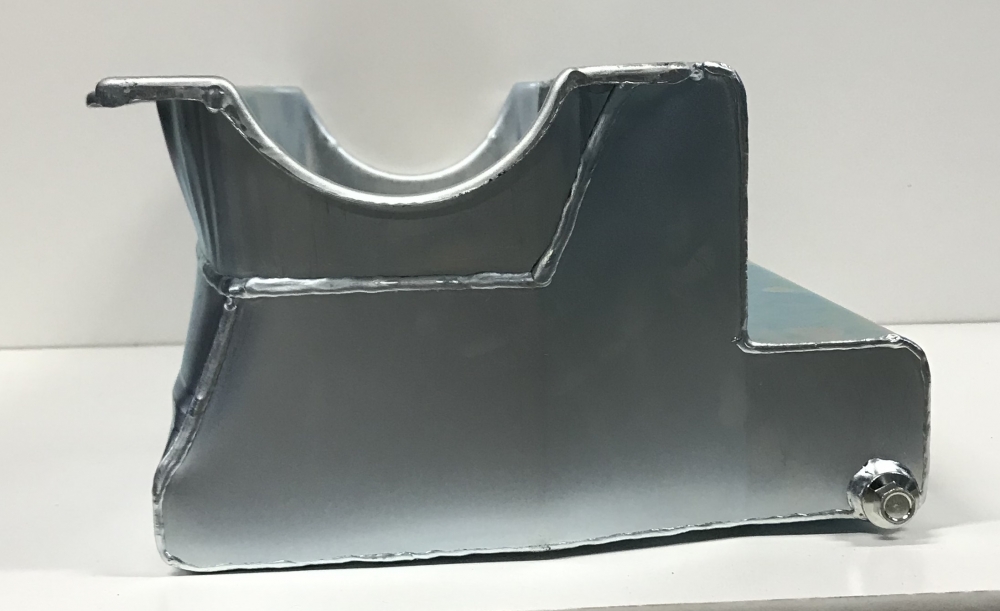

Description:This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out that goes all the way to the block

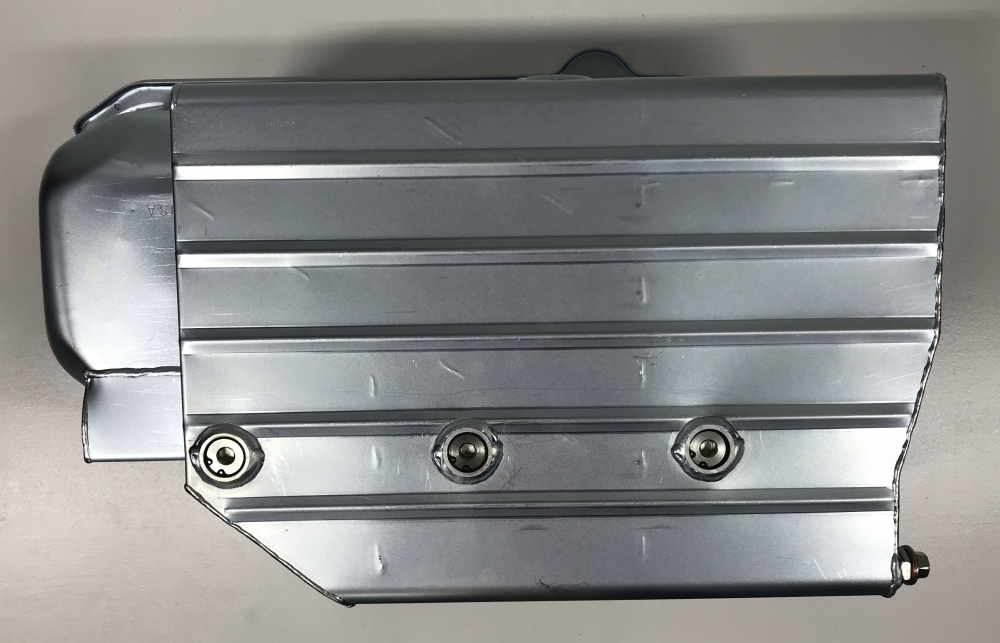

- three access plugs on the right side for mounting
- six trapdoors
- two runners
- a sump tray
- an oil temp sender port
- a 3/4” sight hole

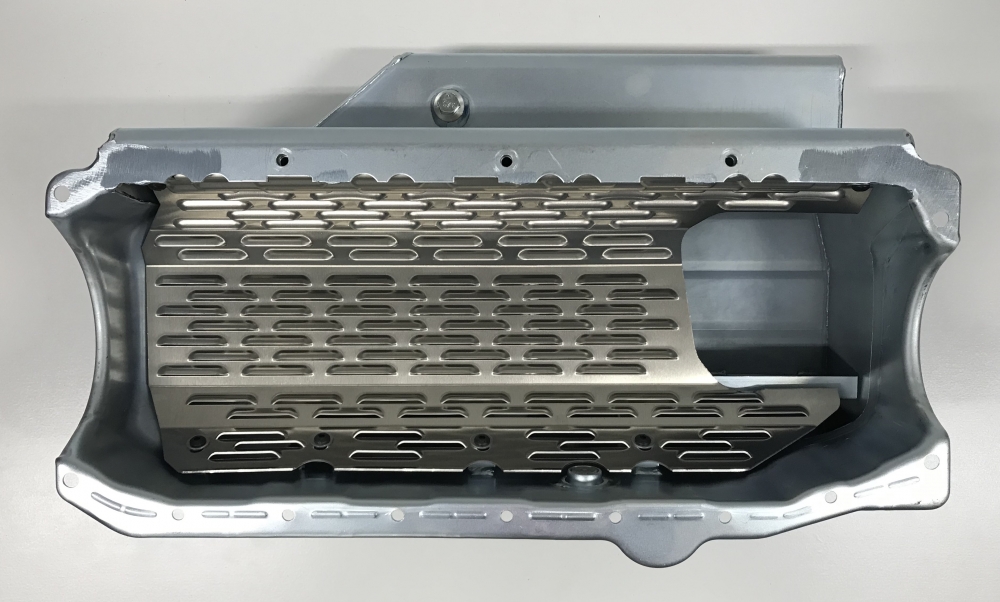

- a removable louvered windage tray that covers 160 degrees of the crank rotation
- a clear zinc finish

This oil pan was designed for race cars that do not have a cross member in the way.

Oil capacity: 10 quarts with filter

Use: Circle track

Series: Pro

Dipstick: Use JR131

Starter: Mini-starter for a 168 flywheel

Dimensions: 16 1/2” L x 11 1/4" W x 7" H

Contact Us About This Product

Related Products

Name Application Info Price
100BB M-77HV/-99HV/10770 3/4” x 7” deep pickup $39.00
507SB 10550C 3/4” x 7” deep pickup and pump combination $246.50
508SB 10550 3/4” x 7” deep pickup and pump combination $221.25
1008SB M-55HV/10550/10550C/10550ST 5/8" x 7" deep pickup $39.00
1703SB 10552/10552C/100552ST/10555/10555C/10555ST 3/4" x 7" deep pickup $48.75
1704SB M155HV/10551/10551ST 3/4" x 7" deep pickup $48.75
LT-10 CP101KO/102KO Louvered windage tray $47.00
JR131 Small Block Chevrolet/Ford/Mopar Dipstick assembly $16.00
1026SB M155/10554/10554ST 3/4" x 7" deep pickup $48.00
1027SB M-55/10550/10550C/10550ST 5/8" x 7" deep pickup $48.00
507ST-SB 10550ST 3/4" x 7" deep pickup and pump combination $289.50
ST-2 CP102KO series Sump tray $18.00
