Style:
Small Block Ford 302
Dimensions:
6.500 deep
Note:
Must use external pump.
Description:

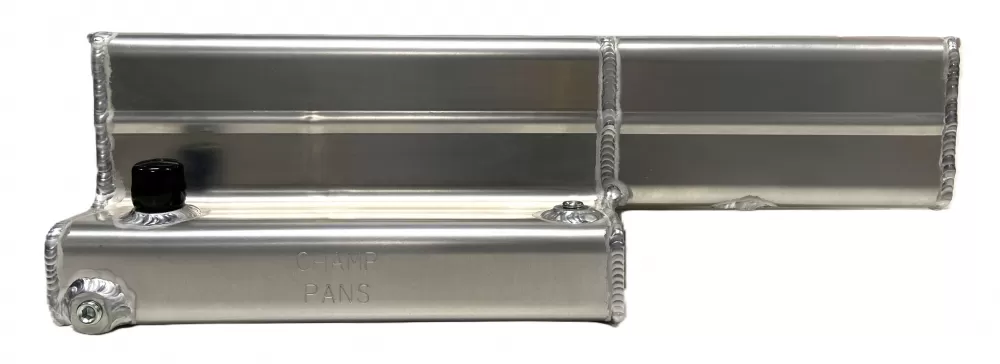

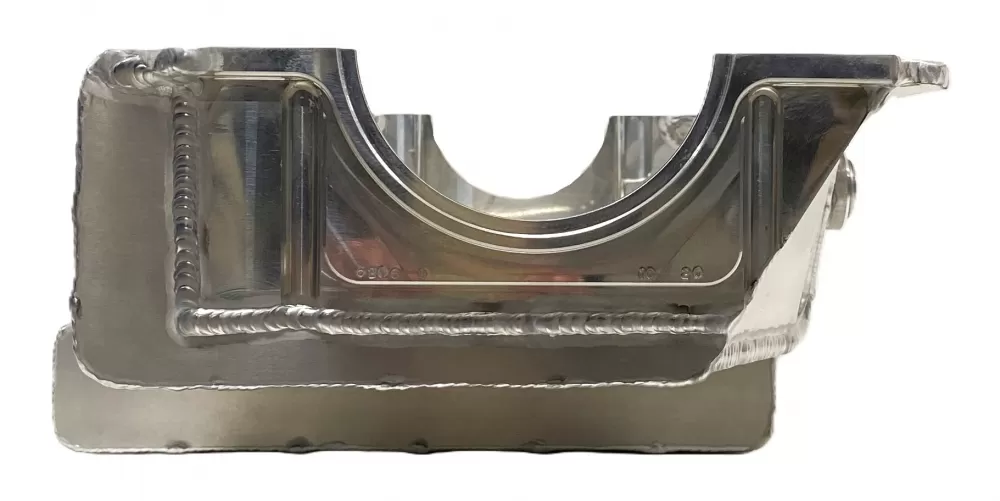

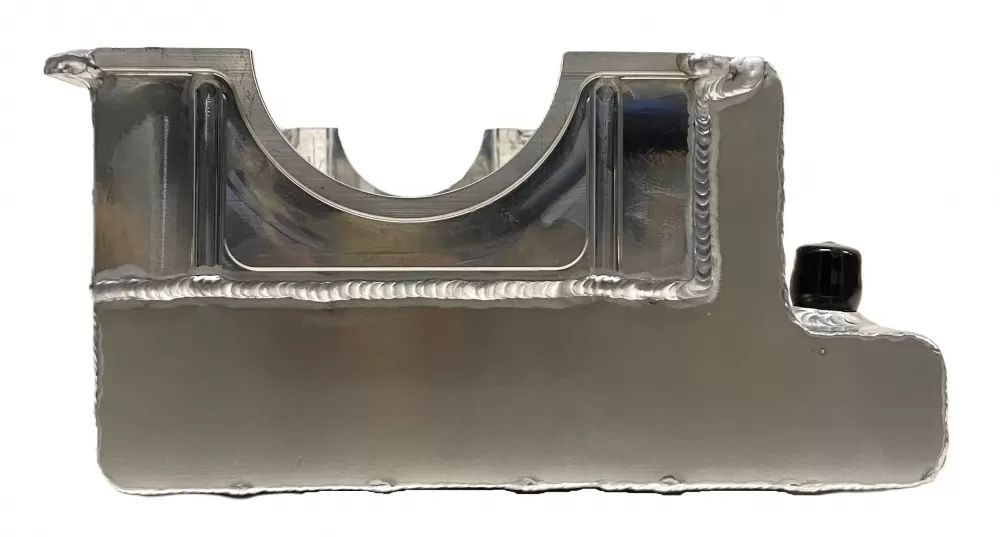

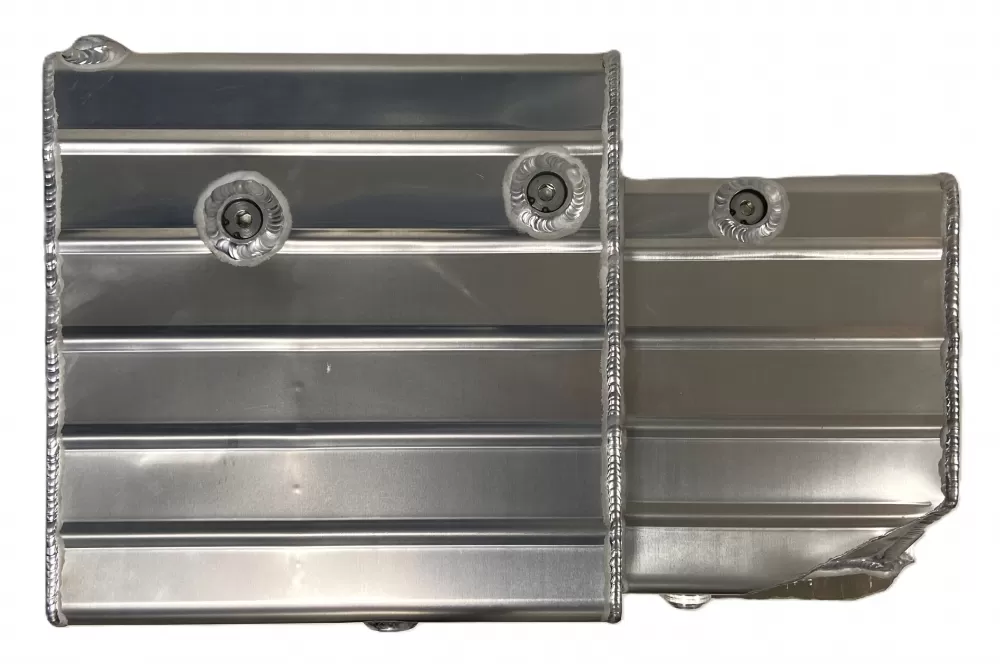

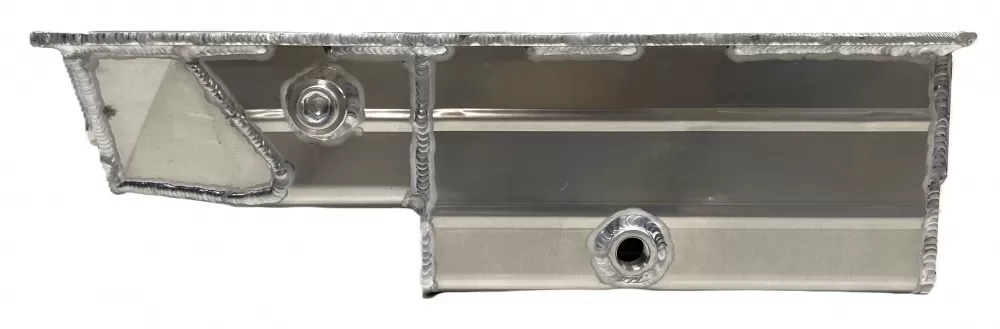

This aluminum wet sump oil pan is for the Small Block Ford 302 engines. This oil pan features:
- a kick out that starts at the pan rail on the right side
- an external pickup welded inside
- a -12 an fitting exiting the top right side of the kick out
- the front sump removed
- billet aluminum front and rear end caps
- access plugs for the right side pan rail

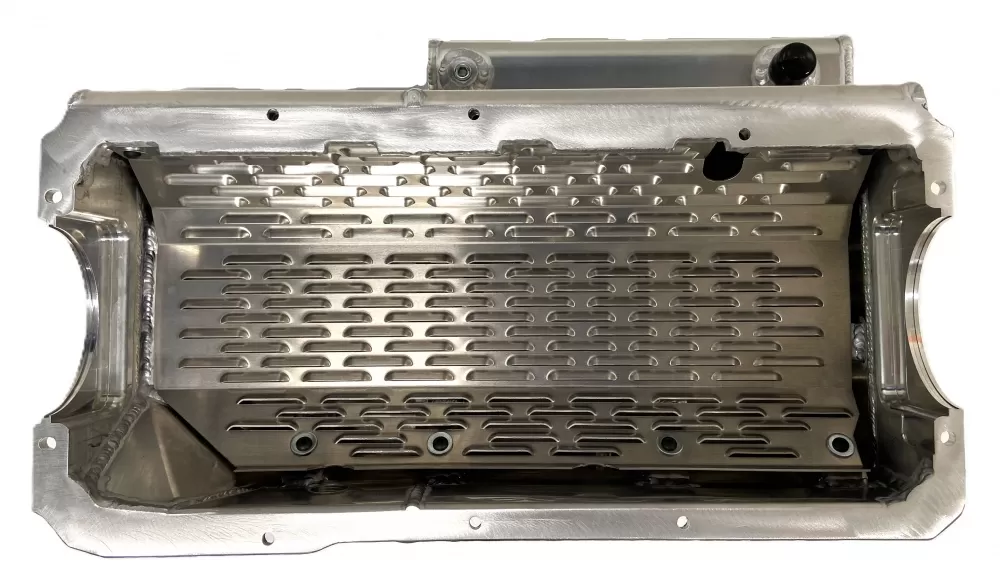

- a full length louvered windage tray
- five trapdoors
- an oil check level plug
No pan gasket required.
An external pump must be used.
Oil capacity: 7 quarts with filter
Use: Circle track
Starter: Reverse mounted
Dimensions: 13 1/4” L x 13" W x 6 1/2" H
Weight: 11 lbs
