Style:
Dart SBC with spread rails
Dimensions:
8.000 deep
Description:

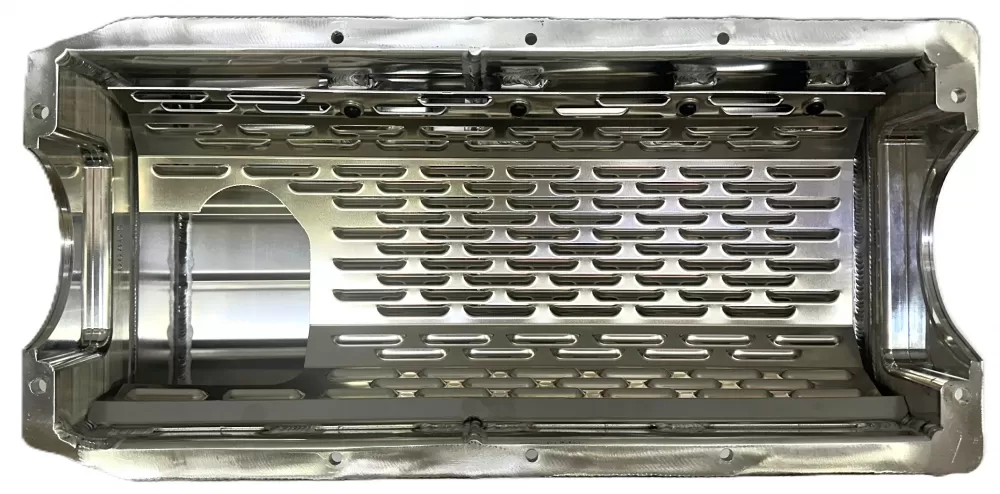

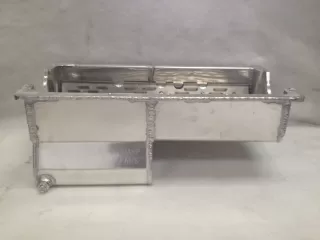

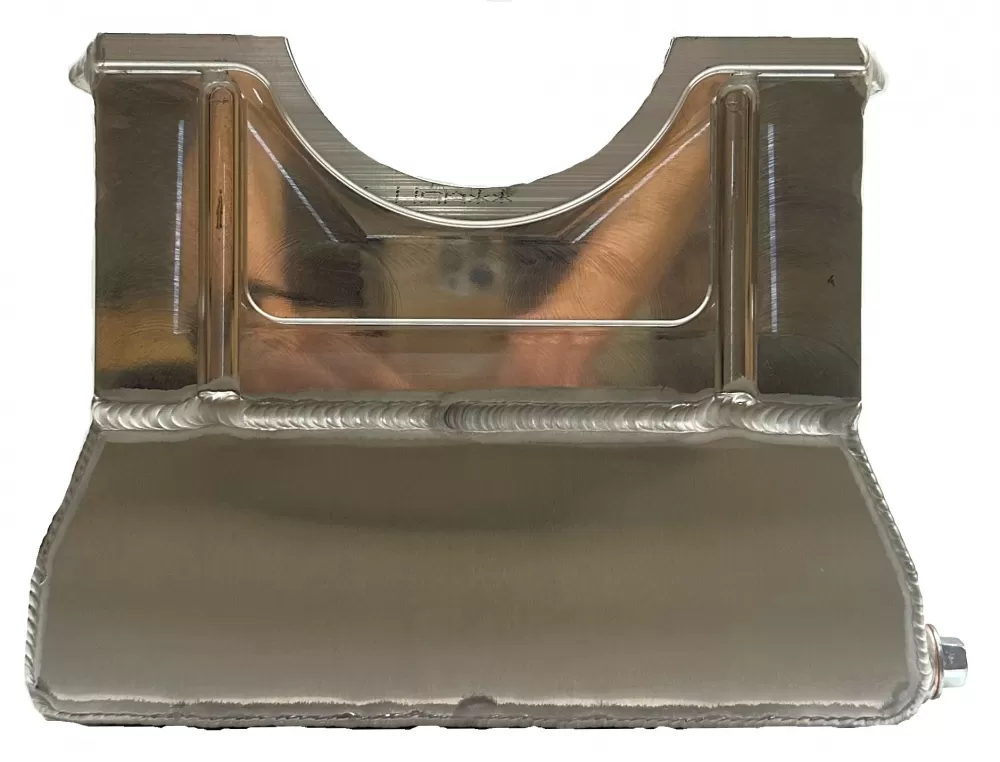

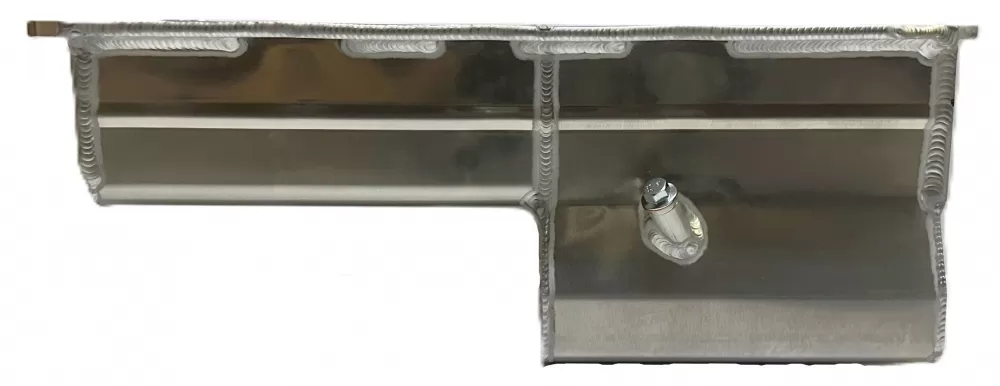

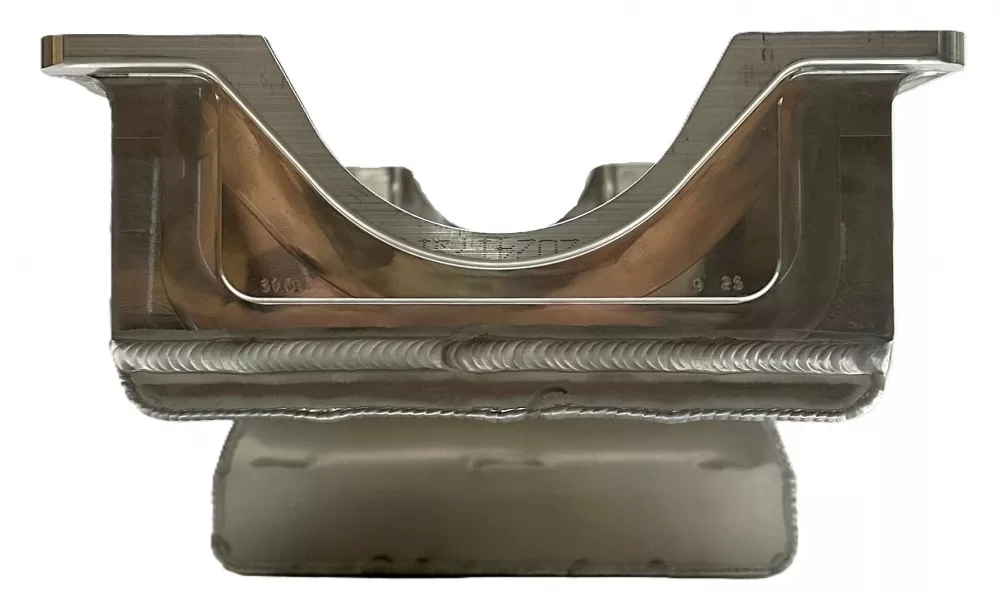

This aluminum wet sump oil pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:
- one 6” trapdoor
- a louvered windage tray
- a provision for a dipstick assembly
No pan gasket required.
Will work with a stock cross member.
Oil capacity: 8 quarts with filter
Use: Street or strip
Dipstick: Use JR131
Starter: Mini-starter
Dimensions: 9 1/2" L x 10 1/2" W x 8" H
Weight: 9 1/2 lbs
No additional information could be found for this product.
No installation instructions could be found for this product.
