Style:
Dart SBC with spread rails
Dimensions:
8.000 deep
Description:

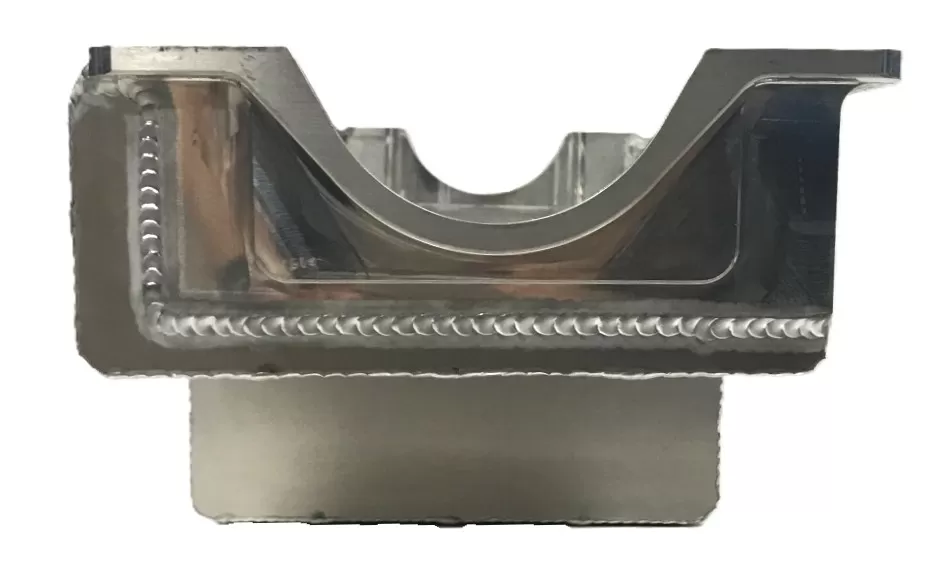

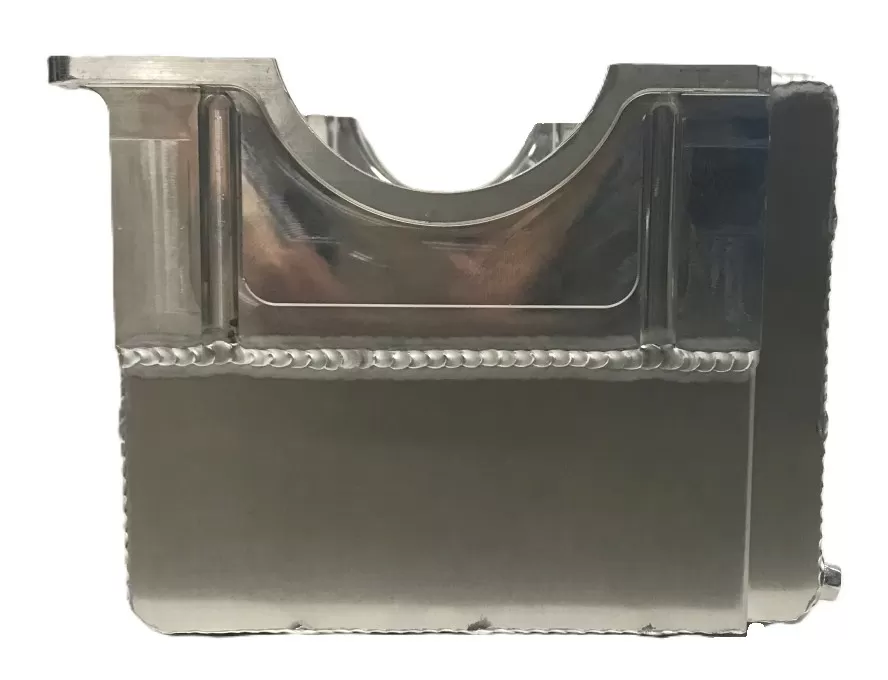

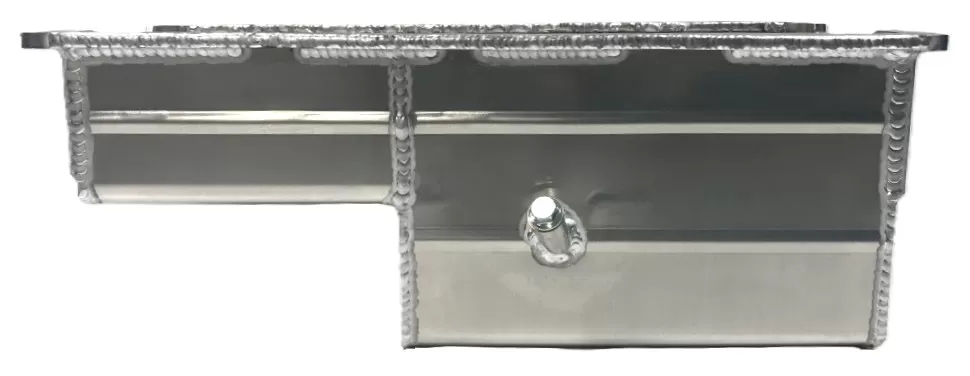

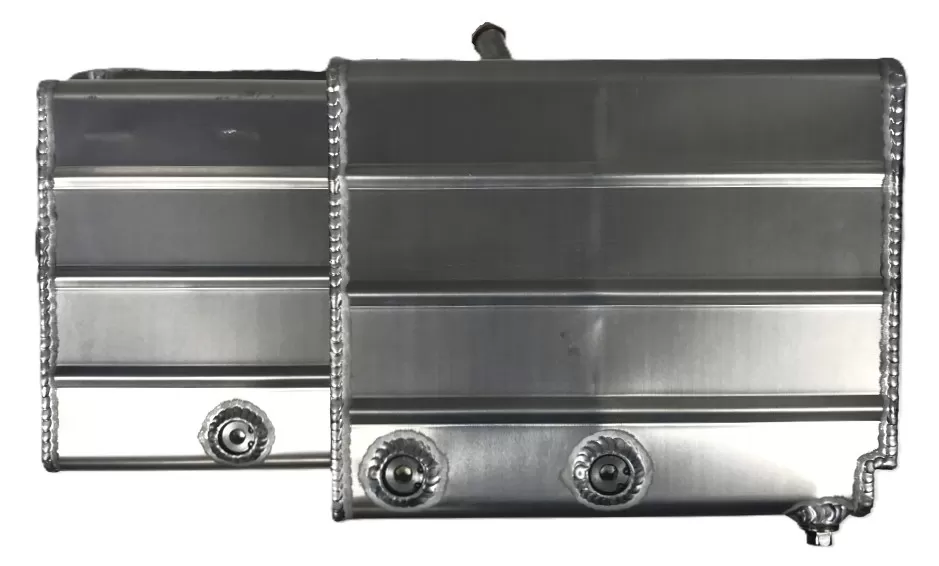

This aluminum wet sump oil pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:

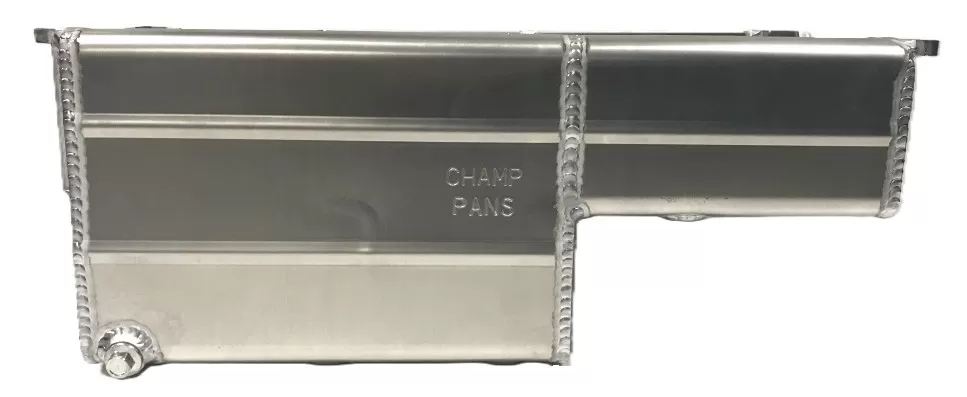

- a kick out on the right side
- one 6” trapdoor

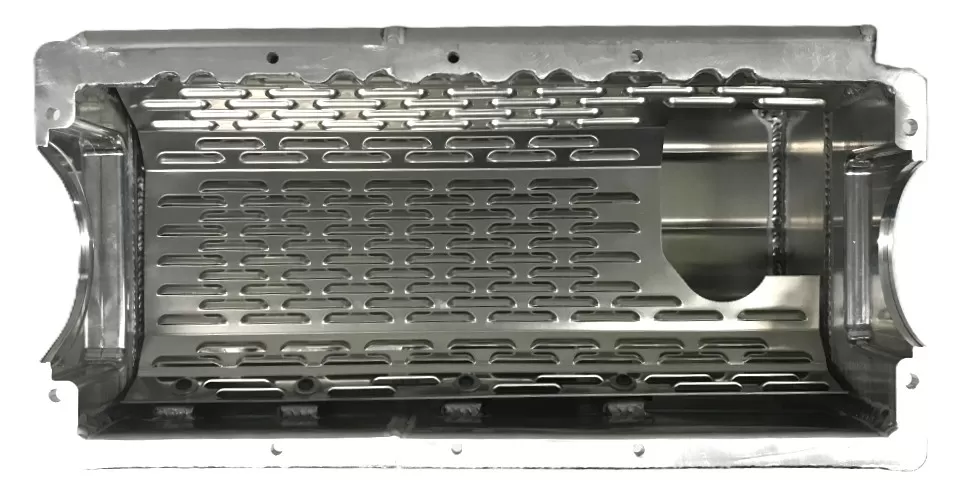

- a louvered windage tray
- a provision for a dipstick assembly
No pan gasket required.
Oil capacity: 9 quarts with filter
Use: Circle track, marine, road race, street or strip
Dipstick: Use JR131
Starter: Mini-starter
Dimensions: 12 1/4” L x 10 1/4" W x 8" H
Weight: 10 1/2 lbs
No additional information could be found for this product.
No installation instructions could be found for this product.
