Style:
Dart SBC with spread rails
Dimensions:
7.250 deep
Description:

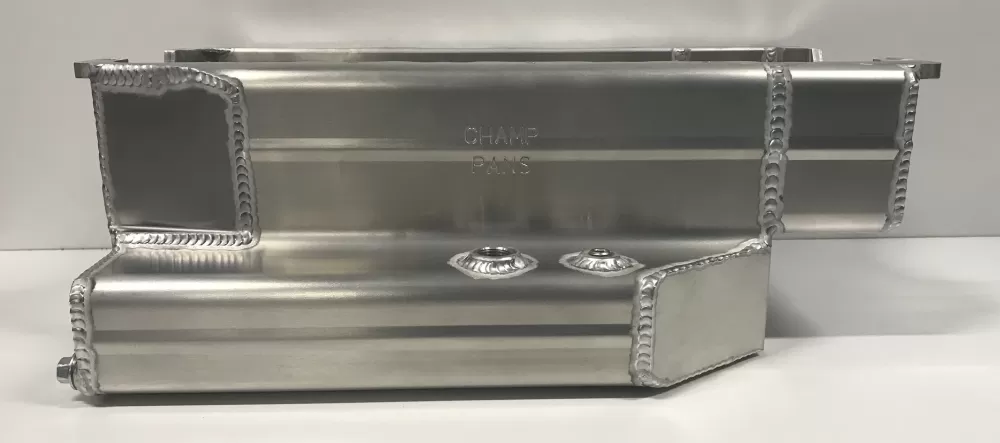

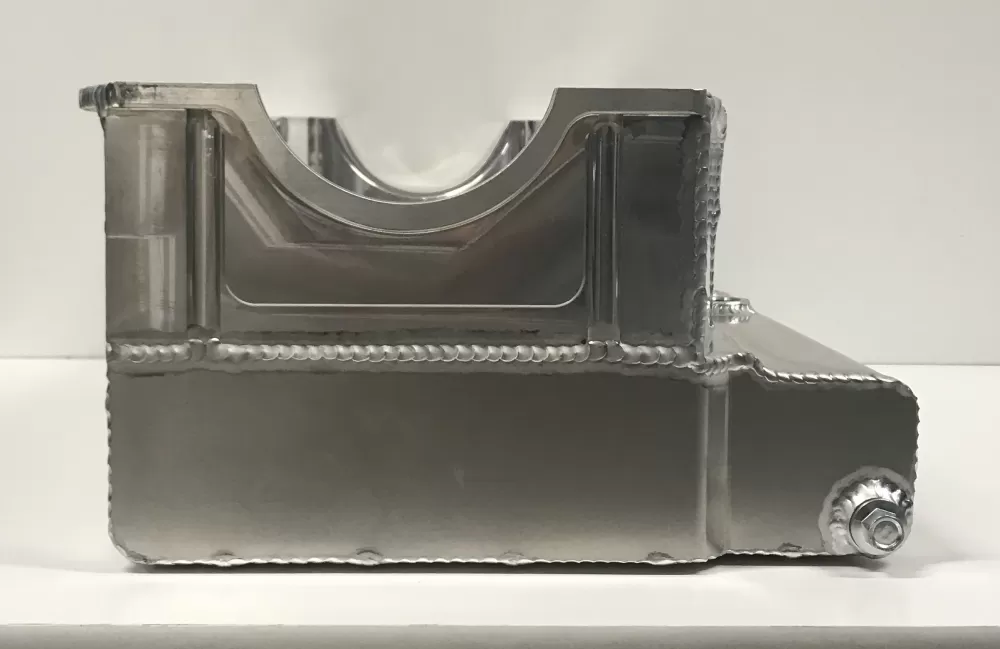

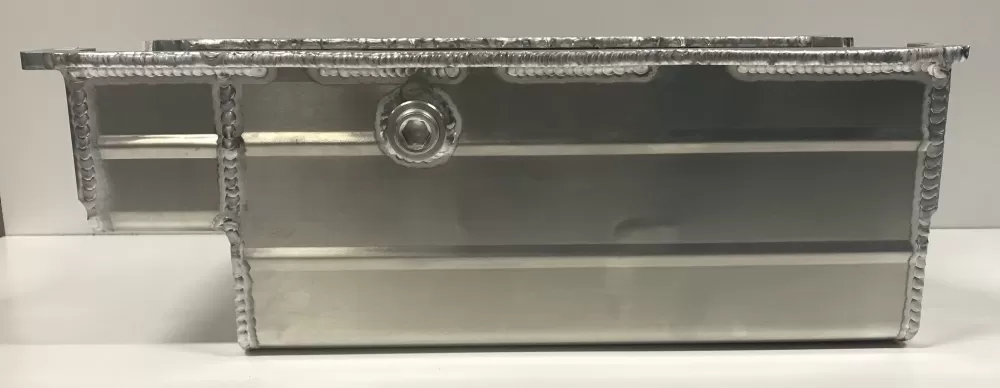

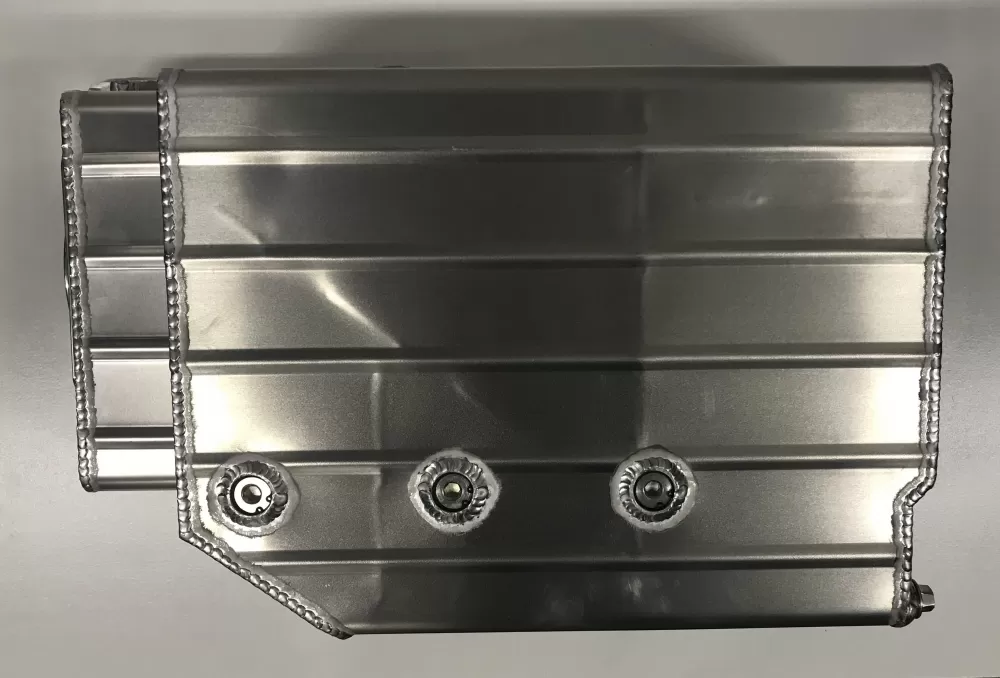

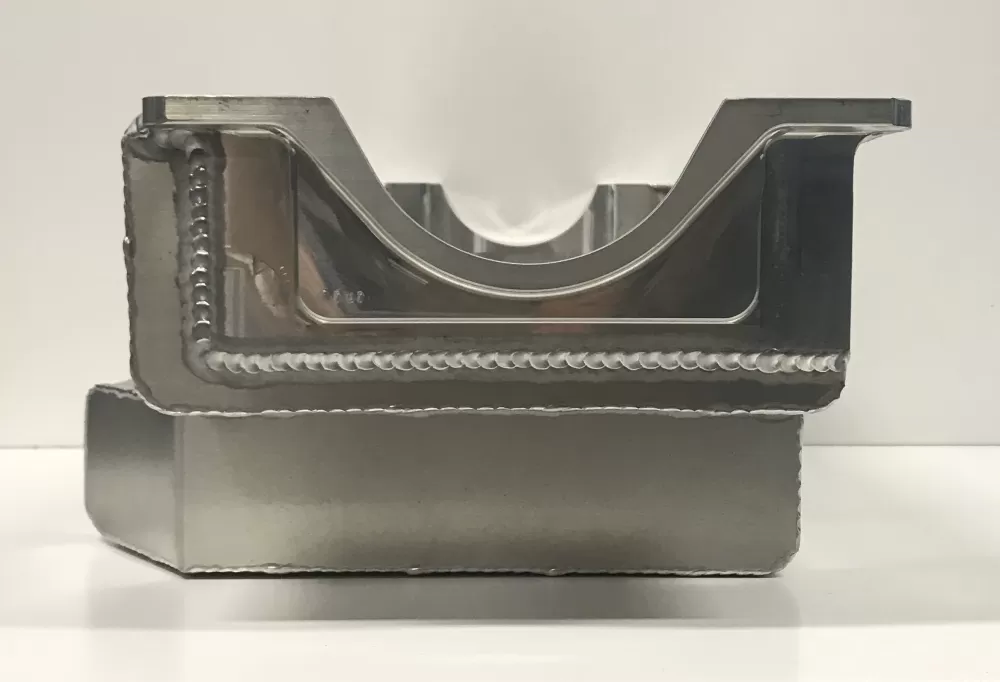

This aluminum wet sump oil pan pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:
- a kick out on the right side
- access plugs for the right side pan rail
- five trapdoors

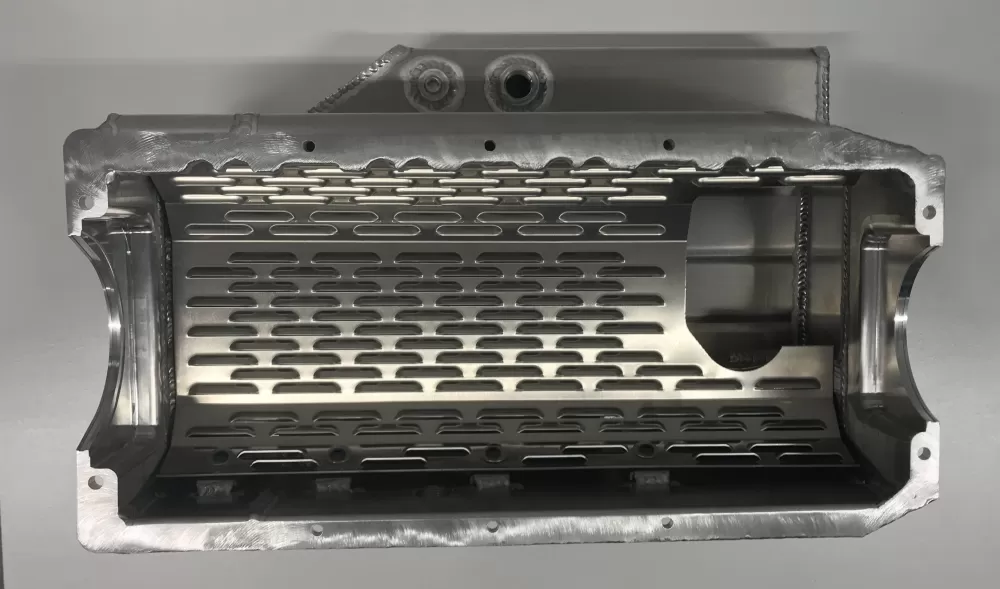

- a louvered windage tray
- an oil check level plug
No pan gasket required.
Oil capacity: 10 quarts with filter
Use: Circle track
Starter: Mini-starter
Dimensions: 16 3/4” L x 12 3/4" W x 7 1/4" H
No additional information could be found for this product.
No installation instructions could be found for this product.
