Style:
Big Block Chevrolet Gen VI
Dimensions:
8.000 deep
Description:
This aluminum wet sump oil pan is for the Big Block Chevrolet Gen VI. This oil pan features:
- a double kick out
- .100" aluminum

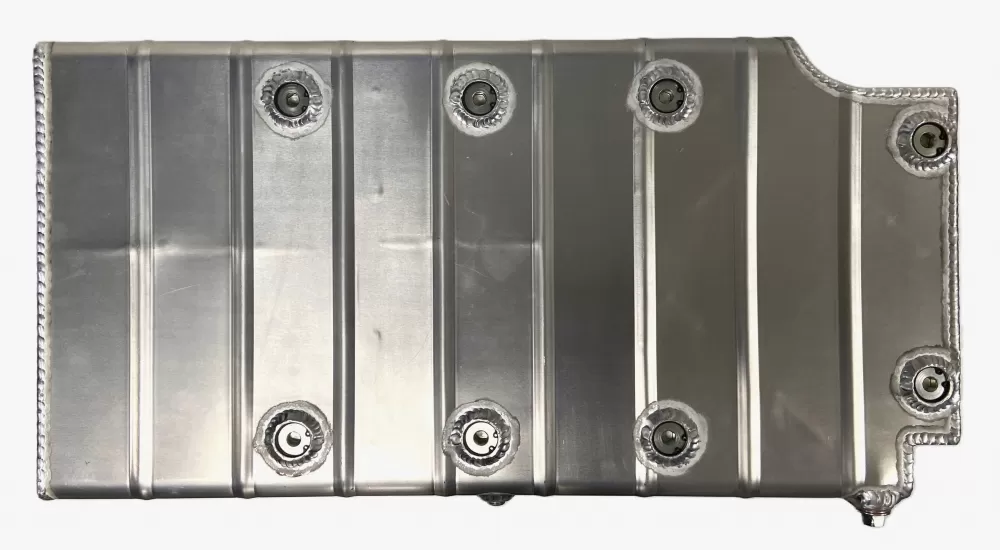

- access plugs in the bottom for the pan rails
- seven trapdoors
- relocated bolt holes at the main caps (three on each side)

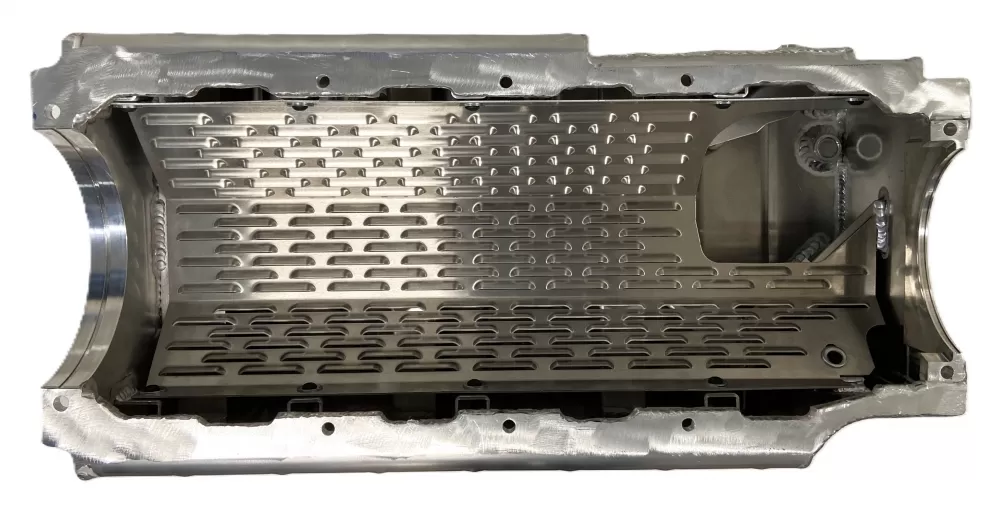

- a removable louvered windage tray
- a provision for a dipstick
No pan gasket required.
It will clear a 4 3/4" stroke.
A hole relocation template is provided.
Oil capacity: 12 quarts with filter
Use: Marine, street or strip
Dipstick: Use JR133
Dimensions: 8" deep
