Style:
Big Block Chevrolet Gen VI
Dimensions:
8.000 deep
Description:

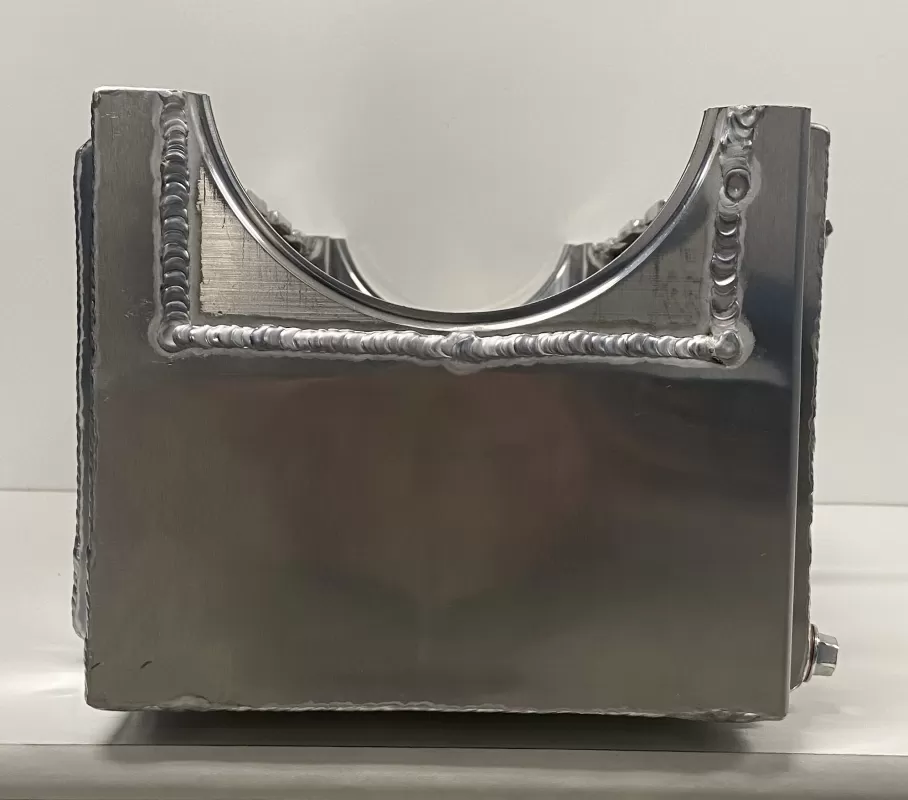

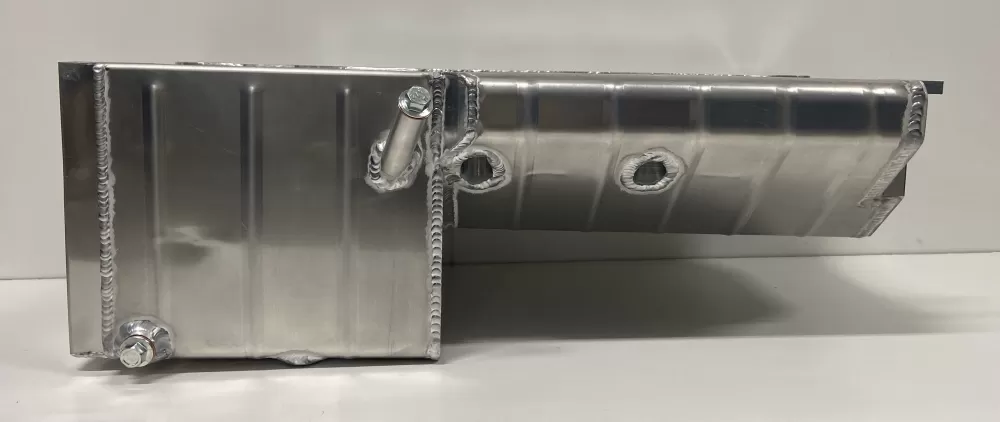

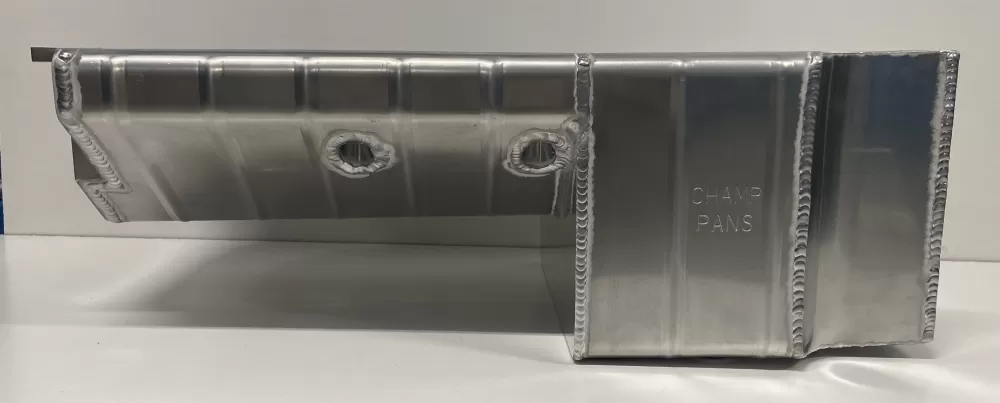

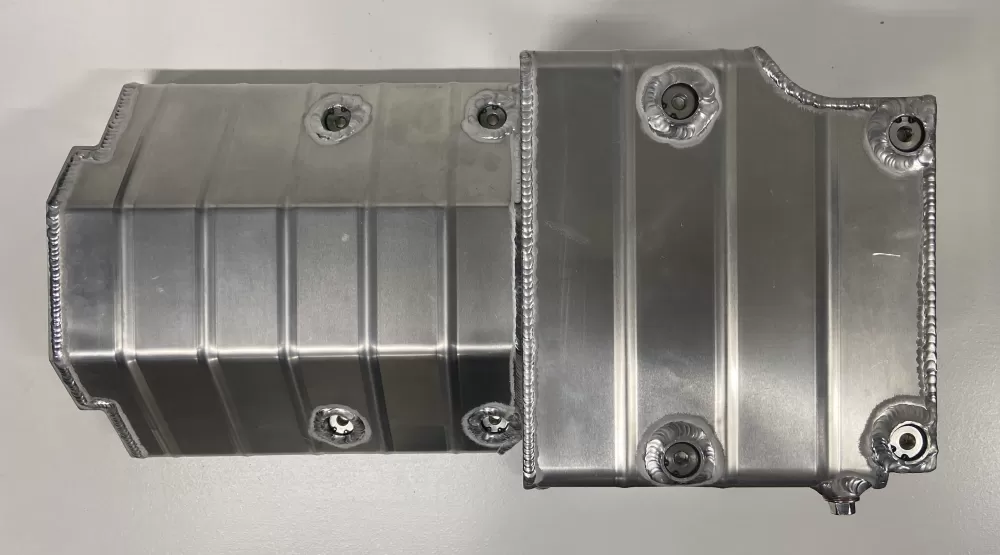

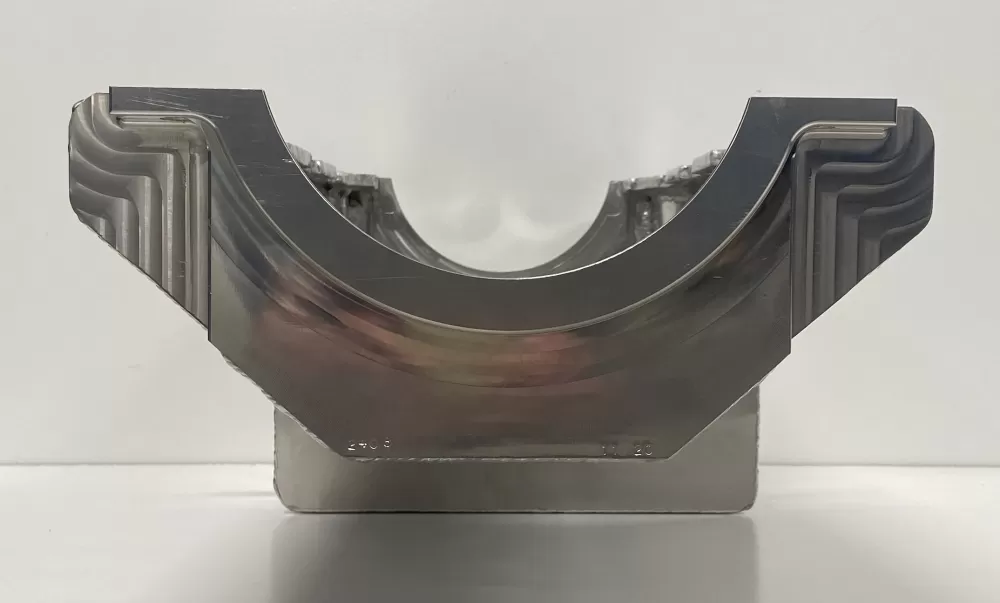

This aluminum wet sump oil pan is for the Big Block Chevrolet Gen VI. This oil pan features:
- a double kick out for maximum oil collection from rotating assemblies

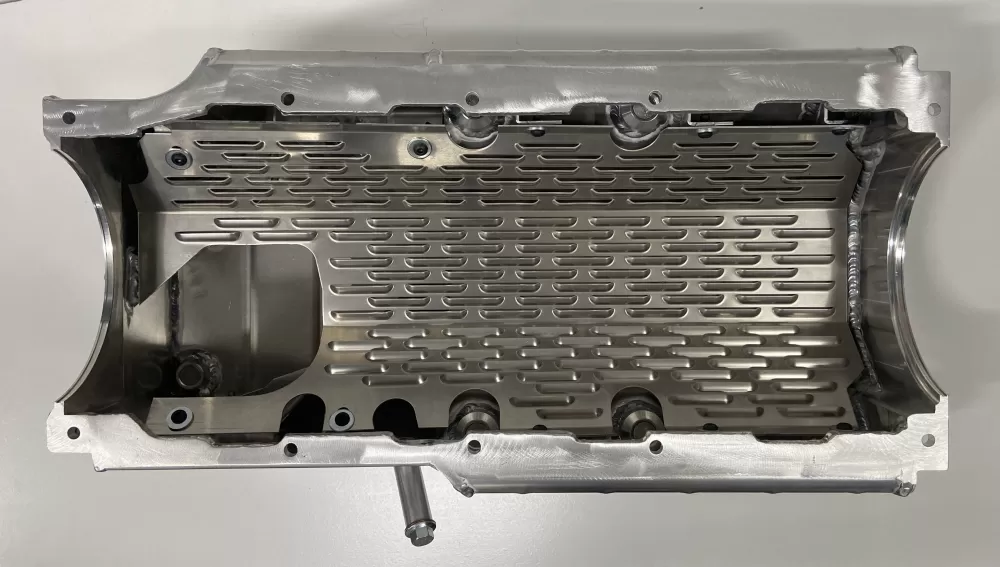

- a full length louvered windage tray
- three trapdoors for oil control
- relocated pan rail bolts for maximum clearance for rods and larger strokes
- removable plugs with o-ring and clips for convenient access to pan mounting bolts
- a provision for a dipstick
No pan gasket required.
It will fit most header combinations and stock cross members.
It will clear a 4 3/4" stroke.
Oil capacity: 7 quarts with filter
Use: Street or strip
Series: Pro
Dipstick: Use JR130
Starter: Offset mini-starter 168 tooth
Dimensions: 10” L x 11 1/8" W x 8" H
