Style:
Dart SBC with spread rails
Dimensions:
5.500 deep
Description:

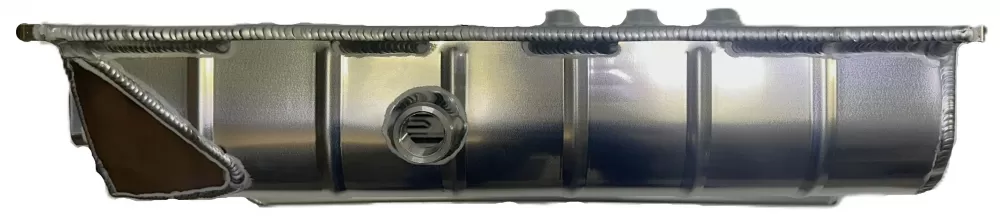

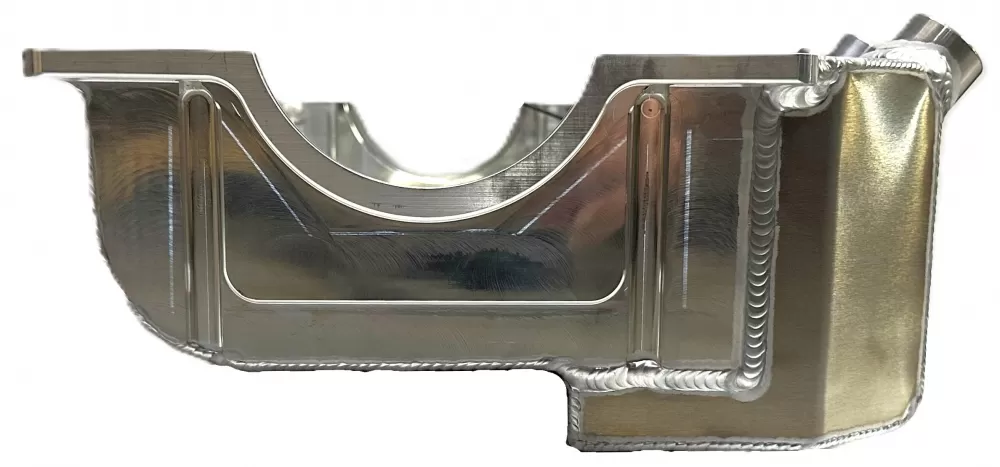

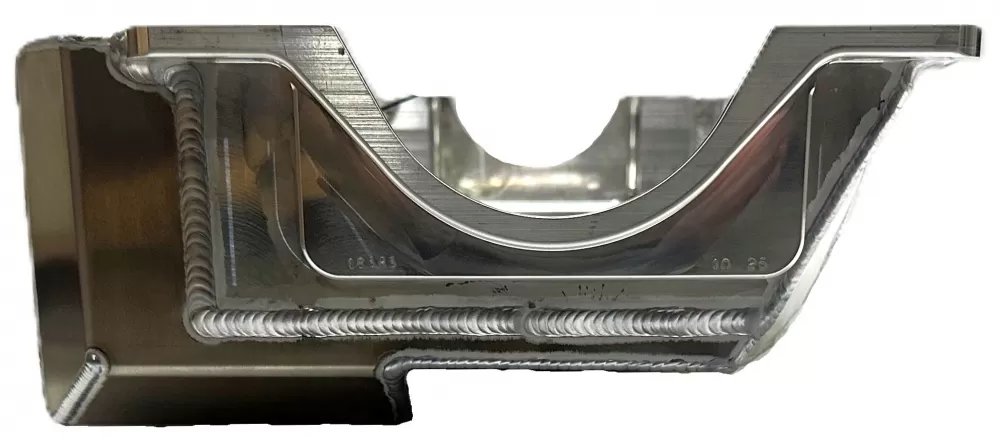

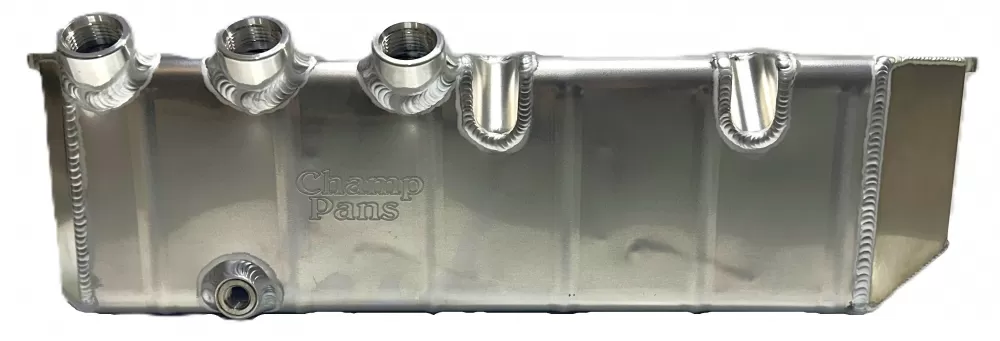

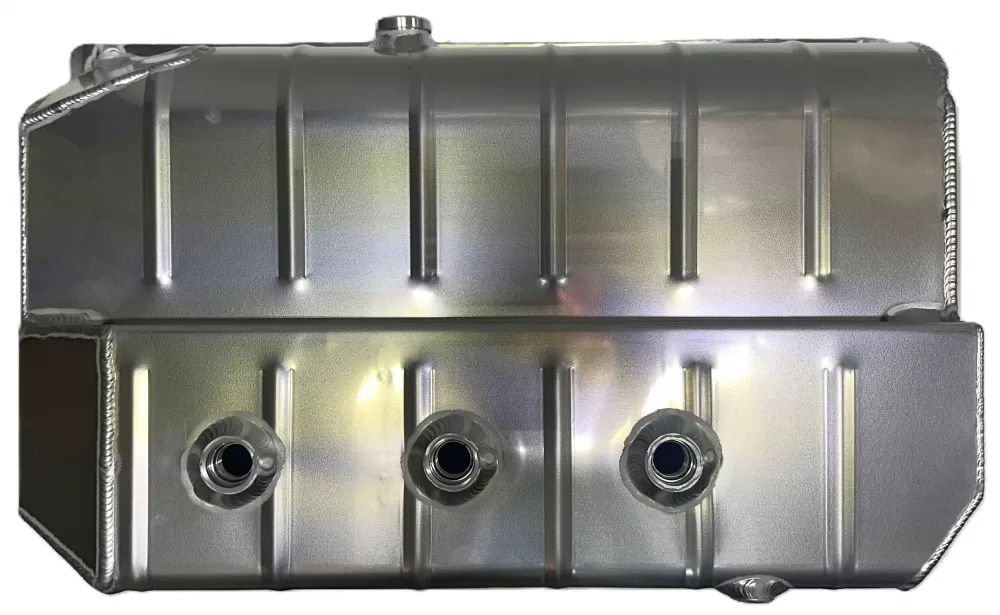

This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- made out of .100” aluminum
- access holes for mounting the right side pan bolts
- three -12 o-ring ports that exit the top right back half of the pan
- one inspection hole
- one drain plug

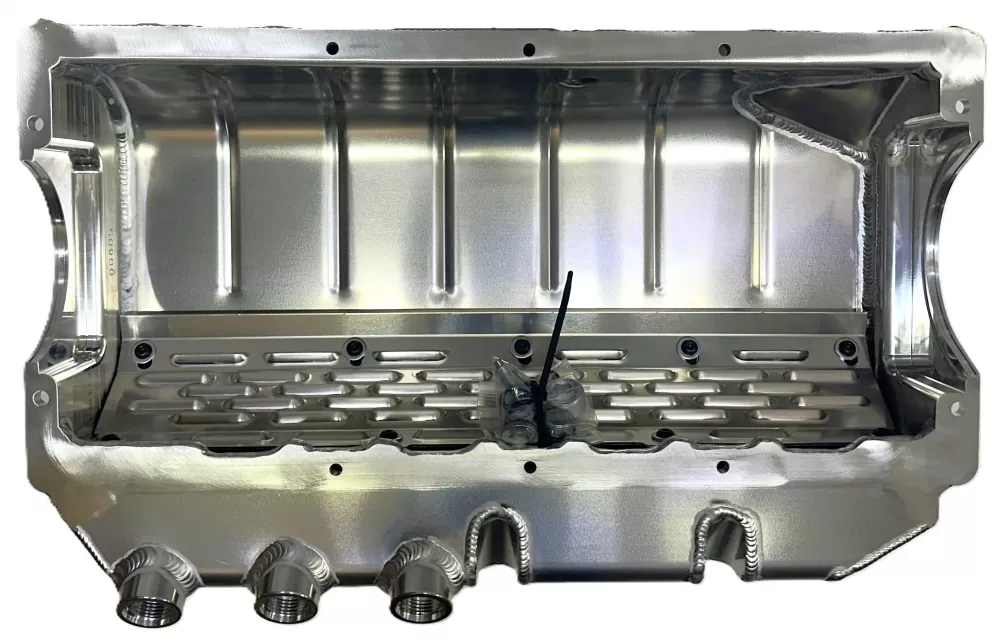

- a louvered windage tray
No pan gasket required.
It will clear a mechanical fuel pump.
Use: Dirt circle track
Starter: Reverse mounted
Dimensions: 5 1/2” deep
No additional information could be found for this product.
No installation instructions could be found for this product.
