Style:
Dart SBC with spread rails
Dimensions:
5.500 deep
Description:

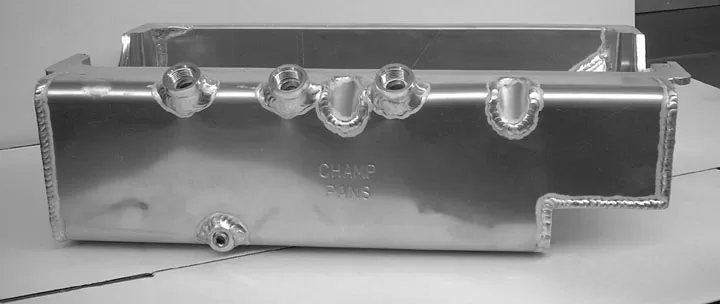

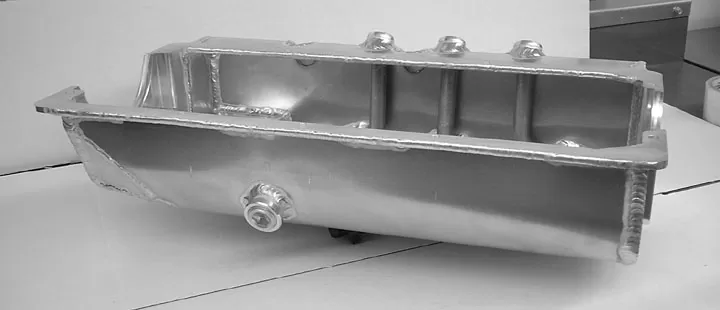

This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting the right side pan bolts
- three -10 o-ring ports that exit the top right side of the pan
- an inspection hole
- a drain plug
It will clear a mechanical fuel pump.
Use: Asphalt circle track late models
Fits: Lefthander or Port City Chassis
Series: Pro
Starter: Reverse mounted
Dimensions: 5 1/2” deep on right side; 3 7/8” deep in front
No additional information could be found for this product.
No installation instructions could be found for this product.
