Style:
Dart SBC with spread rails
Dimensions:
5.500 deep
Description:

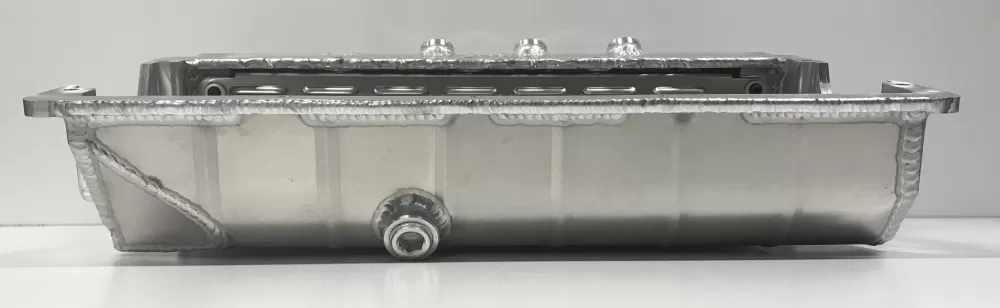

This aluminum dry sump oil pan is for the Dart Small Block Chevrolet engines with the spread rails. This oil pan features:

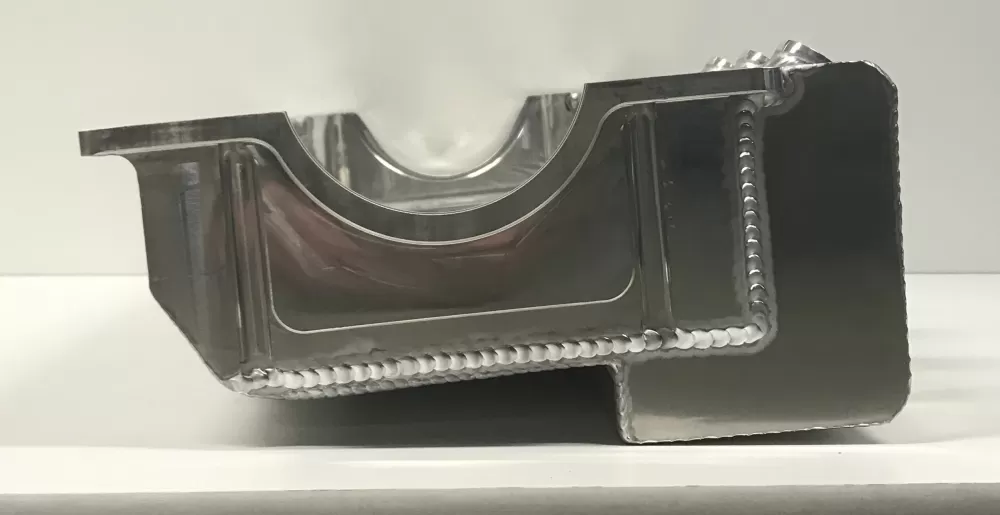

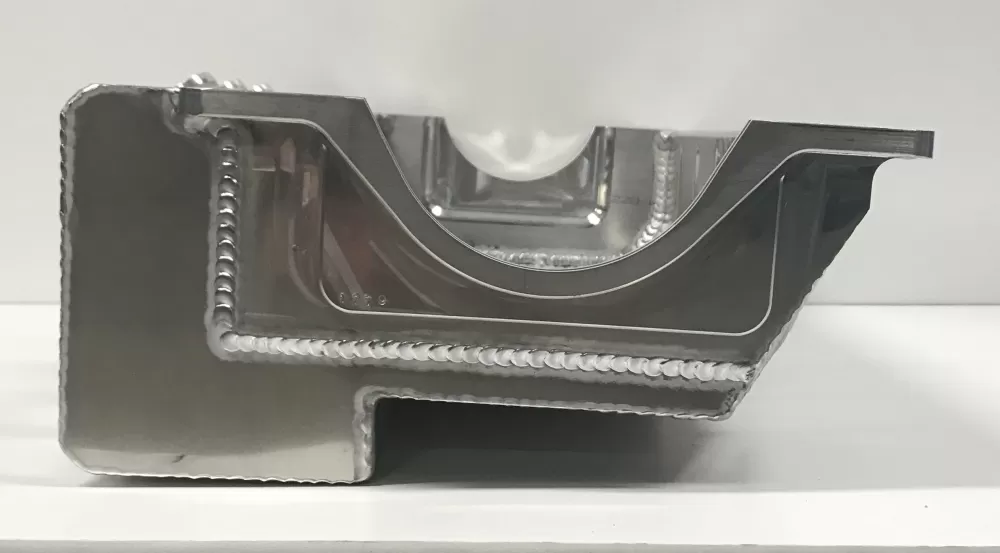

- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting the right side pan bolts

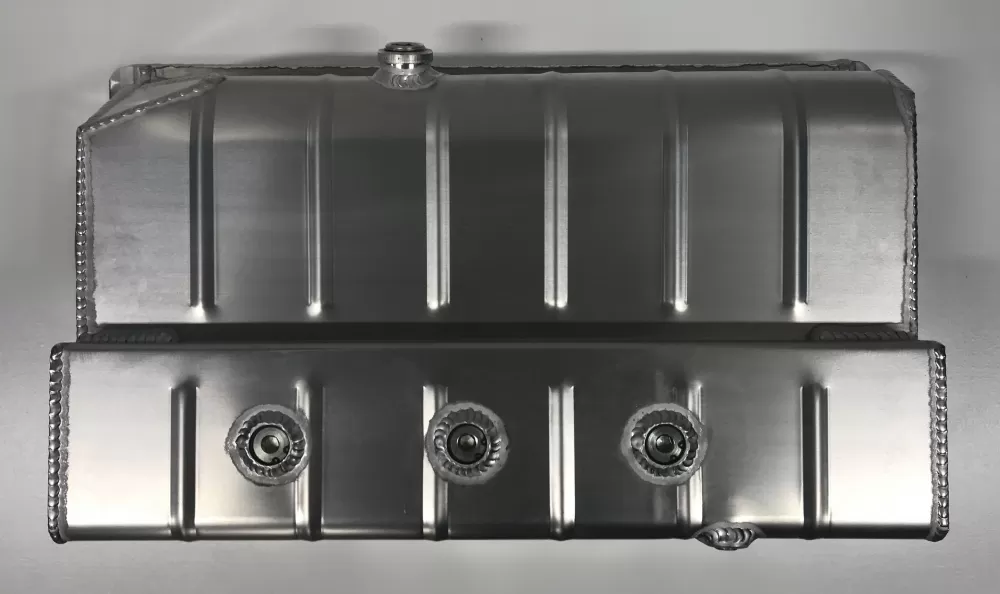

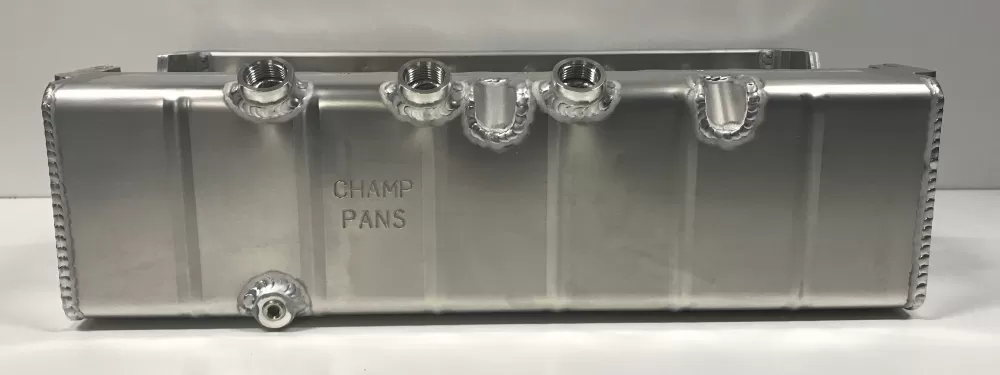

- three -12 o-ring ports that exit the top right side of the pan
- a 3/4" inspection hole

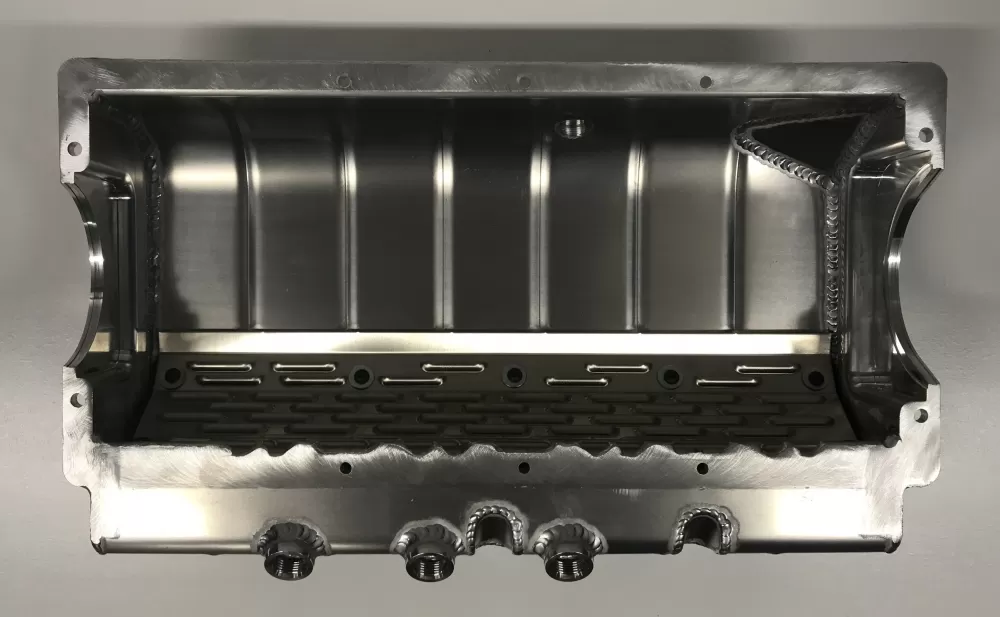

- a louvered windage tray
It will clear a mechanical fuel pump.
Use: Dirt circle track
Starter: Reverse mounted
Gasket: Use RTV silicone in black or gray.
Dimensions: 5 1/2” deep on right side; 4 1/4” deep in front
