Style:
Dart SBC with spread rails
Dimensions:
5.500 deep
Description:

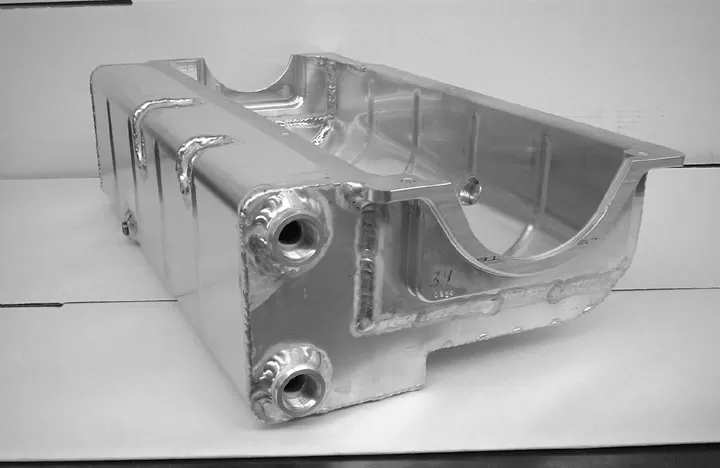

This aluminum dry sump oil pan is for the Dart Small Block Chevrolet with the spread rails. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting the right side pan bolts
- two -12 ports exiting forward
- a 3/4" inspection hole
- a louvered windage tray
It will clear a mechanical fuel pump.
Use: Circle track
Starter: Reverse mounted
Gasket: Use RTV silicone in black or gray.
Dimensions: 5 1/2” deep on right side; 4 1/4” deep in front
No additional information could be found for this product.
No installation instructions could be found for this product.
