Style:
Small Block Chevrolet 1957-1985
Dimensions:
5.500 deep
Description:

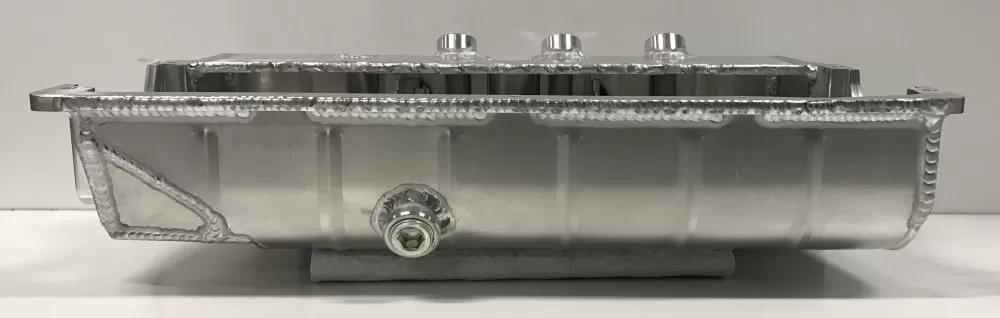

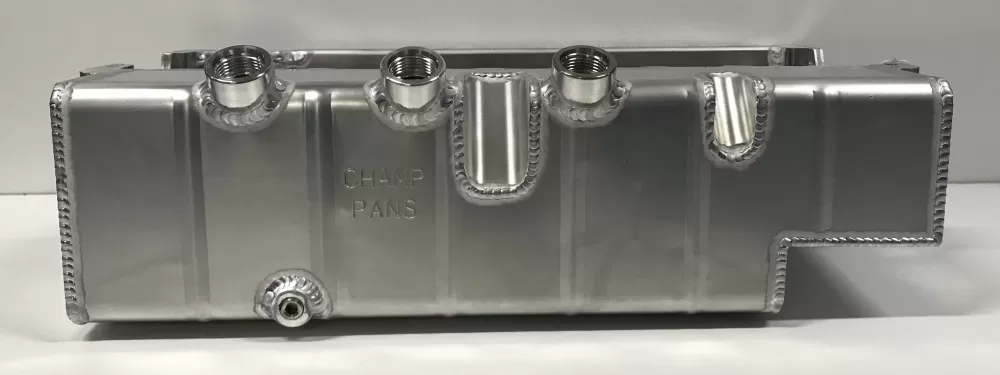

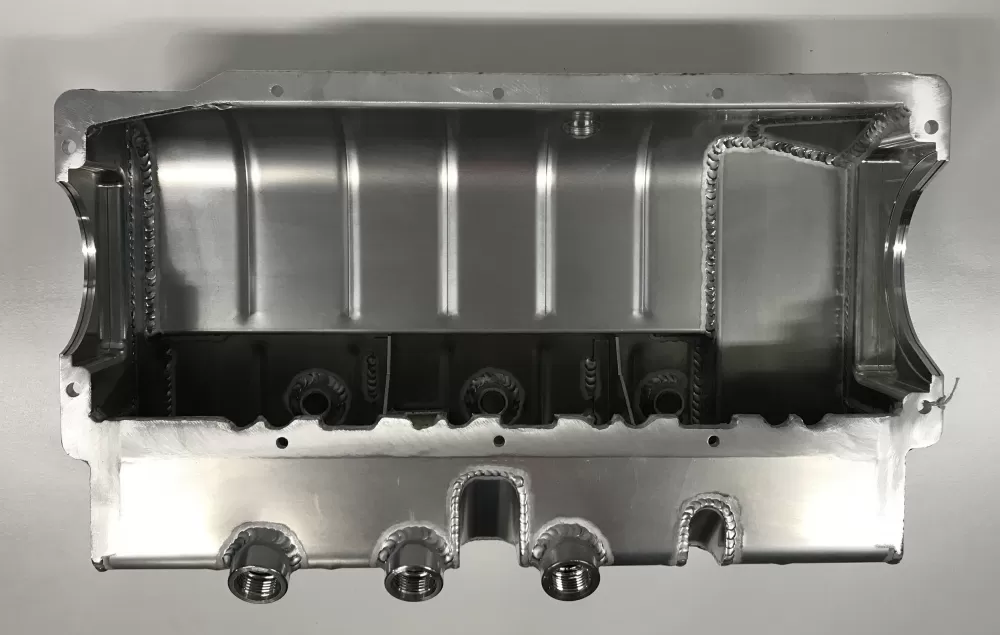

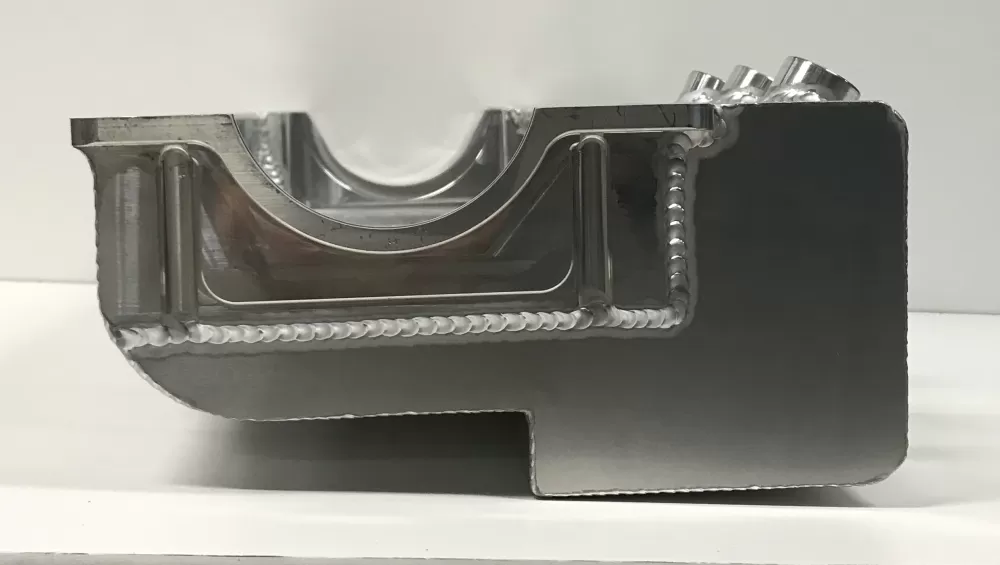

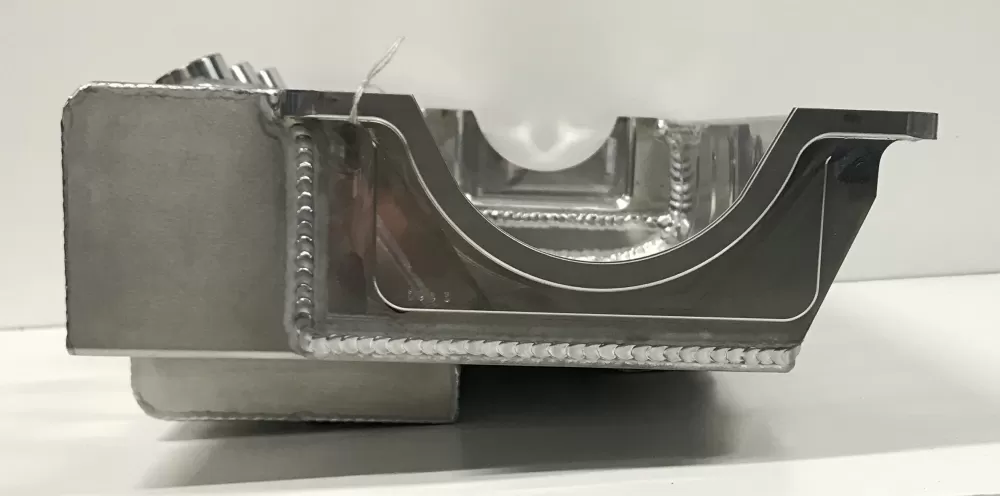

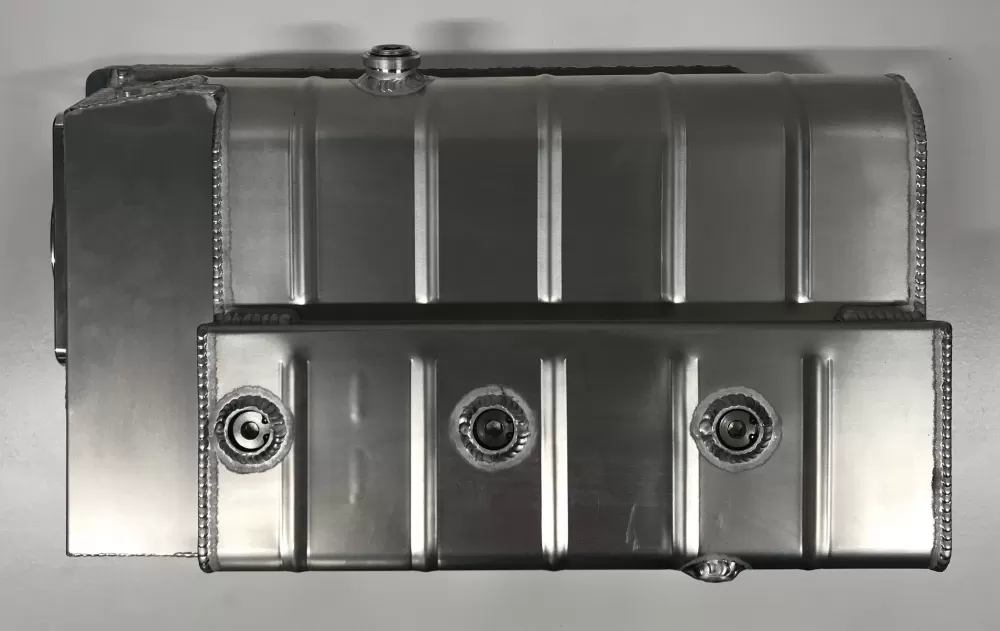

This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out pouch that starts at the pan rail and goes to the bottom of the pan
- .100” aluminum
- access holes for mounting
- three -12 o-ring ports that exit the top right side of the pan
- an inspection hole
- a drain plug
It will clear a mechanical fuel pump.
Use: Asphalt circle track (late model)
Fits: Lefthander or Port City Chassis
Starter: Reverse mounted
Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.
Dimensions: 5 1/2" deep; 3 7/8" deep in front
No additional information could be found for this product.
No installation instructions could be found for this product.
