Style:
Small Block Chevrolet 1957-1985
Dimensions:
8.000 deep
Description:

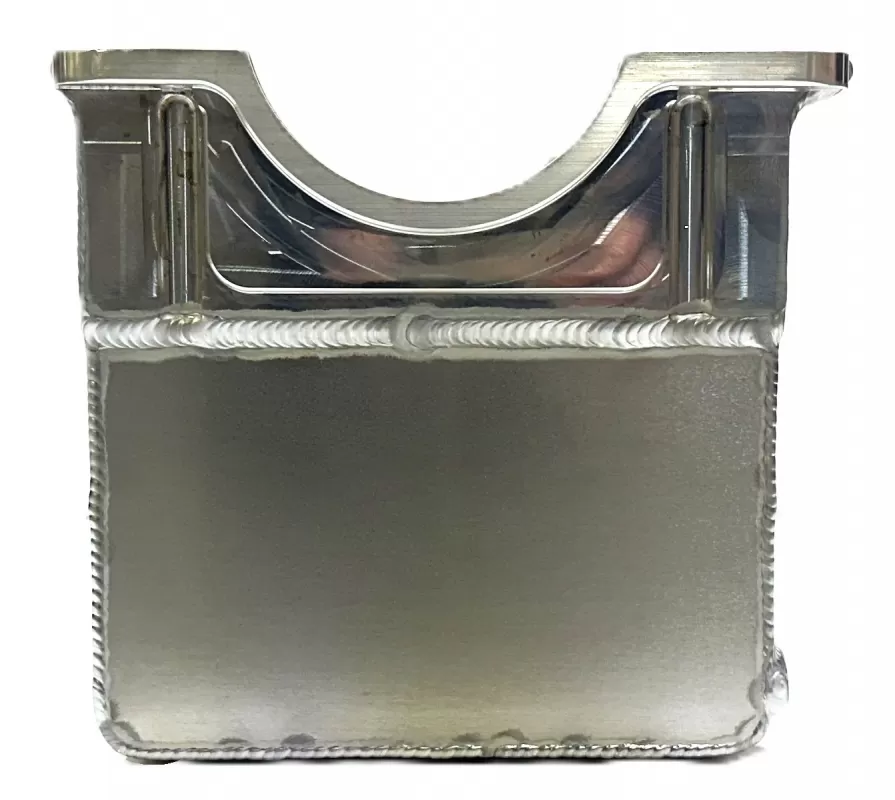

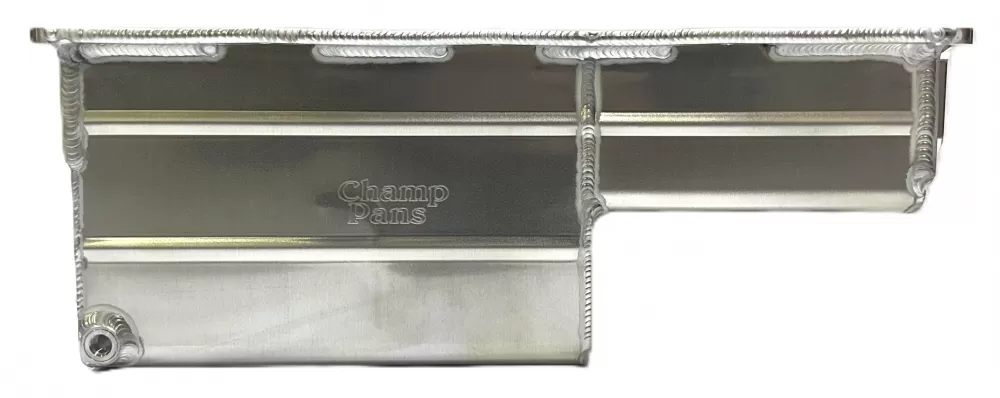

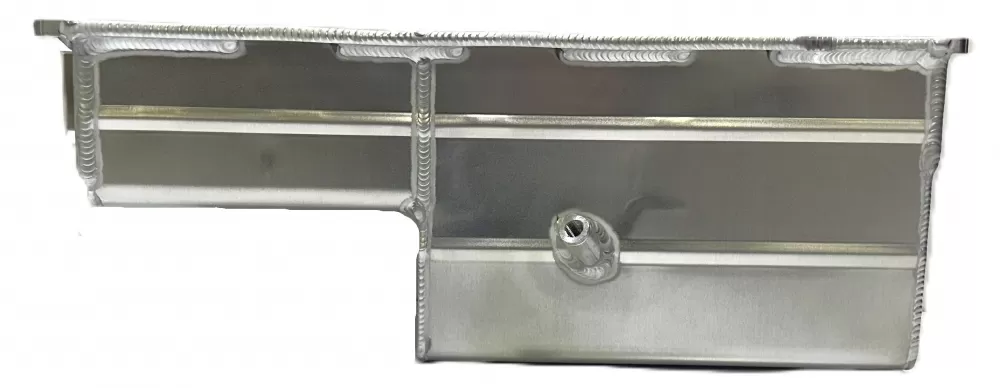

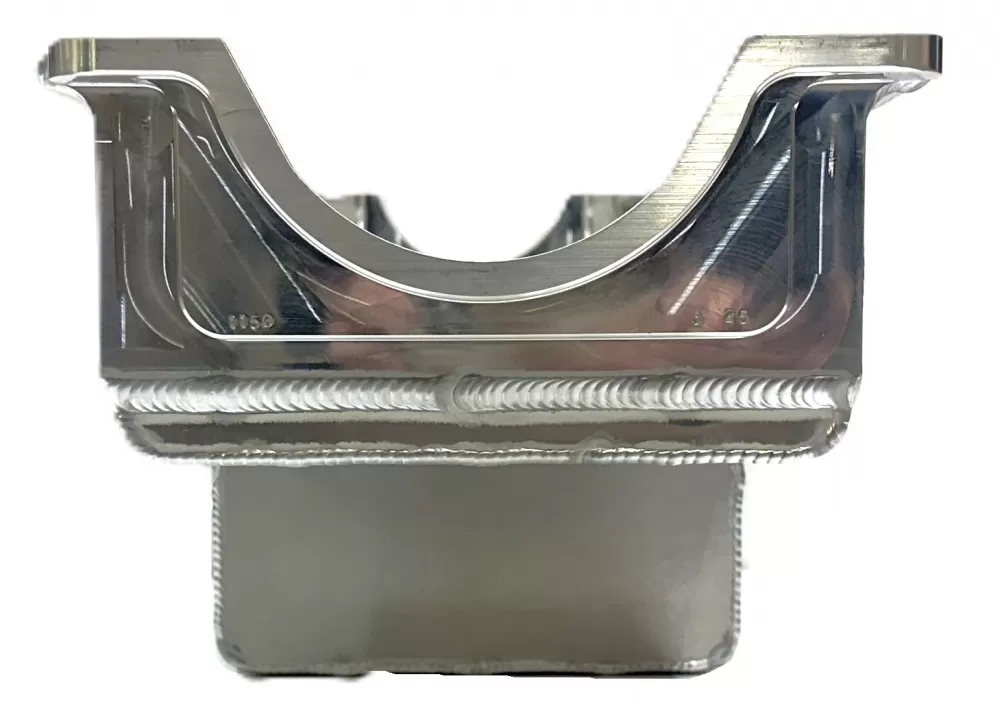

This aluminum wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- one 6” trapdoor

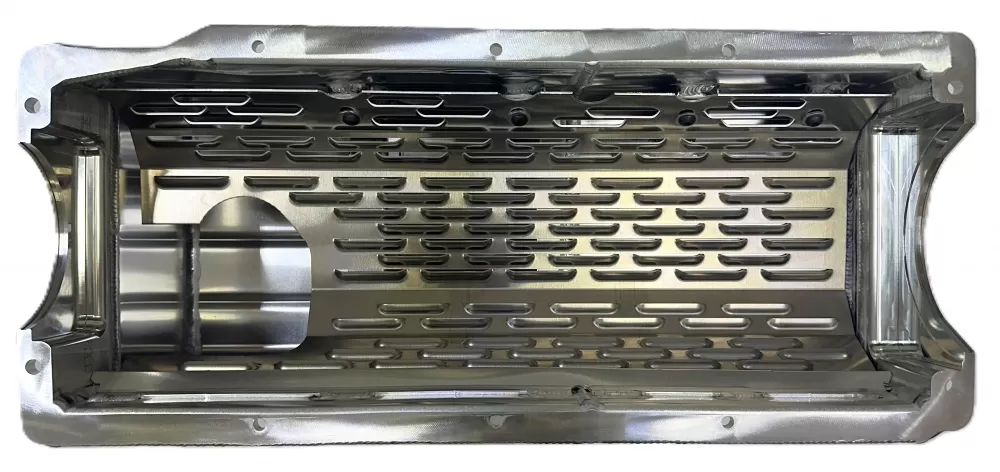

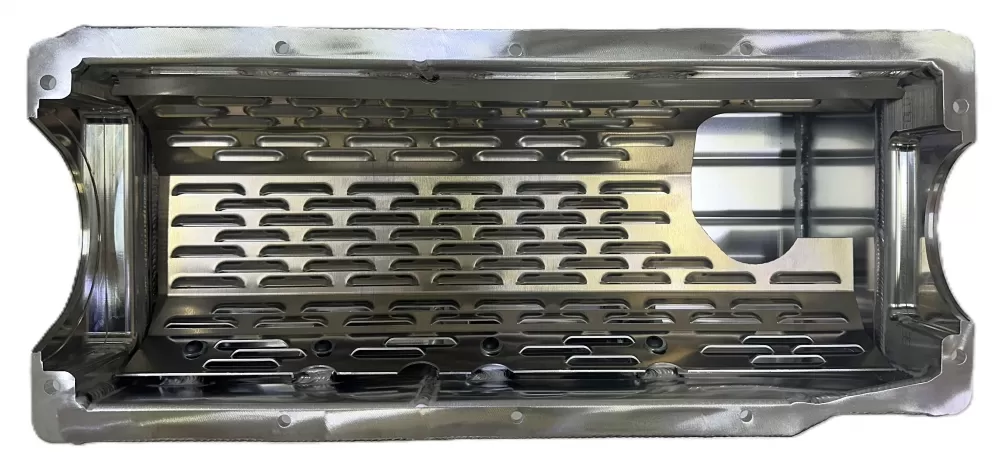

- a louvered windage tray
- a provision for a dipstick assembly
Oil capacity: 7 quarts with filter
Use: Circle track, marine, road race, street or strip
Dipstick: Use JR131
Starter: Mini-starter
Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.
Dimensions: 12 1/4” L x 8" W x 8" H
