Style:
Small Block Chevrolet 1957-1985
Dimensions:
6.500 deep
Description:

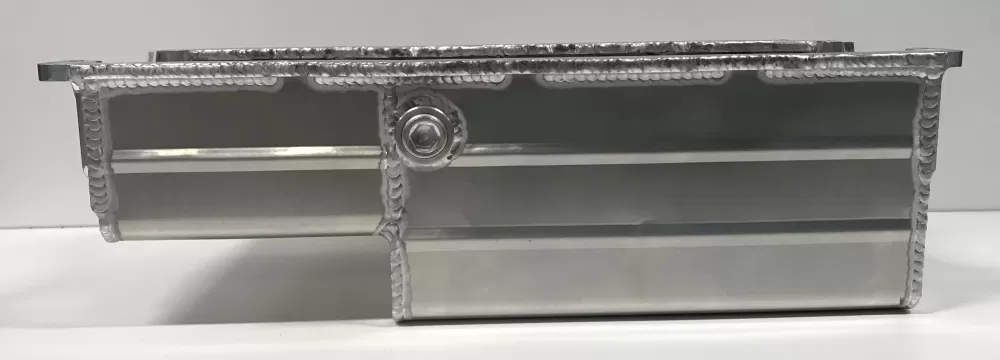

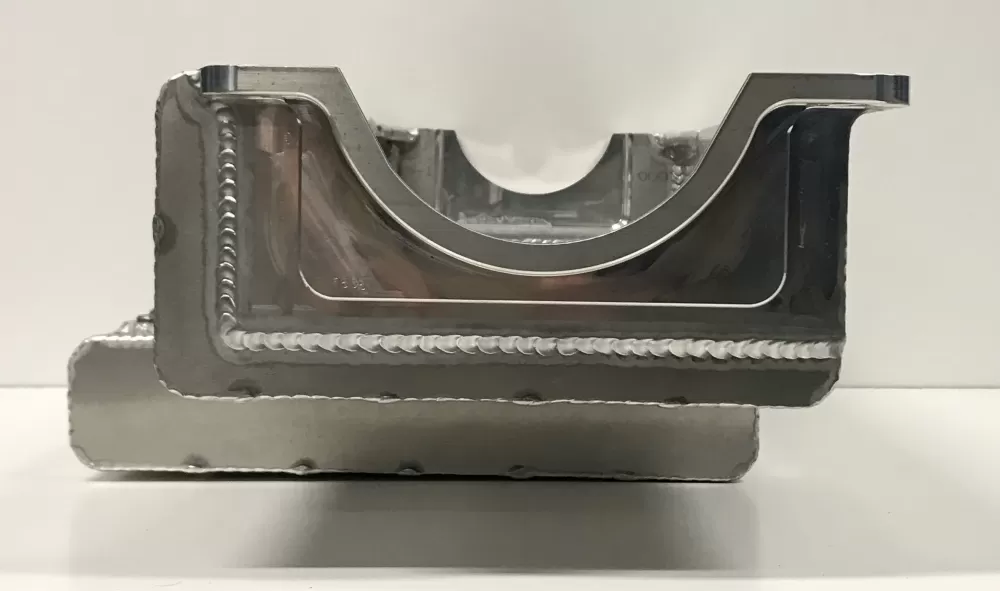

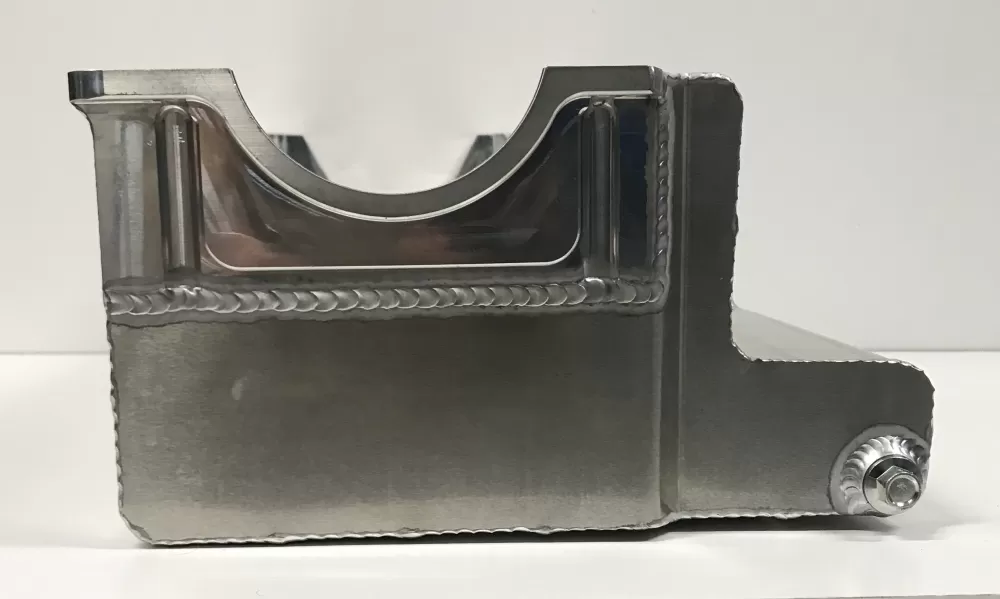

This aluminum wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:

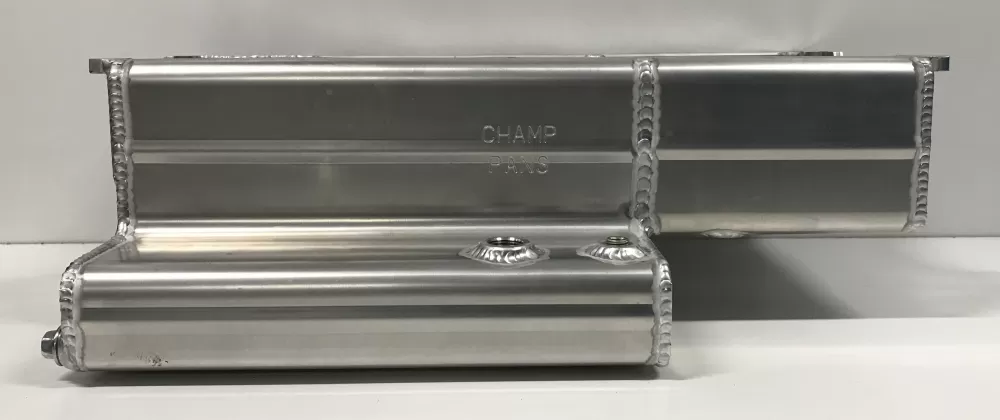

- a right side kick out that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- four trapdoors

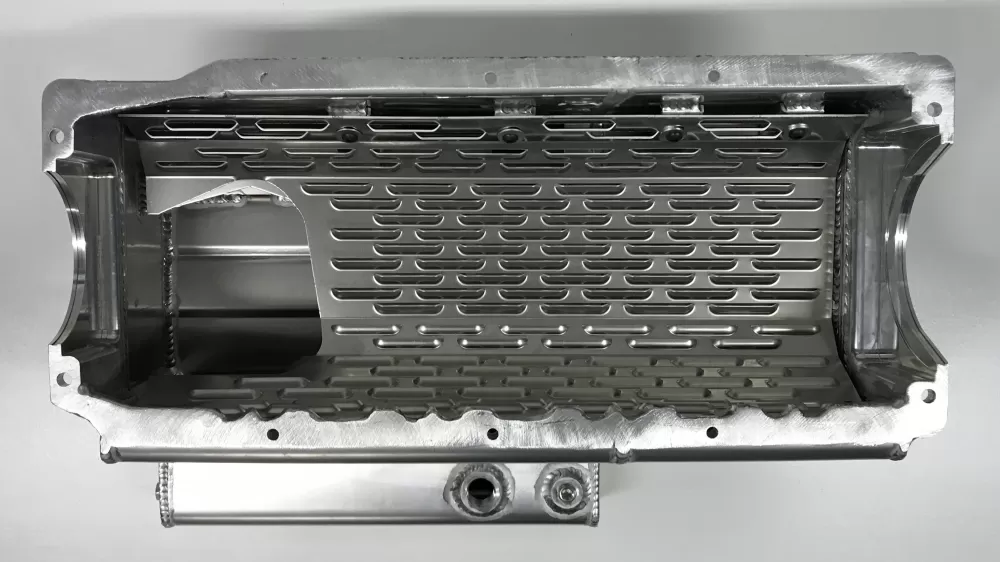

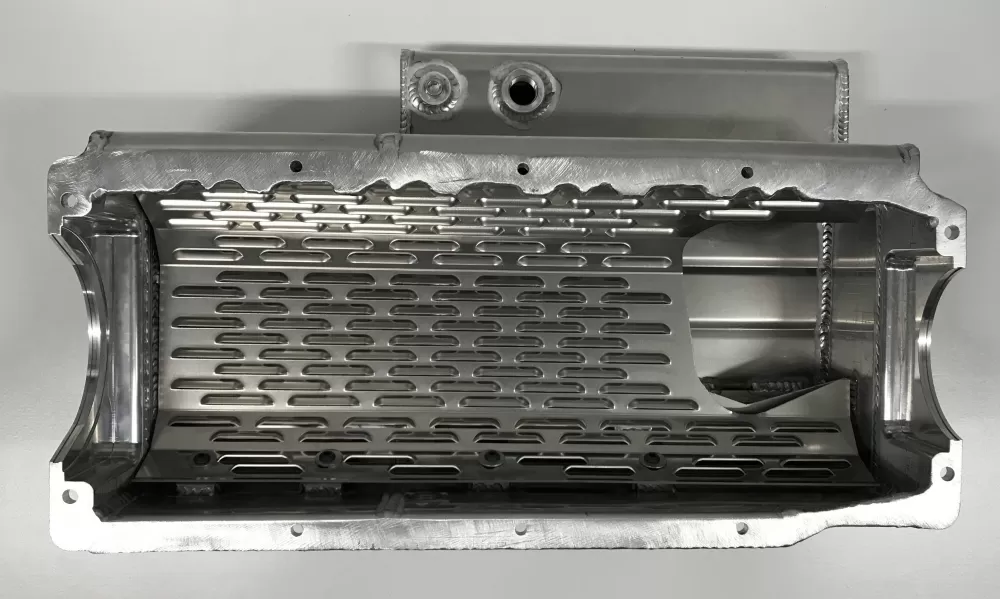

- a louvered windage tray
- an inspection hole
- an oil check level plug
The 1703SB is for the M155 or 10554ST pumps in this oil pan.
Oil capacity: 8 quarts with filter
Use: Asphalt circle track (late model)
Series: Pro
Starter: Mini-starter
Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.
Dimensions: 13 1/4” L x 11 3/4" W x 6 1/2" H
Weight: 11.2 lbs
No additional information could be found for this product.
No installation instructions could be found for this product.
