Style:
Small Block Chevrolet 1986-2003
Dimensions:
7.000 deep
Description:

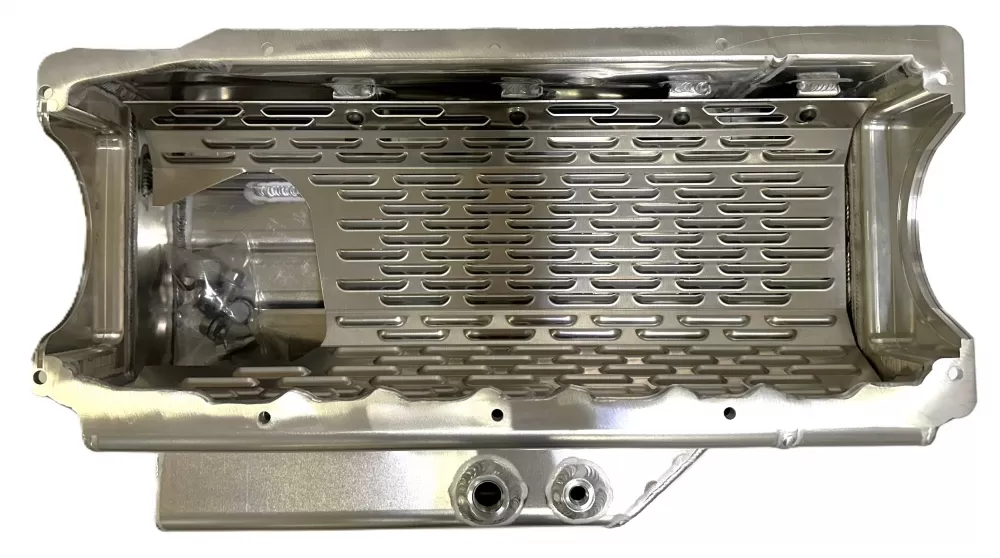

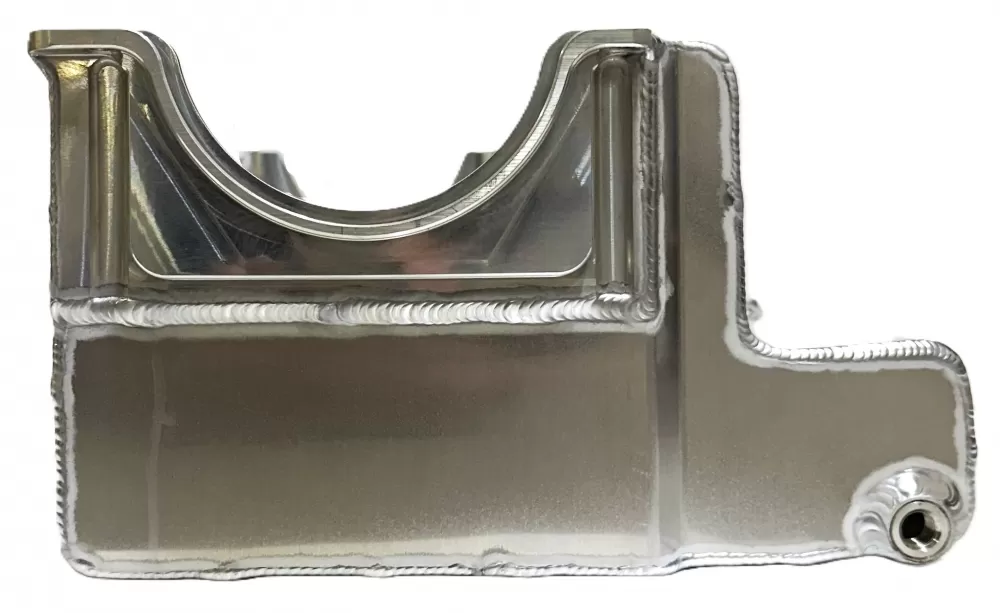

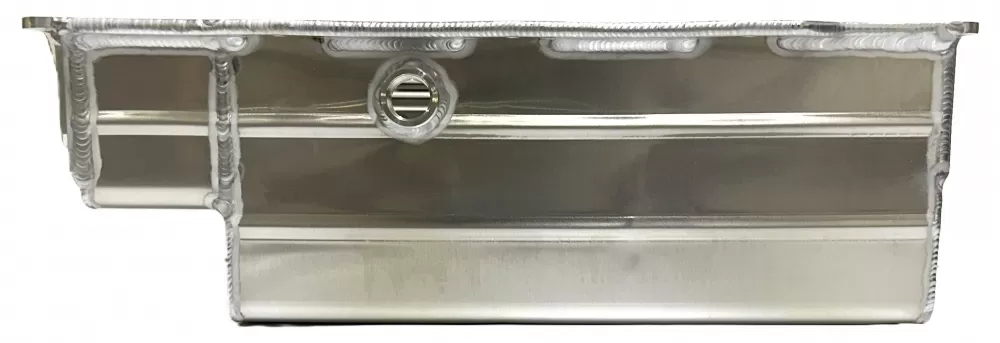

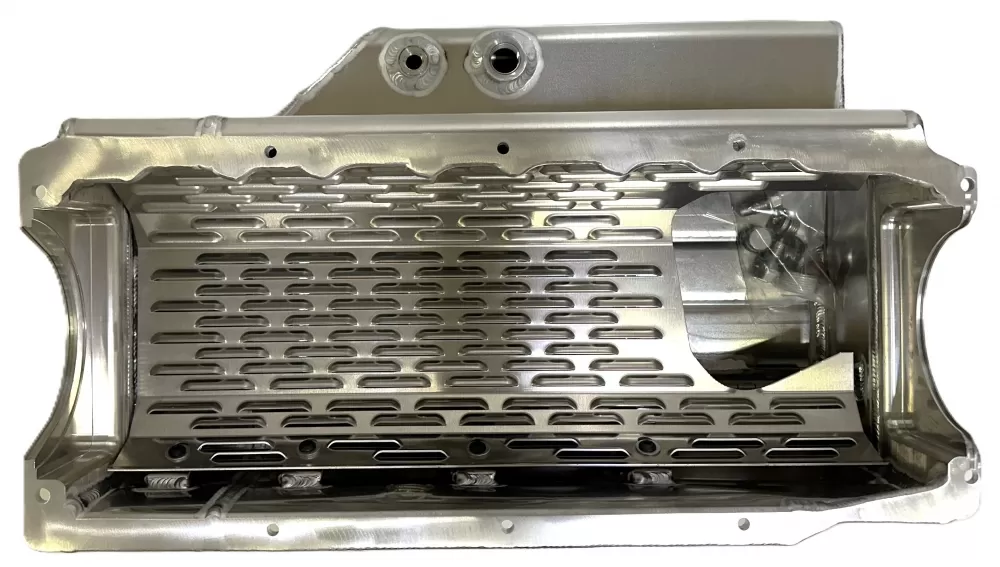

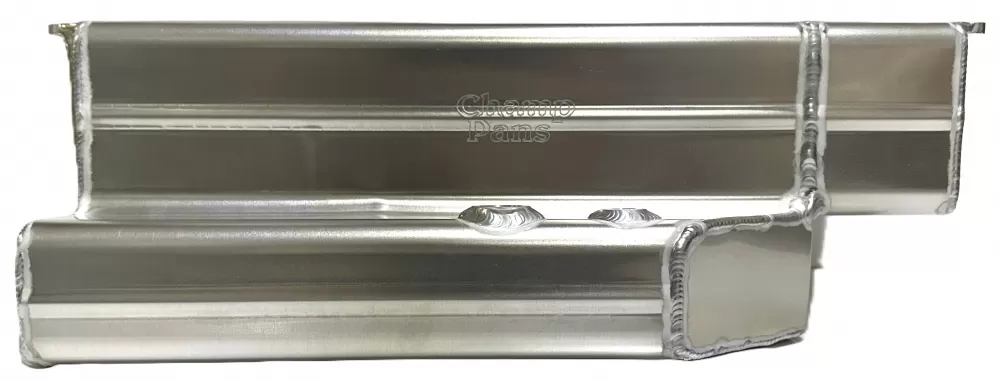

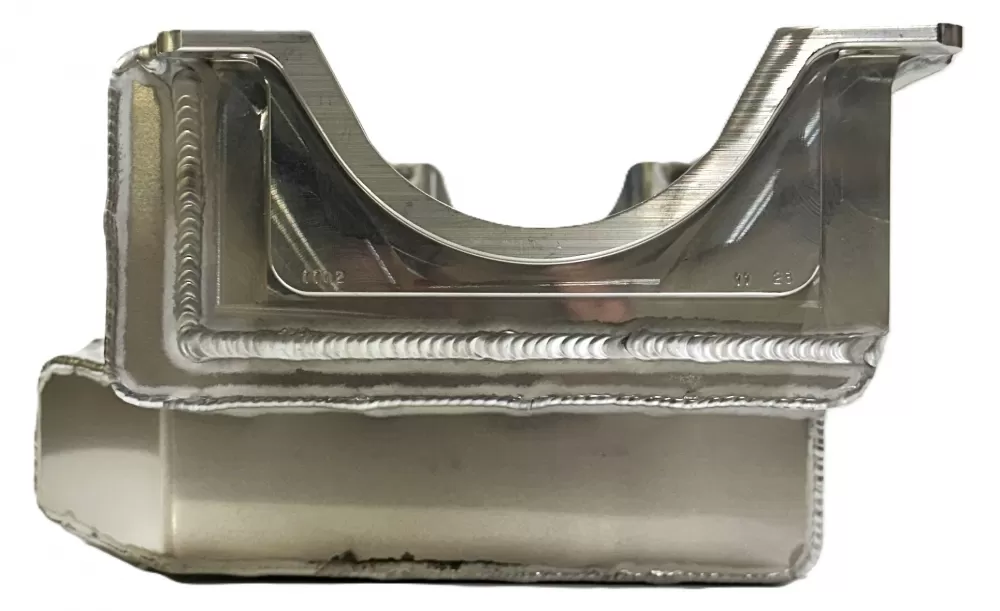

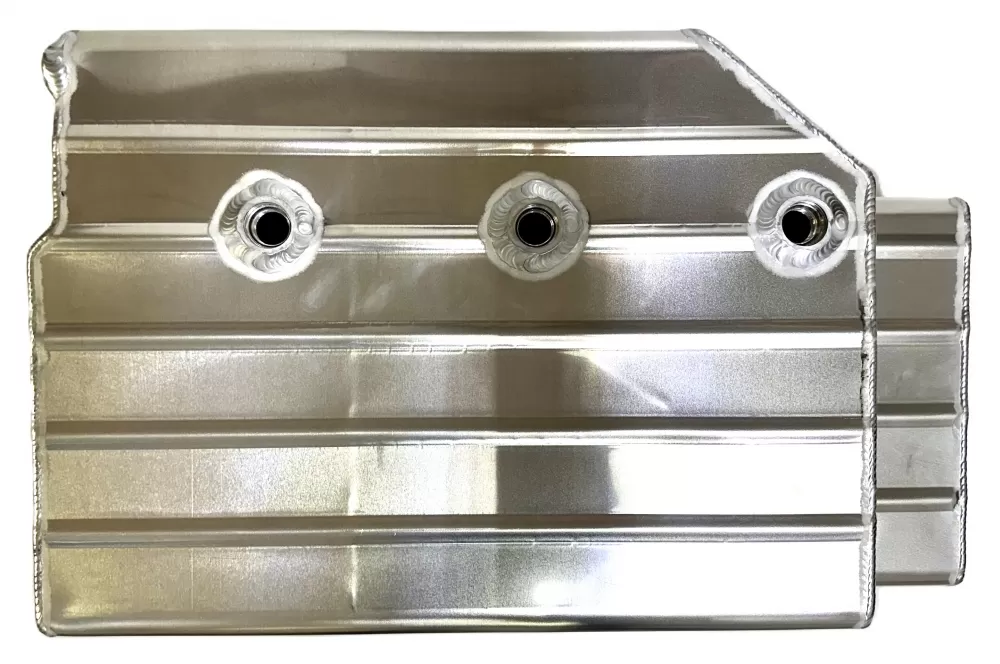

This aluminum wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with a one piece rear main seal engines. This oil pan features:
- a right side kick out that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- five trapdoors
- a louvered windage tray
- an inspection hole
- an oil check level plug
Oil capacity: 9 quarts with filter
Use: Dirt circle track (late model)
Series: Pro
Starter: Mini-starter
Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.
Dimensions: 16 1/2” L x 12" W x 7" H
No additional information could be found for this product.
No installation instructions could be found for this product.
