Style:
Small Block Chevrolet 1957-1985
Dimensions:
5.750 deep
Description:

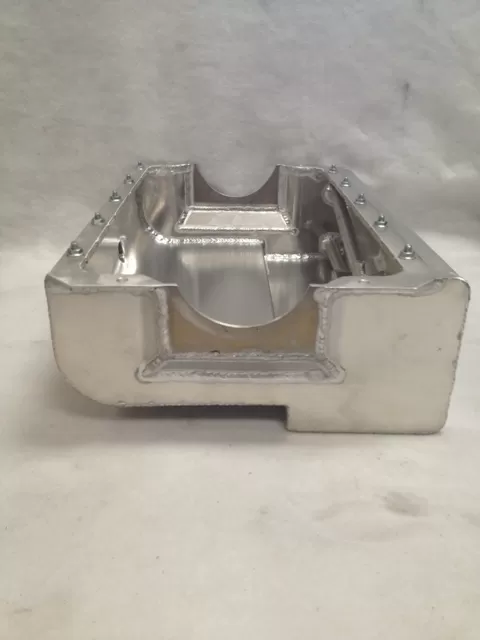

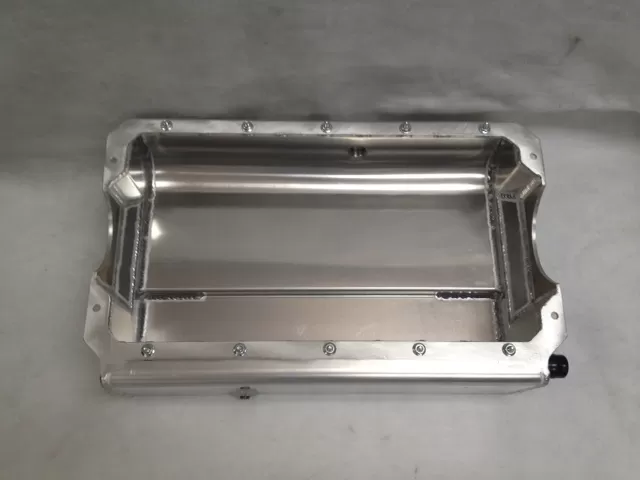

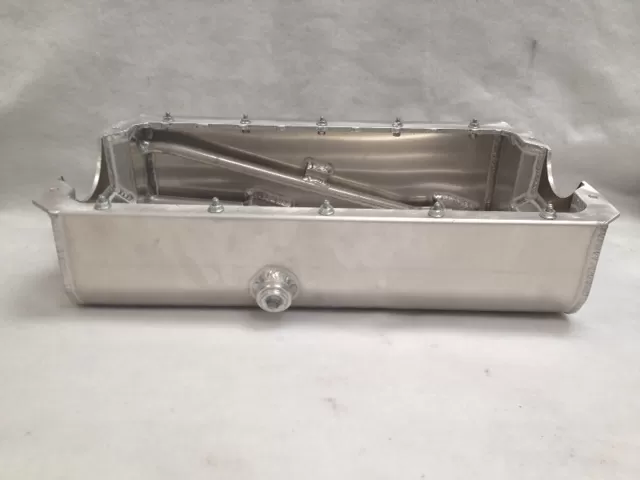

This aluminum dry sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a double kick out that is 45% larger by volume than our PRO170 pan
- an extra kick out on the left side that frees up 15-20 horsepower
- three -12 o-ring ports that exit the front right side of the pan
- mounting plates
It requires the removal of block material on the block and changing the mounting holes on the left side of the block.
Use: Sprint cars circle track
Starter: Reverse mounted
Gasket: Use RTV silicone in black or gray. Can use thin side rail gaskets with the silicone.
Installation Instructions:
Follow the directions on attached file to install this pan.
