Style:
Chevrolet LS1
Dimensions:
4.500 deep
Description:

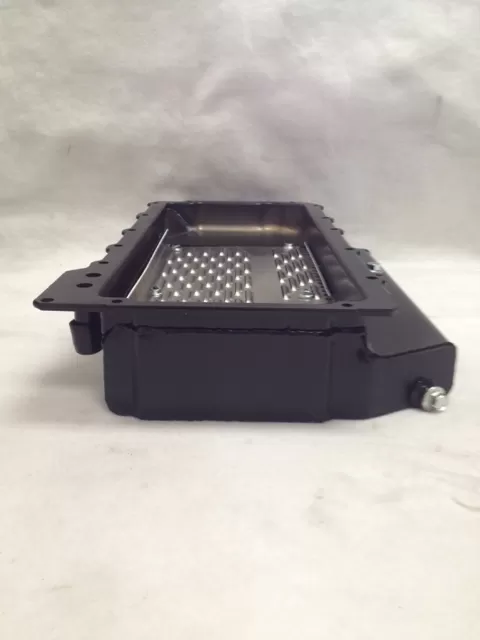

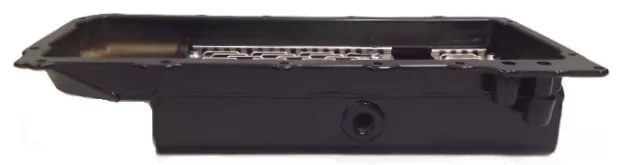

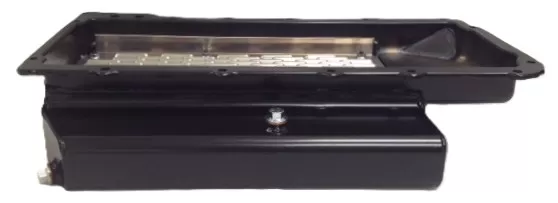

This steel wet sump oil pan is for the Chevrolet LS1 engines. This oil pan features:
- the front left corner notched for steering clearance
- four trapdoors
- a removable louvered sump tray
- an oil check level plug
- one -10 an fittings for remote oil filter
- an oil temp fitting on the left side
- a black powder coated finish
You can use the factory tray with this oil pan.
Oil capacity: 8 1/2 quarts with filter
Use: Dirt circle track (late model or modified)
Series: Competition
Starter: Stock or mini-starter
Dimensions: 16” L x 11 3/4" W x 4 1/2" H
No additional information could be found for this product.
No installation instructions could be found for this product.
