Style:
Small Block Chevrolet 1957-1985
Dimensions:
8.000 deep
Description:

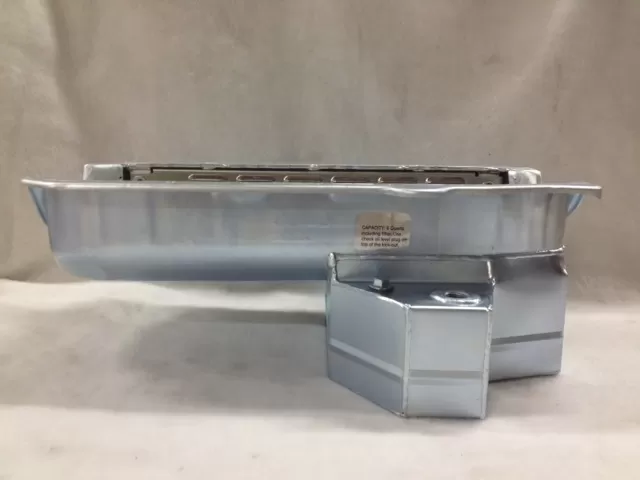

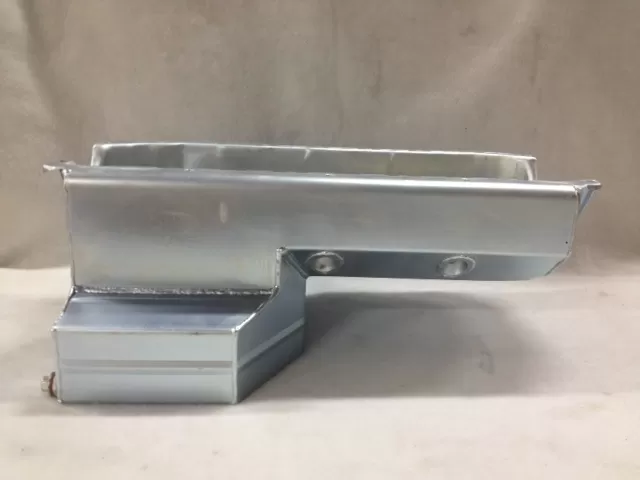

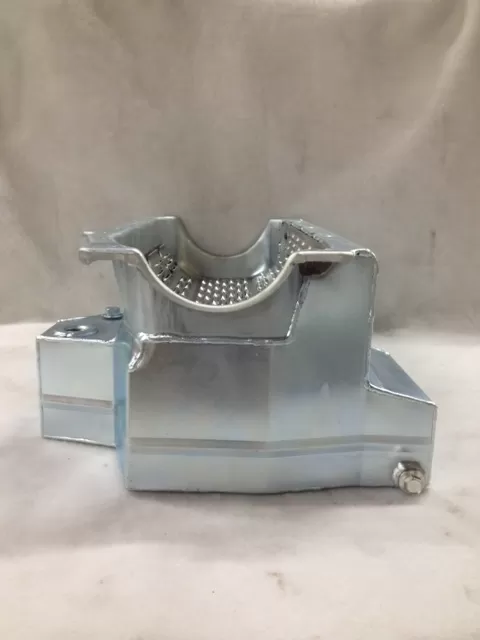

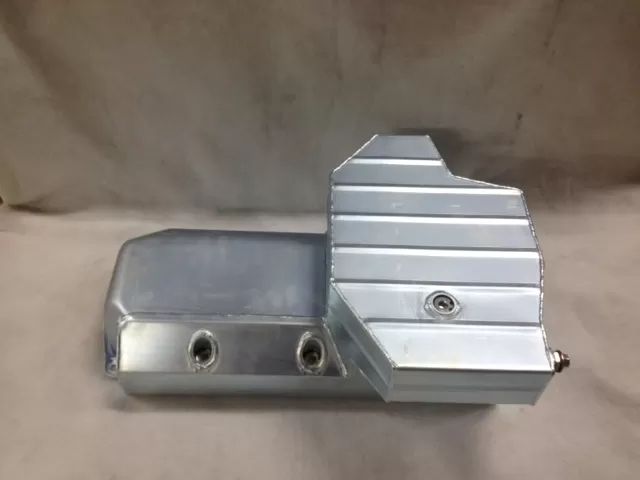

This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out that goes all the way to the block
- three access plugs on the right side for mounting
- five trapdoors
- two runners
- an oil temp sender port
- a 3/4” inspection hole

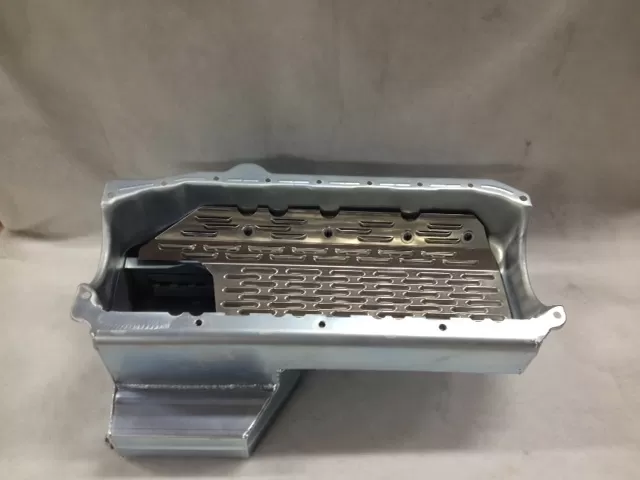

- a removable louvered windage tray that covers 160 degrees of the crank rotation
- a clear zinc finish
This oil pan is ideal for cars with stock cross members or rear steer linkage.
Oil capacity: 8 quarts with filter
Use: Road race, street or strip
Series: Pro
Dipstick: Use JR131
Starter: Mini-starter for a 168 flywheel
Dimensions: 9 1/2” L x 14" W x 8" H
