Style:
Small Block Chevrolet 1986-2003
Dimensions:
8.000 deep
Description:

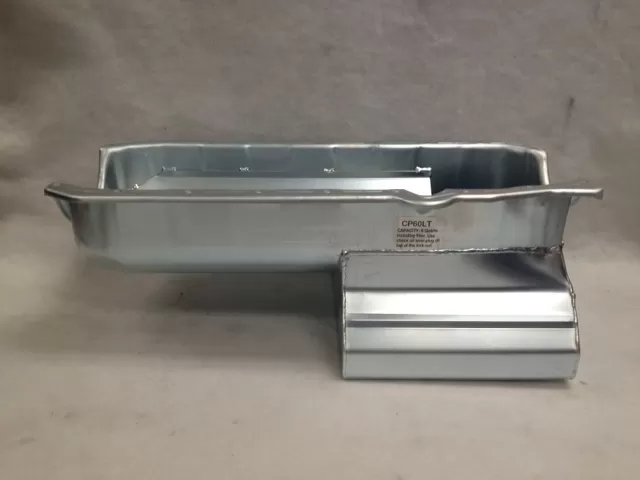

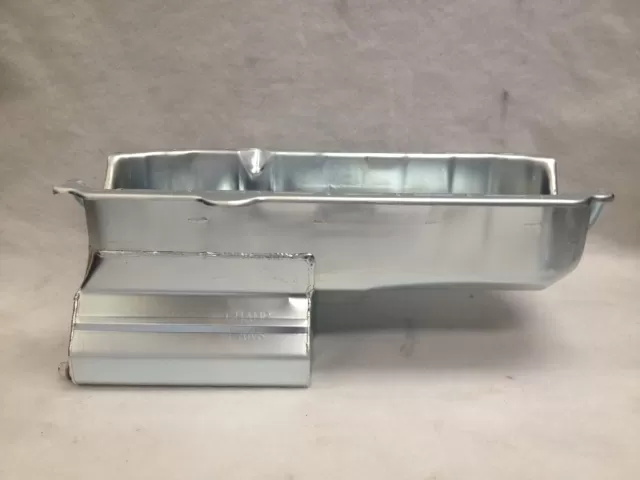

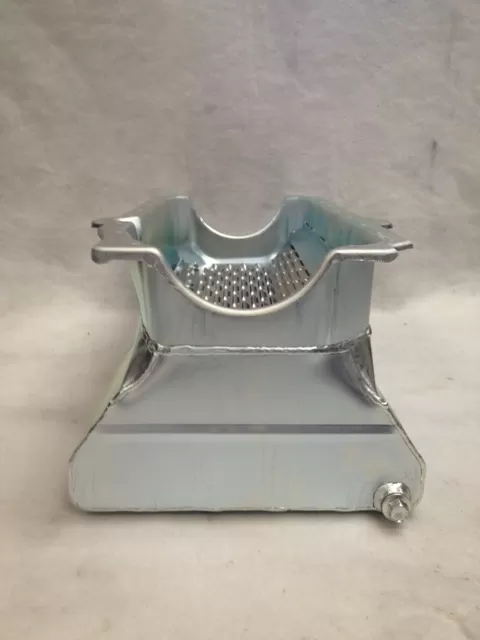

This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:

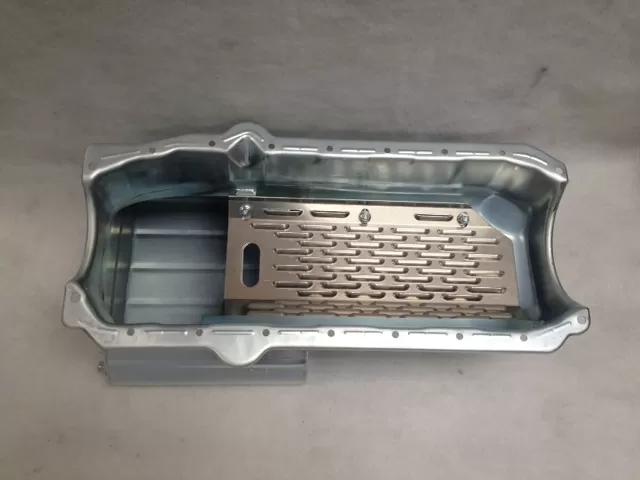

- a removable horsepower saving louvered windage tray
- a "T" style sump
- one 6” trapdoor
- one crank scraper
- a clear zinc finish
Will not fit most front cross member chassis without re-working or spacing the motor up.
Oil capacity: 8 quarts with filter (If using stroker motor, 7 quarts with filter)
Use: Street or strip
Dipstick: Factory
Starter: Stock
Gasket: Thick front seal
Dimensions: 9 1/2” L x 10 1/2" W x 8" H
