Style:
Small Block Chevrolet 1986-2003
Dimensions:
7.000 deep
Description:
Use: Marine, street or strip

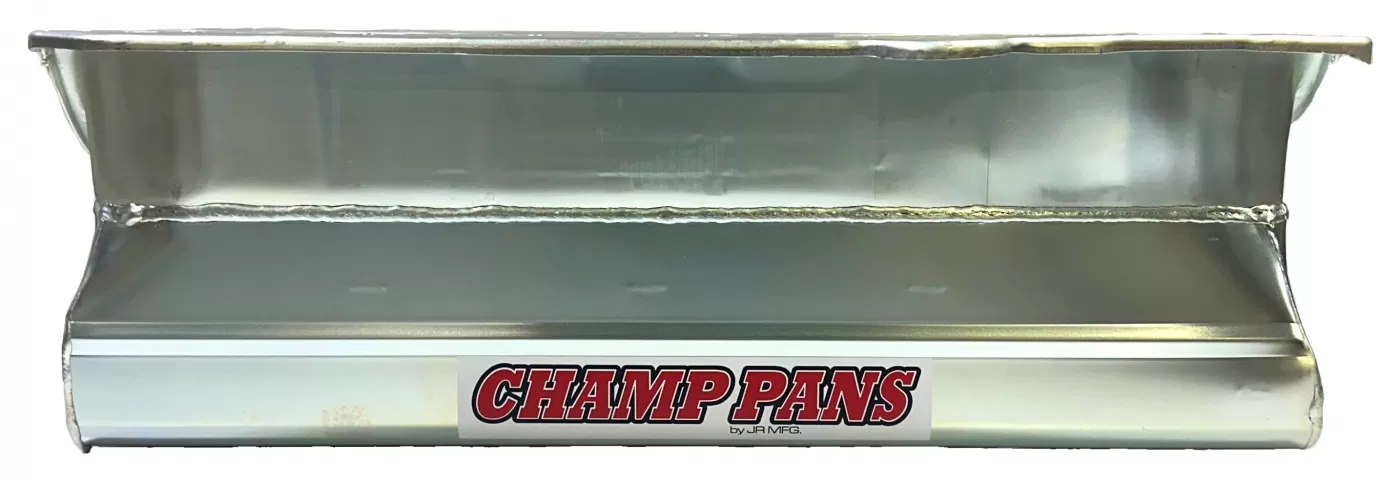

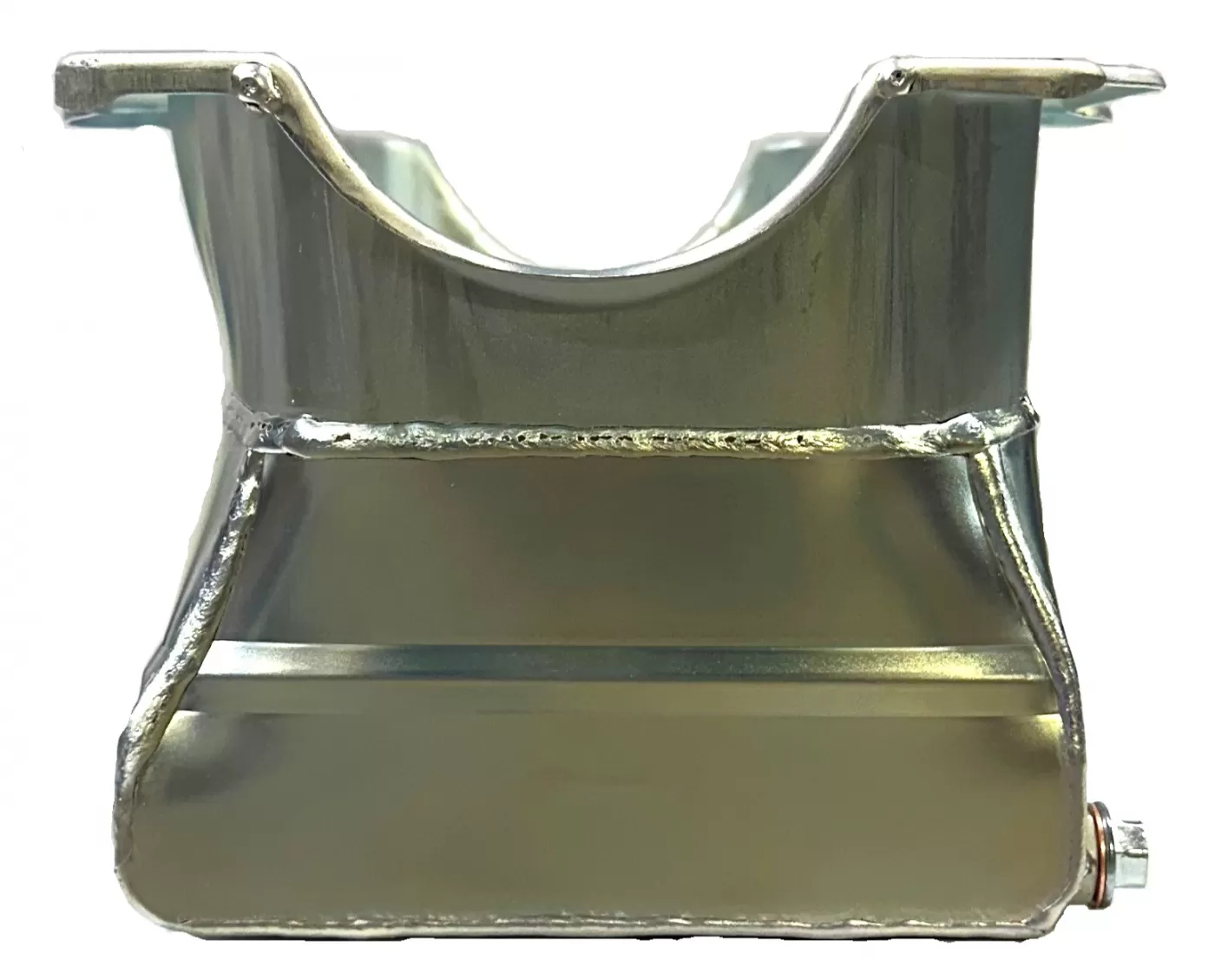

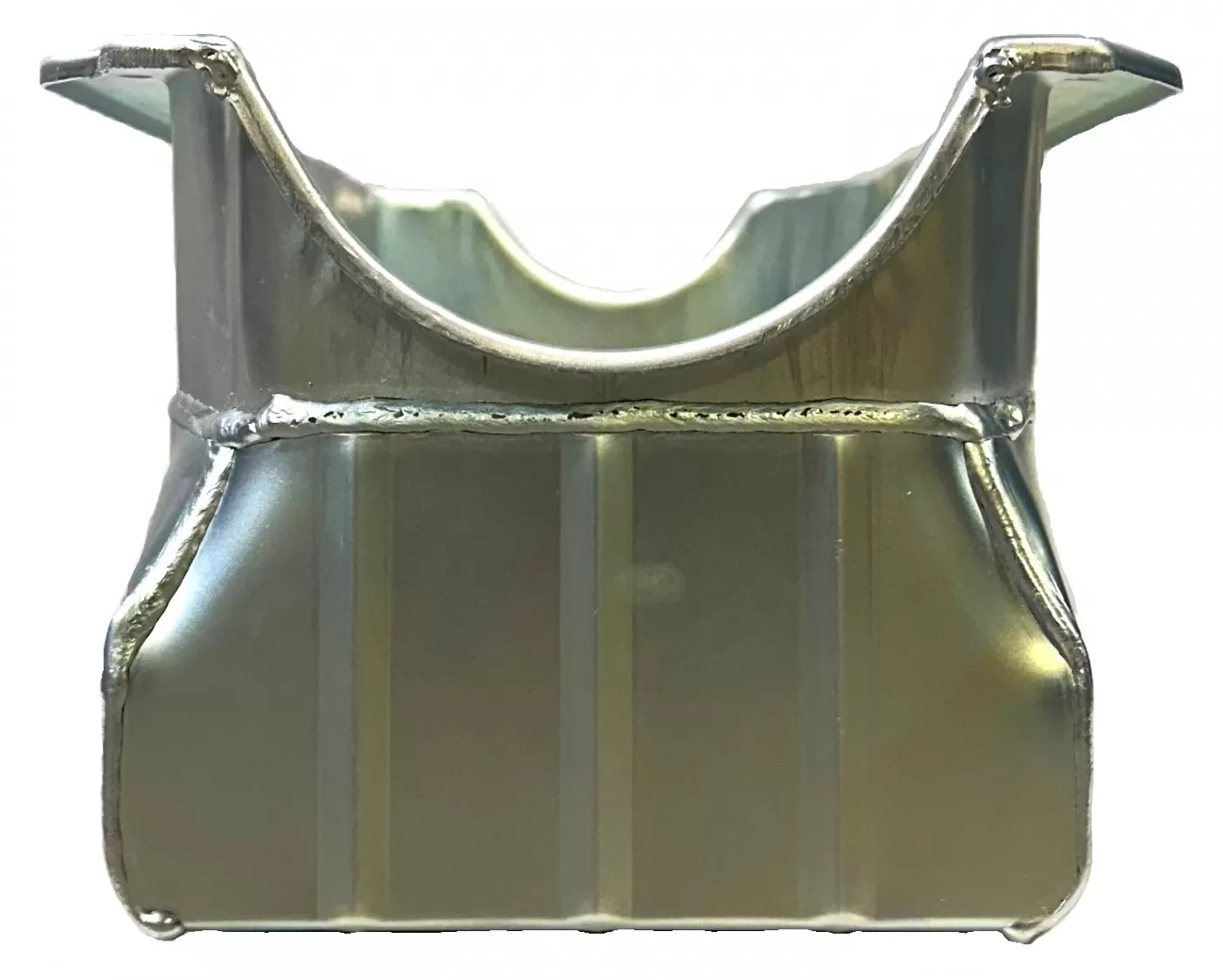

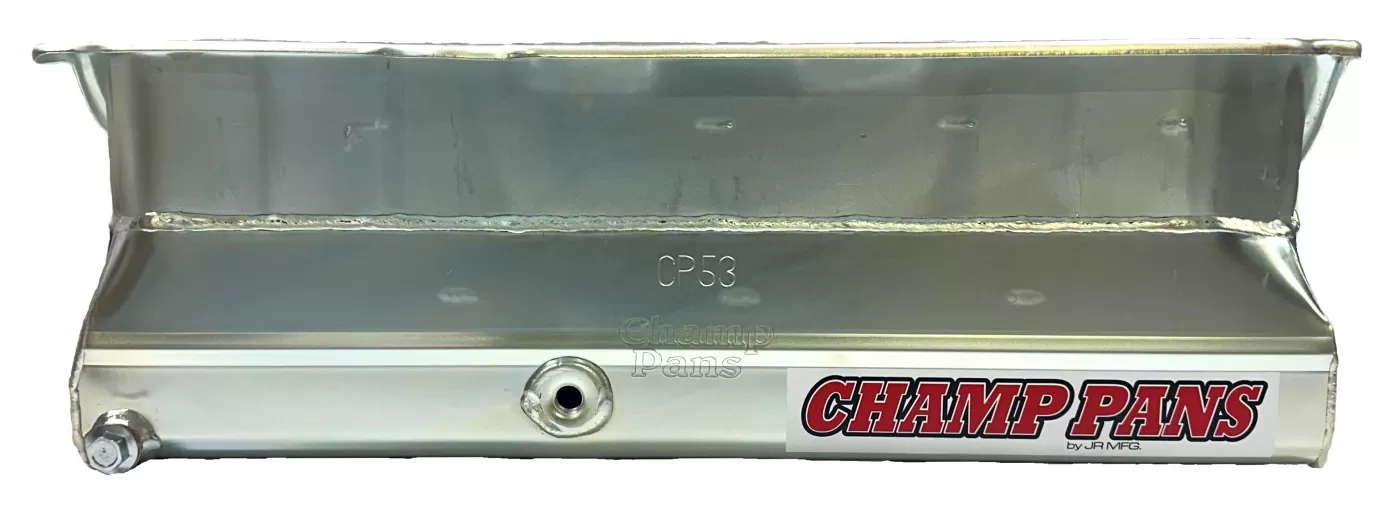

This steel wet sump oil pan is for the Small Block Chevrolet years 1986-2003 with the one piece rear main seal engines. This oil pan features:
- a full length sump
- 14 gauge steel to take the abuse of drag racing or marine use
- three 6" trapdoors
- one crank scraper
- a front and back splash plate to keep the oil from climbing up the back of the oil pan

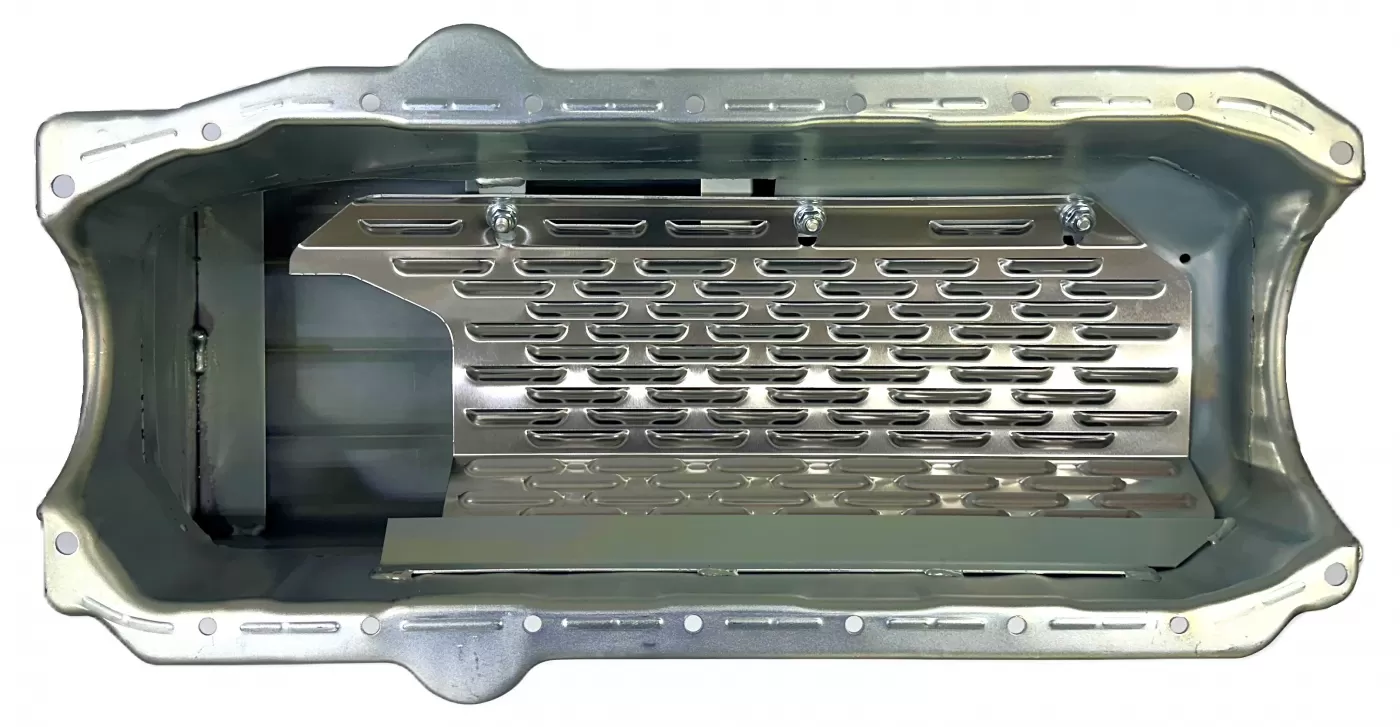

- a removable horsepower saving louvered windage tray
- a clear zinc finish
Will clear 4 1/8" stroke.
Oil capacity: 9 quarts with filter
Dipstick: Use JR133
Starter: Stock
Gasket: Thick front seal
Dimensions: 21" L x 7 3/4" W x 7" H
