Style:
Small Block Chevrolet 1979-1985
Dimensions:
7.500 deep
Description:

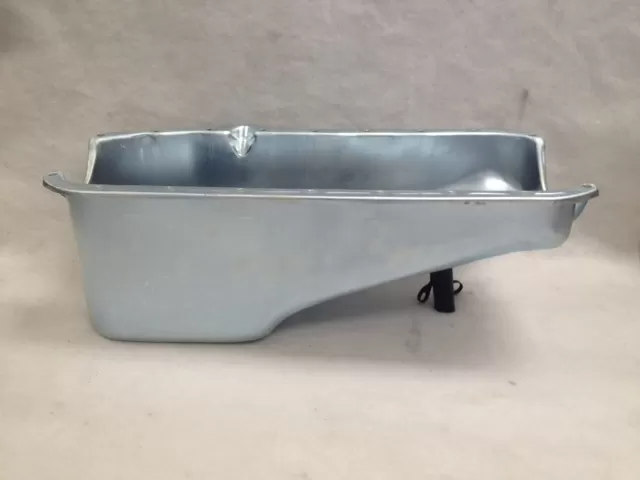

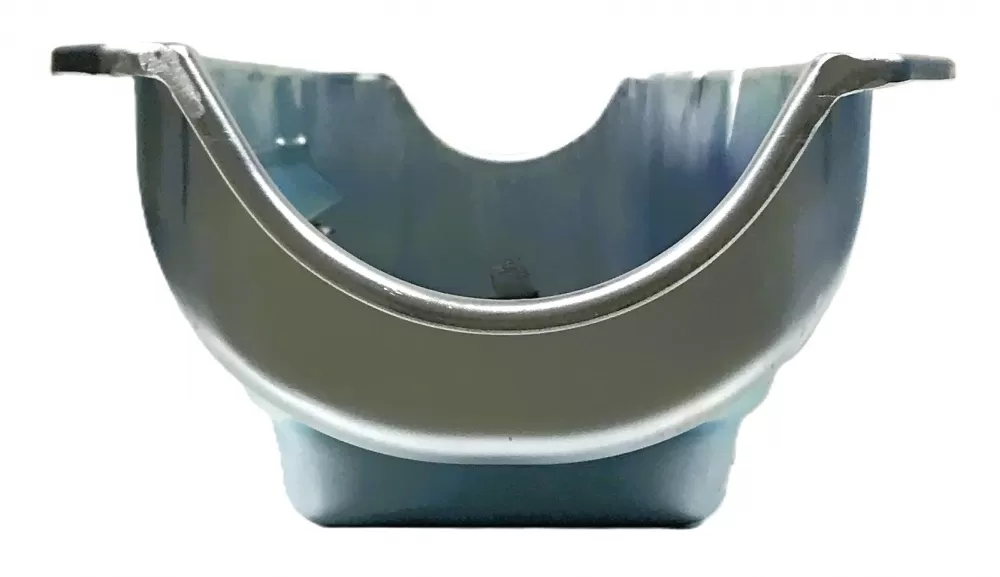

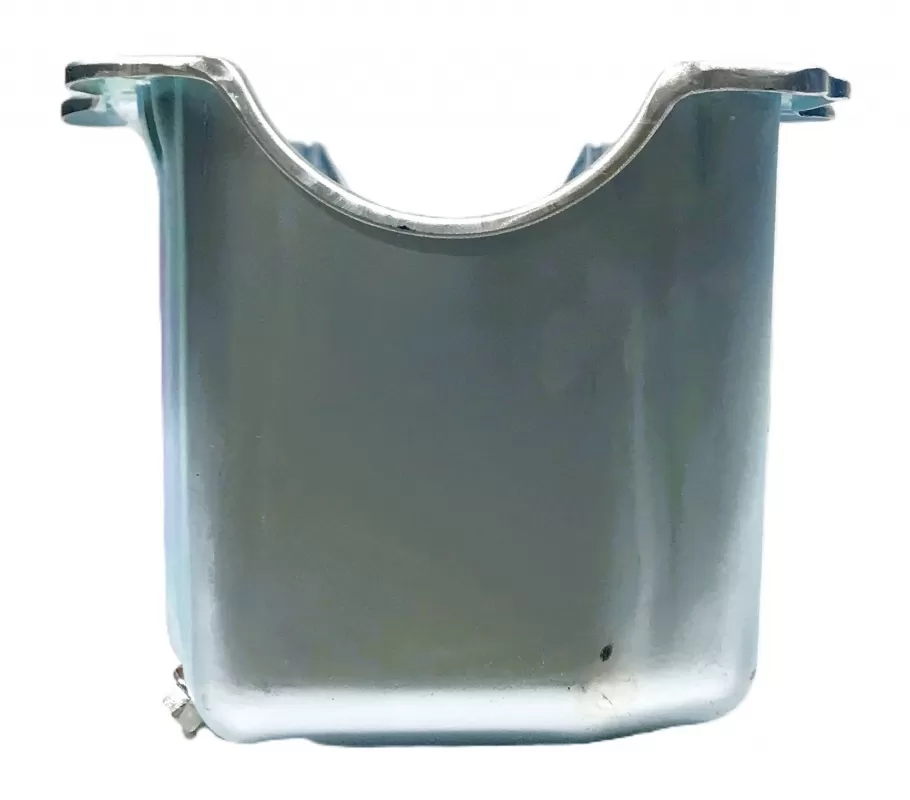

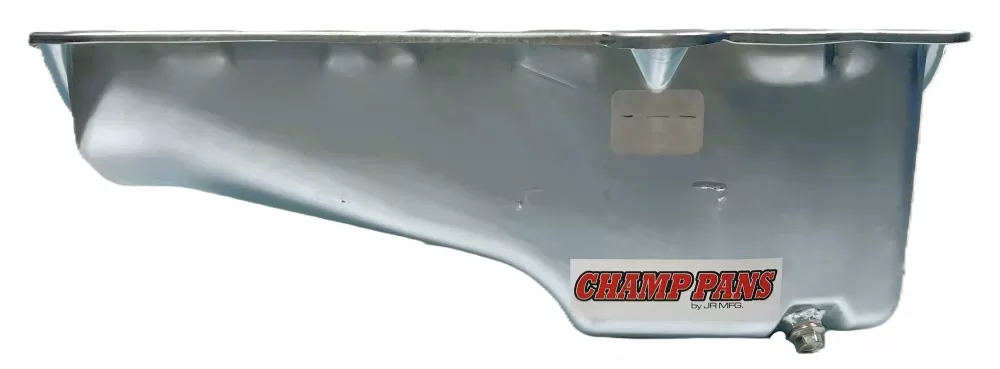

This steel wet sump oil pan is for the Small Block Chevrolet years 1979-1985 with the right side dipstick engines. This oil pan features:
- a stock appearance
- one 6” trapdoor
- one crank scraper

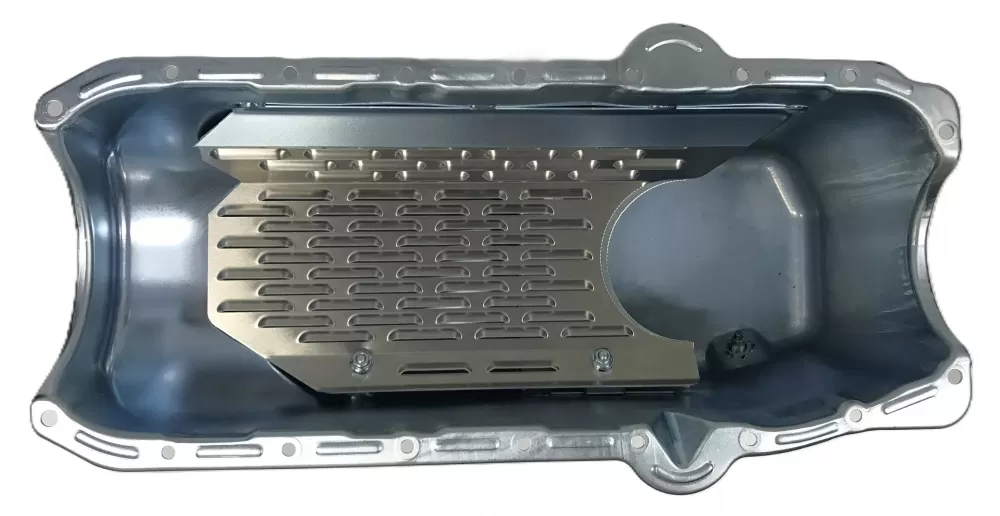

- a removable horsepower saving louvered windage tray
- a clear zinc finish
Will fit all chassis.
This oil pan is NHRA approved.
The 50SB pickup is for the M55 and 10553ST pumps (only this oil pan).
Oil capacity: 5 quarts with filter
Use: Dirt circle track (hobby stock), road race, street or strip
Dipstick: Factory
Gasket: Thick front seal
Dimensions: 7 1/2" deep
No additional information could be found for this product.
No installation instructions could be found for this product.
