Style:
Small Block Ford 302
Dimensions:
8.000 deep
Description:

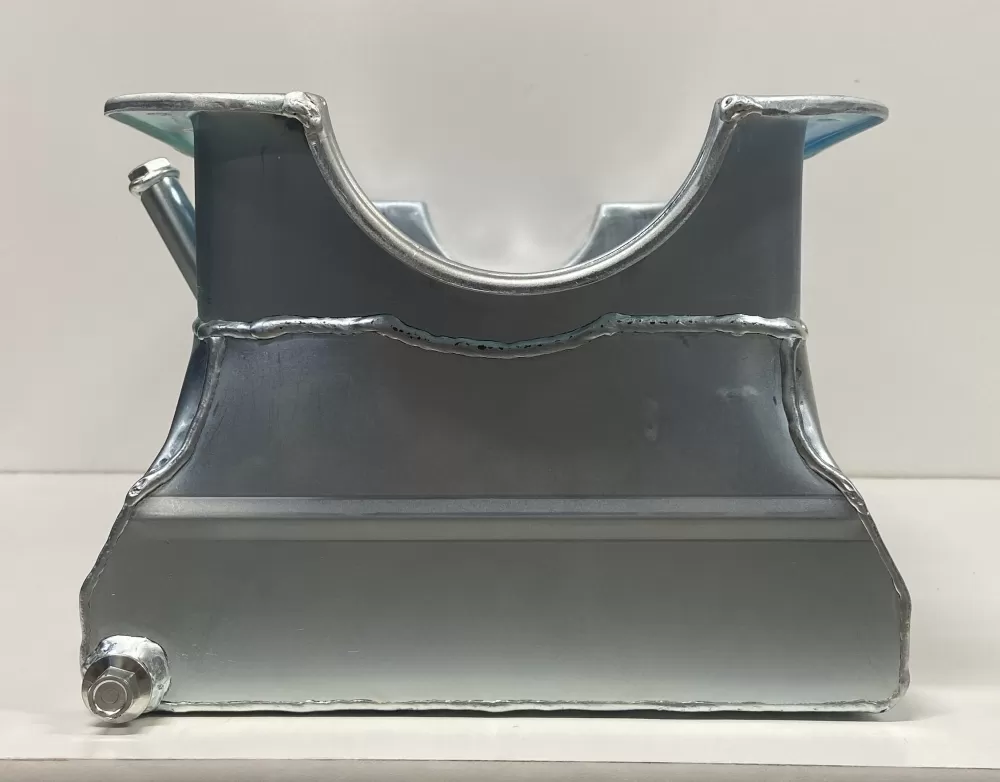

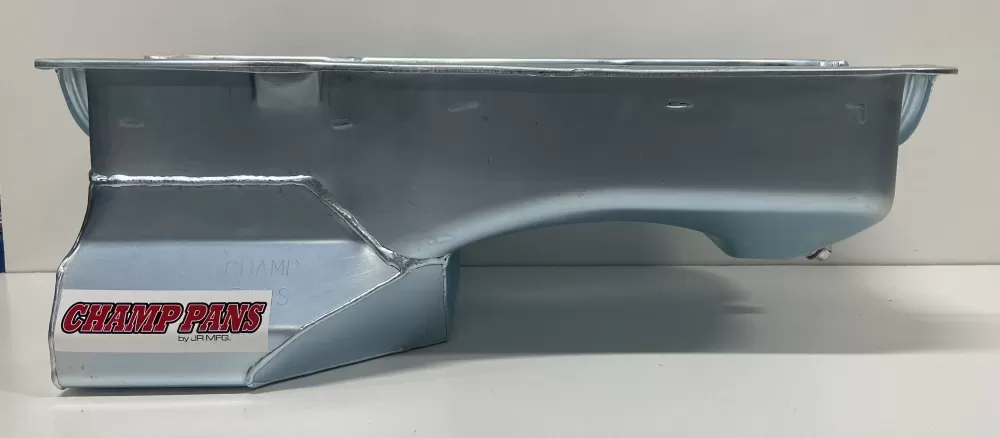

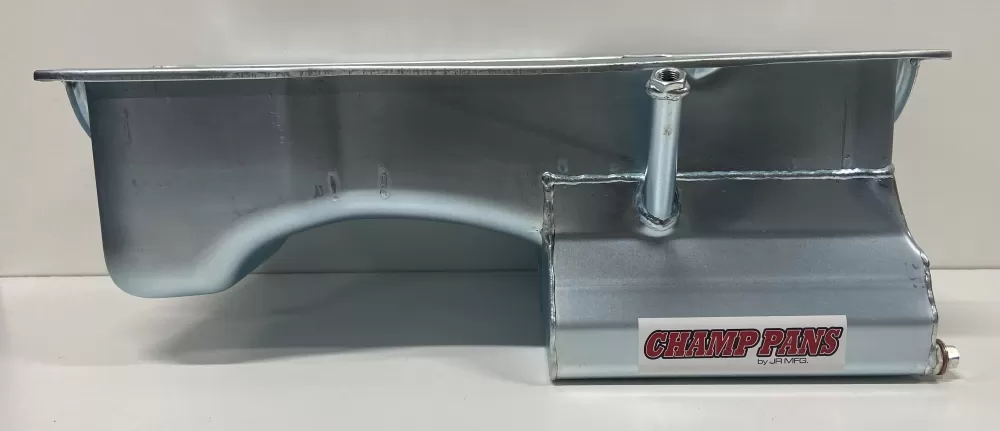

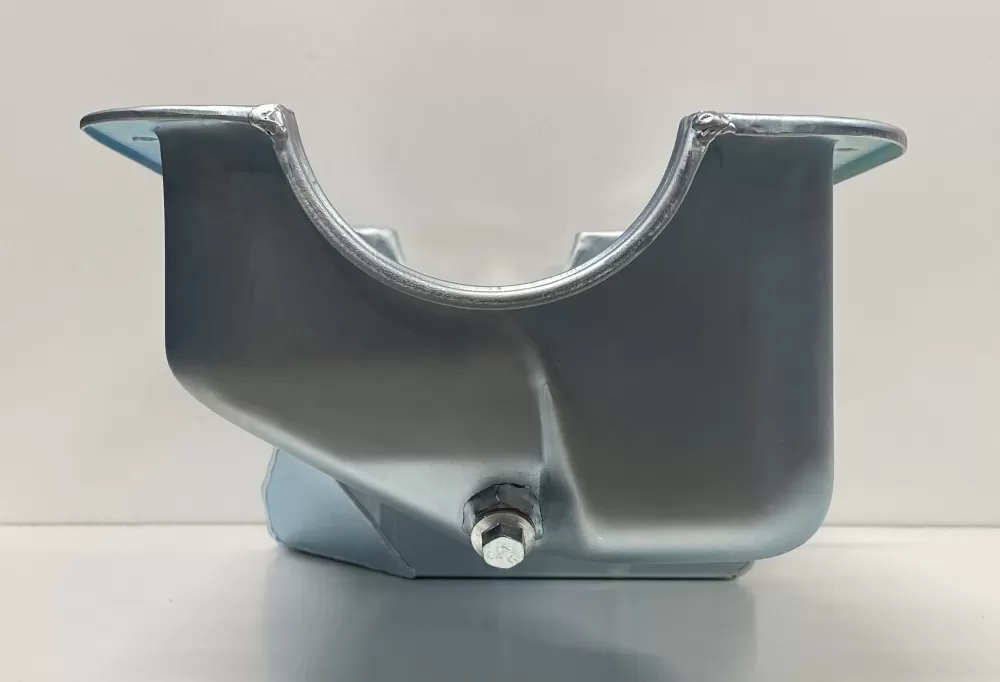

This steel wet sump oil pan is for the Small Block Ford 302 engines. This oil pan features:
- a rear sump
- four 3" trapdoors
- one crank scraper

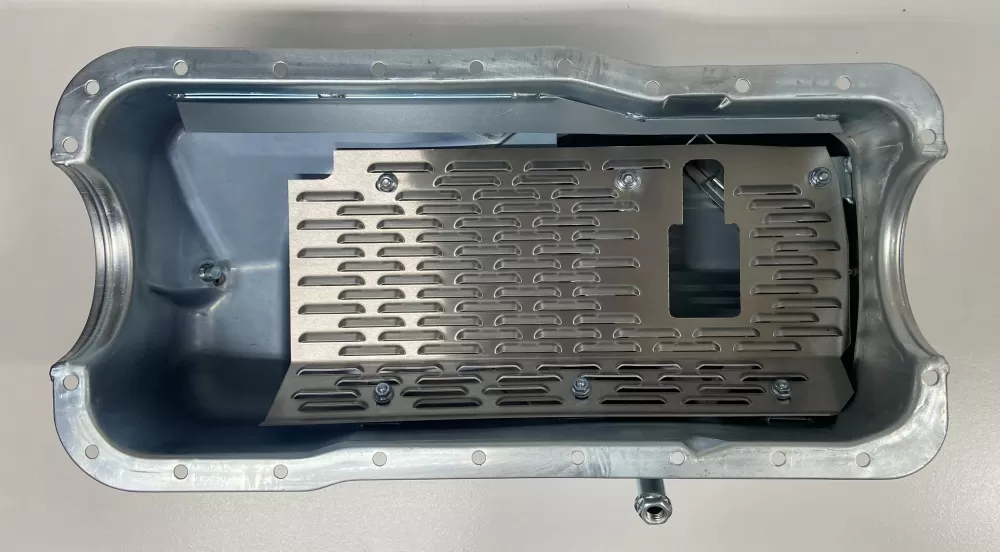

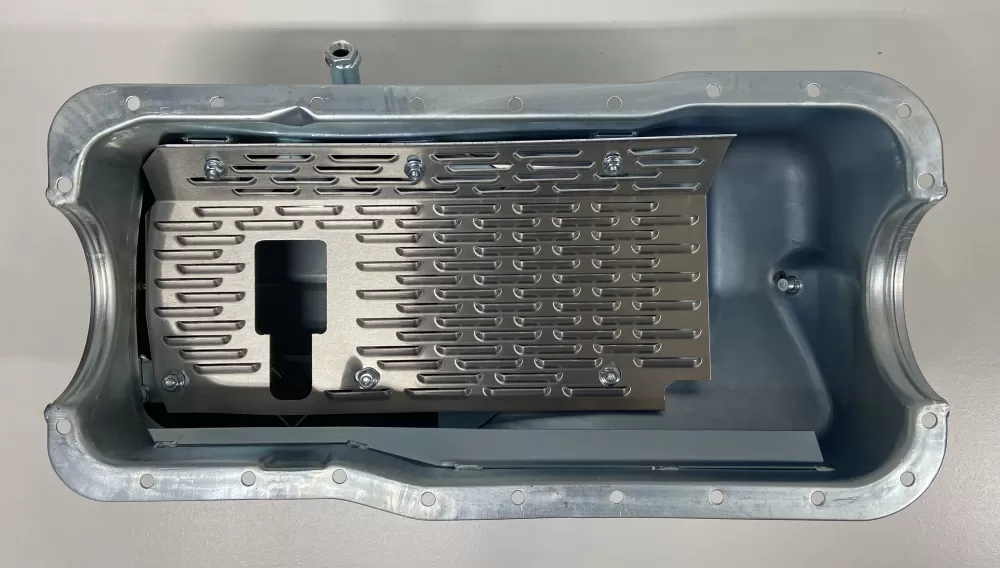

- an aluminum louvered windage tray
- a diamond-shape trapdoor system for launch and braking
- a dipstick provision
- a clear zinc finish
This oil pan was designed for the Ford Fox body Mustang.
Oil capacity: 8 quarts with filter
Use: Street
Dipstick: Use JR130
Dimensions: 10 1/2” L x 11" W x 8" H
