Dimensions:
0.000 deep
Description:

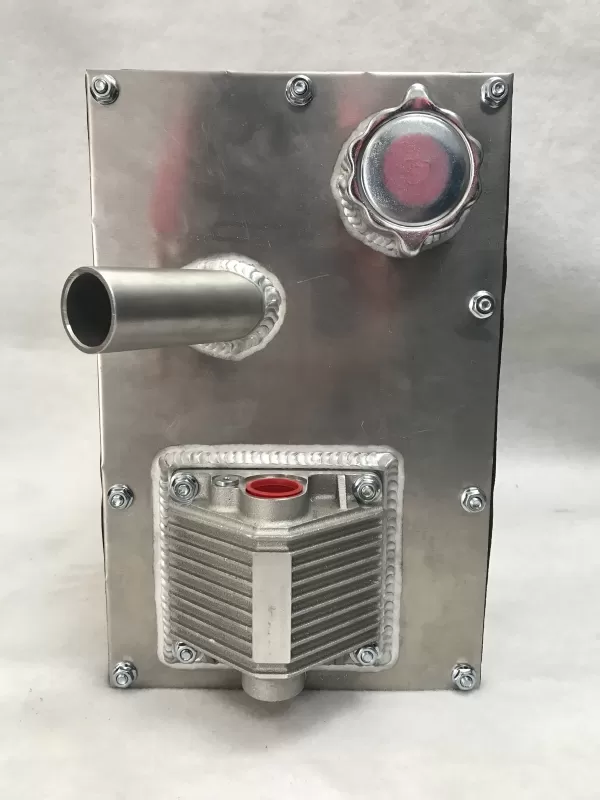

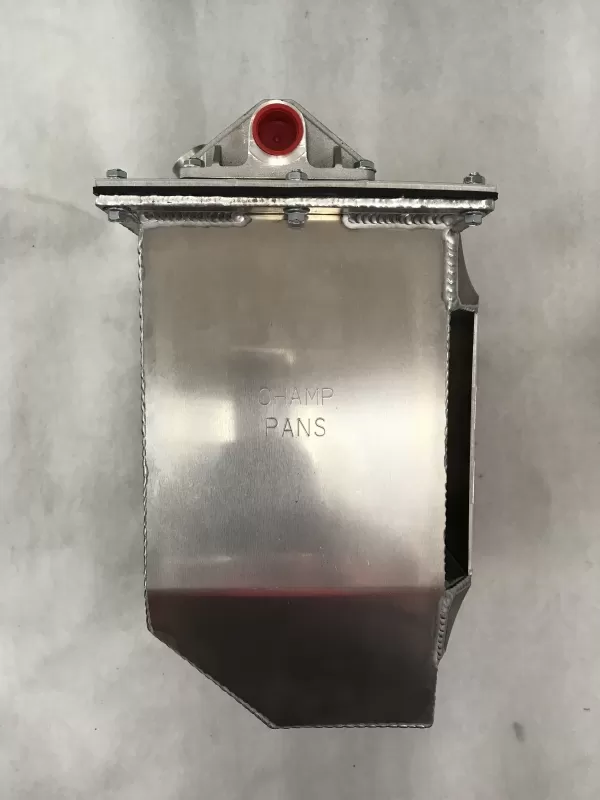

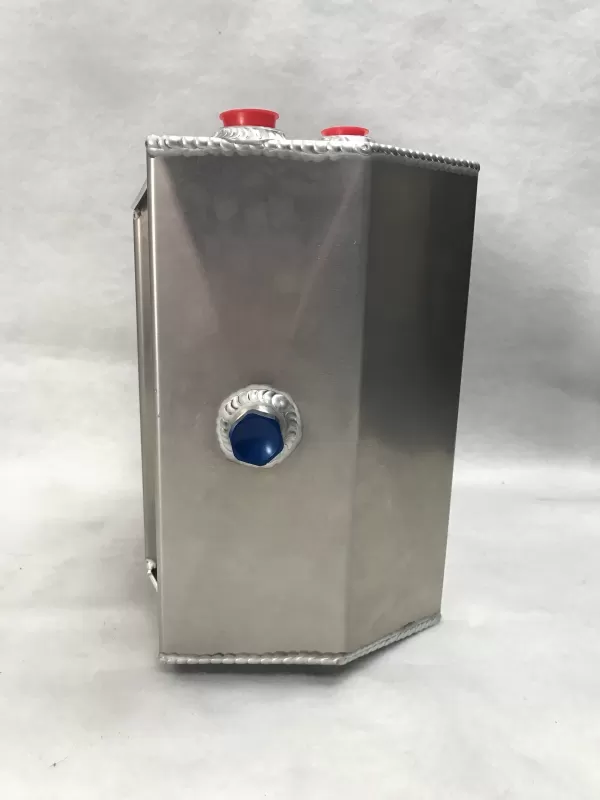

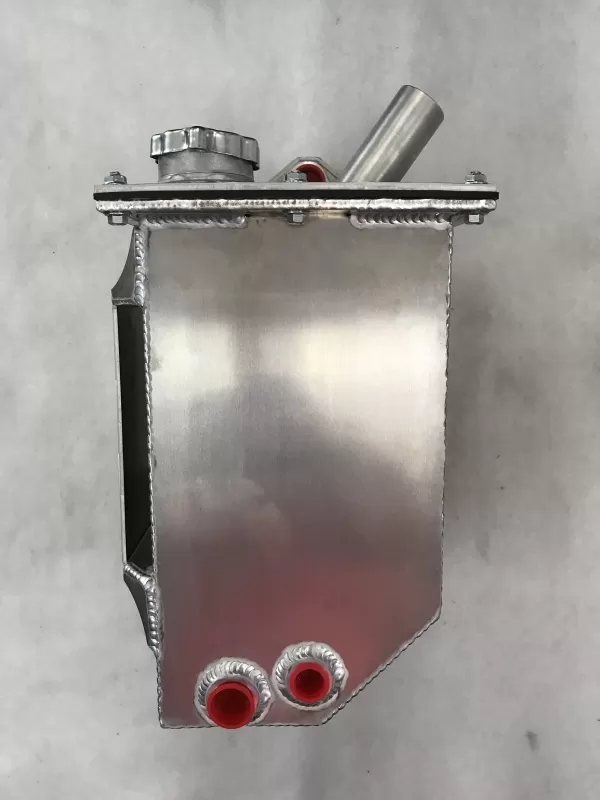

This is an aluminum dry sump tank with vent on top. This tank features:
- 3 1/2 gallons
- simple mounting brackets
- a baffled vent on top
- a dipstick on the cap
- an unique air separator with a pleated 380 micron screen that can be removed and inspected for oil system debris
- a -16 an port outlet for filter housing
- a 1 1/2" vent pipe for 1 1/2" breather
- a 3/4” NPT exit outlet
- a 1/2” NPT oil temp sensor hole (if not using, use a 1/2" NPT plug)
- a -10 an drain plug on bottom of tank
No additional information could be found for this product.
No installation instructions could be found for this product.
