Style:
Big Block Chevrolet Gen V & VI
Dimensions:
7.750 deep
Description:

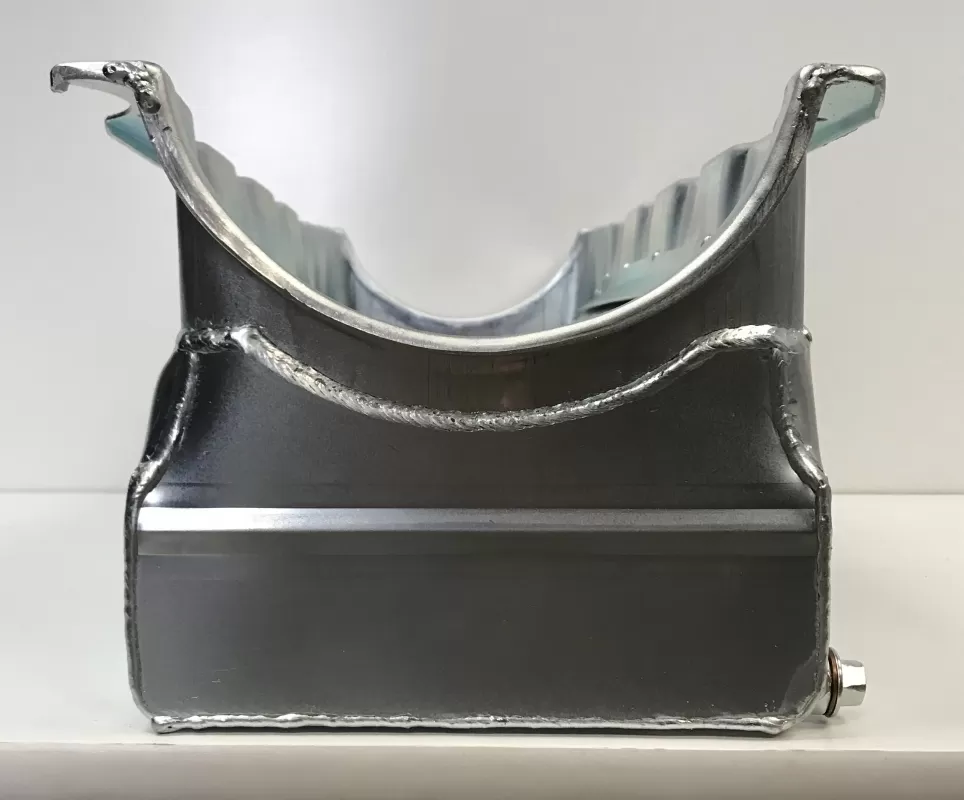

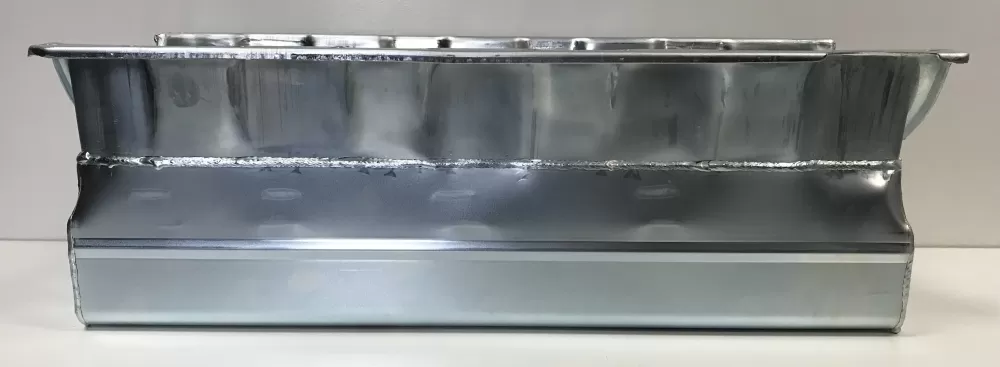

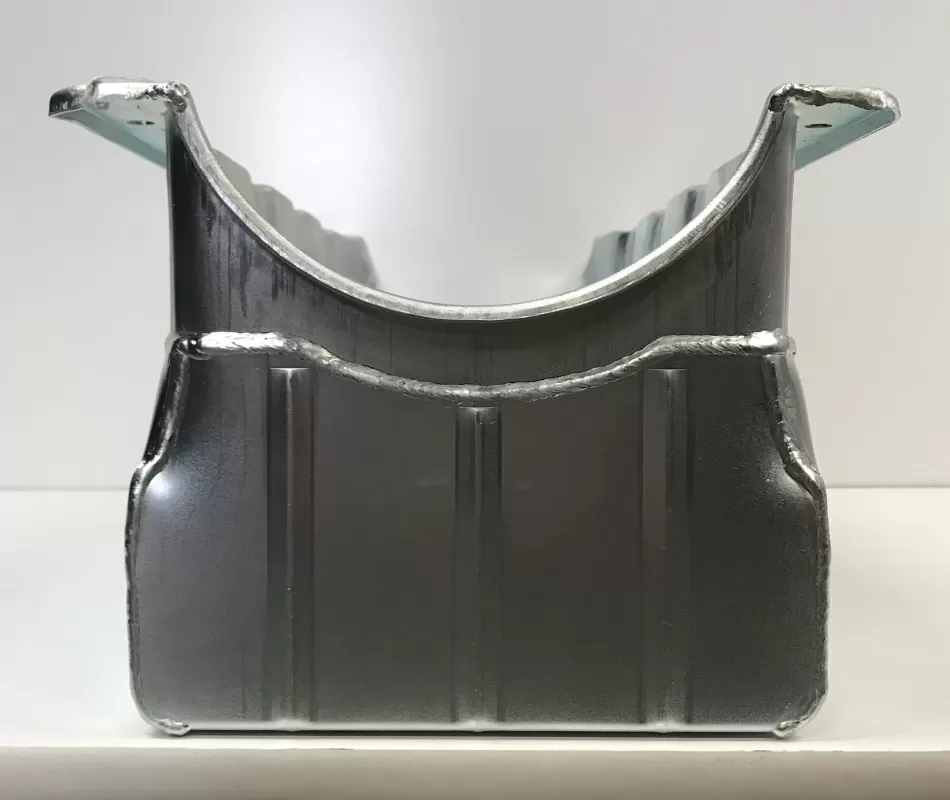

This steel wet sump oil pan is for the Big Block Chevrolet one piece rear main seal Gen V and Gen VI engines. This oil pan features:
- a full length sump
- 14 gauge steel to take the abuse of drag racing or marine use
- six 3" trapdoors
- one crank scraper
- a front and back splash plate to keep the oil from climbing up the back of the oil pan

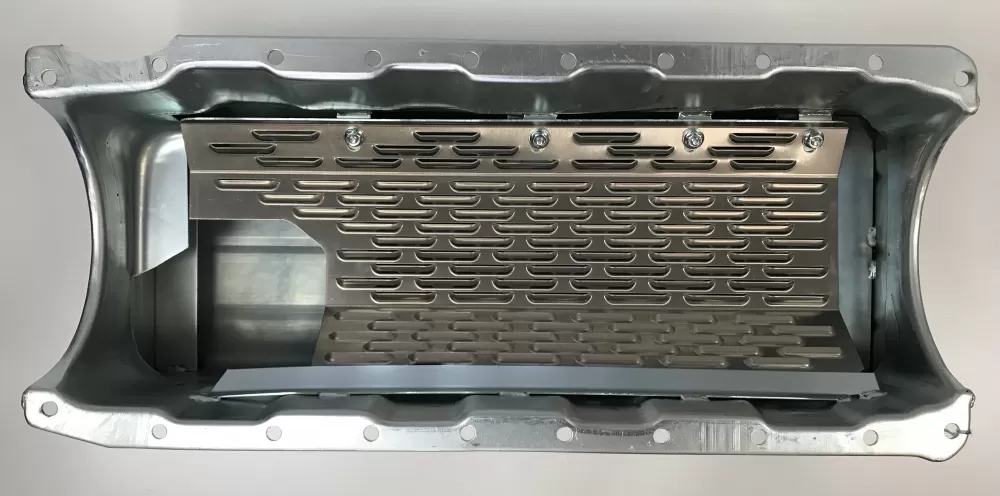

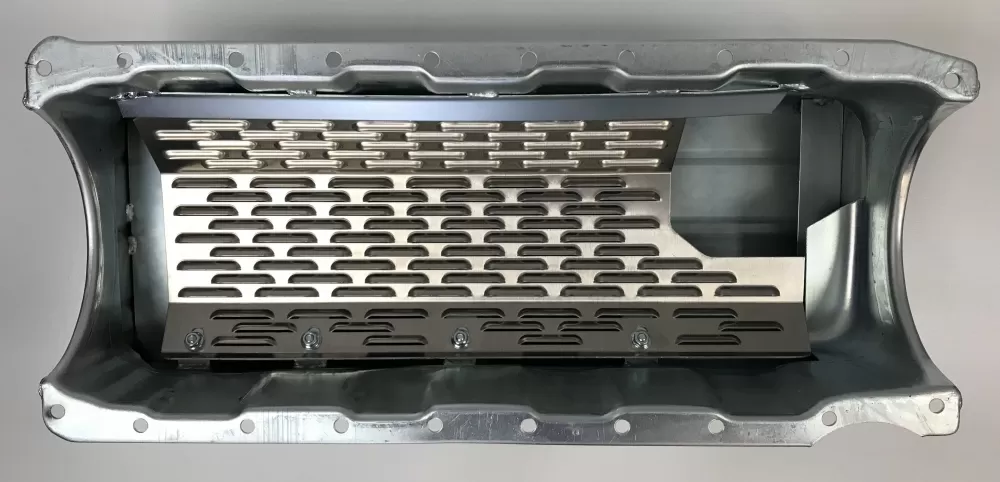

- a removable horsepower saving louvered windage tray
- a clear zinc finish
Oil capacity: 11 quarts with filter

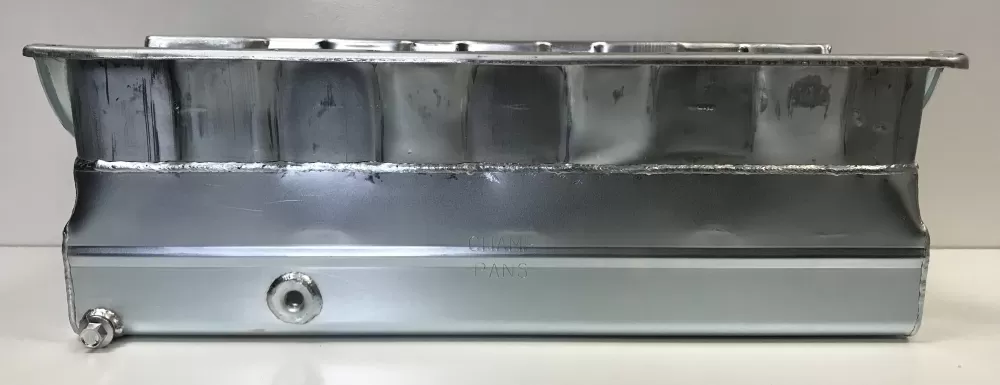

Dipstick: Use JR133 (dipstick hole in the center right side of oil pan is 1/4" NPT thread)
Use: Agriculture, marine, street or strip
Gasket: Use Cometic C15077 for non-stroker engine; use Cometic OP536-SP1 for stroker engine
Dimensions: 23" L x 8 1/2" W x 7 3/4" H
