Style:
Big Block Chevrolet Mark IV
Dimensions:
8.000 deep
Description:

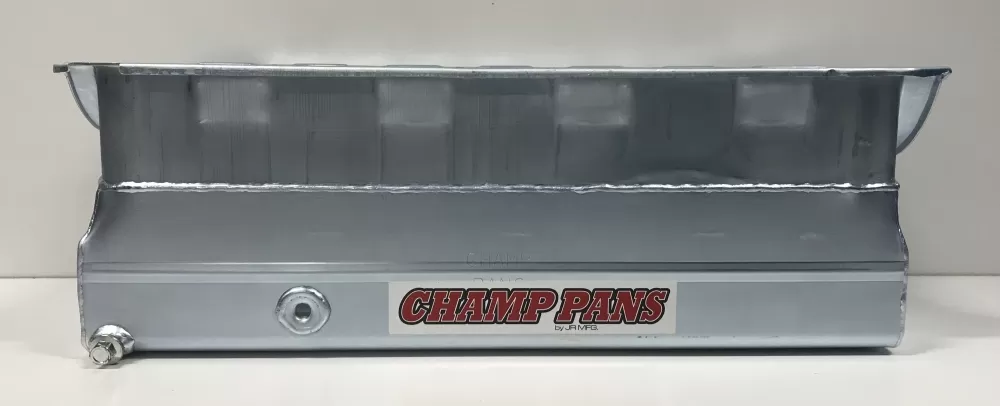

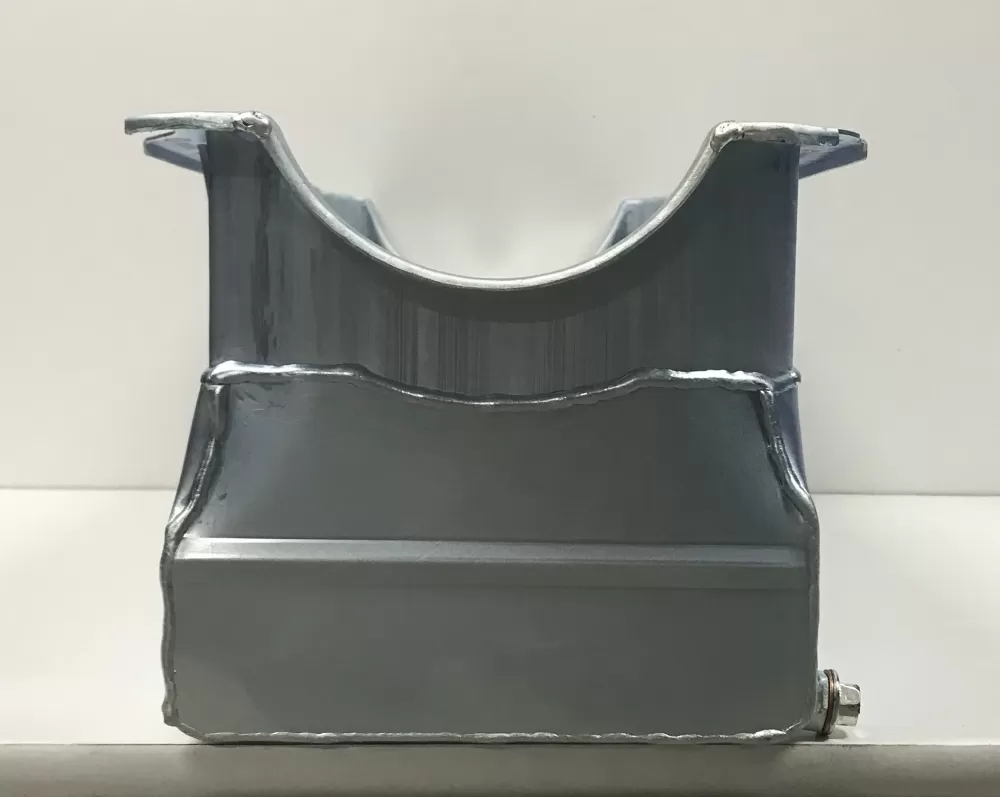

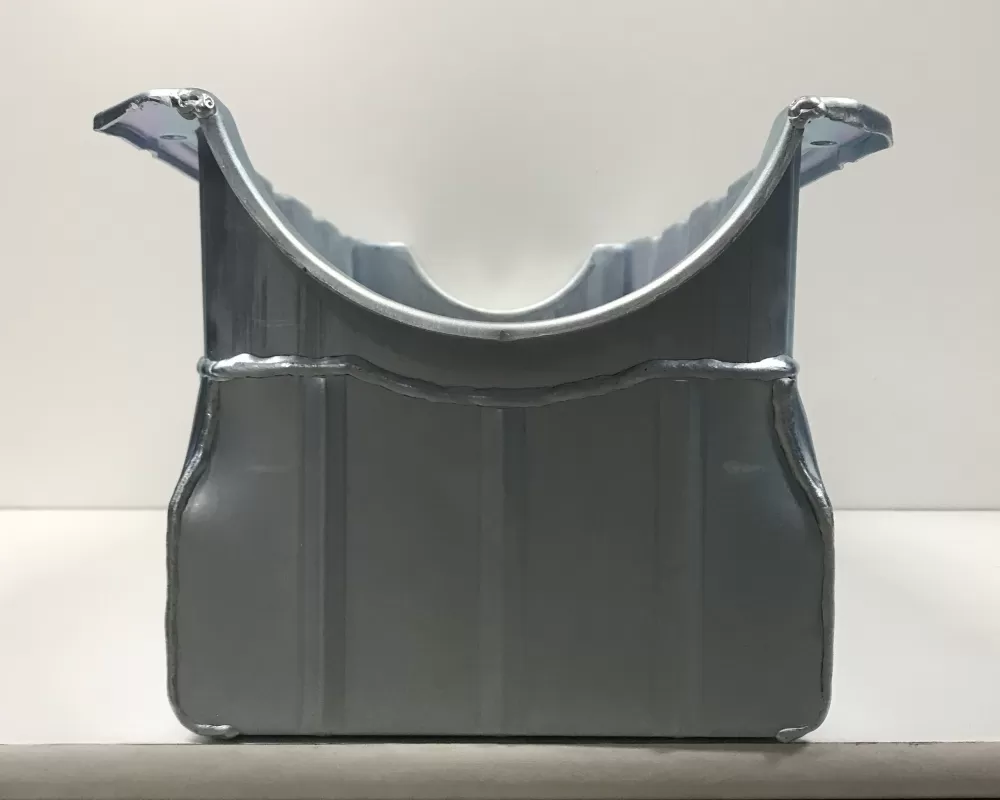

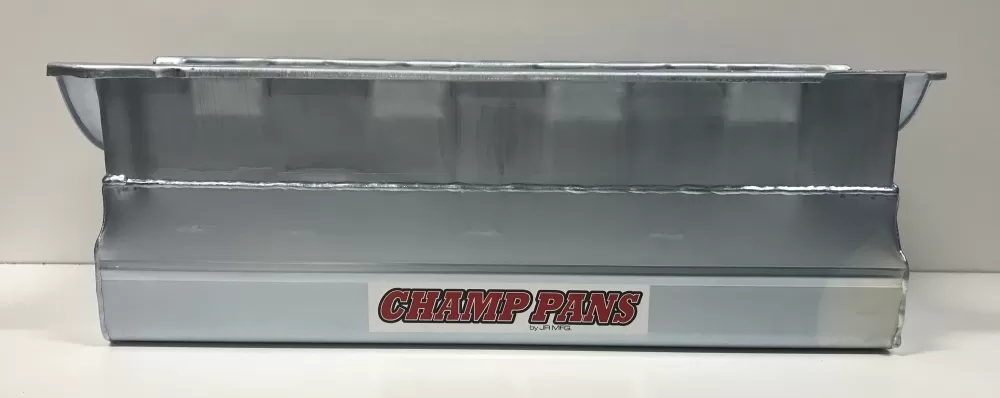

This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a full length sump
- 14 gauge steel to take the abuse of drag racing or marine use
- six 3" trapdoors
- one crank scraper
- a front and back splash plate to keep the oil from climbing up the back of the oil pan

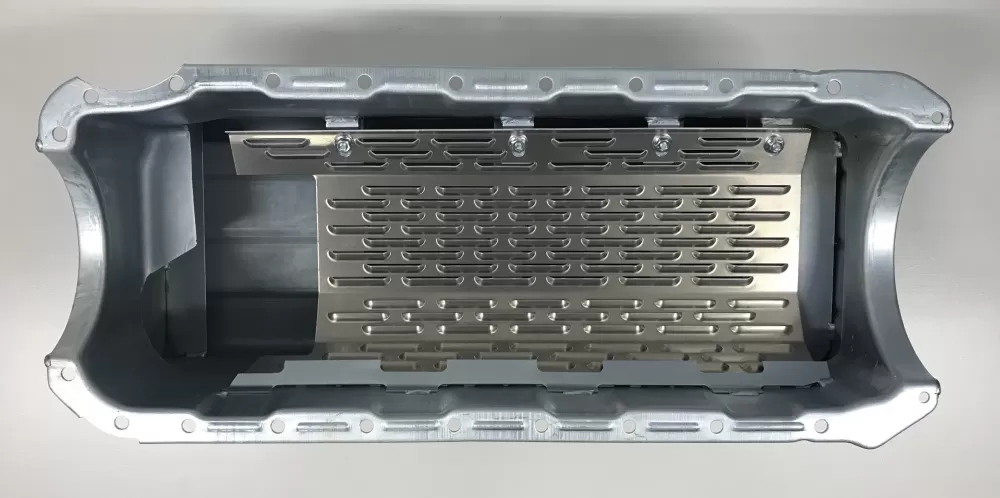

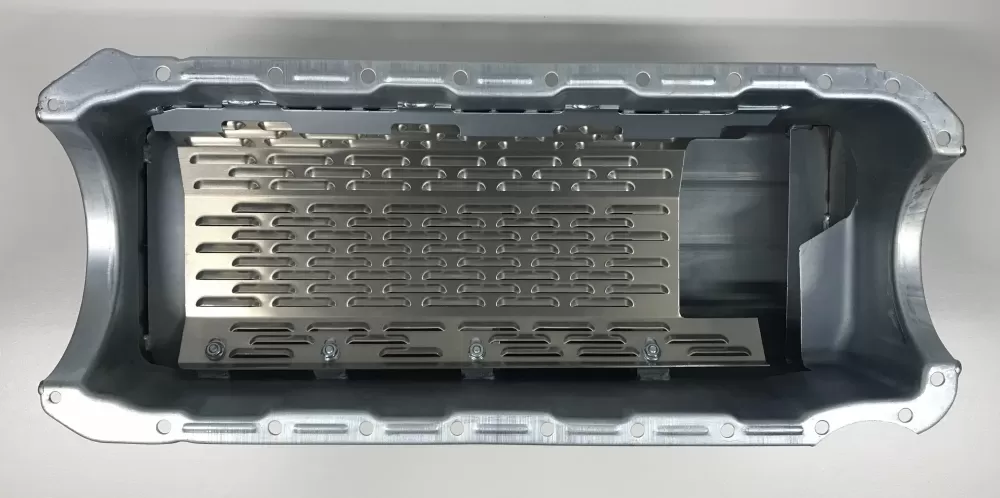

- a removable horsepower saving louvered windage tray
- a clear zinc finish
Drain plug is a 1/2-20 thread.
Oil capacity: 12 quarts with filter
Dipstick: Use JR133 (dipstick hole in the center right side of oil pan is 1/4" NPT thread)
Use: Agriculture, marine, street or strip
Dimensions: 23" L x 8 1/2" W x 8" H
