Style:
Big Block Chevrolet Gen V
Dimensions:
8.000 deep
Description:

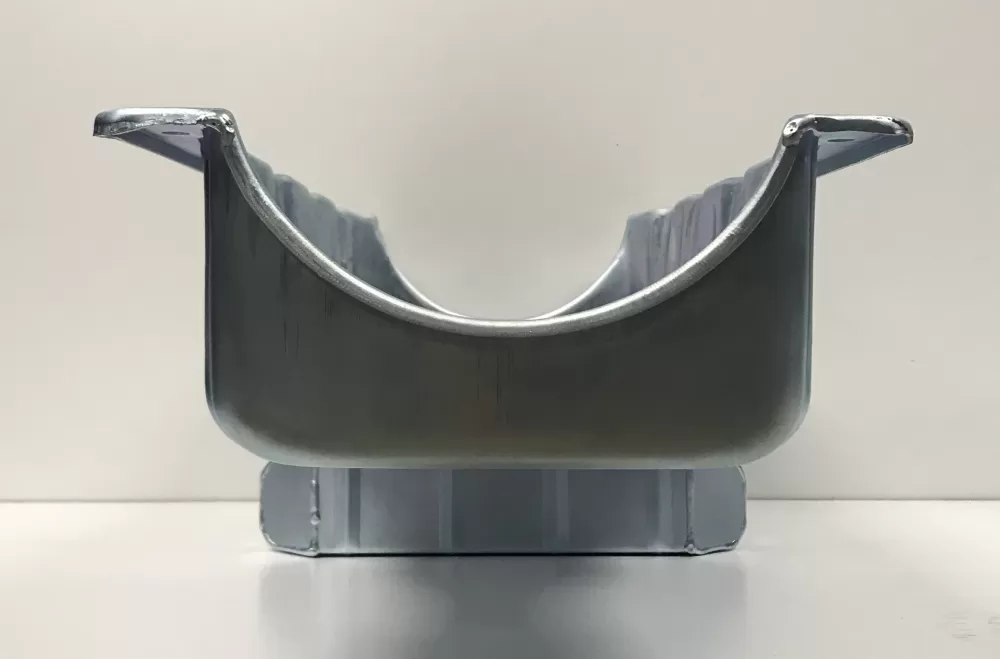

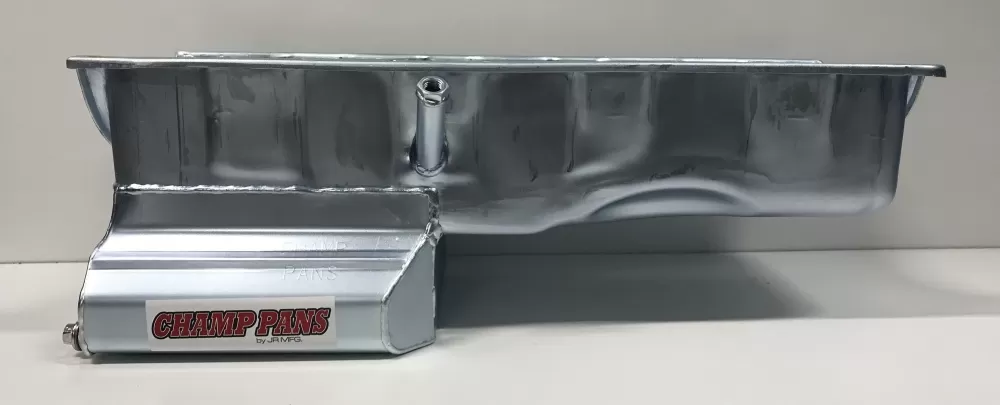

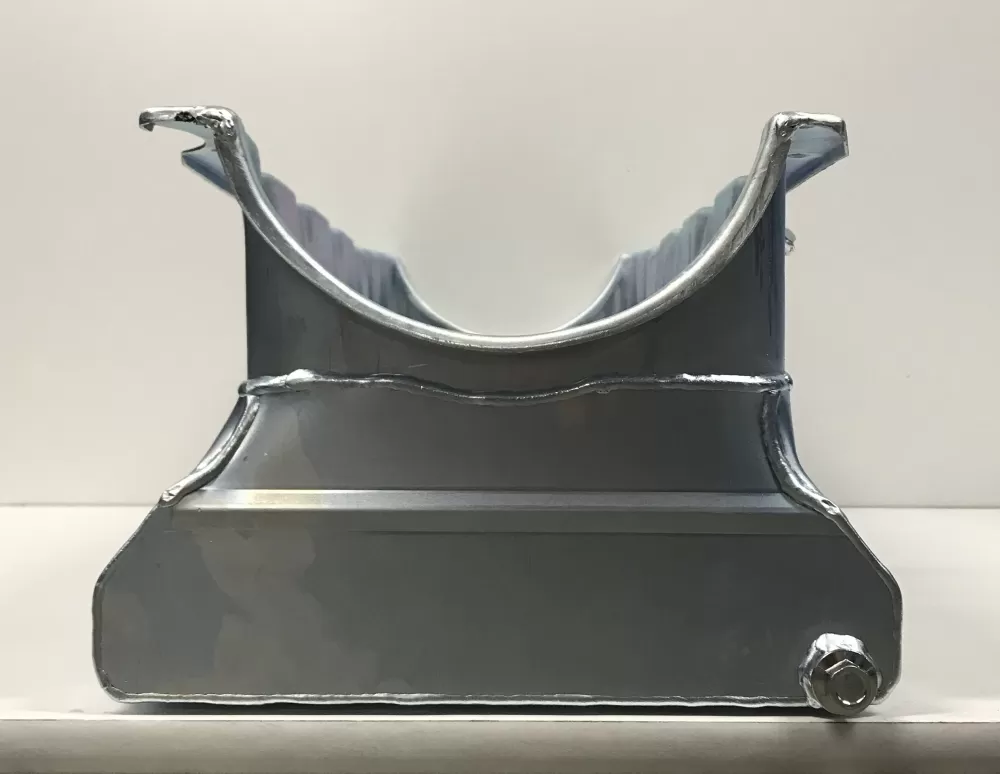

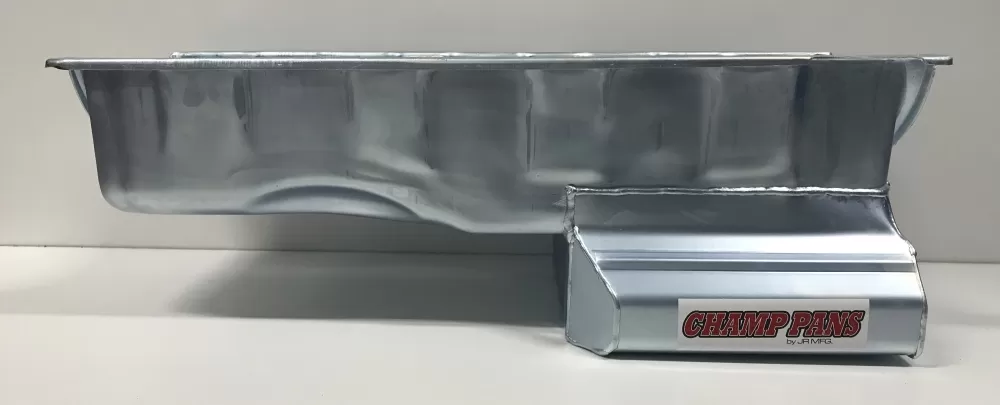

This steel wet sump oil pan is for the Big Block Chevrolet one piece rear main seal Gen V engines. This oil pan features:
- a stock core
- 14 gauge steel
- one 6” trapdoor
- one crank scraper
- a dipstick provision

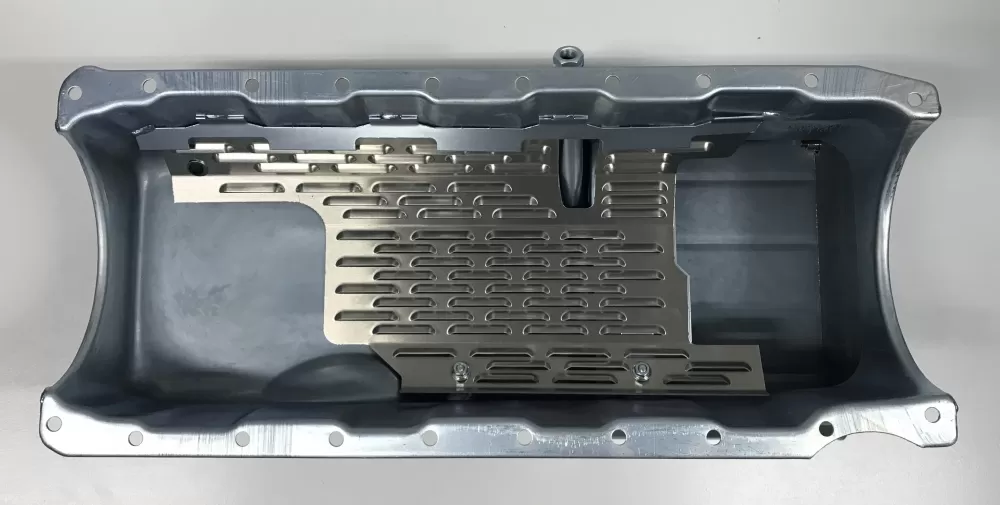

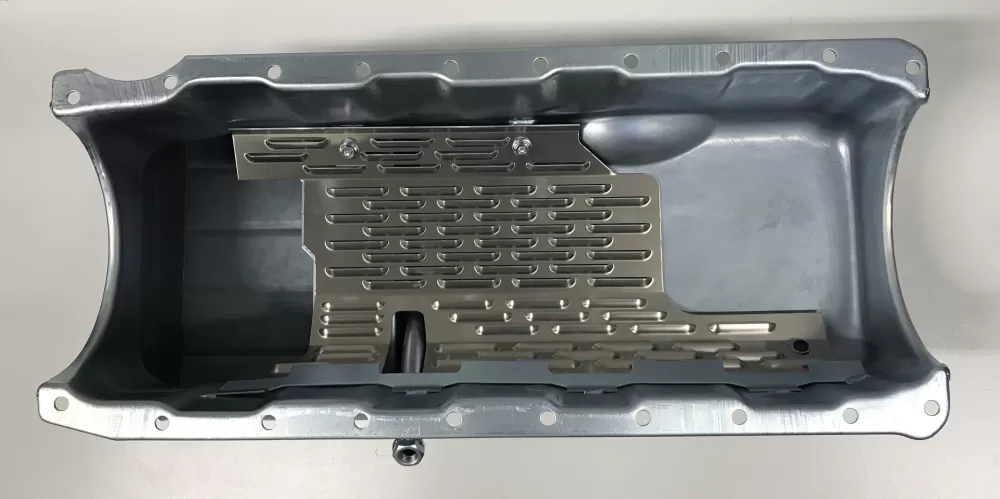

- a louvered windage tray
- a clear zinc finish
Will fit some stock cross membered cars. May need to re-work cross member to fit.
It will clear a 4 1/2" stroke.
You can use a stock OEM pickup for street use.
Oil capacity: 7 quarts with filter
Use: Street or strip
Dipstick: Use JR130
Starter: Stock or mini-starter
Gasket: Use Cometic C15077 for non-stroker engine; use Cometic OP536-SP1 for stroker engine
Dimensions: 9 3/8” L x 11" W x 8" H
