Style:
Big Block Chevrolet Mark IV
Dimensions:
8.000 deep
Description:

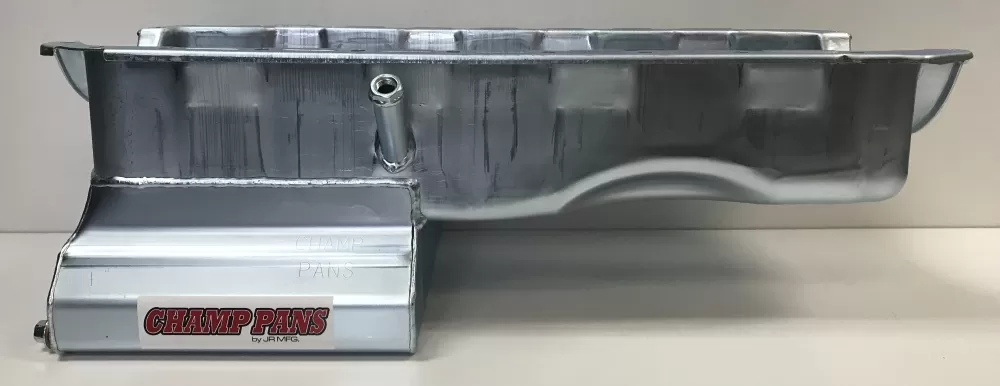

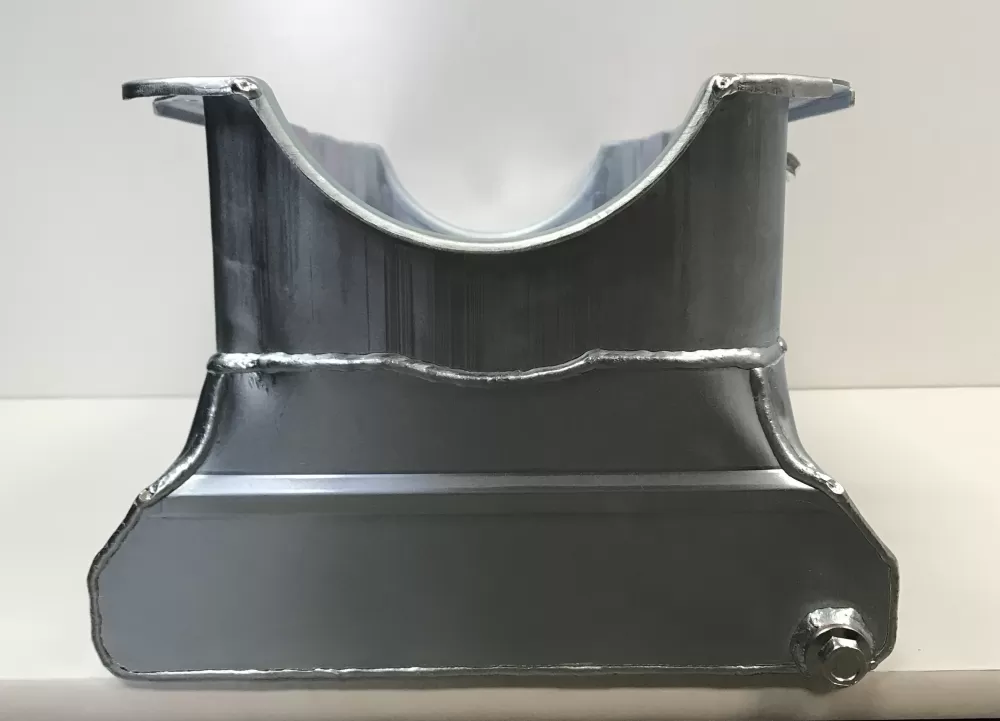

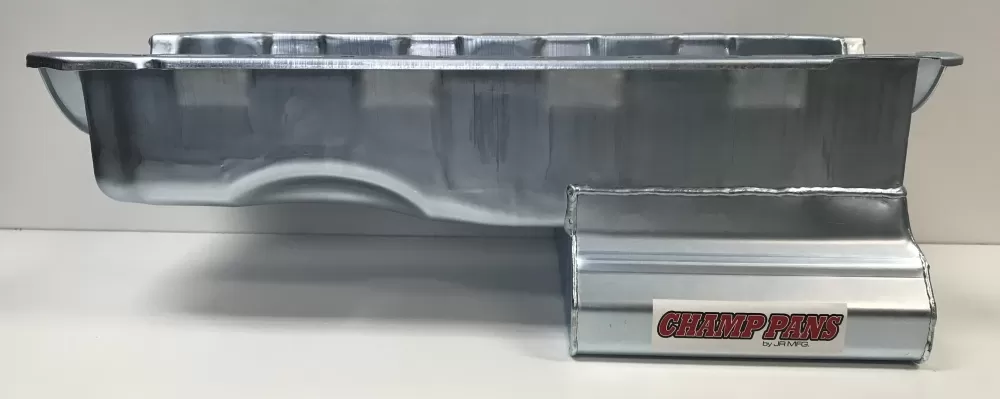

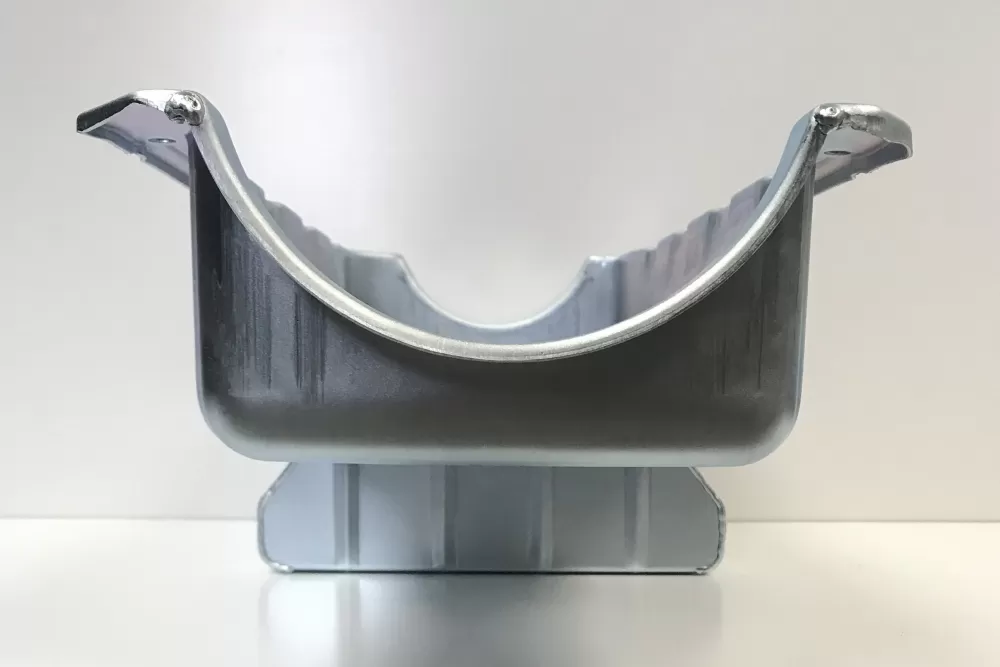

This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a stroker core that is 4 3/4” deep in front
- 14 gauge steel
- one 6” trapdoor
- one crank scraper
- a dipstick provision

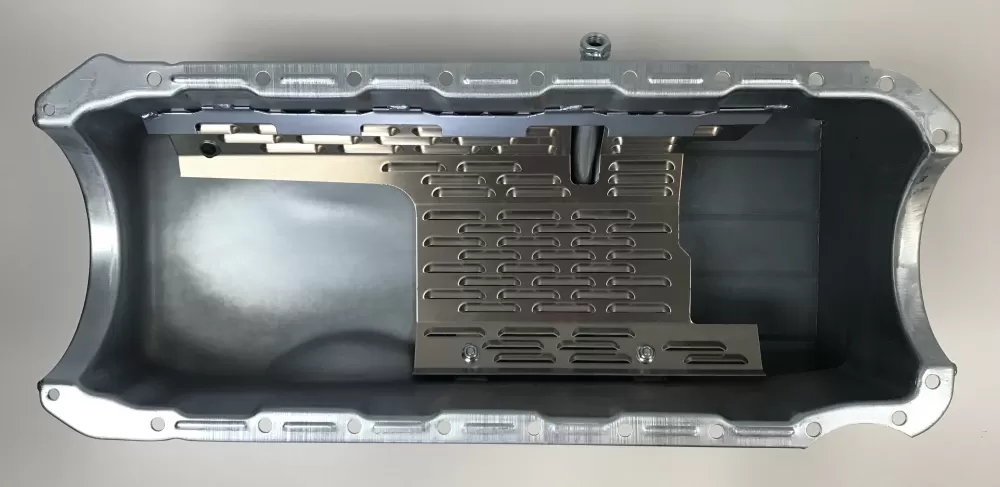

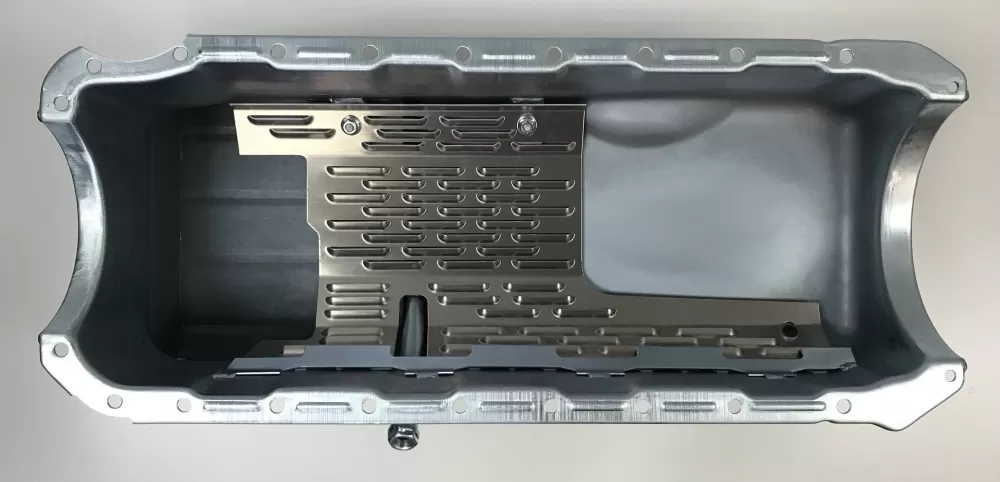

- a louvered windage tray
- a clear zinc finish
Will fit some stock cross membered cars. May need to re-work cross member to fit.
It will clear a 4 3/4" stroke.
It is NOT for Marine use.
Oil capacity: 8 quarts with filter
Use: Street or strip
Dipstick: Use JR130
Starter: Stock or mini-starter
Dimensions: 9 3/8" L x 11" W x 8" H
