Style:
Big Block Chevrolet Mark IV
Dimensions:
8.000 deep
Description:

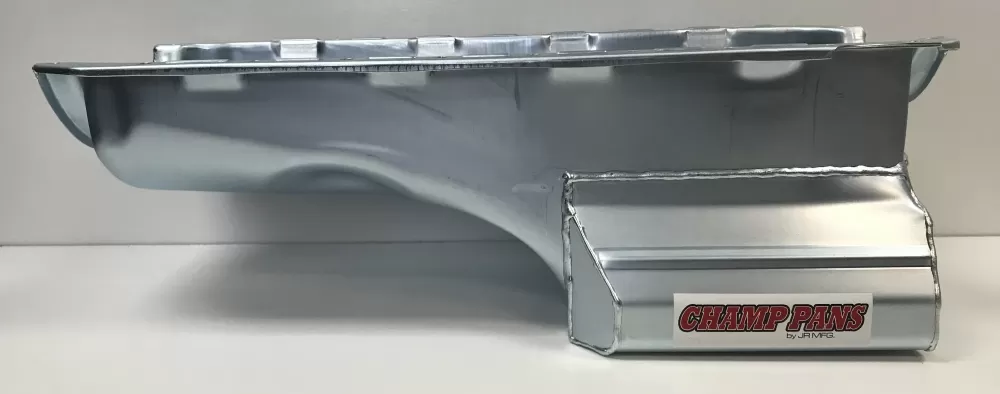

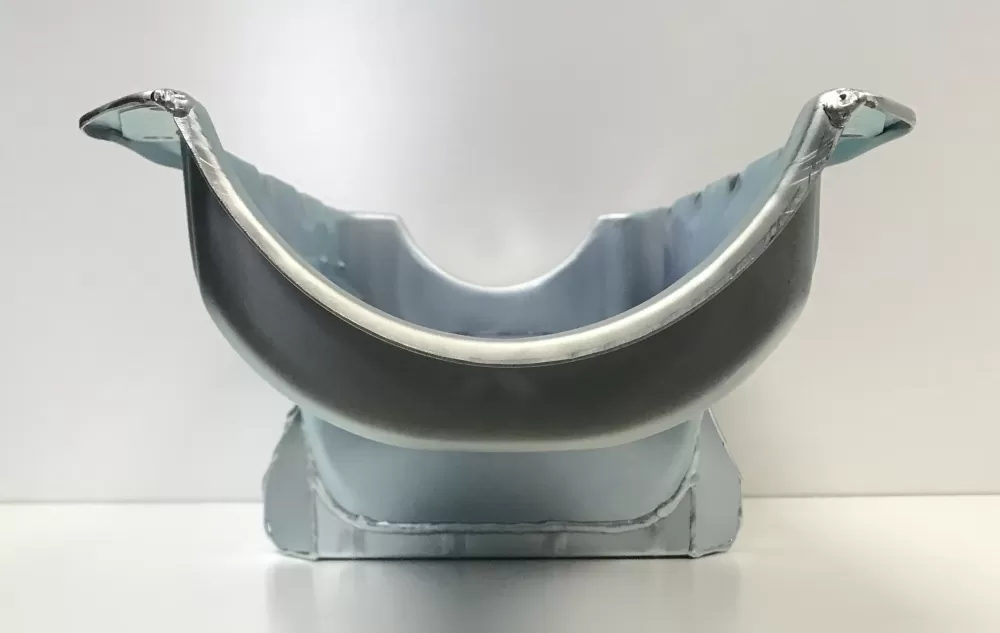

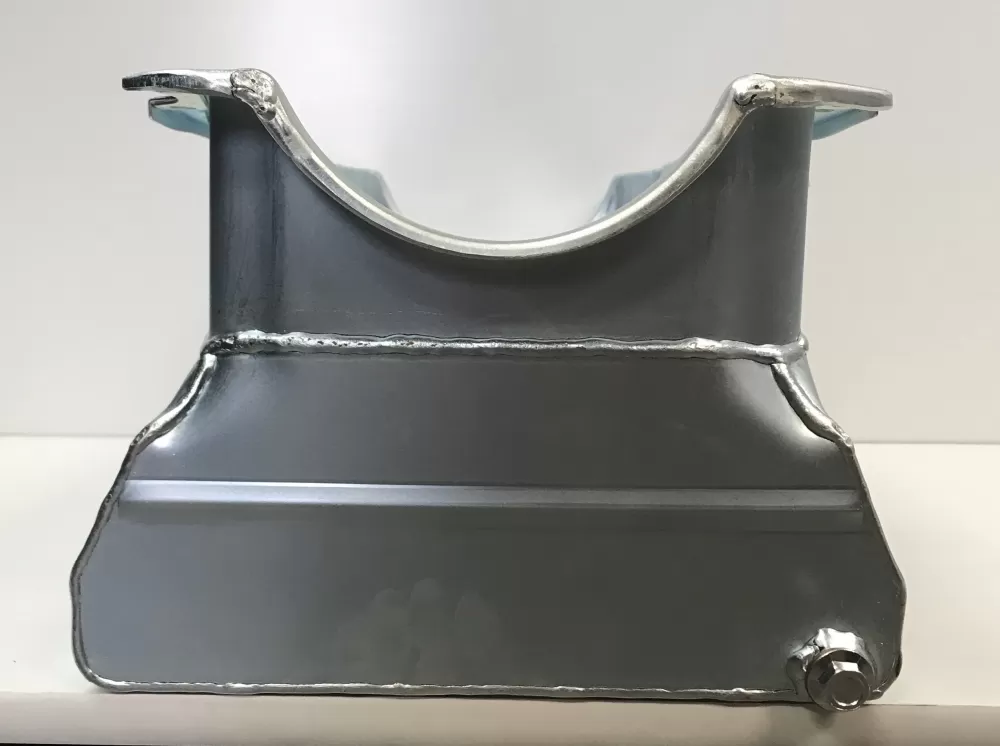

This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a stock core
- 14 gauge steel
- two 4” trapdoors
- one crank scraper

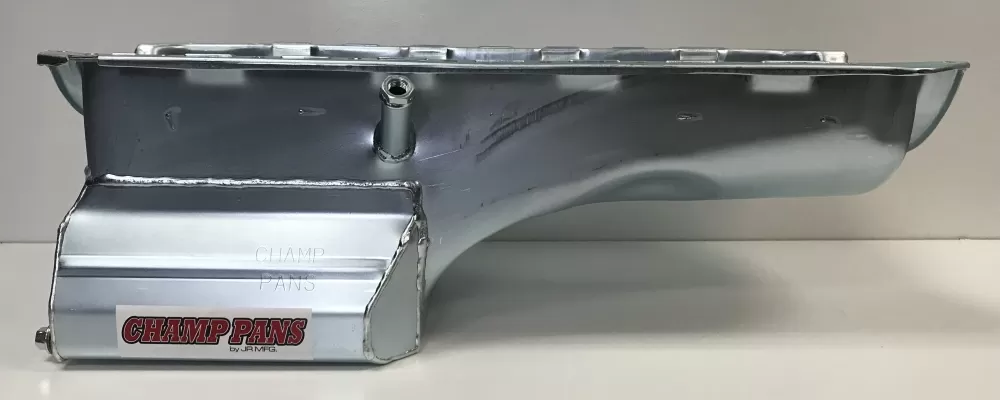

- a dipstick provision

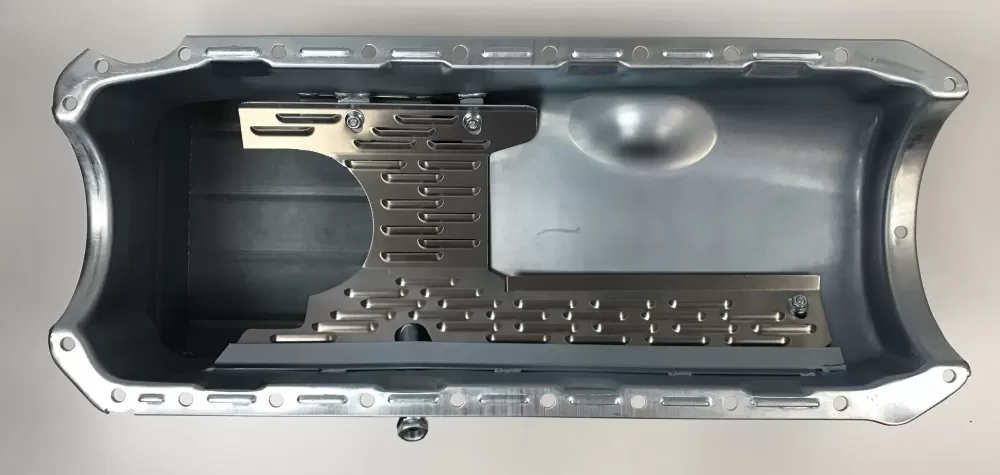

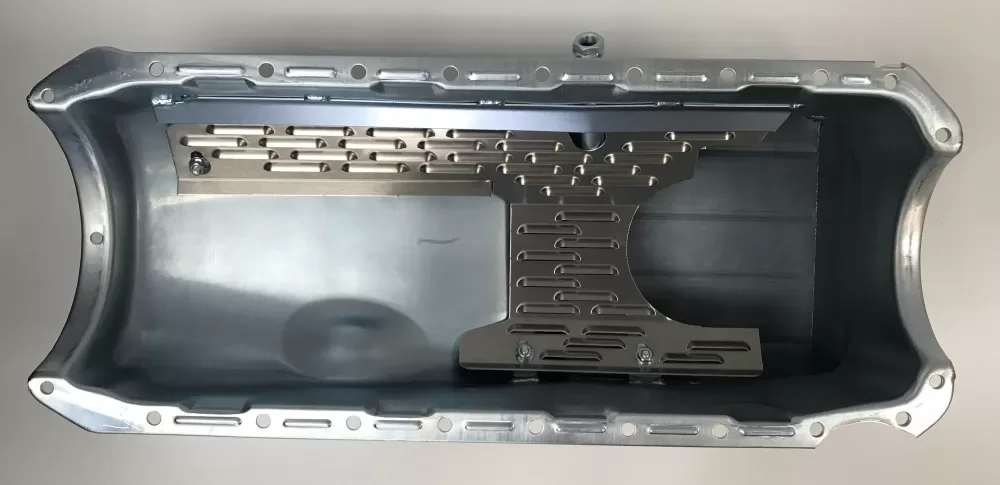

- a louvered windage tray
- a clear zinc finish
This oil pan should fit almost all chassis and header combinations. It will clear a 4 1/4" stroke.
You must use our pickup 208BB.
This oil pan is NOT for Marine use.
Oil capacity: 8 quarts with filter
Use: Street or strip
Dipstick: Use JR130
Starter: Stock or mini-starter
Dimensions: 9 3/8” L x 11" W x 8" H
