Style:
Big Block Chevrolet Mark IV
Dimensions:
7.750 deep
Description:

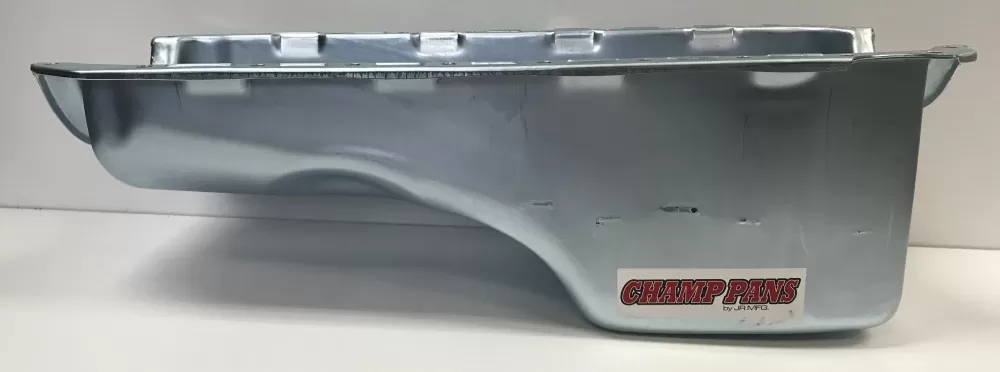

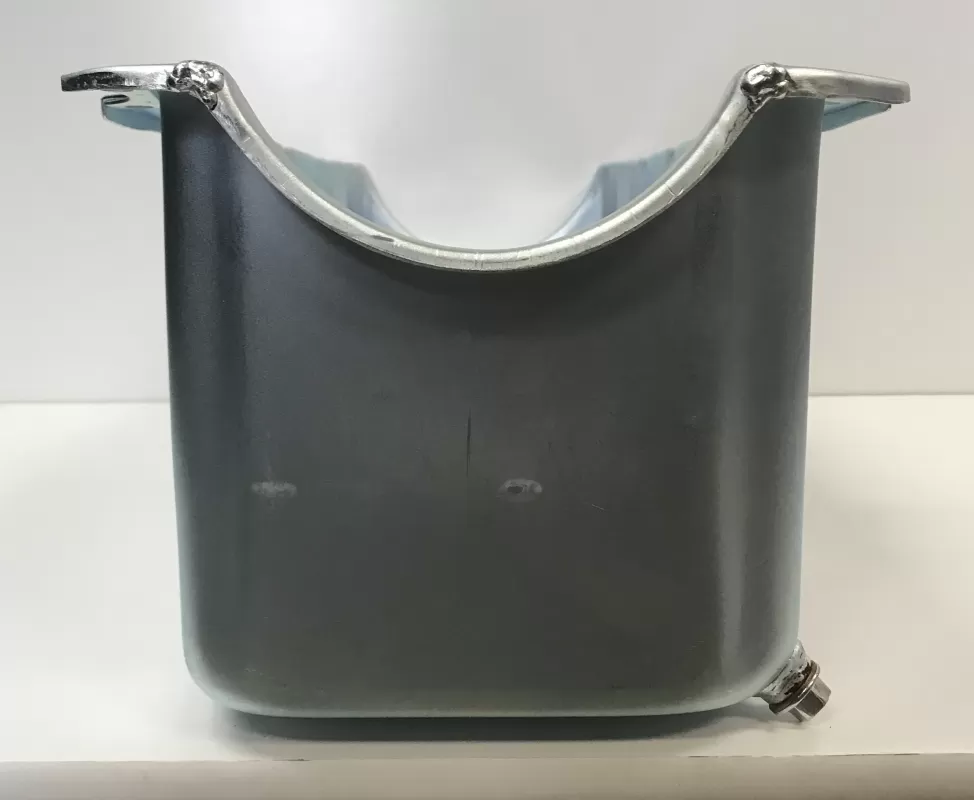

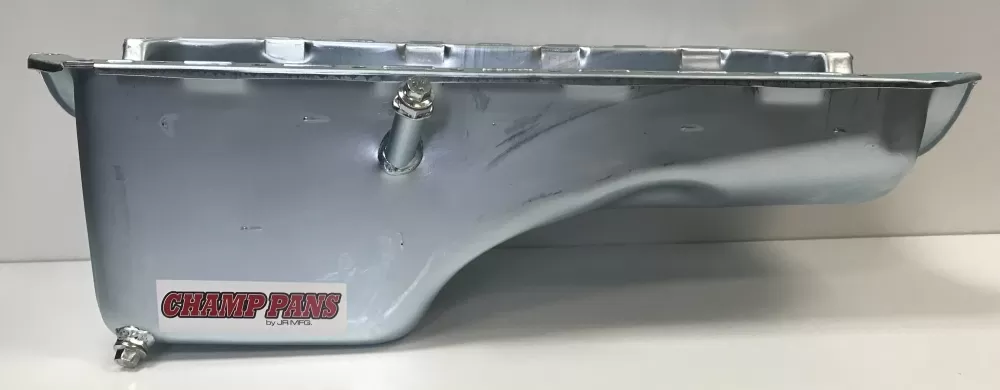

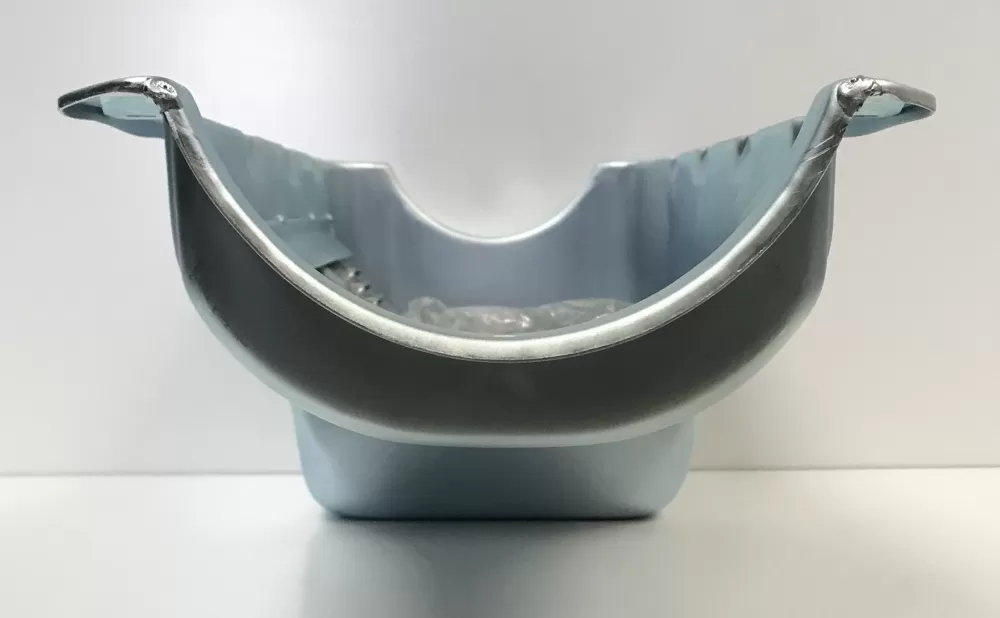

This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a stock core
- one 6" trapdoor
- one crank scraper
- a dipstick provision

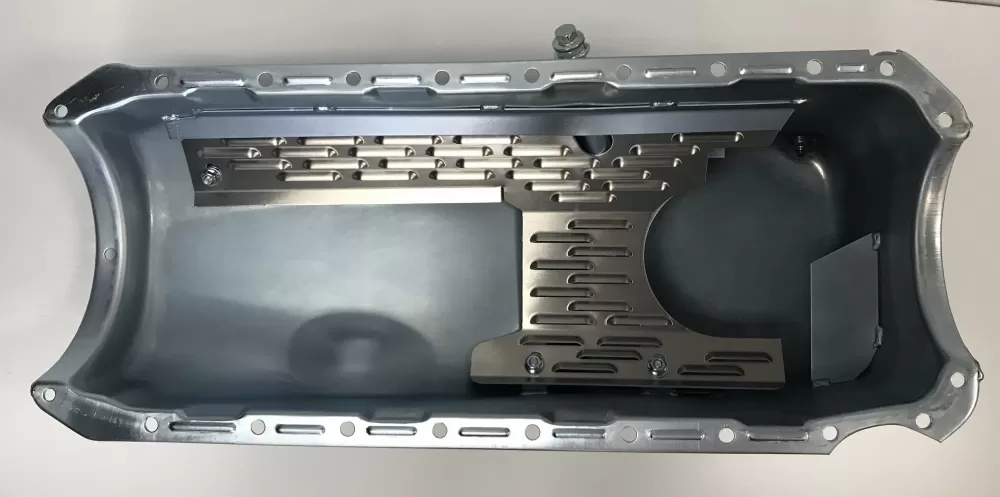

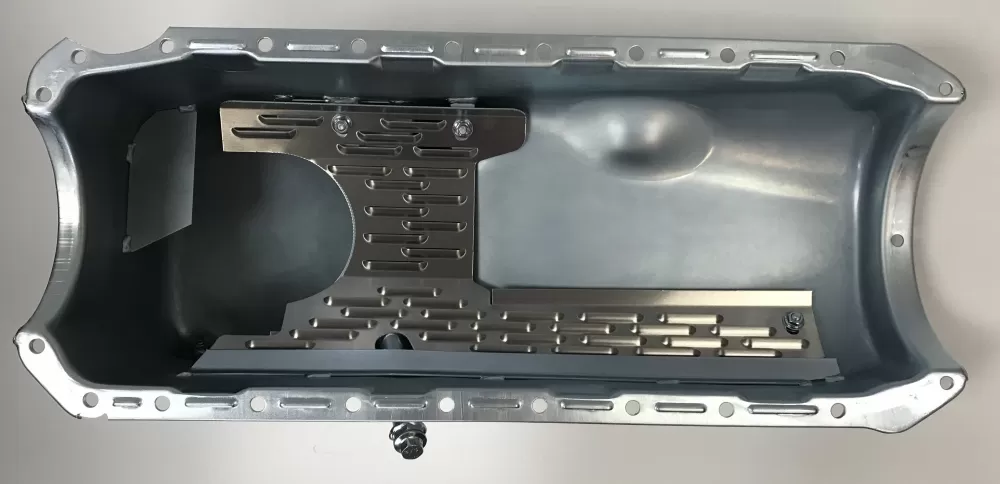

- a removable horsepower saving louvered windage tray
- a clear zinc finish
This oil pan is NHRA approved.
It should fit almost all chassis and header combinations. This oil pan will clear a 4 1/4" stroke.
You can use a stock OEM pickup for street use.
Oil capacity: 6 quarts with filter
Use: Street or strip
Starter: Stock or mini-starter
Dimensions: 7 3/4" deep
