Style:
Big Block Chevrolet Mark IV
Dimensions:
8.000 deep
Description:

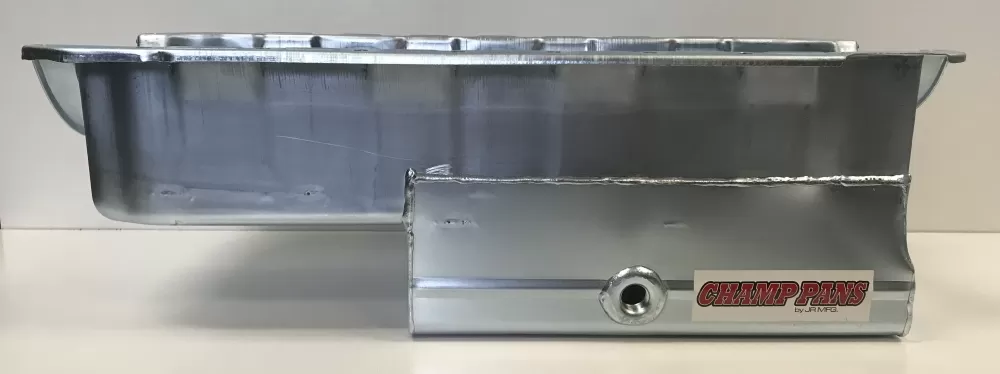

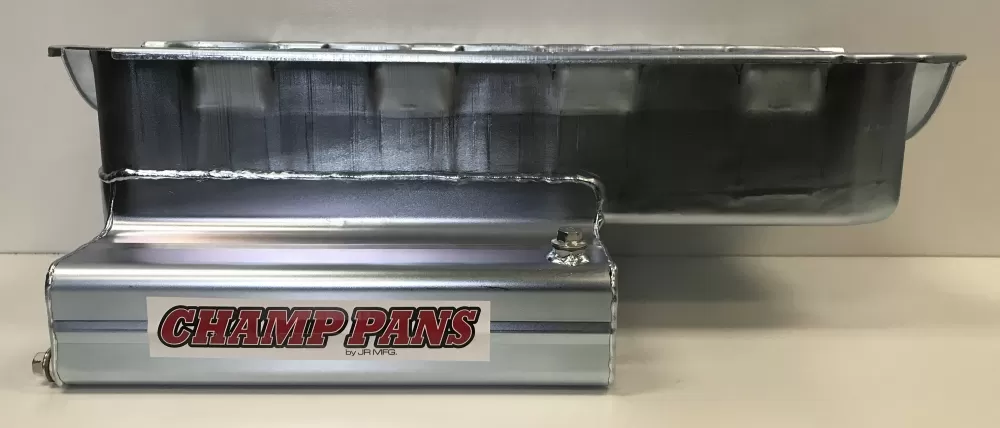

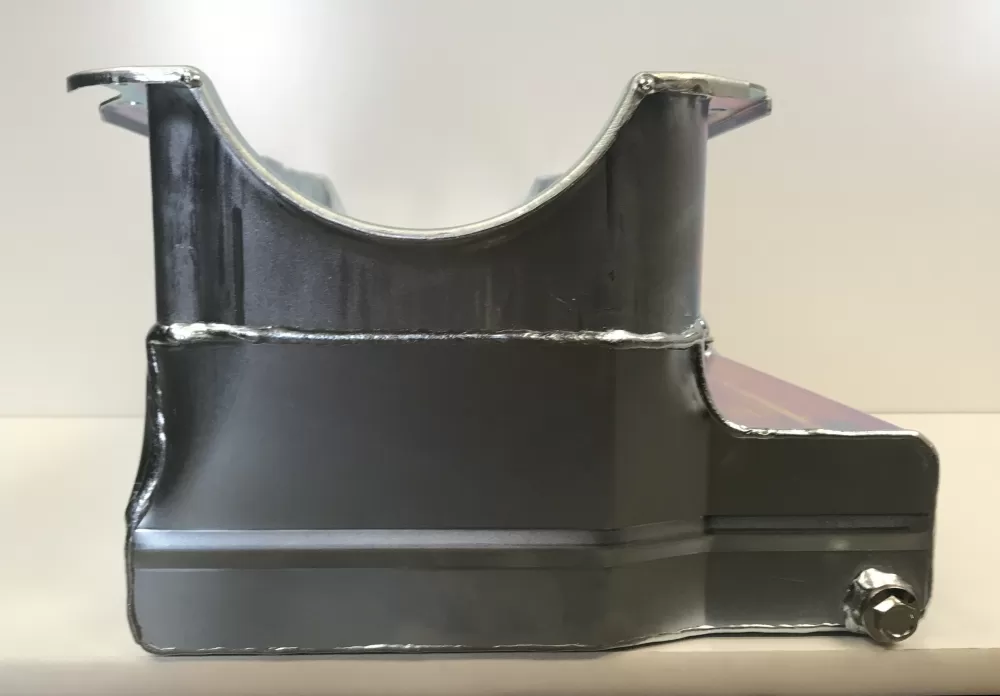

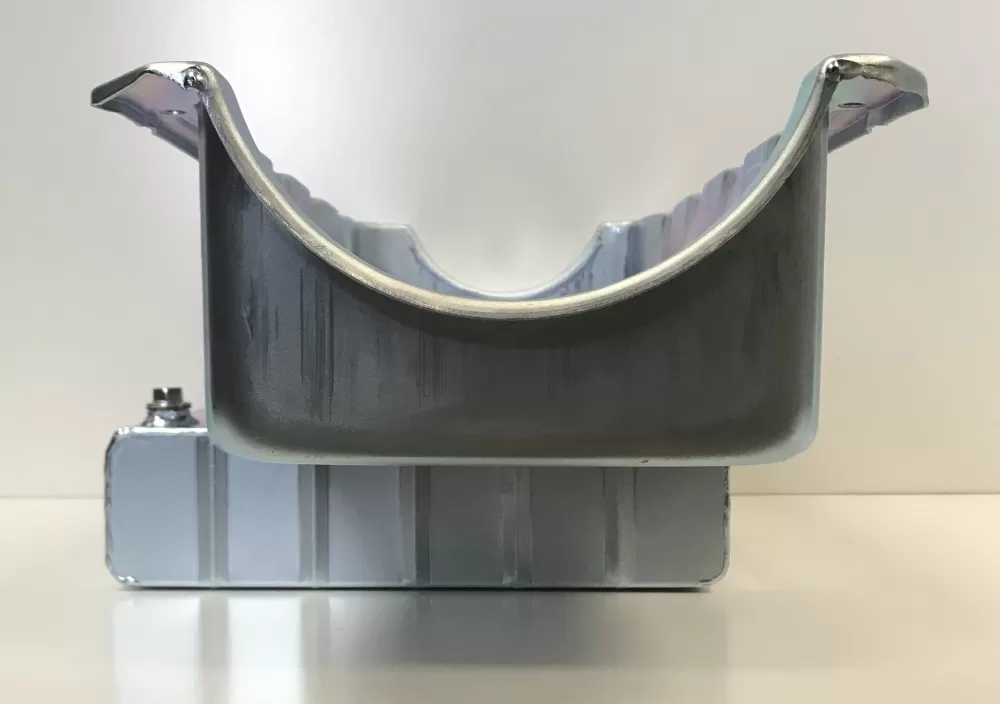

This steel wet sump oil pan is for the Big Block Chevrolet two piece rear main seal Mark IV engines. This oil pan features:
- a stroker core that's 4 3/4" deep in front
- five trapdoors
- one crank scraper
- an oil temp fitting
- an oil check level plug

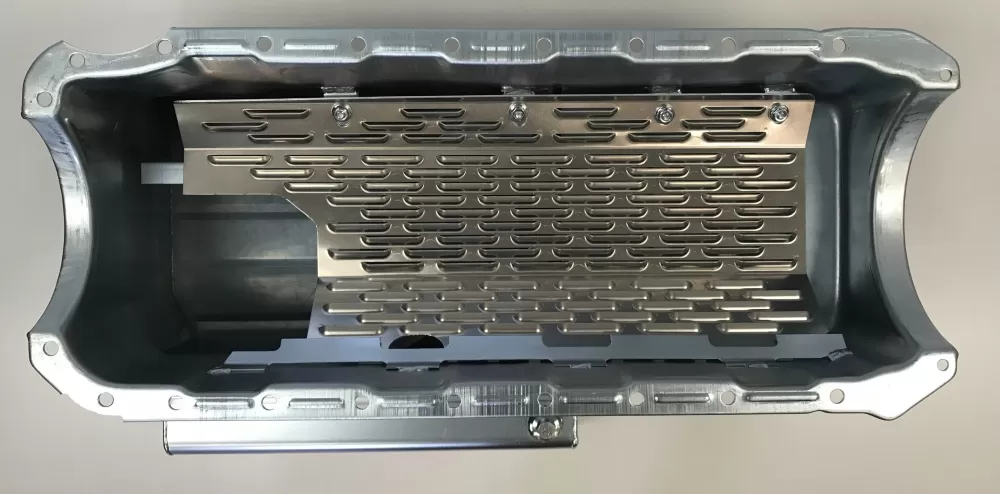

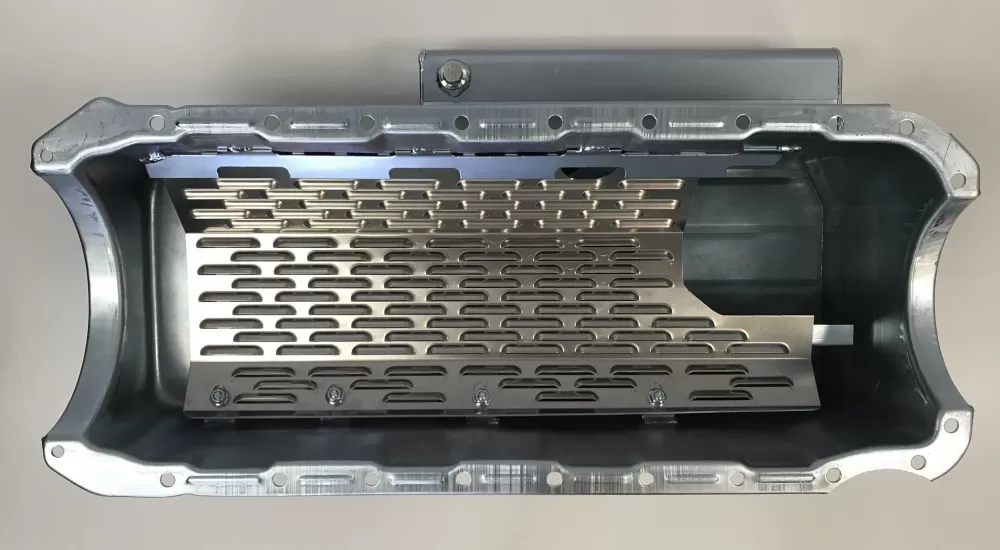

- a louvered windage tray
- a clear zinc finish
Oil capacity: 10 quarts with filter
Use: Circle track
Dipstick: Use JR131
Starter: Stock or mini-starter
Dimensions: 14” L x 12" W x 8" H
