Style:
Small Block Chevrolet 1957-1985
Dimensions:
6.500 deep
Description:

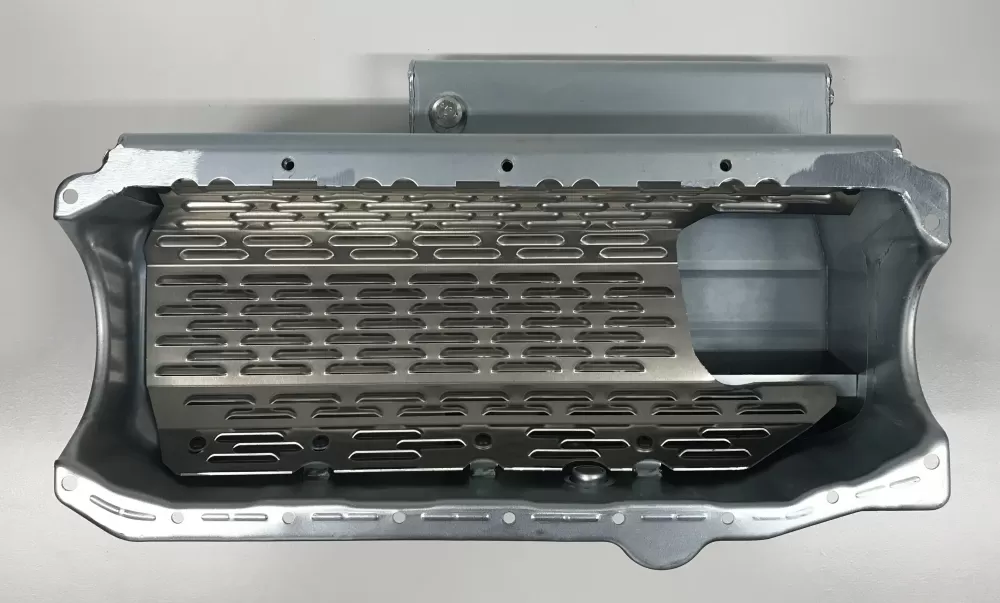

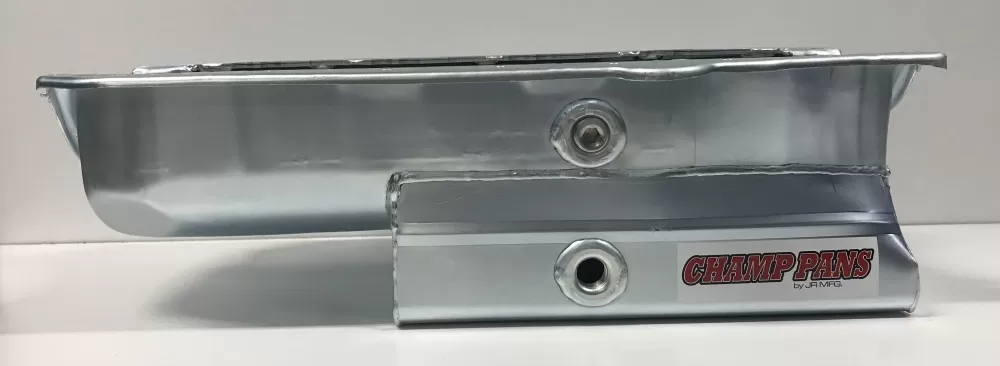

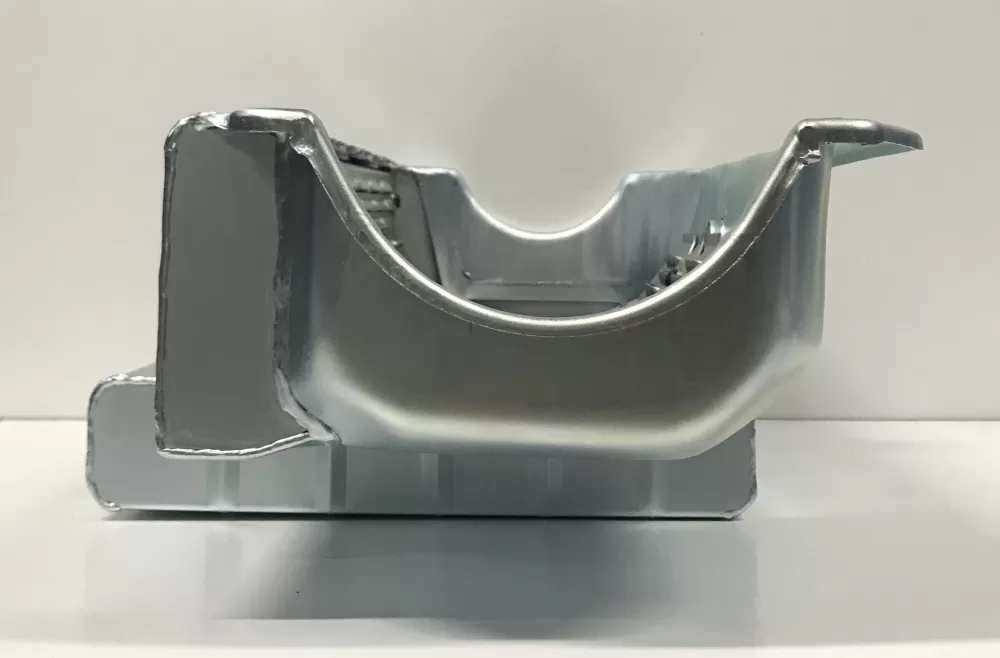

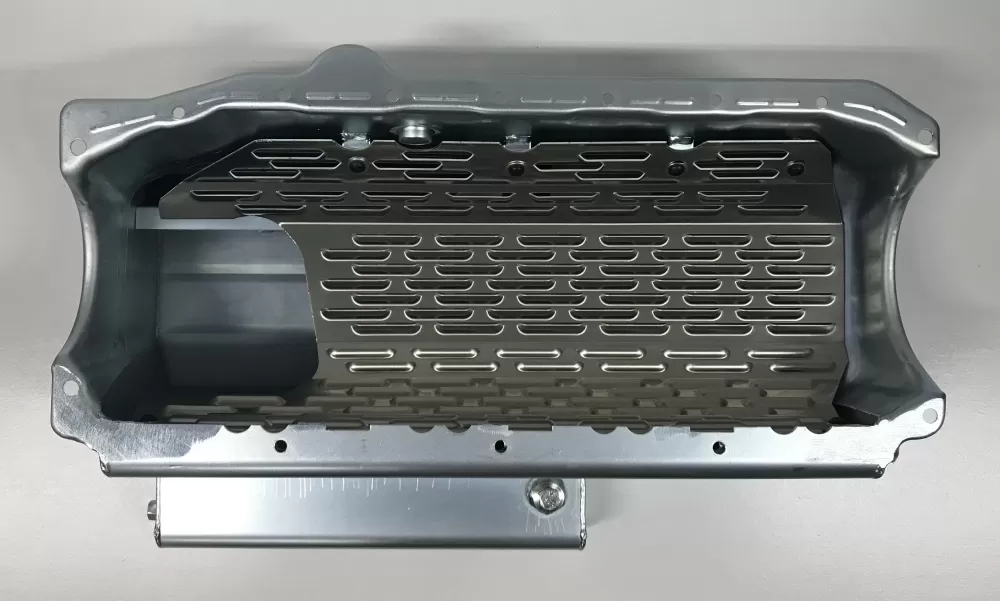

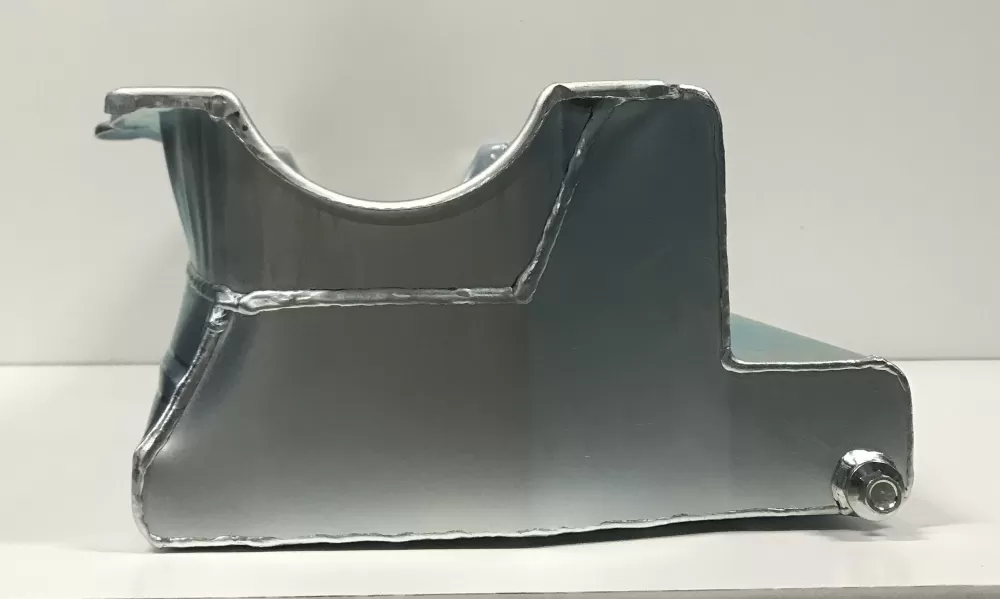

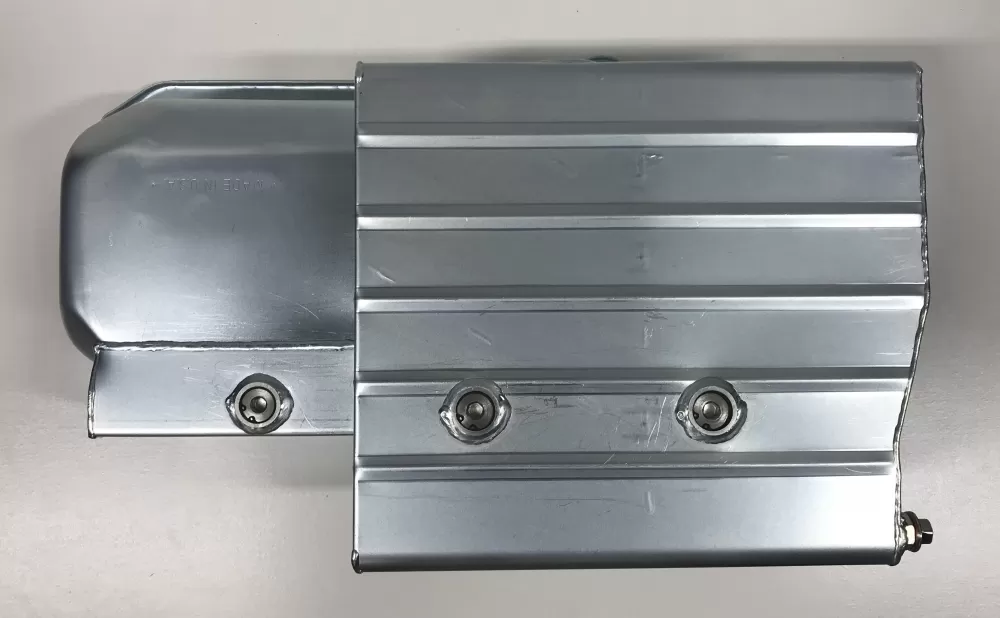

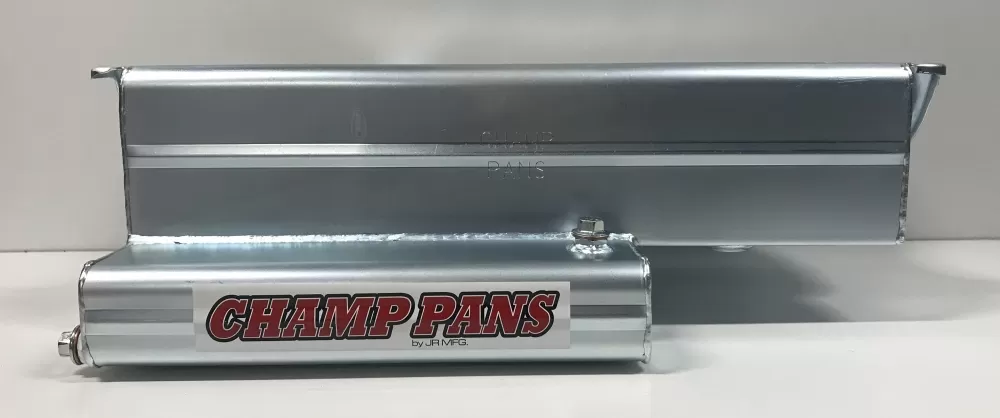

This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- 16 gauge steel
- a kick out on the right side that starts at the pan rail and runs the full length of the pan
- three access holes for the right side pan rail
- six trapdoors
- a louvered windage tray
- a 3/4" inspection hole
- an oil check level plug
- a clear zinc finish
The 1703SB is for the M155 or 10554ST pumps in this oil pan.
Oil capacity: 8 quarts with filter
Use: Asphalt circle track (late model)
Series: Pro
Dipstick: Use JR131
Starter: Mini-starter
Gasket: Thick front seal
Dimensions: 13” L x 11 1/4" W x 6 1/2" H
