Style:
Small Block Chevrolet 1957-1985
Dimensions:
6.500 deep
Description:

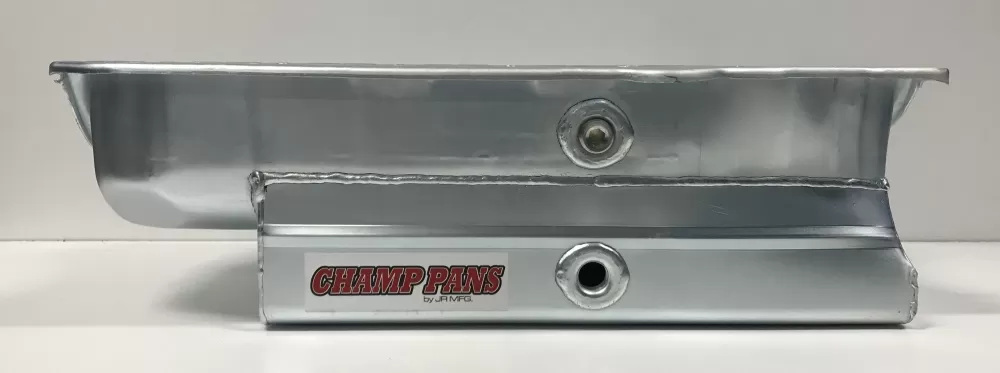

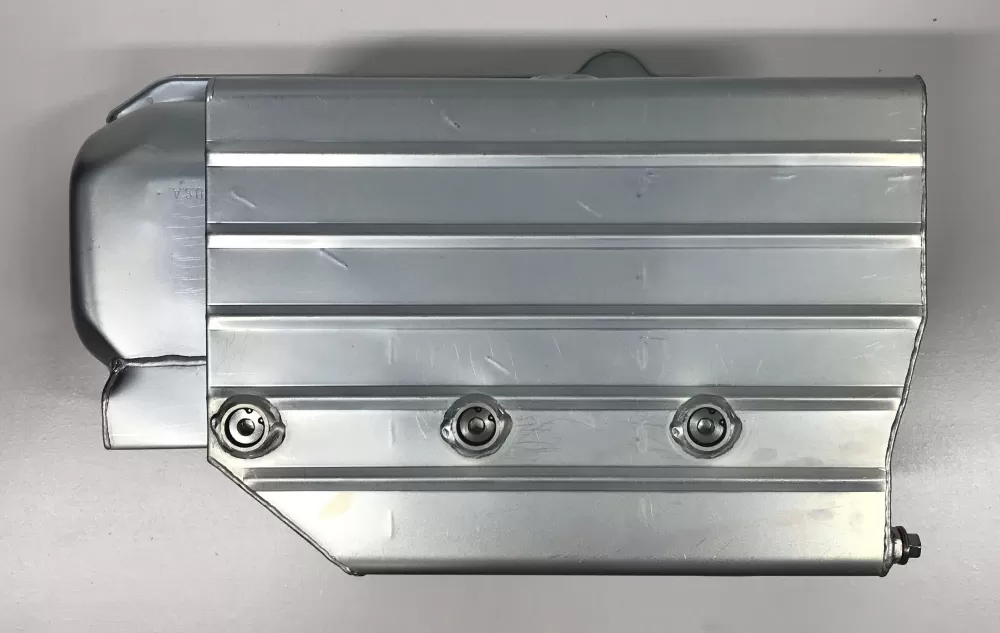

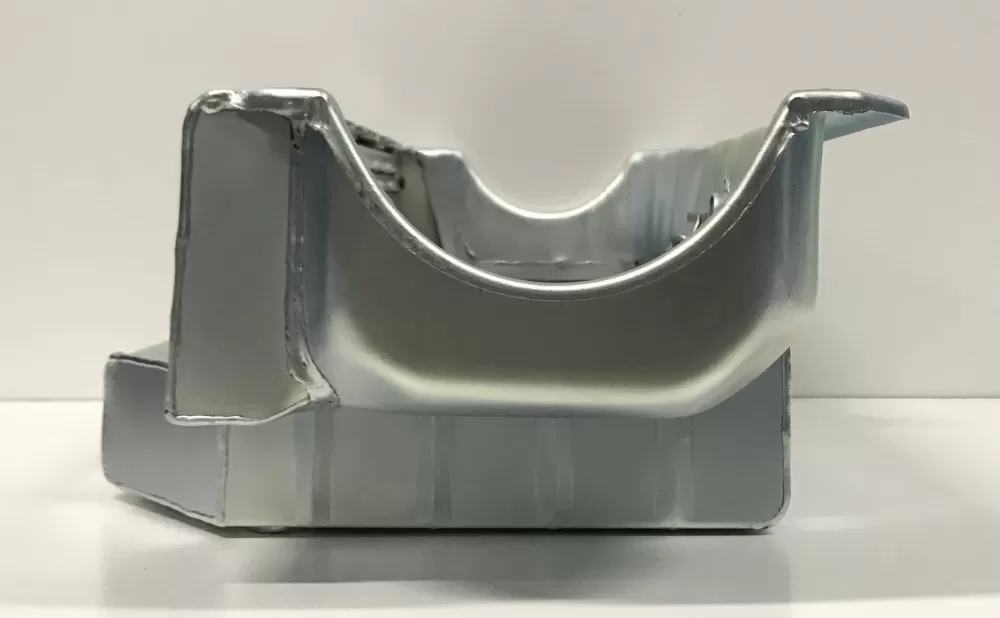

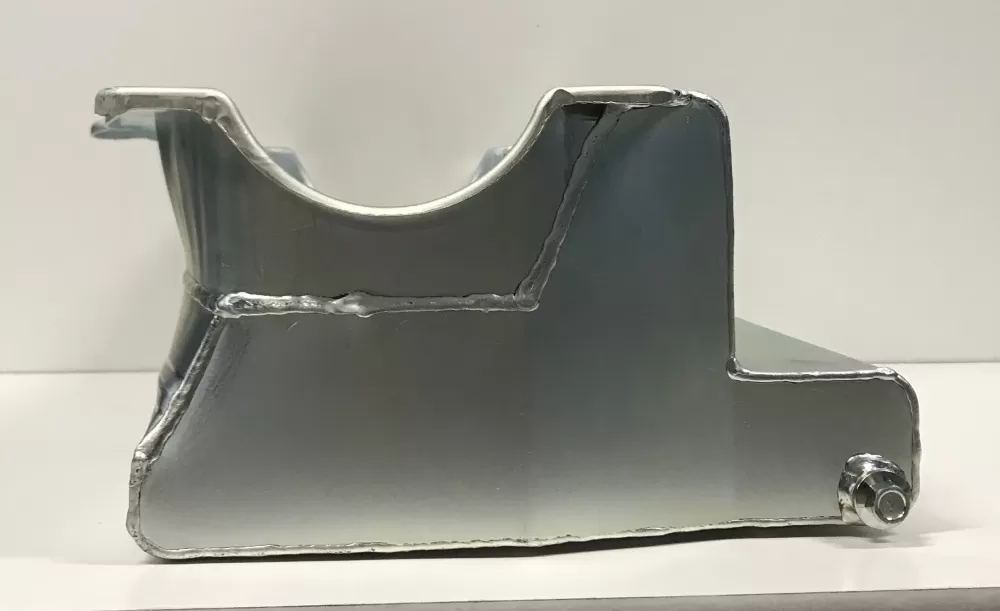

This steel wet sump oil pan is for the Small Block Chevrolet years 1957-1985 with the two piece rear main seal engines. This oil pan features:
- a kick out that goes all the way to the block
- three access plugs on the right side for mounting
- seven trapdoors
- two runners
- a sump tray
- an oil temp sender port
- a 3/4” inspection hole

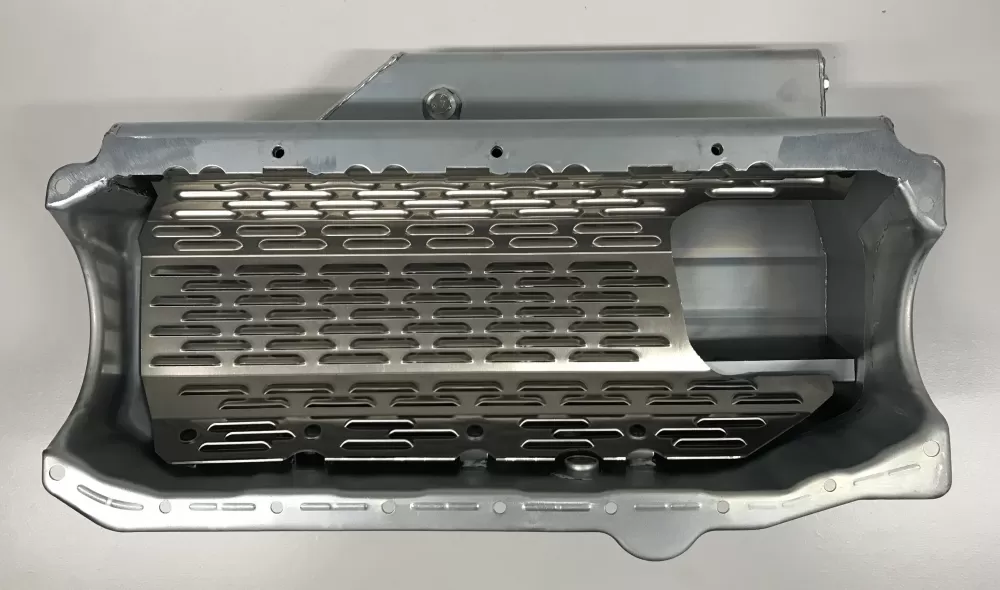

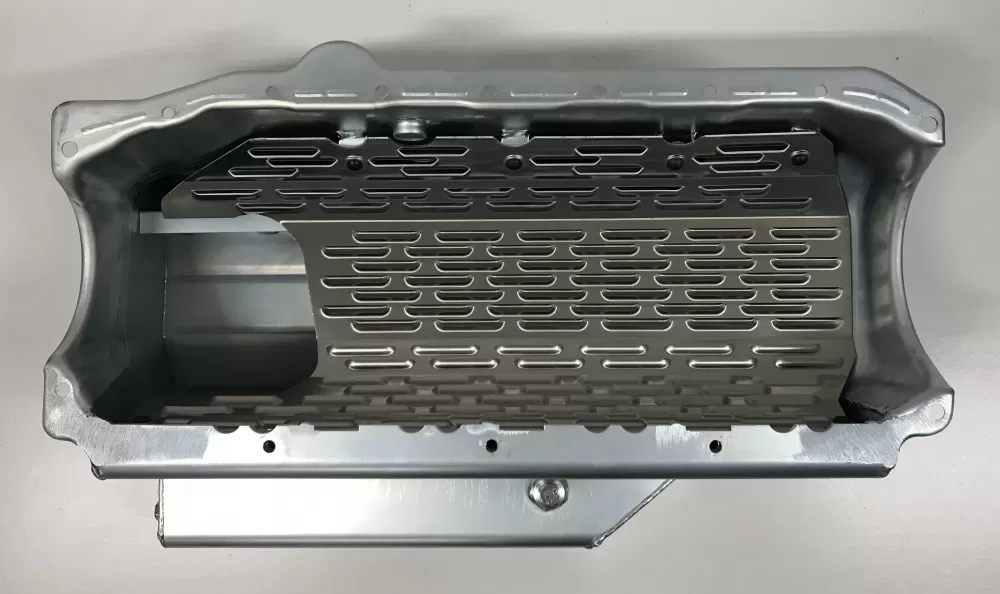

- a removable louvered windage tray that covers 160 degrees of the crank rotation
- a clear zinc finish
This oil pan was designed for race cars that do not have a cross member in the way.
The 1703SB is for the M155 or 10554ST pumps in this oil pan.
Oil capacity: 8 1/2 quarts with filter
Use: Asphalt circle track (late model)
Series: Pro
Dipstick: Use JR131
Starter: Mini-starter for a 168 flywheel
Gasket: Thick front seal
Dimensions: 16 1/2” L x 11 1/4" W x 6 1/2" H
